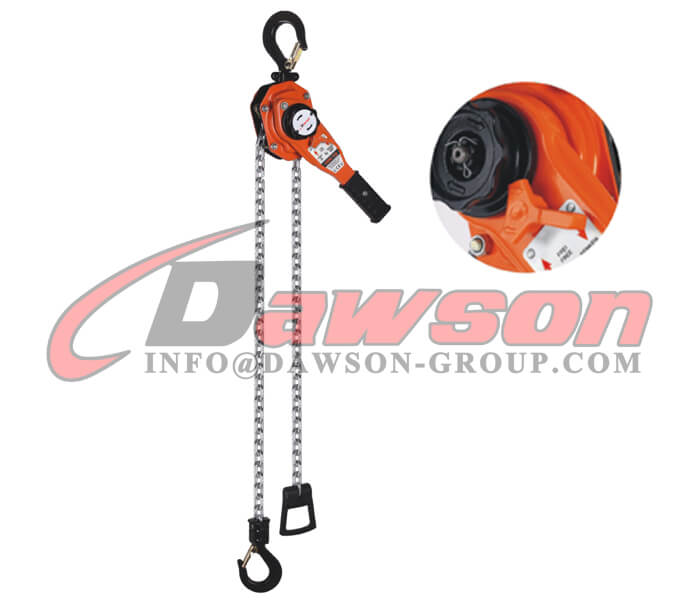

DS-DX 0.75T 0.8T 1T 1.5T 1.6T 3T 3.2T 6T 9T Hand Lever Hoist with Lifting Chain, Manual Lever Block
750kg 800kg 1000kg 1500kg 1600kg 3000kg 3200kg 6000kg 9000kg Construction Lifting Equipments
-Dawson Group Ltd. - China Manufacturer, Supplier, Factory
| Model | DS-DX075 | DS-DX080 | DS-DX100 | DS-DX150 | DS-DX160 | DS-DX300 | DS-DX320 | DS-DX600 | DS-DX900 | |
| Rated weight(kg) | 750kg | 800kg | 1000kg | 1500kg | 1600kg | 3000kg | 3200kg | 6000kg | 9000kg | |
| Standard Lifting Height(m) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
| Number of chain lines | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 3 | |
| Full Load when the hand force(N) | 220 | 225 | 240 | 240 | 250 | 330 | 340 | 360 | 380 | |
| Test load(kg) | 1125 | 1200 | 1500 | 2250 | 2400 | 4500 | 4800 | 9000 | 13500 | |
| Lifting chain specifications(mm) | 5.6×17 | 6×18 | 6×18 | 7.1×21 | 7.1×21 | 9×27 | 9×27 | 9×27 | 9×27 | |
| Net weight(kg) | 5.3 | 5.6 | 5.6 | 8.6 | 8.6 | 15.2 | 15.2 | 23 | 43 | |
| Pack weight(kg) | 5.6 | 5.9 | 5.9 | 8.9 | 8.9 | 15.6 | 15.6 | 23.5 | 44.5 | |
| Package size(cm) | 31.5×16×12 | 31.5×16×12 | 31.5×16×12 | 35×18×13 | 35×18×13 | 48×20×13.5 | 48×20×13.5 | 48×21.5×17 | 53×28×25 | |
| Weight for each additional 1 m (kg/m) | 0.7 | 0.77 | 0.77 | 1.1 | 1.1 | 1.8 | 1.8 | 3.6 | 5.4 | |

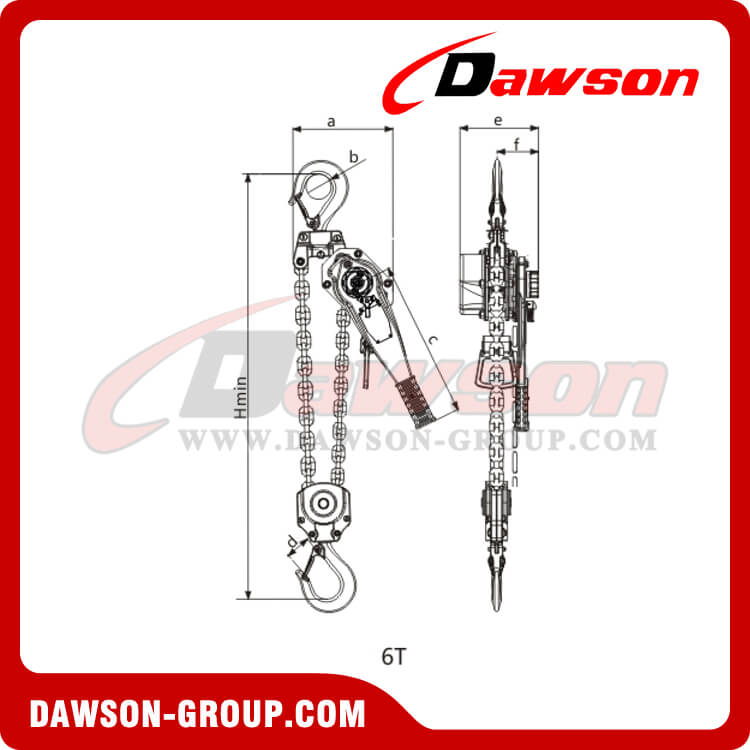

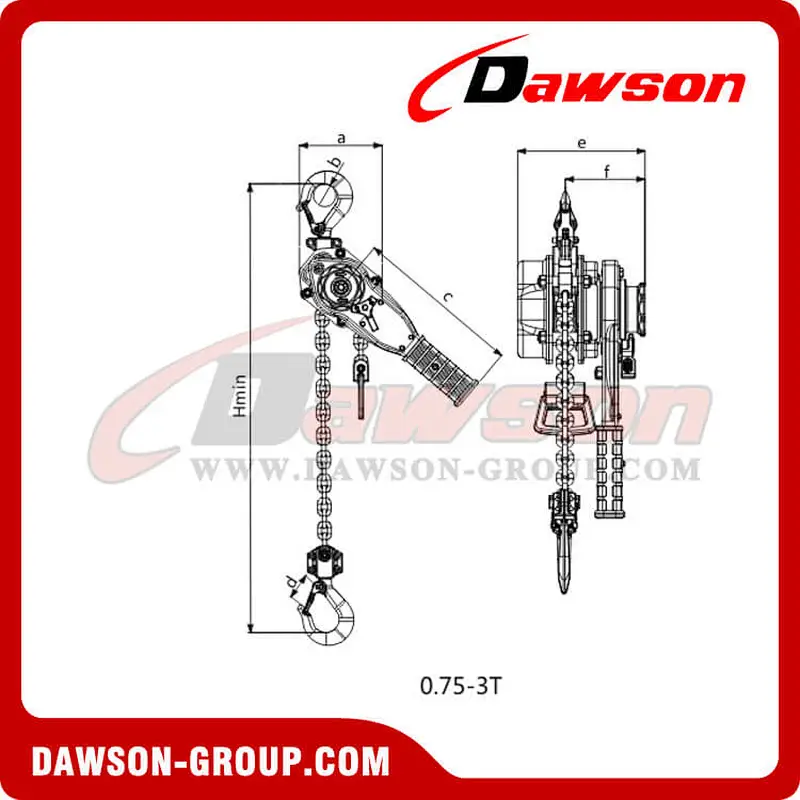

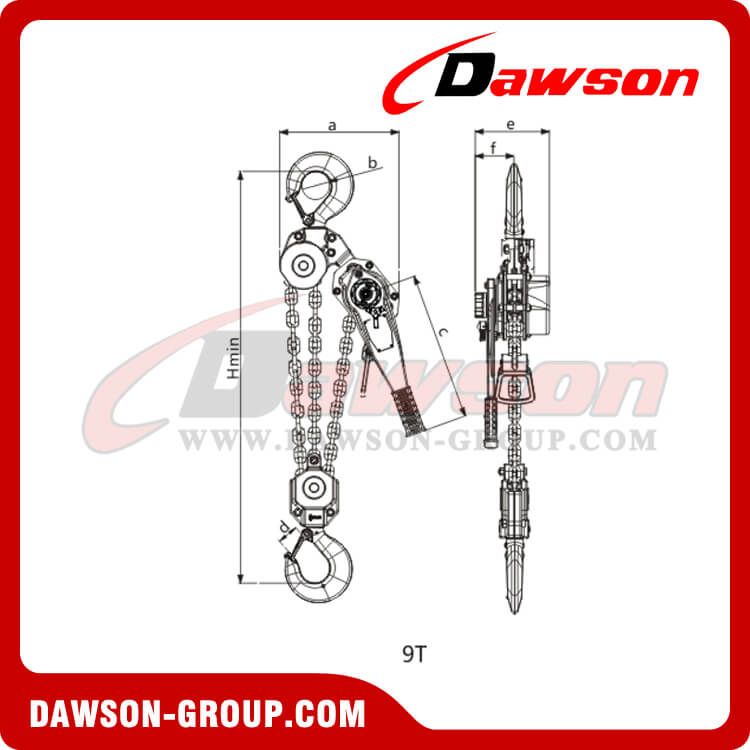

| Size | a | 115 | 115 | 115 | 137 | 137 | 169 | 169 | 238 | 300 |
| b | 39 | 39 | 44 | 44 | 44 | 60 | 60 | 68 | 91 | |
| c | 239 | 239 | 239 | 259 | 259 | 374 | 371 | 374 | 374 | |
| d | 28 | 28 | 30 | 32 | 34 | 41 | 41 | 47 | 61 | |
| e | 146 | 146 | 146 | 162 | 162 | 187 | 187 | 187 | 187 | |
| f | 91 | 91 | 91 | 67 | 67 | 98 | 98 | 98 | 98 | |
| Hmin | 320 | 320 | 320 | 360 | 360 | 431 | 431 | 500 | 635 | |
Rated weight of 750-9000kg
This series of new lever hoist as an essential tool in the industrial business and service widely used.
The gourd is very light weight, the design is very compact, even in the limited working environment can also be easily used.
Product Features:
1、Hanging device and load hooks made of anti-aging, high-strength alloy steel, when in the case of overload the case will first be deformed without sudden breakage.
2、Hook with a solid safety lock, free rotation 360 °.
3、In line with the design of the human body of the handle so that the gourd easy to operate.
4、Closed design can protect the internal parts components from pollution.
5、All components of the disc-type load brakes are made of high-quality materials, and anti-corrosion.
Use of environmental conditions:
Operating temperature range:-40℃ to +60℃.
Use of the environment: Please use below 100% RH, can not be used in water.
Use of materials: no use of anti-spark material or asbestos and other special materials.
Do not overload use.
Application:
Lever hoist is a kind of portable and versatile hand-operated loading and pulling appliance, which is capable of being applied in electricity, mines, ship-buildings, construction sites, transports and telecommunication for installing equipment, lifting goods, pulling mechanical parts, bulk strapping and fastening, tightening fittings of wires, assembling and welding etc. It has exceptional advantages particularly for pulling in every limited narrow places in the upper air high above the ground and at any angles.

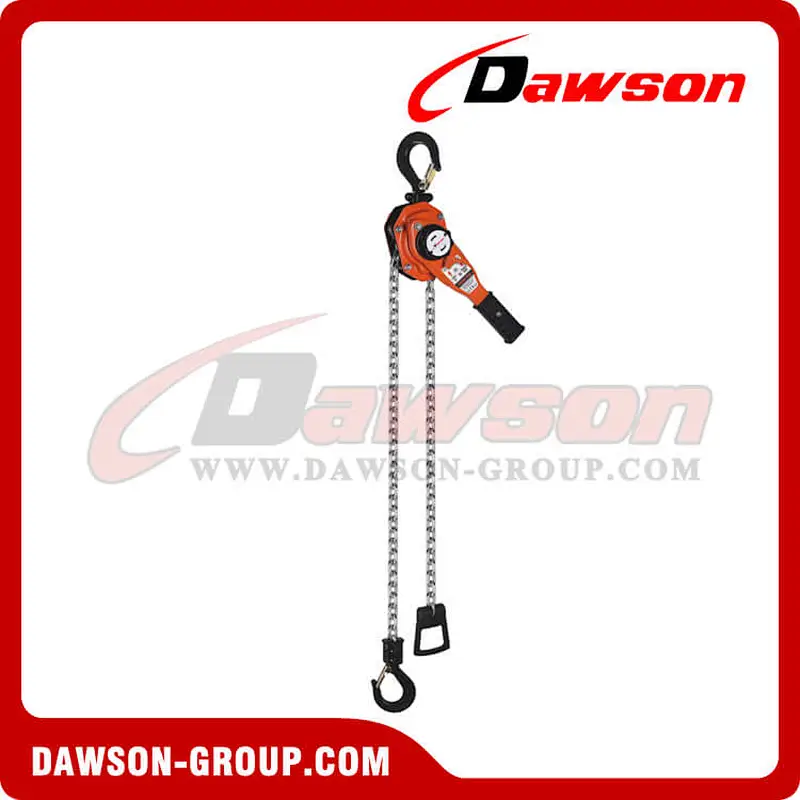

Products Show:
Welcome to buy the newest and competitive price DAWSON DS-DX Hand Lever Hoist with Lifting Chain from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
For further information, please contact us. Email:info@dawson-group.com
Hot Tags: Ratchet Handle Lever Block, High Quality Lever Hoist, Customized Ratchet Handle Lever Block, Ratchet Handle Lever Block in Stock, Bulk Ratchet Handle Lever Block, Ratchet Handle Lever Block Free Sample, Ratchet Handle Lever Block Brands, Ratchet Handle Lever Block China, Ratchet Handle Lever Block Manufacturers China, Ratchet Handle Lever Block Suppliers China, 0.75T Lever Block, 750kg Manual Lever Hoist, 1600kg Lever Hoist for Lifting, 1.6T Manual Lever Block, 0.8T Lever hoist for ship-buildings, 800kg Lever block for electricity, 1500kg Ratchet Handle Lever Block, 3.2Ton Ratchet Hand lever Hoist for mines, 1.5Ton Lifting Hoist, 3200kg Handle Lifting Tools, 3000kg Lever Block for lifting goods, 6000kg Lever hoist for construction site, 6Ton manual lever block for transport, 9ton manual lifting hoist, 9000kg lifting tools

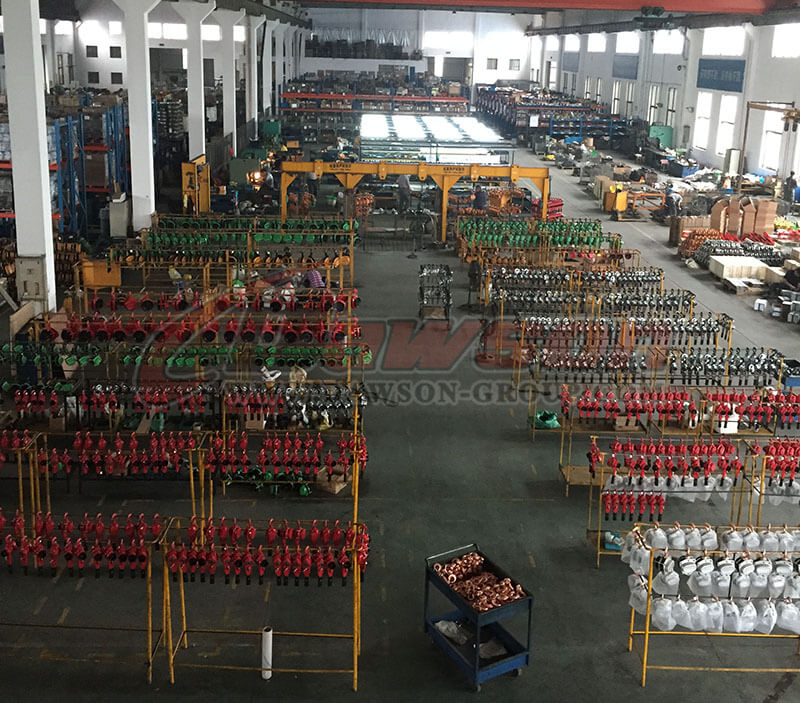

Factory and packaging:
