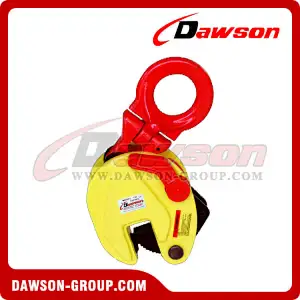

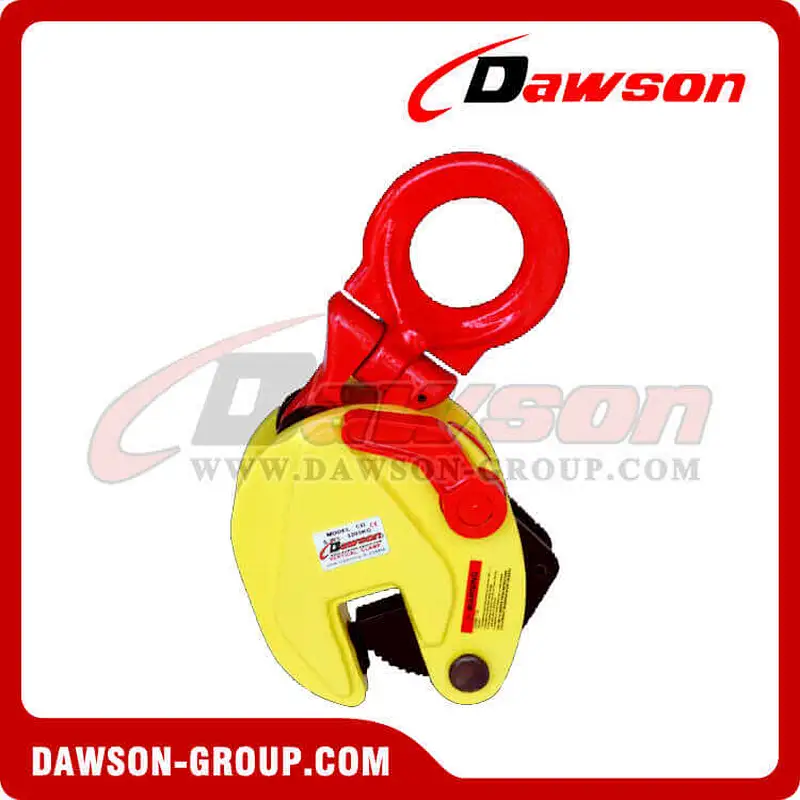

DS-CD Type Universal Plate Clamp for Lifting and Transporting Steel Plates
DS-CD Type Universal Plate Clamp for Lifting and Transporting Steel Plates
DS-CD Type Universal Plate Clamp for Lifting and Transporting Steel Plates
DS-CD Type Universal Plate Clamp for Lifting and Transporting Steel Plates
DS-CD Type Universal Plate Clamp for Lifting and Transporting Steel Plates

DS-CD Type Universal Plate Clamp for Lifting and Transporting Steel Plates

Model NO.
DS-CD Type Universal Plate Clamp for Lifting and Transporting Steel Plates
Quantity:

DS-CD Type Universal Plate Clamp for Lifting and Transporting Steel Plates

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Working load limit(WLL)0.8-30T

Use:

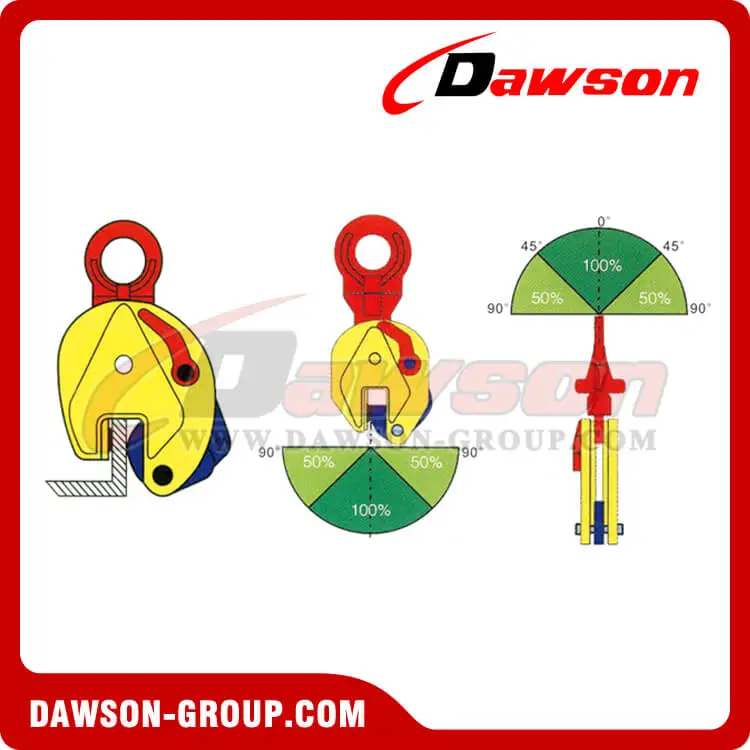

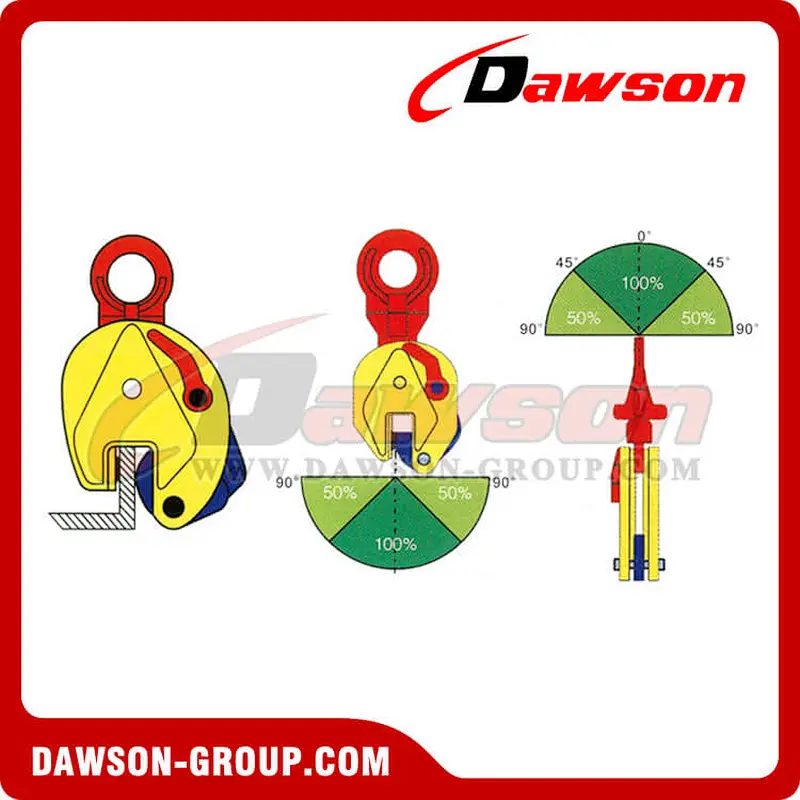

● For lifting and transporting of steel plates and structures from all positions (horizontal, vertical and sidelong).

● Articulated lifting shackle(CD type).

● Clamps are equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered.

●The clamp is locked in closed as well as in open position.

●Manufactured  from high quality carbon steel

Part No.ModelWLL (tonnes)Jaw Opening(mm)Weight(kg)
DS-0001DS-CD0.80.80-152
DS-0002DS-CD11.00-154
DS-0003DS-CD1(B)1.00-205
DS-0004DS-CD1.61.60-207
DS-0005DS-CD22.00-258
DS-0006DS-CD3.23.20-2515
DS-0007DS-CD3.2(B)3.20-3015
DS-0008DS-CD55.00-3021
DS-0009DS-CD5(B)5.00-5023
DS-0010DS-CD88.00-4537
DS-0011DS-CD1212.050-9050
DS-0012DS-CD1616.060-10065
DS-0013DS-CD3030.080-220120

Welcome to buy the newest and cheap DAWSON universal plate clamp for lifting and transporting steel plates from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.

Safety lifting

● The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37  HrC (345HB,1166 N/mm²).

● The lifting clamps are suitable for usage in normal atmospheric conditions, between -40℃ and +100℃

● Never overload a clamp and prevent the jerking of loads.

● When loading always use the whole jaw depth.

● Never lift more than one plate at the same time.

● Always keep your distance during lifting and descending of a load.

● Prevent situations that anybody is under the load.

● Any welding to the clamp is forbidden, this can influence the hardness and toughness of the clamp.

 For further information, please contact usEmail:info@dawson-group.com

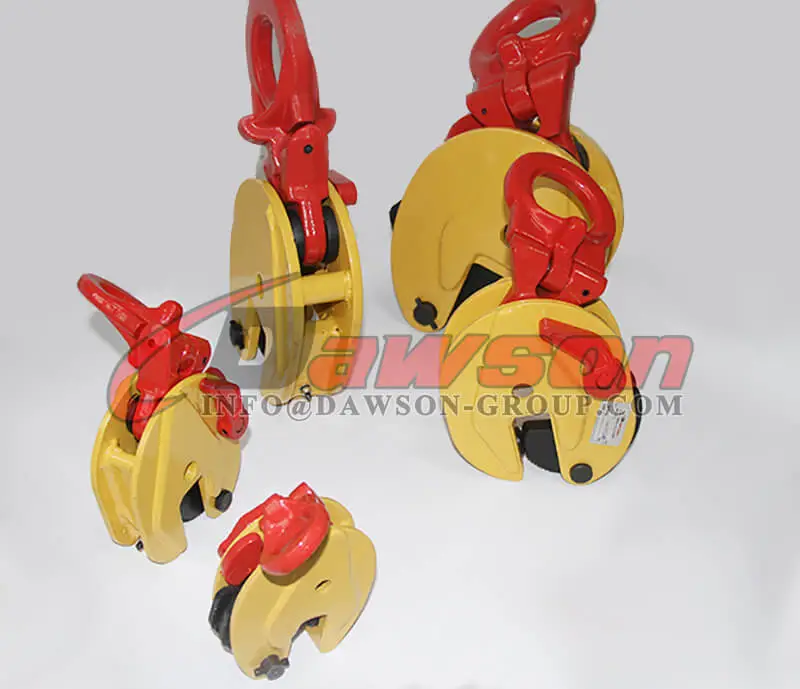

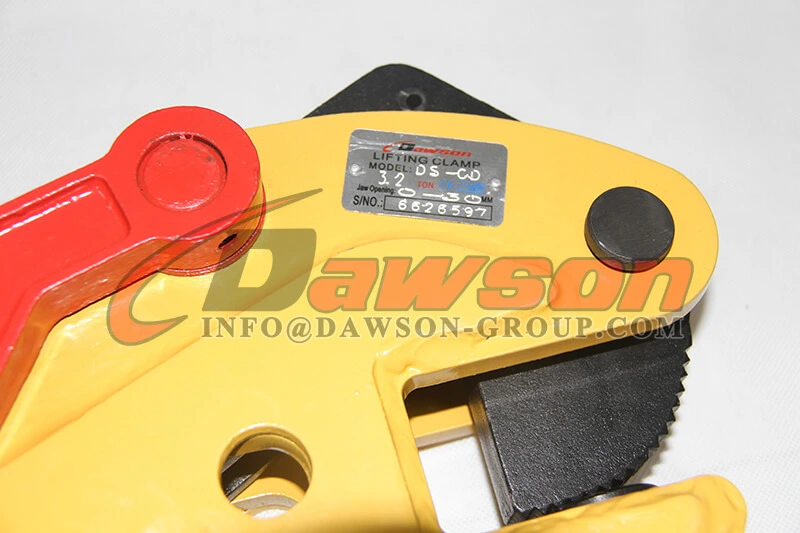

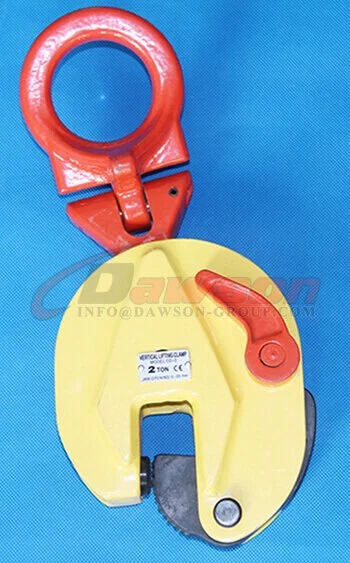

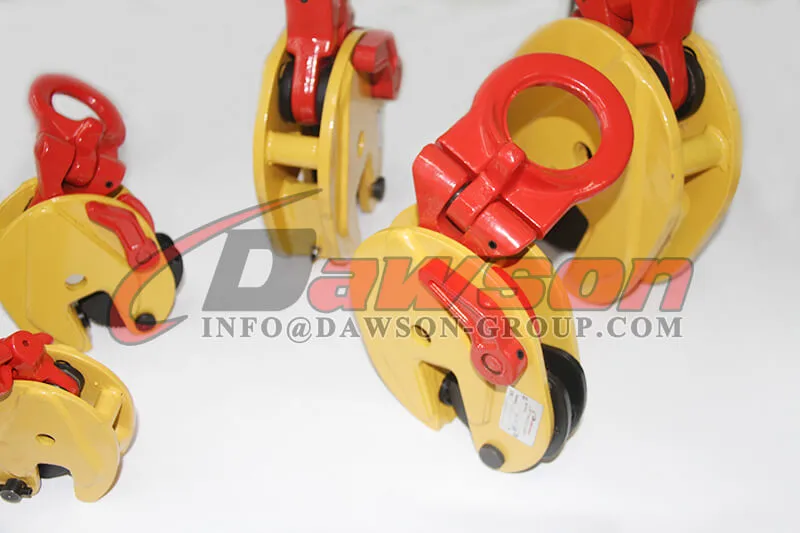

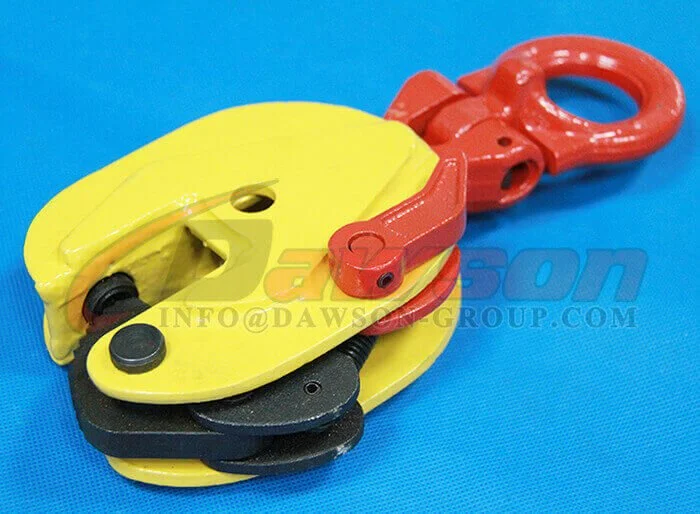

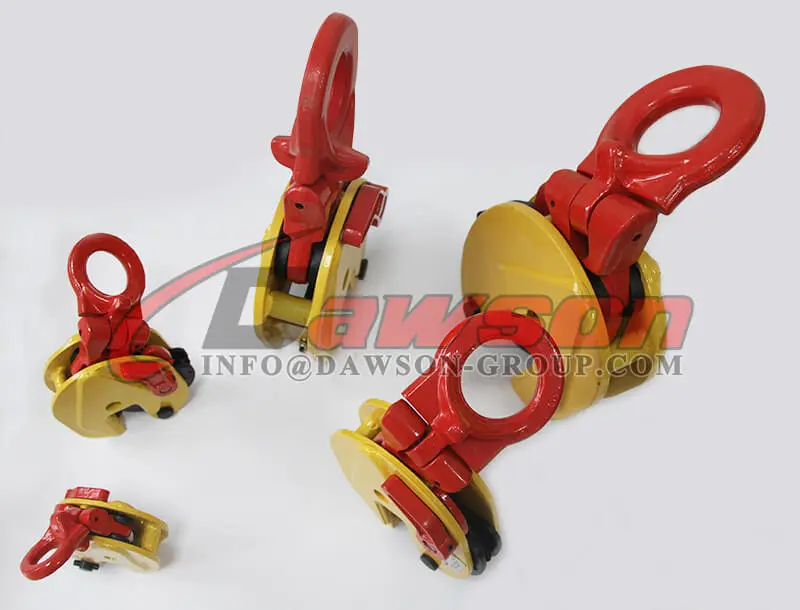

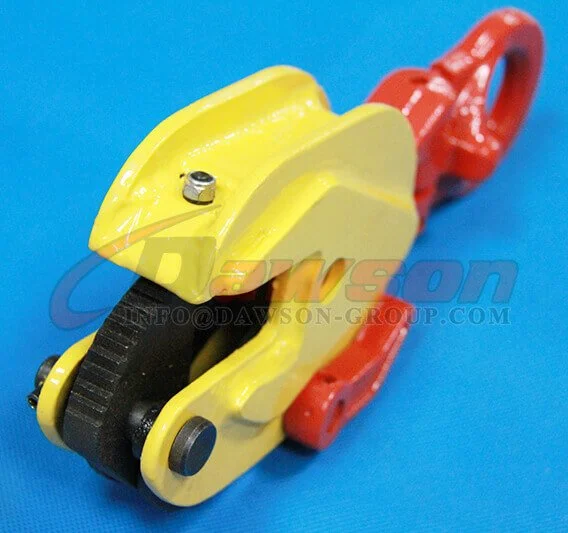

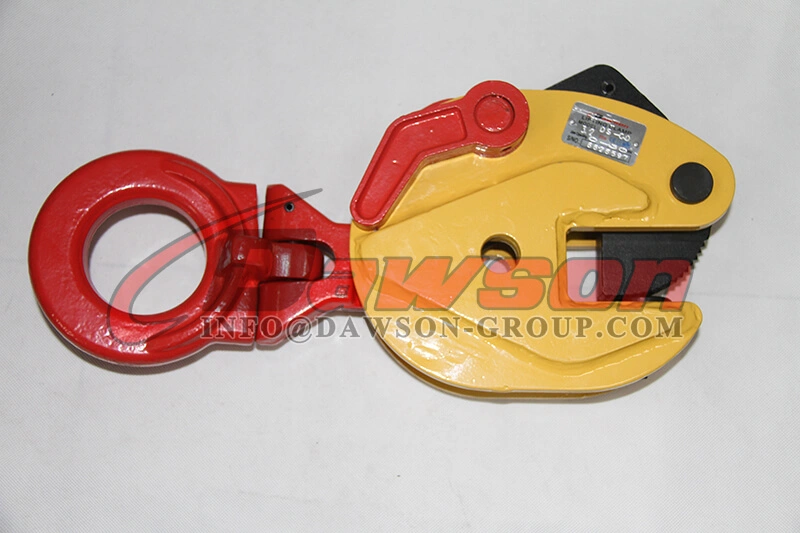

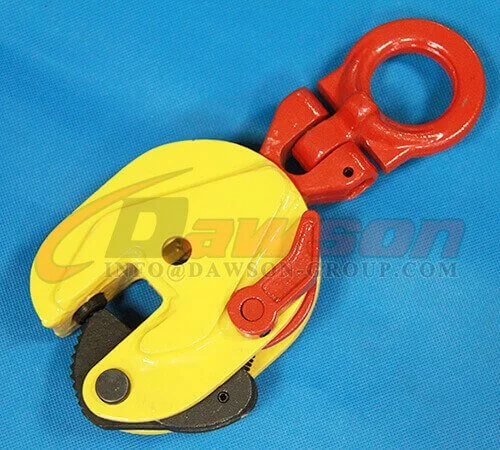

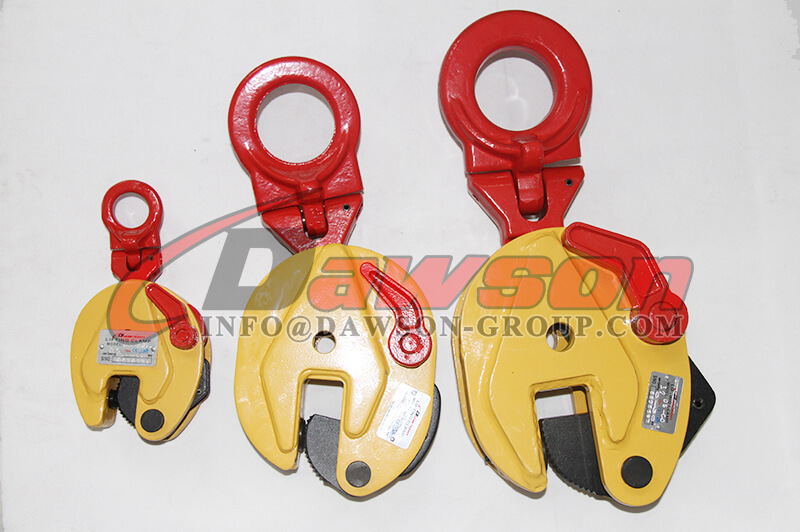

Product Show:

Hot Tags: Universal Plate ClampVertical Plate ClampHorizontal Lifting ClampLifting Plate ClampSteel Plate Clamp for LiftingChina Steel Plate Lifting Clamp SupplierWholesale Vertical Plate ClampHot Sale Steel Plate ClampPlate Lifting Clamp FactoryVertical Plate Lifting Clamp ManufacturerSteel Plate Clamp Factory ChinaChina Exporter Lifting Clamp for Steel PlateCheap Price Lifting ClampLow Price Horizontal Plate ClampDawson Brands Plate Lifting ClampUniversal Plate Lifting Clamp In StockLifting Clamp for Steel Plate Free SampleUniversal Plate Lifting Clamp OEMBuy Discount Vertical Plate Lifting ClampCustomized Steel Plate Lifter Clamp

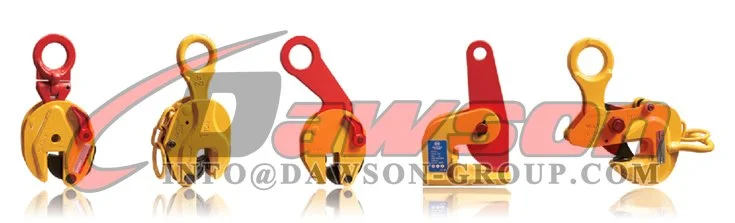

Other Related Products:

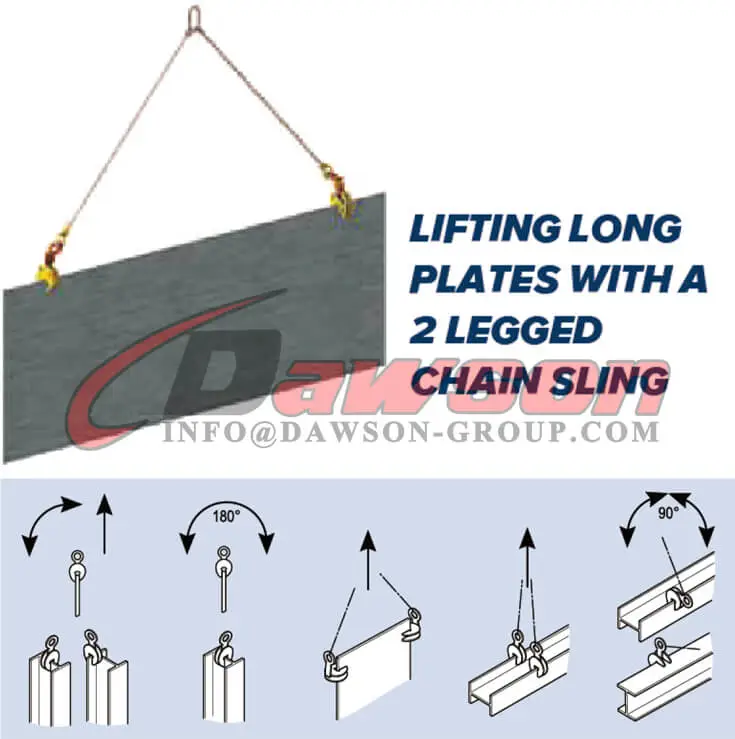

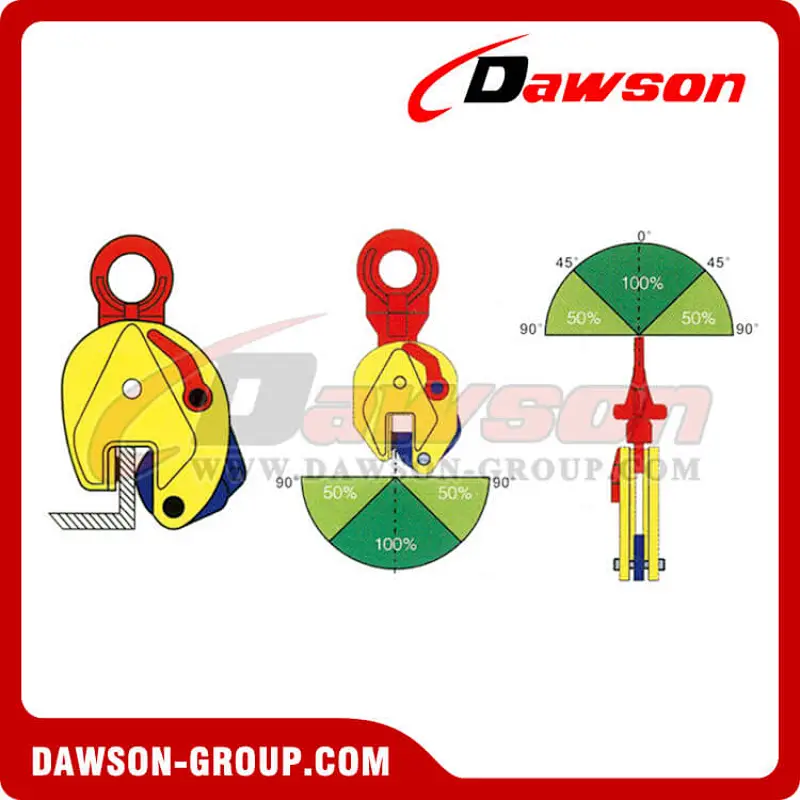

Application of Universal Plate Clamps:

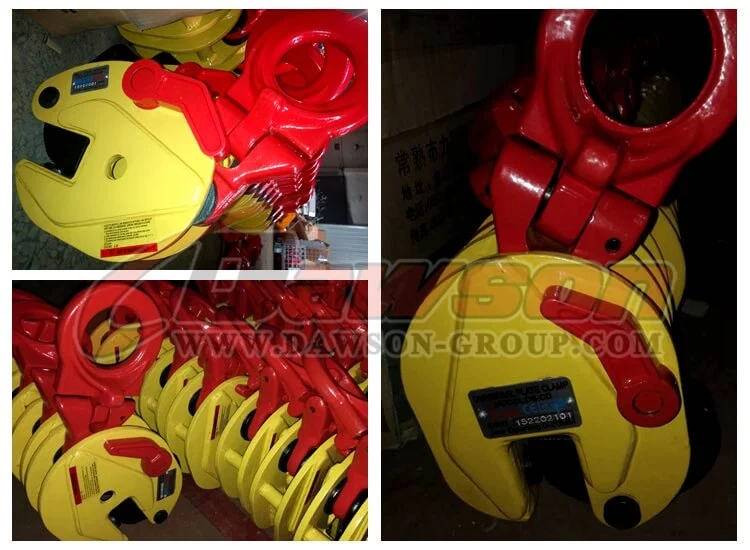

Factory & Package Show:
