Model NO.
DS-DH
Quantity:

DAWSON New Hand Plate Lever Hoist Lever Block, Manual Lever Hoist, Manual Lever Block for Electricity
Ratchet Lever Hoist for Mines, Lever Block for Tightening

Dawson Group Ltd. - China Manufacturer, Supplier, Factory

ModelDS-DH0075DS-DH008DS-DH010DS-DH015DS-DH016DS-DH030DS-DH032DS-DH060DS-DH090
Rated weight(kg)750kg800kg1000kg1500kg1600kg3000kg3200kg6000kg9000kg
Standard Lifting Height(m)1.51.51.51.51.51.51.51.51.5
Number of chain lines111111123
Full Load when the hand force(N)220225240240250330340360380
Test load(kg)1125120015002250240045004800900013500
Lifting chain specifications(mm)5.6×176×186×187.1×217.1×219×279×279×279×27
Net weight(kg)5.35.65.68.68.615.215.22343
Pack weight(kg)5.65.95.98.98.915.615.623.544.5
Package size(cm)31.5×16×1231.5×16×1231.5×16×1235×18×1335×18×1348×20×13.548×20×13.548×21.5×1753×28×25
Weight for each additional 1 m (kg/m)0.70.770.771.11.11.81.83.65.4

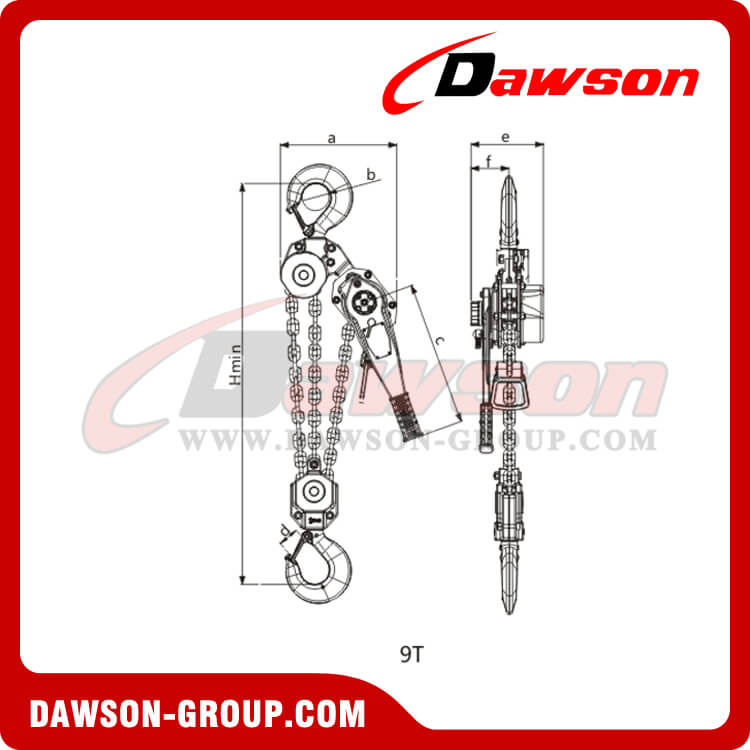

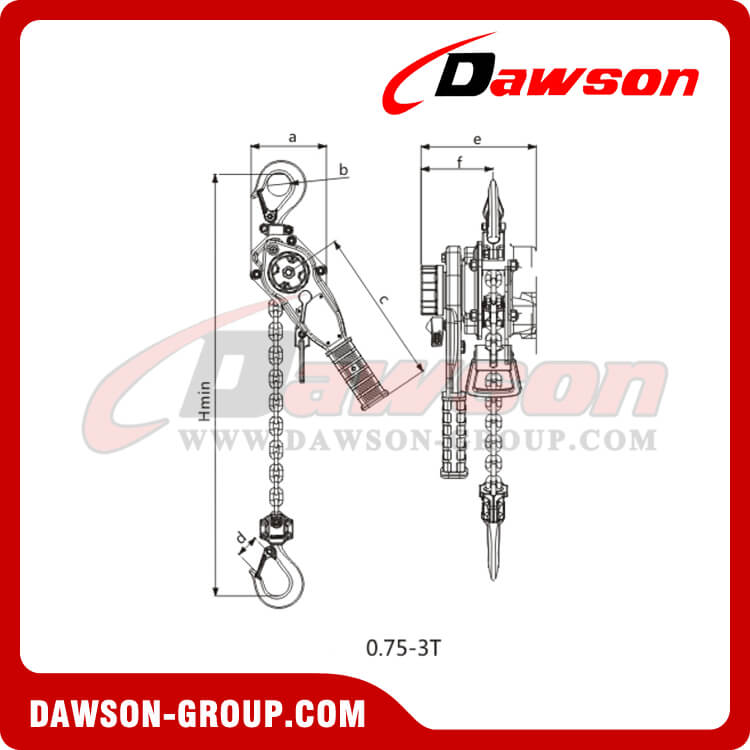

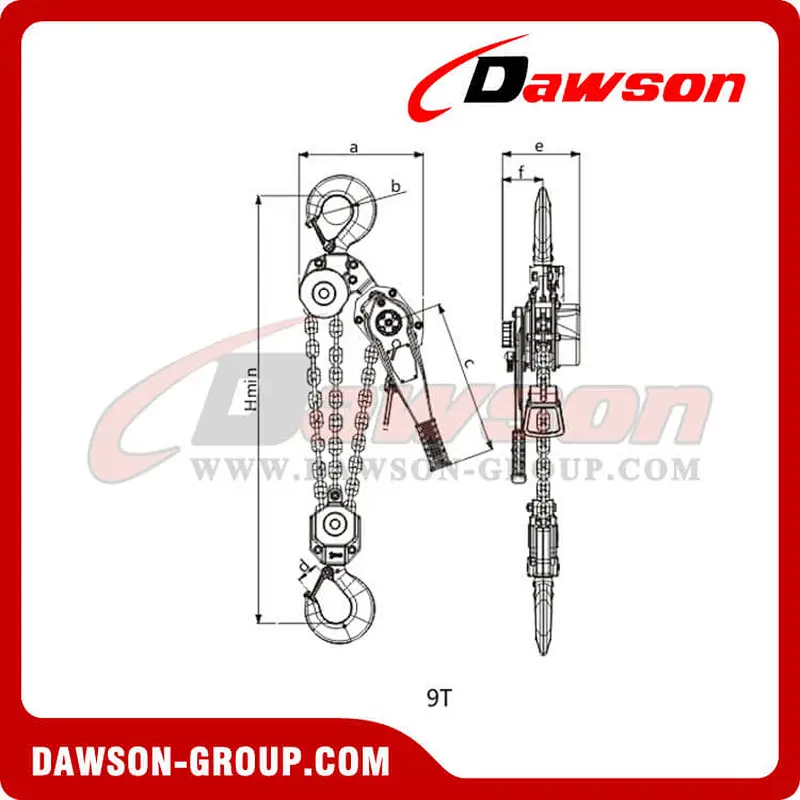

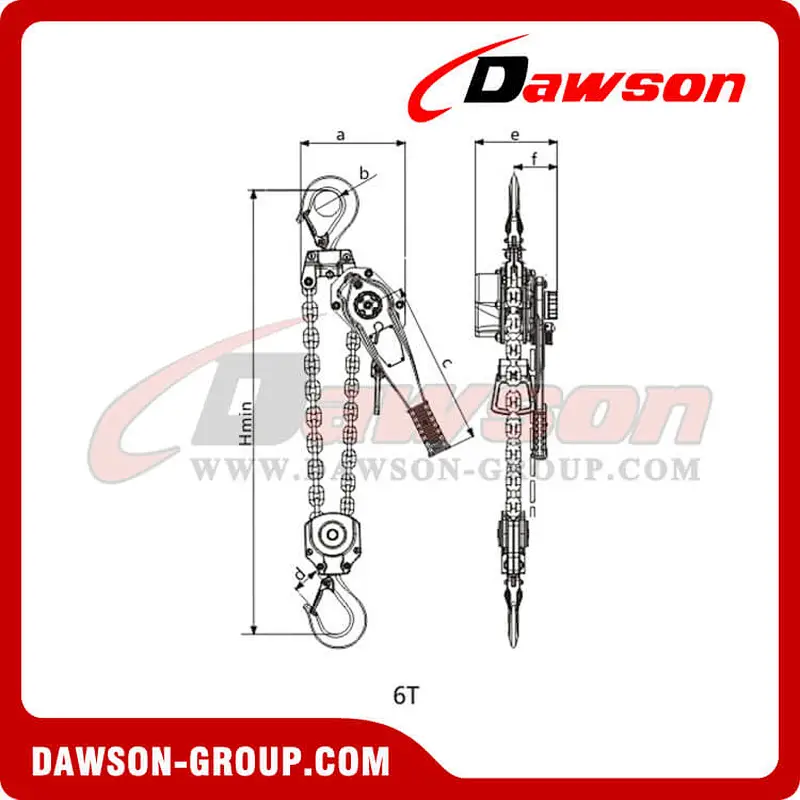

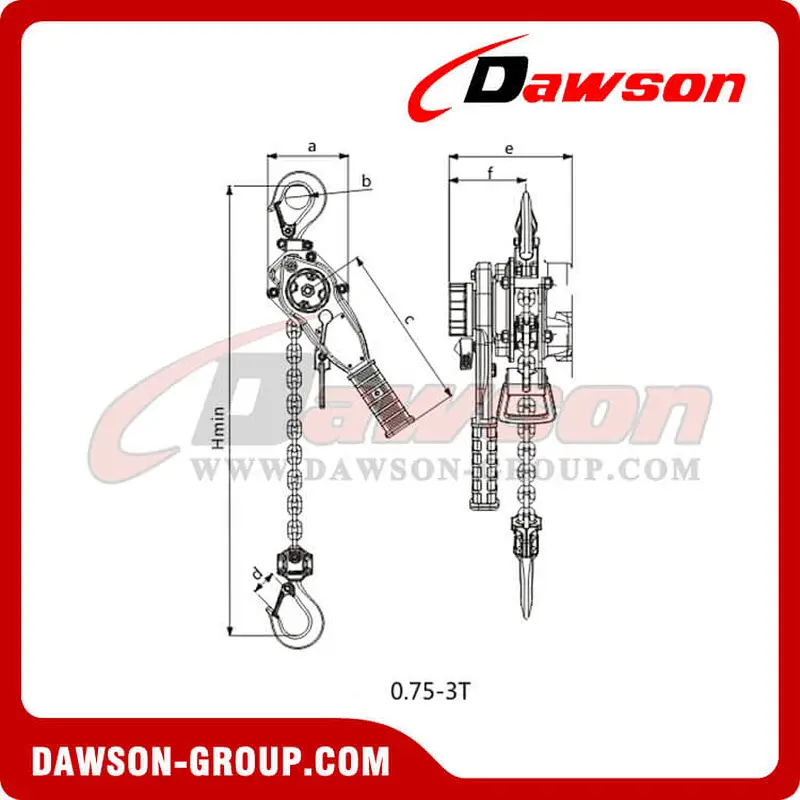

Sizea115115115137137169169238300
b393944444460606891
c239239239259259374371374374
d282830323441414761
e146146146162162187187187187
f919191676798989898
Hmin320320320360360431431500635

Rated weight of 750-9000kg

DS-DH hand chain hoist with a lightweight short handle design, but at the same time to maintain a very labor-saving Shouban operation, for construction, shipbuilding, sheet metal and other industrial areas of the user is a very good tool, especially suitable for use in restricted space. This series of new Shouban gourd as an essential tool in the industrial business and service widely used. The gourd is very light weight, the design is very compact, even in the limited working environment can also be easily used.

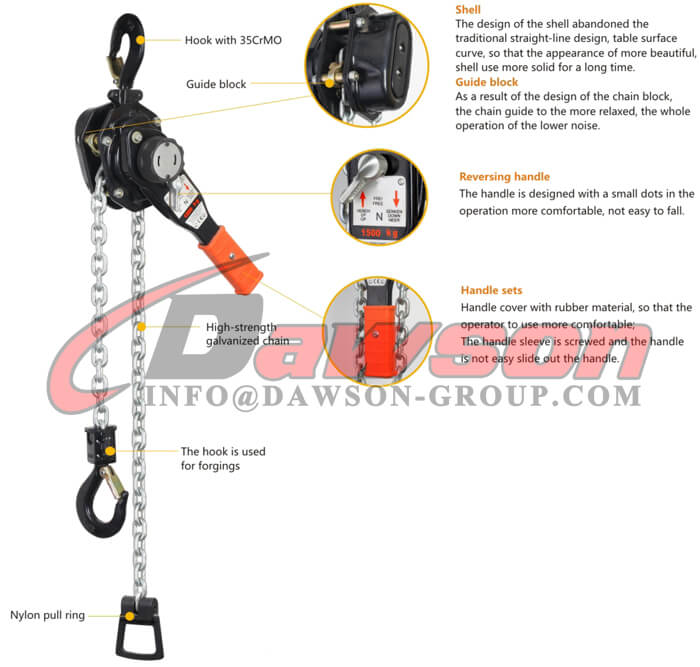

Product Features:

1、Hanging transposition and load hooks made of anti-aging, high-strength alloy steel, when the case of overload occurs in the case of the first deformed without sudden breakage.

2、Hook with a solid safety lock, free rotation 360 °.

3、In line with the design of the body of the handle to make the gourd easy to operate.

4、Closed design can protect the internal parts components from pollution.

Use of environmental conditions:

Operating temperature range:-40℃ to +60℃.

Use of the environment: Please use below 100% RH, can not be used in water.

Use of materials: no use of anti-spark material or asbestos and other special materials.

Do not overload use.

Application:

Lever hoist is a kind of portable and versatile hand-operated loading and pulling appliance, which is capable of being applied in electricity, mines, ship-buildings, construction sites, transports and telecommunication for installing equipment, lifting goods, pulling mechanical parts, bulk strapping and fastening, tightening fittings of wires, assembling and welding etc. It has exceptional advantages particularly for pulling in every limited narrow places in the upper air high above the ground and at any angles.

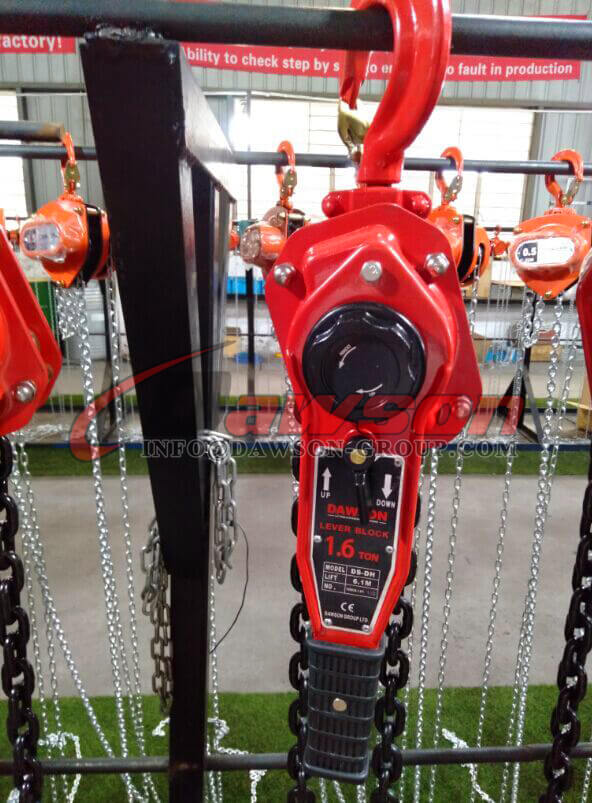

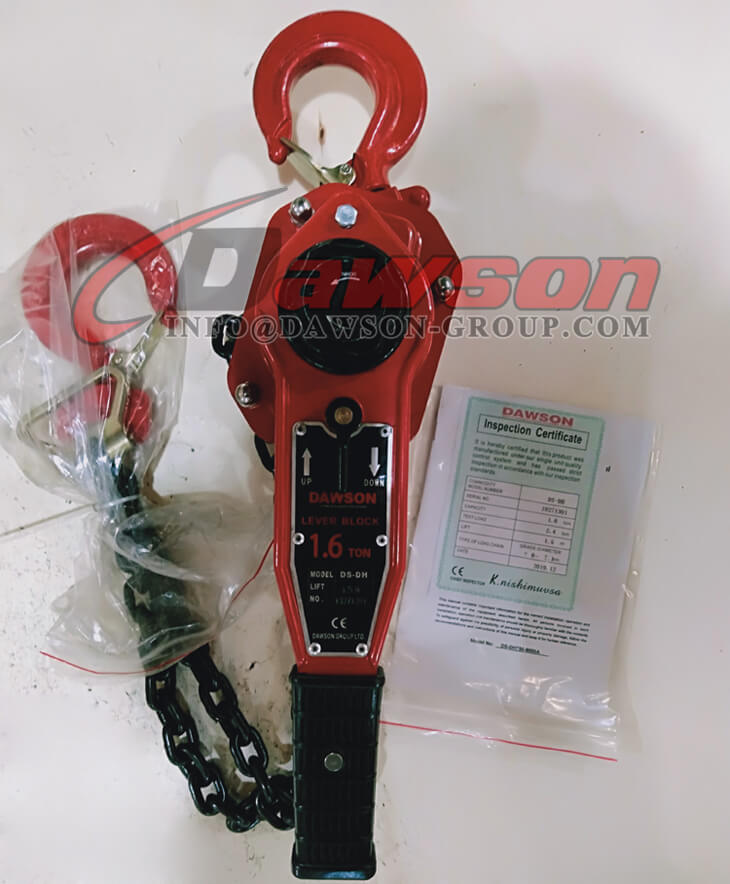

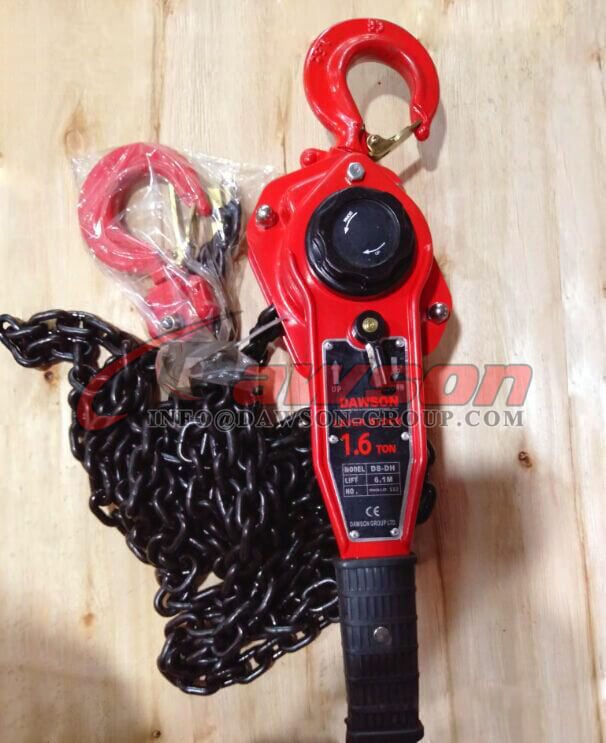

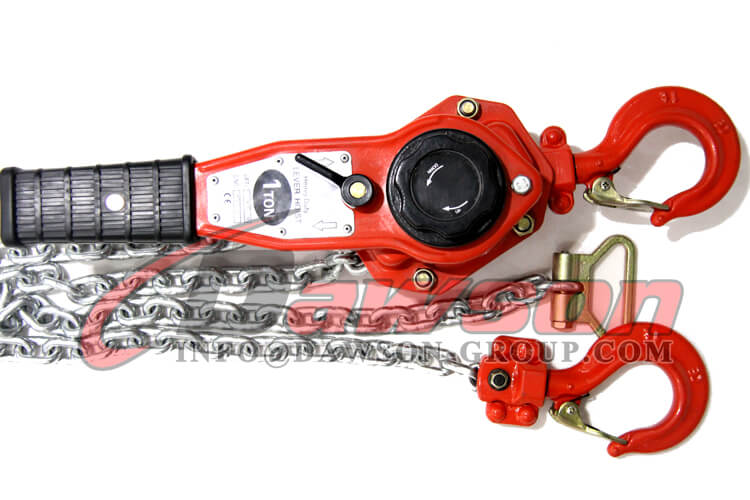

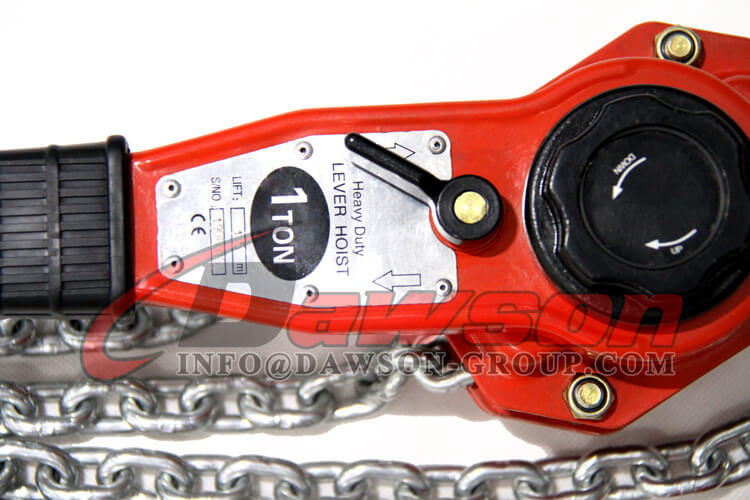

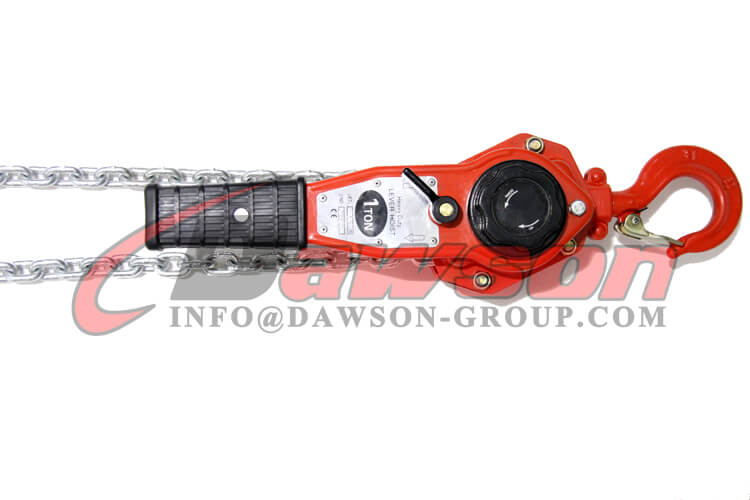

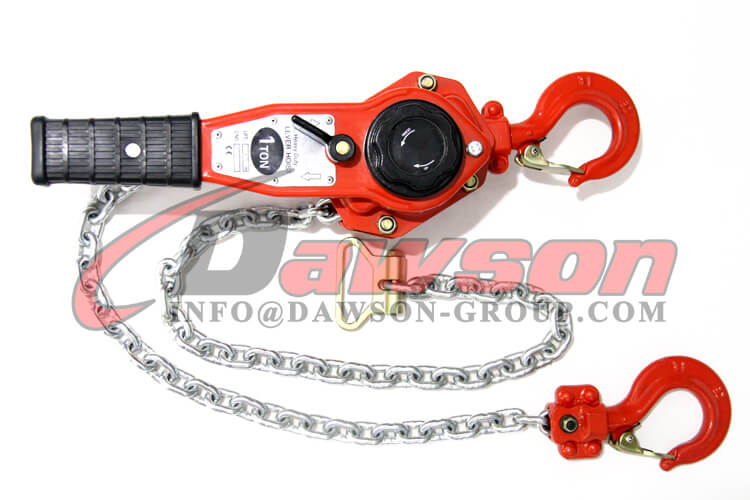

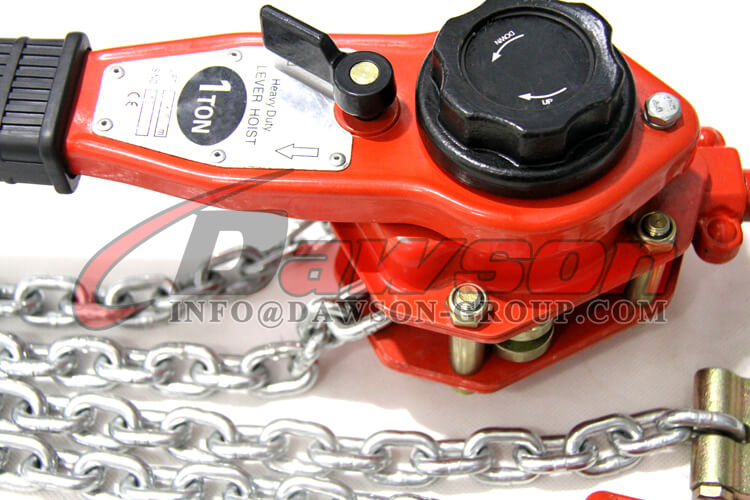

Products Show:

Welcome to buy the newest and competitive price DAWSON New Hand Plate Lever Hoist Lever Block from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.


For further information, please contact us. Email:info@dawson-group.com


Hot Tags: Ratchet Handle Lever BlockHigh Quality Lever HoistCustomized Ratchet Handle Lever BlockRatchet Handle Lever Block in StockBulk Ratchet Handle Lever BlockRatchet Handle Lever Block Free SampleRatchet Handle Lever Block BrandsRatchet Handle Lever Block China , Ratchet Handle Lever Block Manufacturers China , Ratchet Handle Lever Block Suppliers China

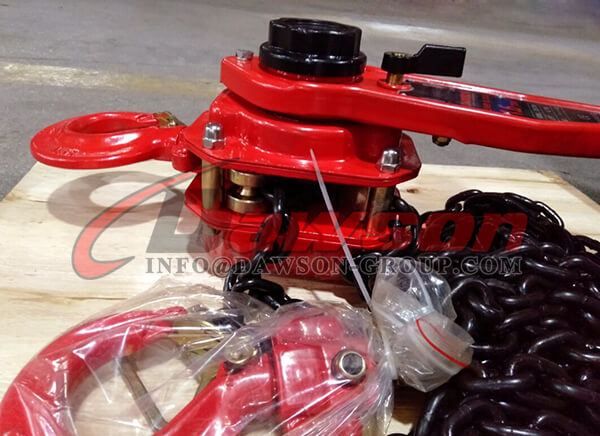

Factory and Package:
