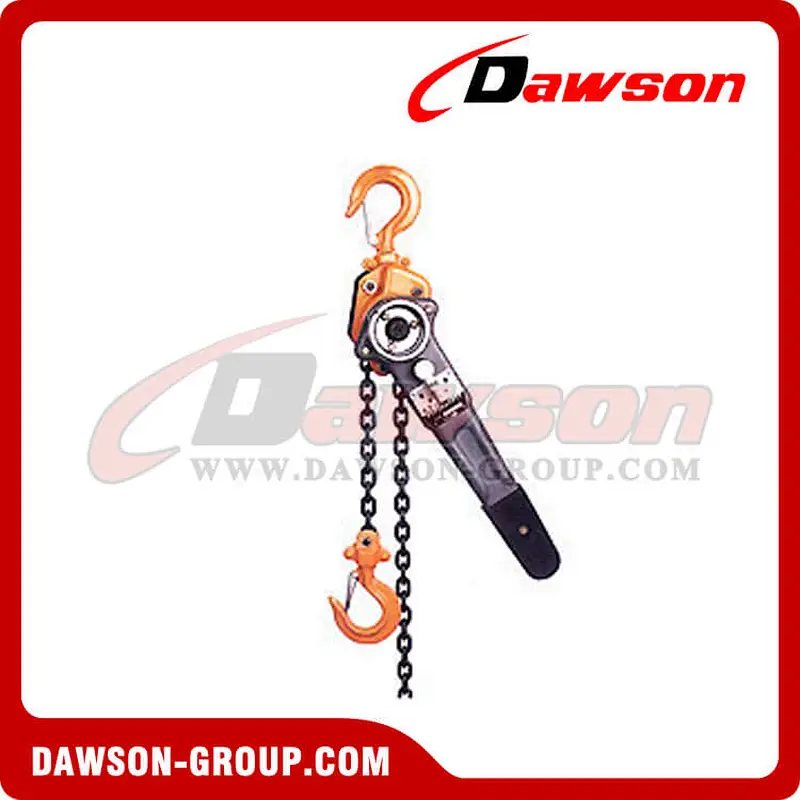

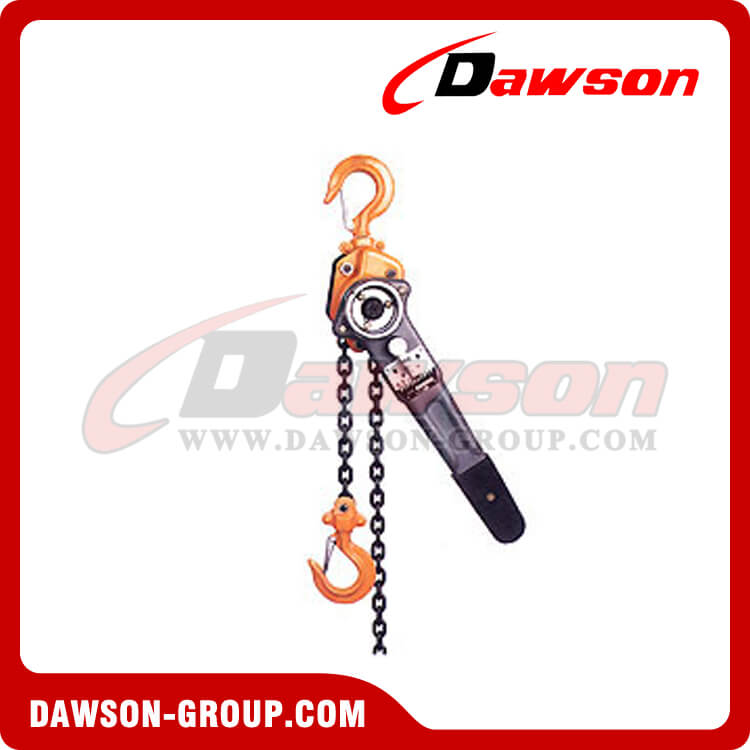

0.5T Lever Block / 500kg Lever Hoist for Lifting Goods
0.5T Lever Block / 500kg Lever Hoist for Lifting Goods
0.5T Lever Block / 500kg Lever Hoist for Lifting Goods
0.5T Lever Block / 500kg Lever Hoist for Lifting Goods
0.5T Lever Block / 500kg Lever Hoist for Lifting Goods

0.5T Lever Block / 500kg Lever Hoist for Lifting Goods

Model NO.
DS-HSH-0.5T
Quantity:

0.5T Lever Block / 500kg Lever Hoist for Lifting Goods
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

ModelDS-HSH-0.5T
Capacitytons0.5
Standard liftm1.5
Running test loadKn6.3
Effort required to lift rated loadN340
Strands of load chain1
Load chain diametermm5

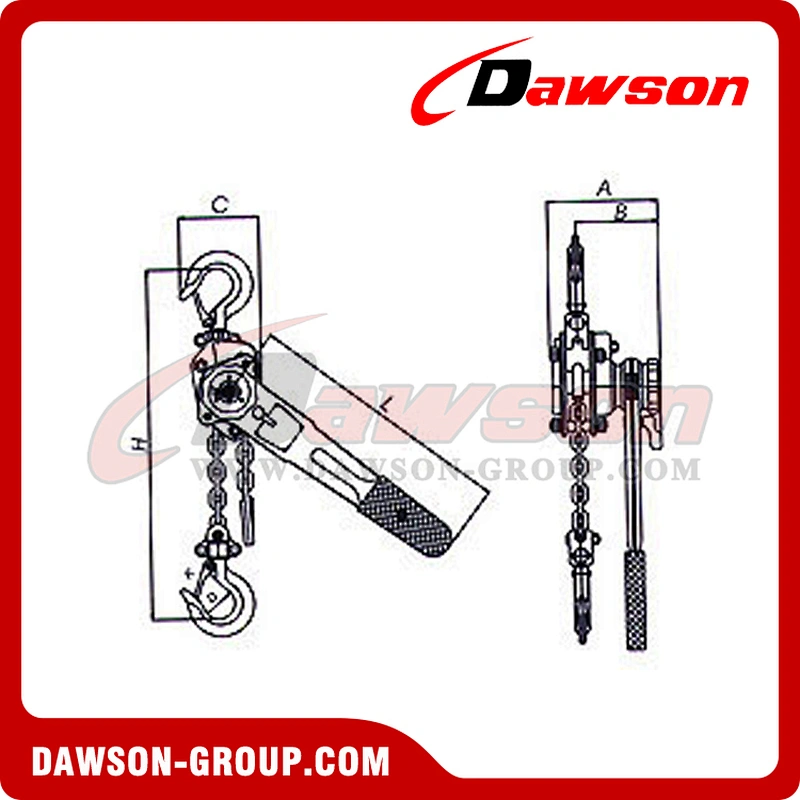

Dimensions(mm)A105
B78
C80
D35
Hmain260
L300
K30
Net weightkg4
Packing measurementcm35.5x9.5x11.5
Extra weight per metre of extra liftkg0.52

ModelDS-HSH-0.25T
Capacitytons0.25
Standard liftm1
Running test loadKn3.2
Effort required to lift rated loadN250
Strands of load chain1
Load chain diametermm4
Dimensions(mm)A92
B72
C85
D30
Hmain230
L160
K25
Net weightkg1.8
Packing measurementcm22x7x9.5
Extra weight per metre of extra liftkg0.41

The Dawson lever hoist is a universal, manual hoist for lifting, tensioning and lashing in any direction. The ratchet lever hoist features compact design and robust, deep drawn, stamped steel construction. High quality materials ensure light weight without infringing reliability.

Lever hoist is a kind of portable and versatile hand-operated loading and pulling appliance, which is capable of being applied in electricity, mines, ship-buildings, construction sites, transports and telecommunication for installing equipment, lifting goods, pulling mechanical parts, bulk strapping and fastening, tightening fittings of wires, assembling and welding etc. It has exceptional advantages particularly for pulling in every limited narrow places in the upper air high above the ground and at any angles.

1.Low own weight, small mounting sizes and small lever force at full load.

2.Asbestos free brake, holding load at any desired height.

3.Top & bottom hooks are fitted with safety latches as standard.

4.The load chain can be pulled freely and easily through the hoist in both directions to attach the load or to tension the chain. For safety reason free chains can not be done when the hoist is under load.

5.Short hand lever with rubber grip.

6.Hand lever operates with little effort due to optimal gear ratio.

7.Drop forged steel suspension & load hooks are heat treated and fracture resistant. In case of dangerous overloading or abuse, the hook does not fracture but will slowly yield.

8.The hoist is fitted with high grade alloy load chain.

9.Grade 80 Zinc Plated FEC CHAIN from Japan & RUD CHAIN from Germany are available upon request.

10.nspection of lever hoist & manuals.


Welcome to buy the newest and competitive price DAWSON 0.5T Lever Block / 500kg Lever Hoist from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.


For further information, please contact us. Email:info@dawson-group.com


Hot Tags: bulk mini lever blocklow price small lever hoistratchet lever hoistwholesale lifting gearbuy discount lifting equipmenthot sale hoist toolcheap price ratcheting lever blocklever hoist for lifting goods China supplierpulley block China manufacturermini lever hoist for mines China factorymini lever block 500kg China exporterlever block 0.5ton in stocklever block 0.5t free samplelever block dawson brandslever block OEM


Other related products:

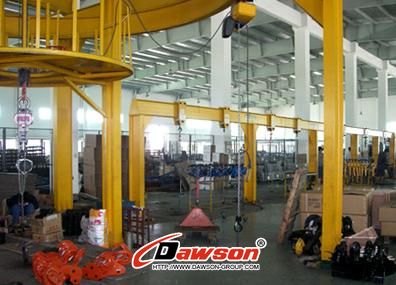

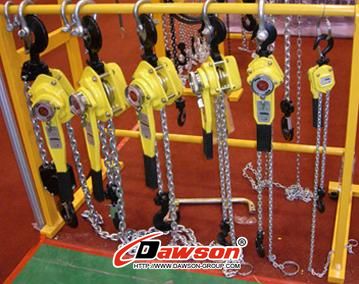

Factories and packaging:
