Model NO.
DS-DL Aluminum Alloy Lever Hoist, Lever Block
Quantity:

0.25T 0.5T 0.75T 1.5T 3T 6T 9T Aluminum Alloy Lever Hoist,
  250kg 500kg 750kg 1500kg 3000kg 6000kg 9000kg Lever Block

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

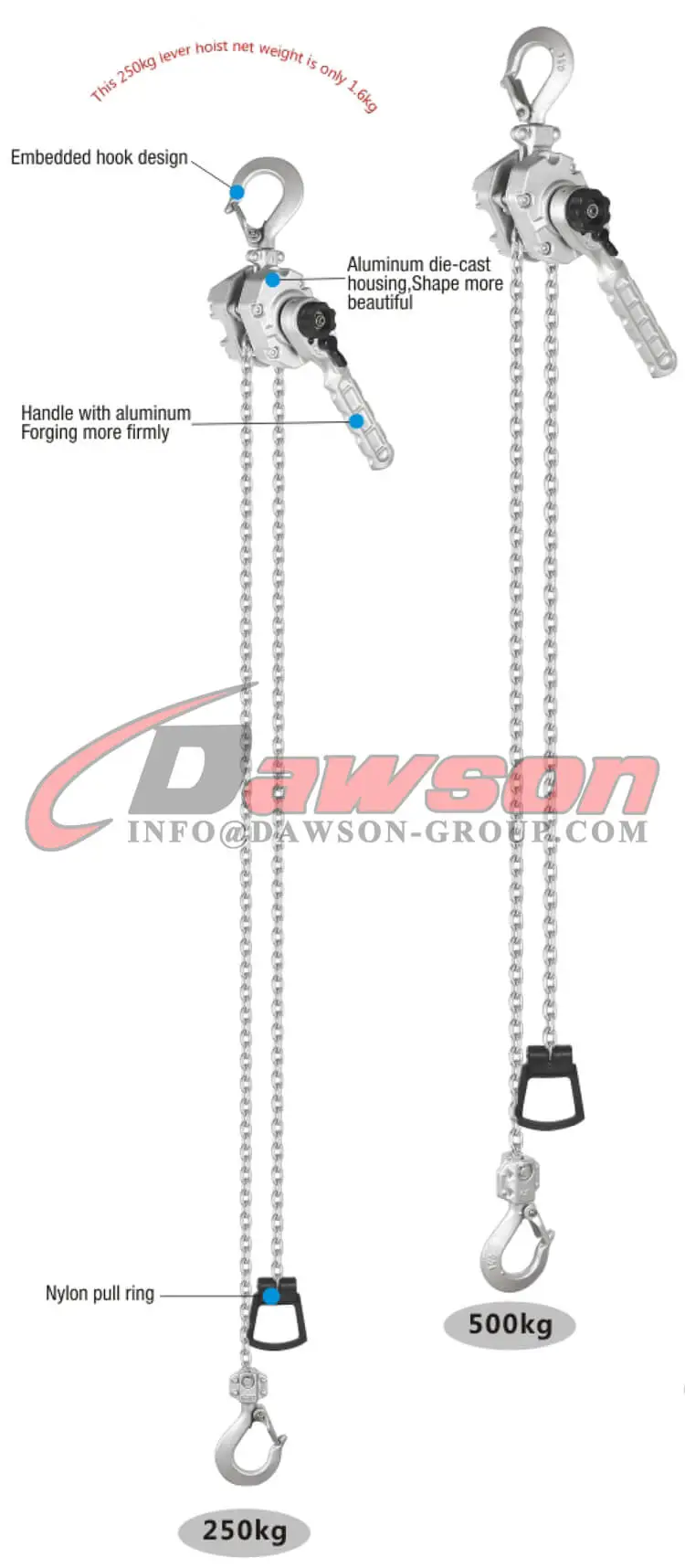

Rated weight of 250-500kg

The aluminum alloy lever hoist is the DAWSON brand in the smallest and lightest lever hoist.

This series of new lever hoist as essential tool in the industrial business and service widely used.

The gourd is very light weight, the design is very compact, even in the limited working environment can also be easily used.

Product Features:

1、Hanging devices and load hooks made of anti-aging, high-strength alloy steel, when in case of overload the case will first be deformed without sudden breakage.

2、Hook with a solid safety lock, free rotation 360°.

3、In line with the design of the human body design of the handle so that the gourd easy to operate.

4、Closed design can protect the internal parts from pollution.

5、All components of the disc-type load brakes are made of high-quality materials, and anti-corrosion.

6、This lever hoist made of aluminum alloy material, not rusty.

Use of environmental conditions:

Operating temperature range:-40℃ to 60℃.

Use of the environment : Please use below 100% RH, can not be used in water.

Use of materials: no use of anti-spark material or asbestos and other special materials.

Do not overload use.




Specifications:

ModelDS-DL025DS-DL050
Rated Weight (Kg)250500
Standard lifting height (m)1.51.5
Full load when the hand force (N)170200
Test Load (kg)375750
Lifting Chain Specifications (mm)3×94×12
Net Weight (kg)1.62.7
Packing Weight (kg)1.83.0
Pack Size(cm)20*12*8.523.5*13.5*10
Weight for each additional 1m(kg/m)0.150.341

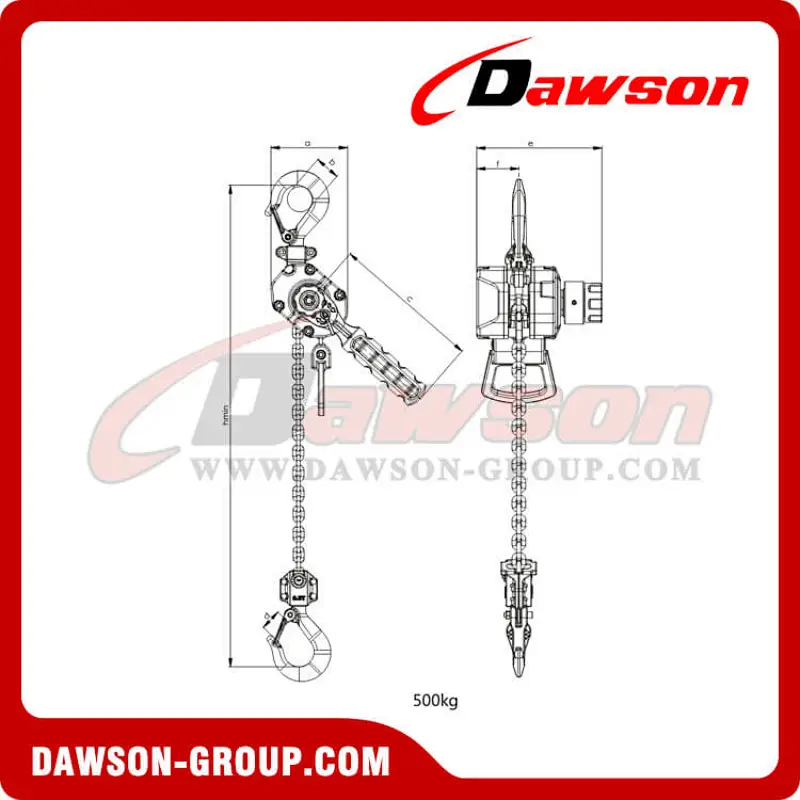

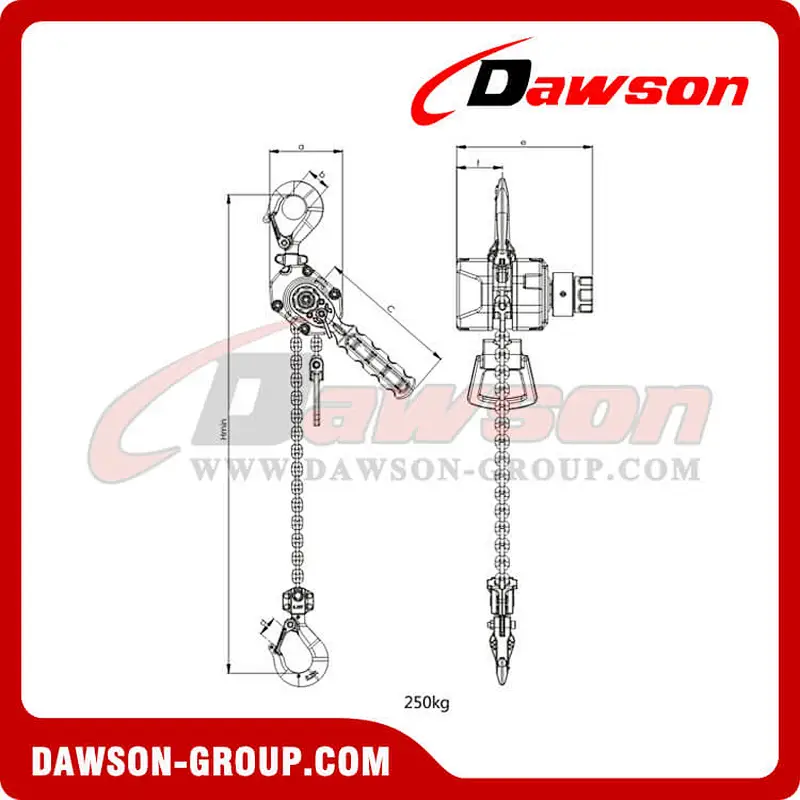

Sizea7490
b3035
c142175
d2022
e105117
Hmin223282
f3640

ModelDS-DL075DS-DL150DS-DL300DS-DL600DS-DL900
Rated Weight (Kg)7501500300060009000
Standard lifting height (m)1.51.51.51.51.5
Full load when the hand force (N)220250340380400
Test Load (kg)112522504500900013500
Lifting Chain Specifications (mm)5.6×177×219×279×279×27
Net Weight (kg)5.17.614.72039.5
Packing Weight (kg)5.58.115.221.541.5
Pack Size(cm)31.5*16*1235*18*1349*20*1649*23.5*21.549.5*23.5*21.5
Weight for each additional 1m(kg/m)0.71.11.83.65.4

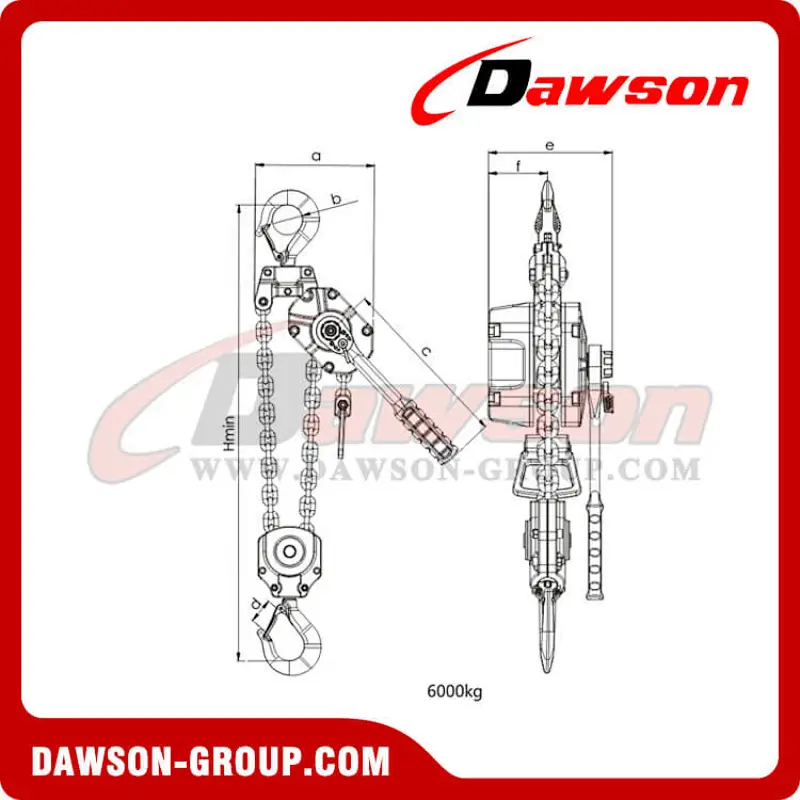

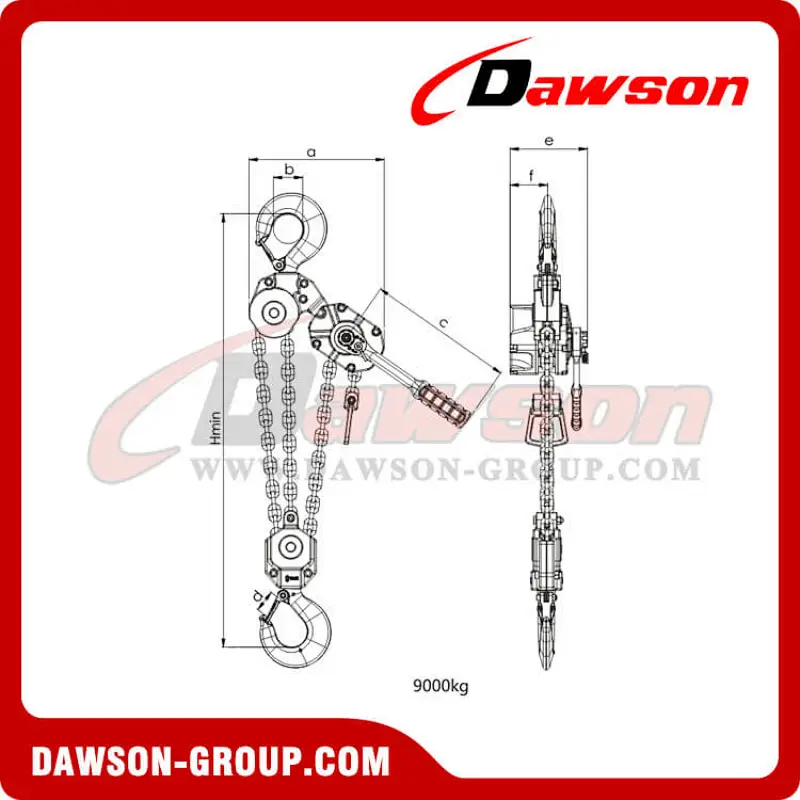

Sizea115140170237300
b3944606891
c233233350350350
d2830414761
e140158185185185
Hmin329355445500635
f5570888890

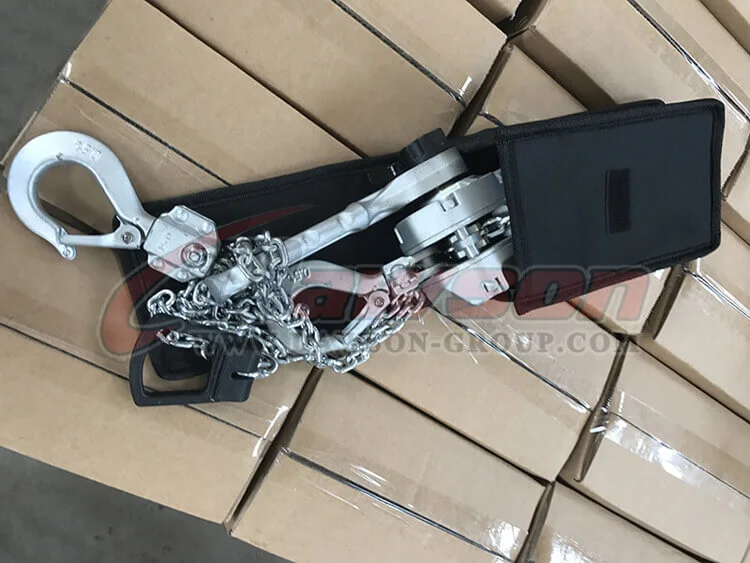

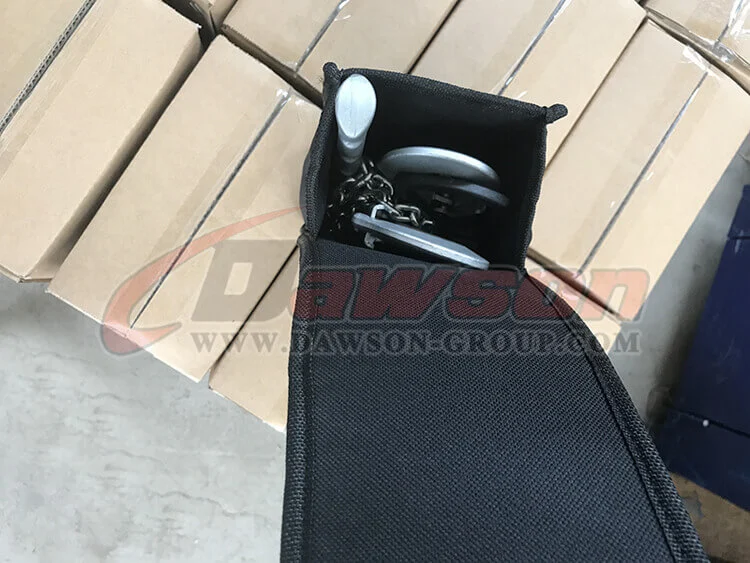

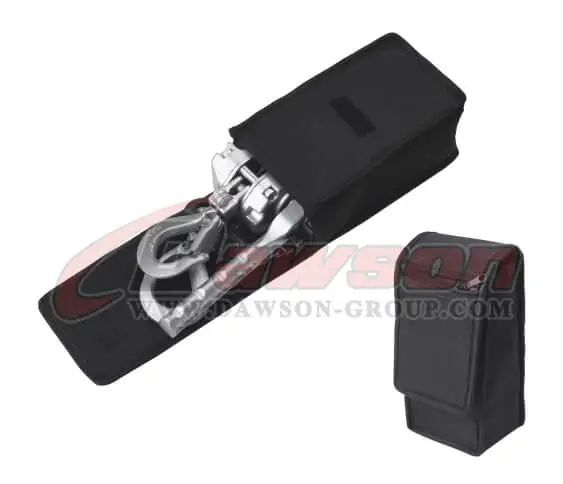

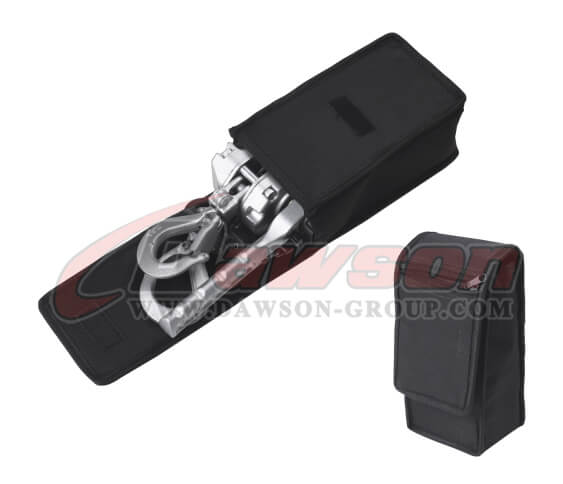

Black, chic special bag, to the DS-DL series of small hand pull the whole load.

Can also be used on the belt.

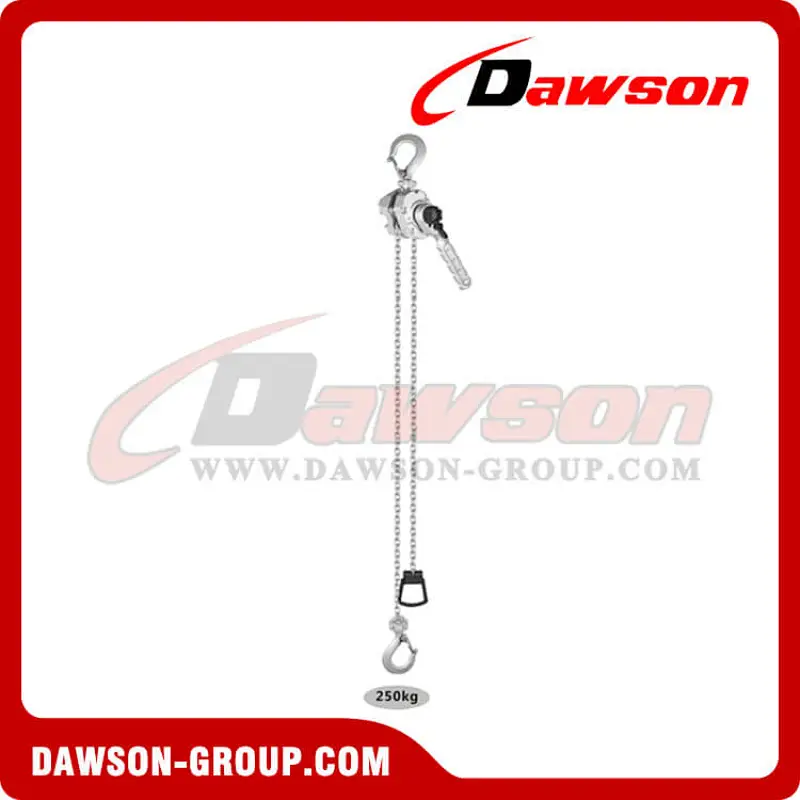

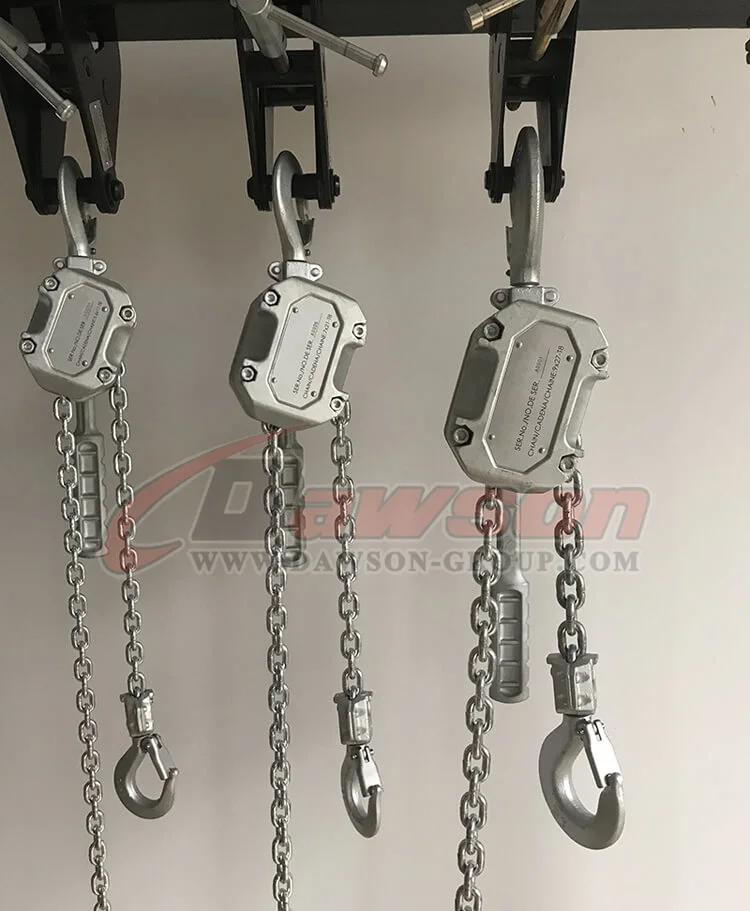

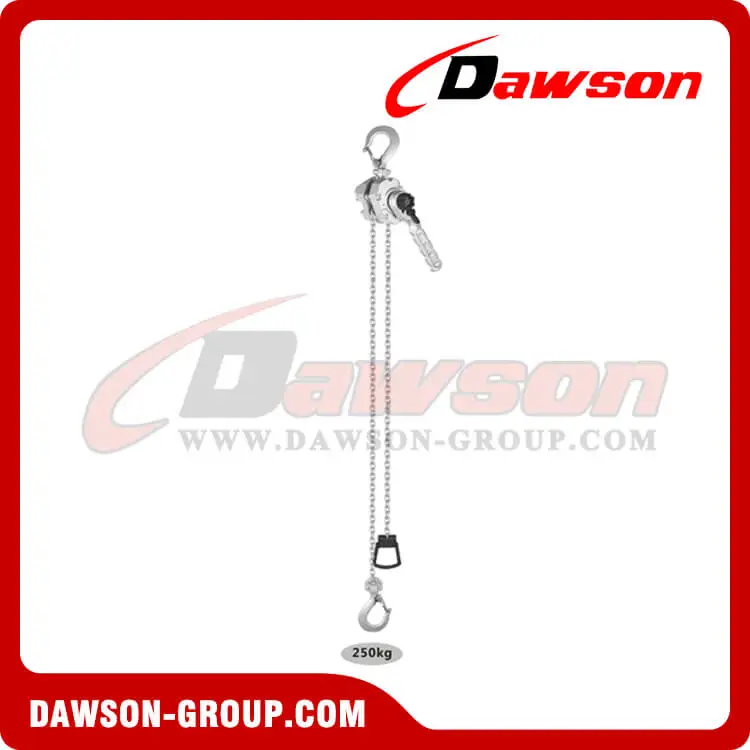

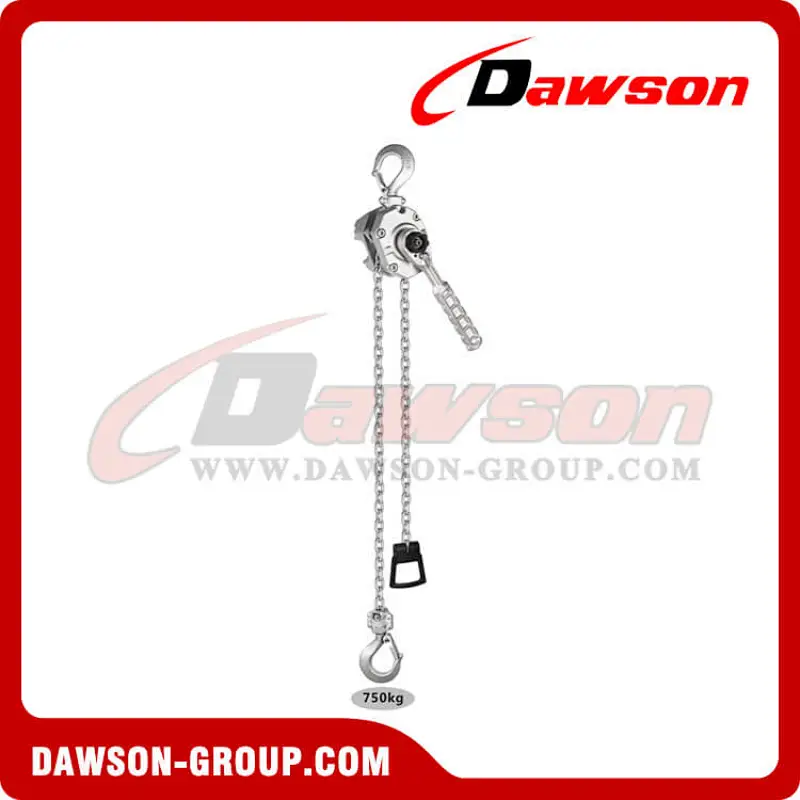

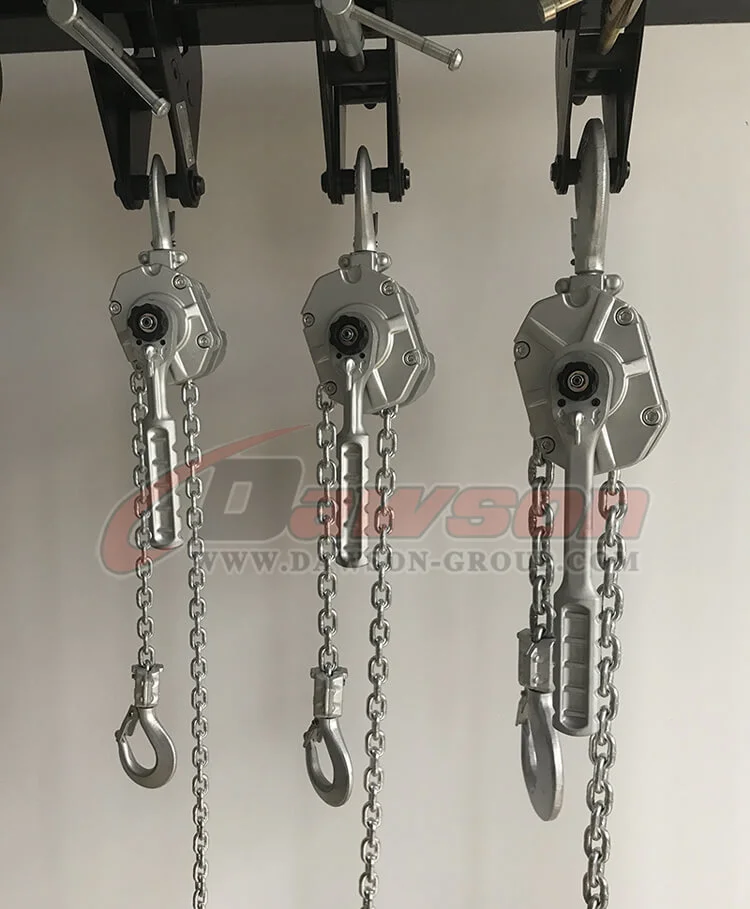

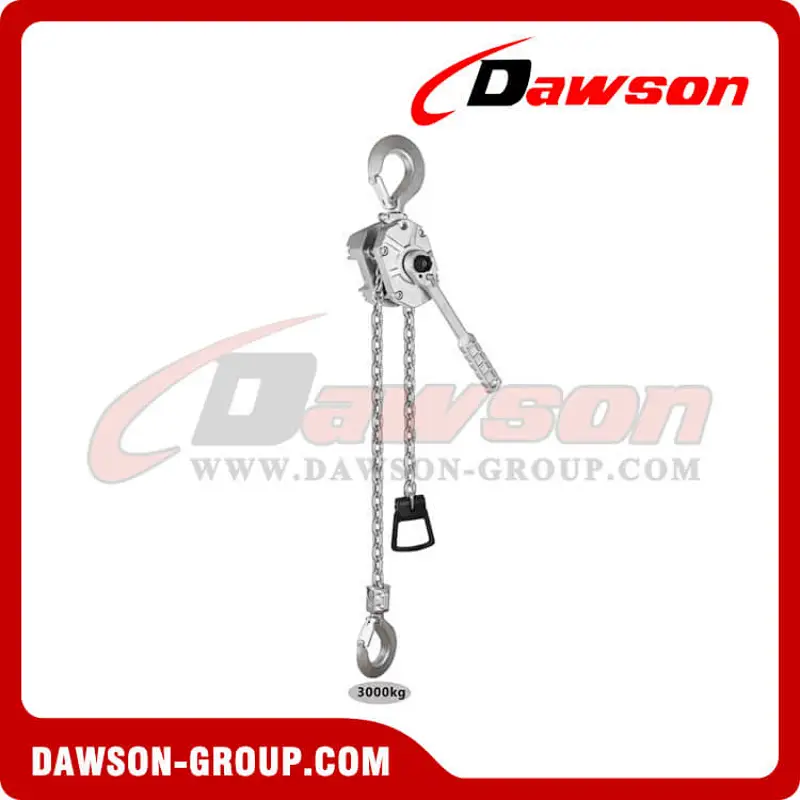

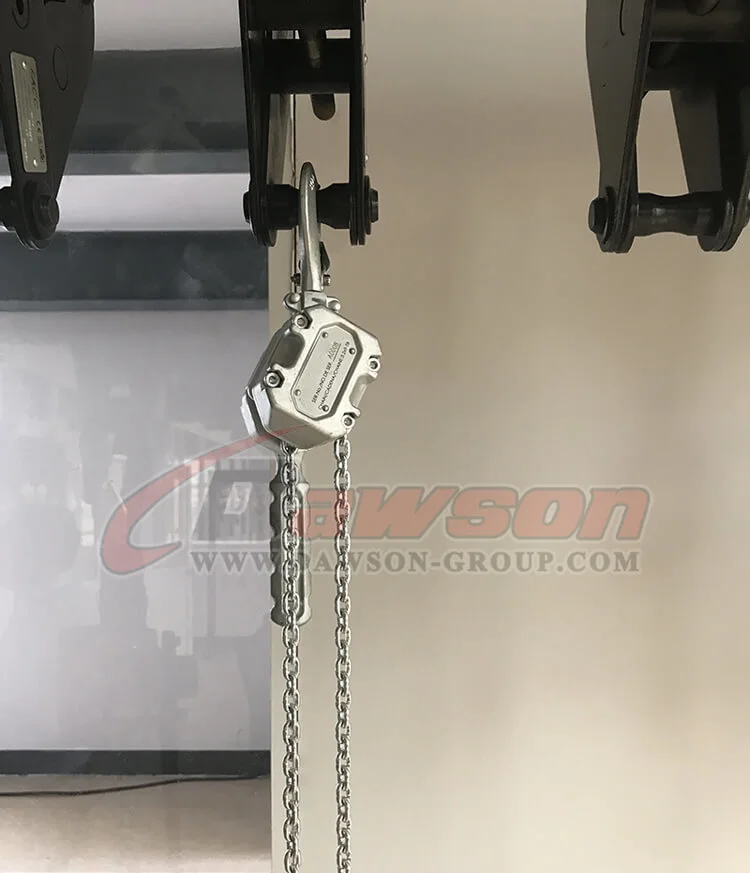

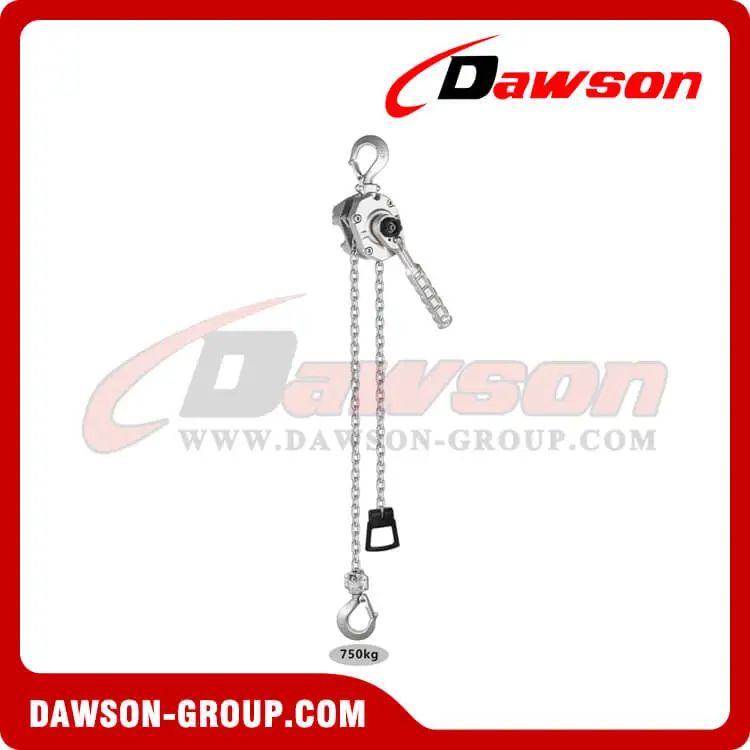

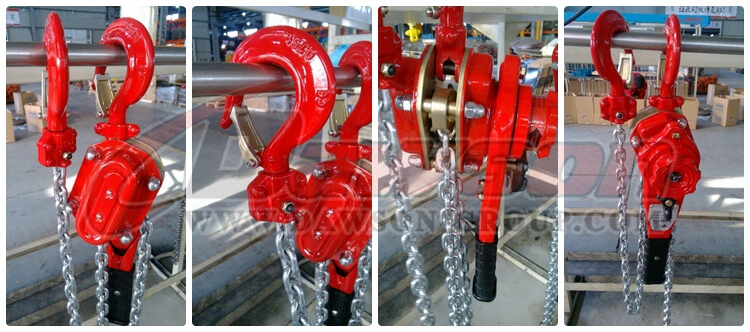

Products Show:

A lever hoist is a manual device used to lift, lower, or pull a load and to apply or release tension. It utilizes a ratchet and pawl mechanical configuration to incrementally raise or lower a load or to apply or release tension.

Lever hoist is a kind of portable and versatile hand-operated loading and pulling appliance, which is capable of being applied in electricity, mines, ship-buildings, construction sites, transports and telecommunication for installing equipment, lifting goods, pulling mechanical parts, bulk strapping and fastening, tightening fittings of wires, assembling and welding etc. It has exceptional advantages particularly for pulling in every limited narrow places in the upper air high above the ground and at any angles.

1.Low own weight, small mounting sizes and small lever force at full load.

2.Asbestos free brake, holding load at any desired height.

3.Top & bottom hooks are fitted with safety latches as standard.

4.For DSLH-A/AII/D/E/G type, the load chain can be pulled freely and easily through the hoist in both directions to attach the load or to tension the chain. For safety reason free chains can not be done when the hoist is under load.

5.Short hand lever with rubber grip.

6.Hand lever operates with little effort due to optimal gear ratio.

7.Drop forged steel suspension & load hooks are heat treated and fracture resistant. In case of dangerous overloading or abuse, the hook does not fracture but will slowly yield.

8.The hoist is fitted with high grade alloy load chain.

9.Grade 80 Zinc Plated FEC CHAIN from Japan & RUD CHAIN from Germany are available upon request.

10.Inspection of lever hoist & manuals.

INSPECTION BEFORE USE

Ensure that the lever hoist name plate is clearly visible and that the WLL is legible.

The pre-use inspection of a lever hoist should include the following:

Load chain

1.Inspect chain for wear, gouges, nicks, arc burns, twisted and bent links and corrosion.

2.Inspect for correct reeving on 6 tonne units.

Lift wheels & Sheave Wheels

1.Inspect lift wheel for foreign material, wear and corrosion.

2.Inspect sheaves for wear, freedom of movement and corrosion.

3.Inspect dead end pins for wear, tightness and corrosion.


Hooks

1.Inspect hooks for signs of opening, cracking, bending, arc burns, welds and corrosion.

2.Hooks should swivel freely.


Miscellaneous

1.Inspect the frame and covers for deformation, warping, severe denting and other damage.

2.Inspect safety catches for condition and operation.

3.Measure hook throats for allowable service openings. Inspect hangers (6 tonne hoist) for cracks, gouges, corrosion and other damage.

4.Inspect lever handle for overloading or any signs of distortion.

5.Check for freewheeling function.

6.Ensure raise and lower selections operate correctly.

7.Check there is an end stop fitted to the chain.


CARE IN USE

1.All persons involved in the operation of a lever hoist must read the manufacturers handbook and be completely familiar with all operating and maintenance procedures.

2.When operating a lever hoist, always maintain a firm footing and when necessary be secured. Operate the lever hoist from a location that will be clear of the load at all times. People must stay clear of the suspended load. Never use the lever hoist to lift, support or transport people and never lift loads over or near people.

3.Before lifting a load, confirm that the lever hoist is in good condition and functioning properly.

4.Always keep the load chain well lubricated and protect it from weld spatter and other damaging contaminants.

5.Never allow the load chain or hooks to be used as a ground for welding and never touch them with live welding electrodes.

6.Never use the lever hoist with twisted, kinked, damaged or worn load chains and never attempt to lengthen the load chain.

7.Always use proper slings and attachments in the correct manner and confirm that they are seated properly in the hooks. Also confirm that the safety catch assembly has closed completely and is not supporting any part of the load.

8.Never lift more than the rated WLL.

9.Slack load chain must be taken up carefully. While checking the balance of the load, lift and lower the load about 100mm to test the brake system before lifting further.

10.Never run the load chain out beyond the range of lift.

11.Never allow your attention to be diverted when operating the lever hoist and never leave a suspended load unattended.

12.Inspect the lever hoist regularly. Never use a lever hoist when malfunctioning or when unusual performance or damage is evident.

13.Never adjust or repair a lever hoist unless you are competent in performing hoist maintenance.

14.Never modify the lever hoist.

15.Never remove or obscure the nameplate on the lever hoist.

16.Examine the load chain to ensure that there is no twist. Lever hoists can lift on 2 falls of load chain; twists can arise from the bottom hook being accidentally turned over through the load chains.

17.Confirm that the supporting structure is strong enough to support the intended load.

18.The changeover lever must be set to the"UP"position when the lever hoist is under a load during hoisting or pulling operations. In some cases with light loads (less than 2% of the WLL) if the changeover lever or hub is set to the neutral position, the free-wheeling system will function, and the lever hoist will not be able to support the load.

19.Lifting a load with two lever hoists is not recommended. If the job is unavoidable, keep the load well within the total rated capacity of the two lever hoists and lift with exceptional care while maintaining proper balance, angle and lifting speed.


Welcome to buy the newest and competitive price DAWSON Aluminum Alloy Lever Hoist, Lever Block from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.


For further information, please contact us. Email:info@dawson-group.com


Hot Tags: bulk 0.5ton lever blocklow price 0.75t lever hoisthigh quality 750kg ratchet lever hoistwholesale 250kg lifting gearbuy discount 500kg lifting equipmenthot sale 9ton hoist toolcheap price 9000kg crane machinerylever hoist 6t China supplierpulley lever block 1500kg China manufacturermini lever hoist 0.25ton China factorymini lever block China exporterlever block for mines 3000kg in stocklever block 1.5ton free samplelever block for dock 3ton dawson brandslever block for wharf 6000kg OEM


Package of Aluminum Alloy Lever Hoist:

Other related products:

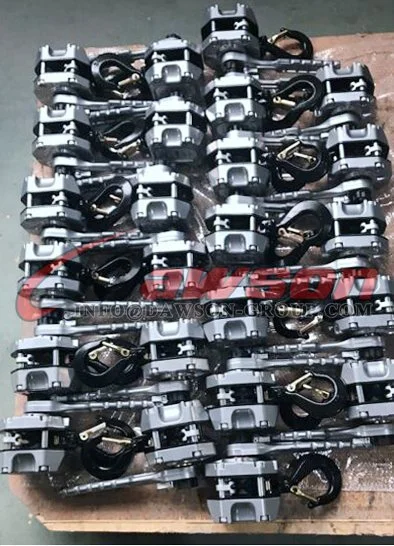

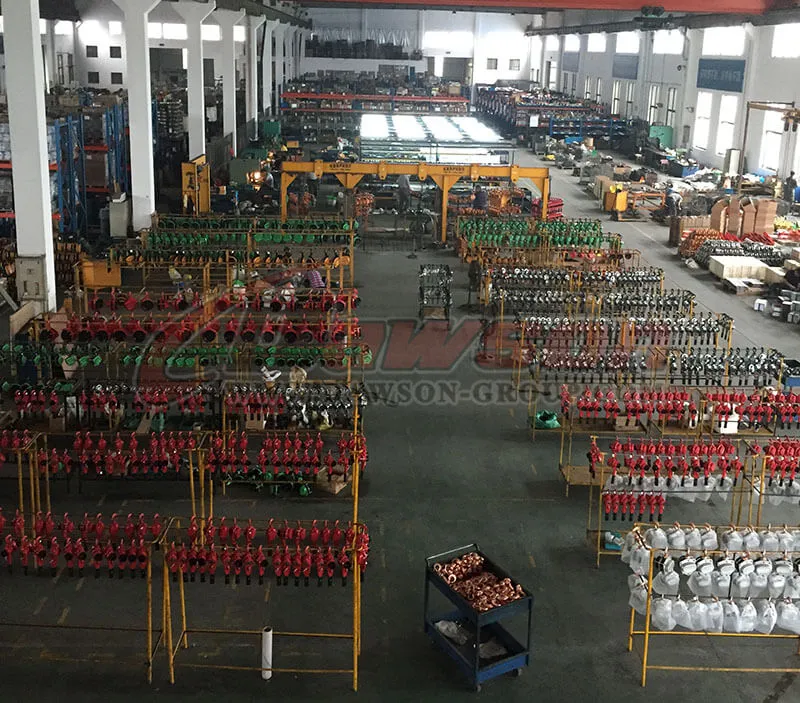

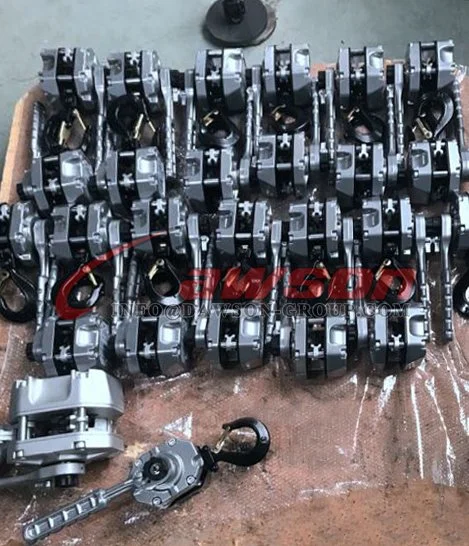

Factory & Package Show:
