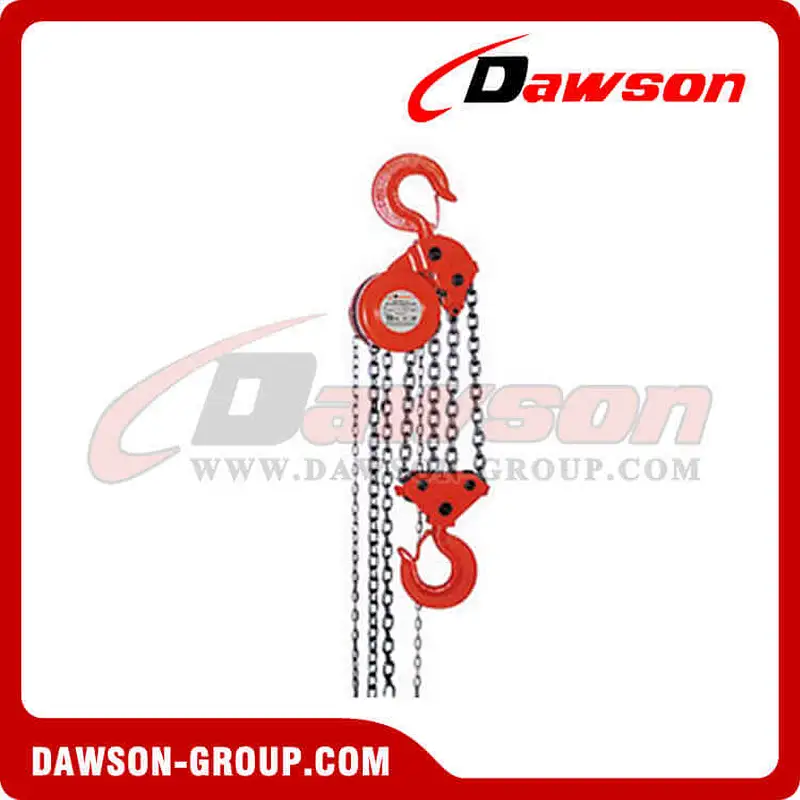

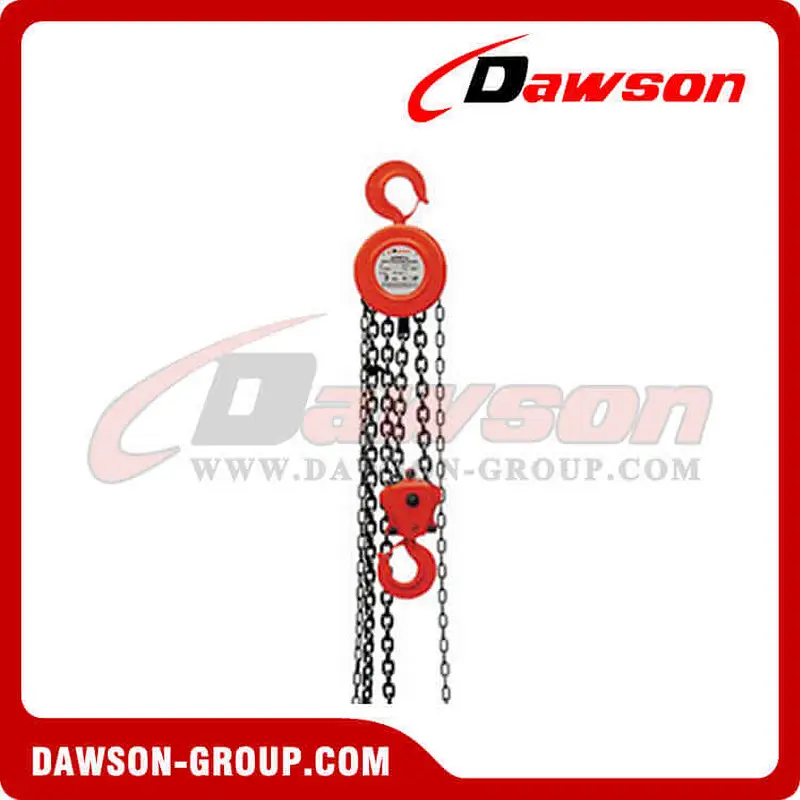

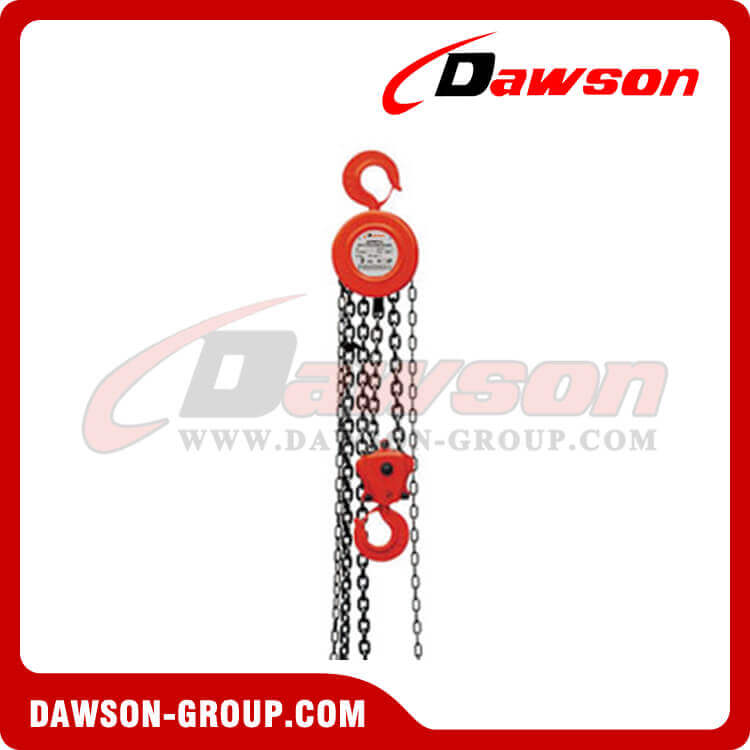

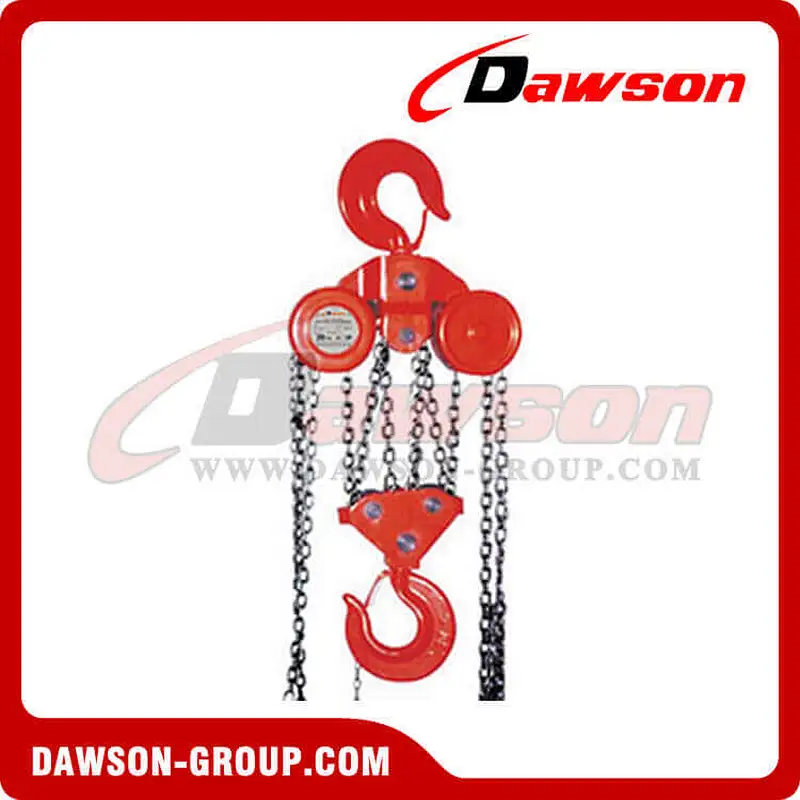

DSHS Series 0.5T - 20T Chain Block for Lifting
DSHS Series 0.5T - 20T Chain Block for Lifting
DSHS Series 0.5T - 20T Chain Block for Lifting
DSHS Series 0.5T - 20T Chain Block for Lifting
DSHS Series 0.5T - 20T Chain Block for Lifting
DSHS Series 0.5T - 20T Chain Block for Lifting
DSHS Series 0.5T - 20T Chain Block for Lifting
DSHS Series 0.5T - 20T Chain Block for Lifting
DSHS Series 0.5T - 20T Chain Block for Lifting
DSHS Series 0.5T - 20T Chain Block for Lifting
DSHS Series 0.5T - 20T Chain Block for Lifting

DSHS Series 0.5T - 20T Chain Block for Lifting

Model NO.
DSHS
Quantity:

DSHS Series 0.5T 1T 1.5T 2T 3T 5T 8T 10T 16T 20T Chain Block for Lifting

500kg 1000kg 1500kg 2000kg 3000kg 5000kg 8000kg 10000kg 16000kg 20000kg Manual Chain Hoist for Loading and Unloading, Hand Chain Block for Mines

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

ModelDSHS-0.5DSHS-1DSHS-1.5DSHS-2DSHS-3DSHS-5DSHS-8DSHS-10DSHS-16DSHS-20
Capacity            t0.511.52358101620
Standard lift        m2.52.52.52.5333333
Running test load    t0.751.52.2534.56.251012.52028
Headroom(drawn close up) H min  mm2402703473804706007007008201000
Effort required to lift Rated .load    N221304343314343381392392392392
No. of Falls of load chain1112223468
Load chain dia.   mm668681010101010

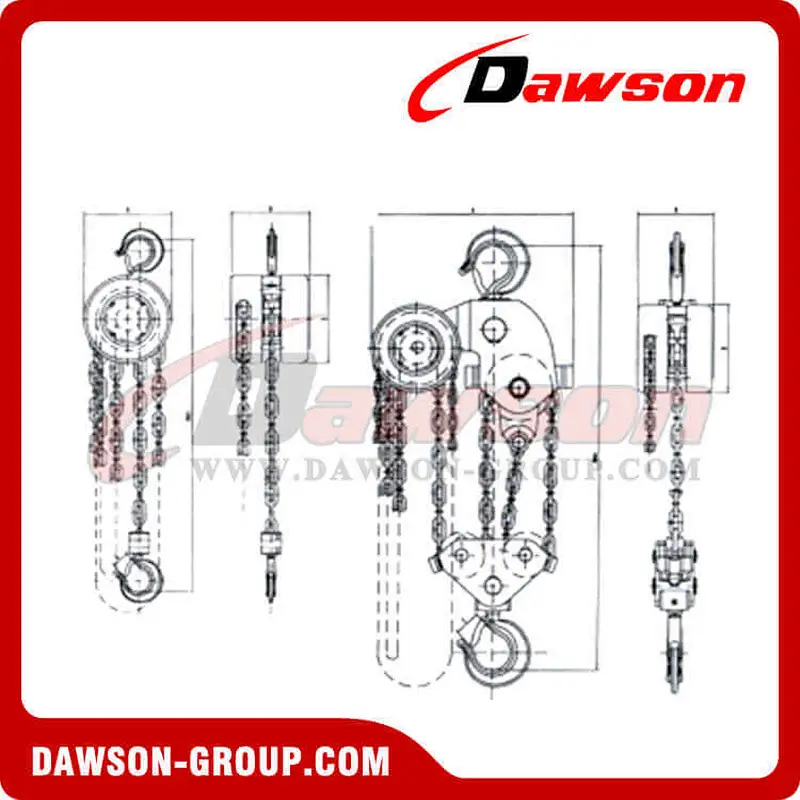

Dimensions mmA120142178142178210356358400580
B108122139122139162162162196189
C24283434384864646982
D120142178142178210210210210210
Net Weight      kg810161424365868112155
Gross weight    kg1013201728457083127193
Packing measurements(L×W×H) cm28×21×1730×24×1834×29×2033×28×1938×38×2045×39×2462×50×2855×51×2968×60×3470×46×75
Extra weight per meter of extra lift      kg1.71.72.32.53.75.37.39.714.119.4

Welcome to buy the newest and competitive price DAWSON DSHS Series Chain Block from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.


For further information, please contact us. Email:info@dawson-group.com

Hot Tags: bulk 0.5ton chain hoistlow price 500kg chain blockhigh quality 20ton chain hoistwholesale 20000kg chain blockbuy discount 8ton heavy duty chain blockshot sale 8000kg lifting chain hoist for salecustomized 16ton chain blockcheap price 16000kg manual chain hoistlifting equipment 5ton China supplierlifting chain hoist 5000kg China manufacturerchain hoist for dock 3000kg China factorychain hoist for electricity 3000kg China exporterchain hoist for heavy duty lifting 2t in stockchain hoist for materials handling operations 2000kg free samplechain hoist for lifting 1500kg dawson brandschain hoist 8ton OEM


Remarks: in addition the standard lift we accept orders to 12m lift.

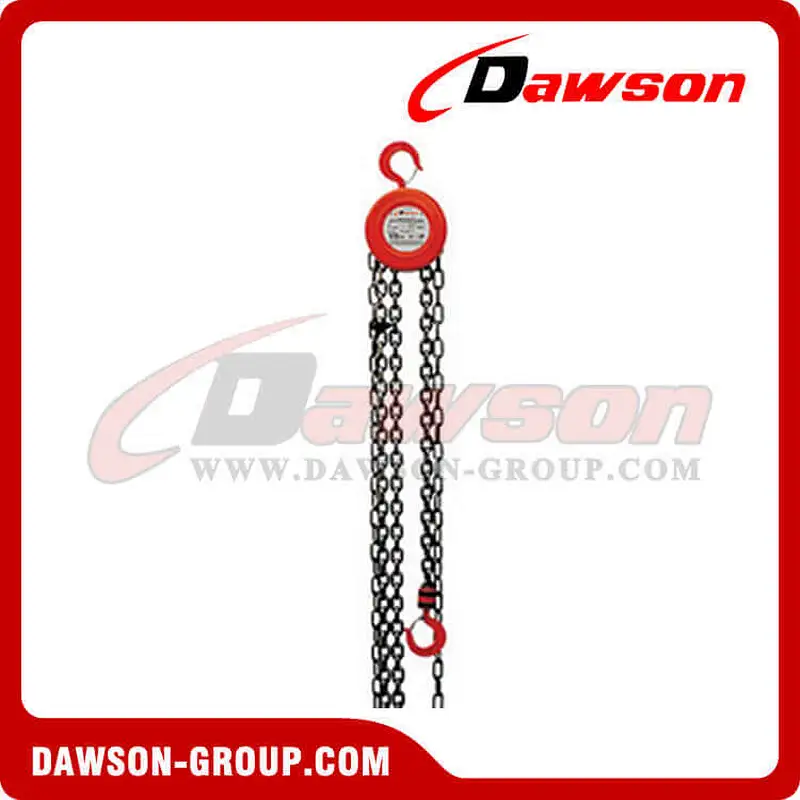

DAWSON manual chain hoists are commonly known as chain blocks and are designed for heavy duty lifting and materials handling operations. Chain blocks raise and lower loads by pulling on the hand chain. Chain blocks can be of single or double fall configurations depending on the capacity of the block.

Chain Hoist is widely used manual hoisting machinery which is easy to use and carry. It can be used in factory, mine, agriculture, electricity, construction site, wharf and dock. And it can also be used in installing of machinery, lifting, loading and unloading in the ware house, especially suitable to be used in the open air and the place without power source.

INSPECTION BEFORE USE

Ensure that the chain block name plate and WLL is clearly visible and legible.

The pre-use inspection for a chain block should include the following:


Load chain

1.Inspect chain for wear.

2.Inspect chain for gouges, nicks, arc burns, twisted & bent links and corrosion.

3.Inspect for correct reeving on multi-reeved units (3 and 5 tonne).

Lift wheels & Sheave wheels

1.Inspect lift wheel for foreign material, wear and corrosion.

2.Inspect dead end pins for wear, tightness and corrosion.


Hooks

1.Inspect hooks for signs of opening, cracking, bending, arc burns and corrosion.

2.Hooks should swivel freely.

3.Inspect safety latches for condition & operation.

4.Measure the hook throats for allowable service openings.

Hand chain

1.Inspect chain for wear.

2.Inspect chain for twisted or gouged links and corrosion.

3.Inspect connecting link for signs of opening.

Miscellaneous

1.Inspect frame and covers for distortion, cracks, gouges, corrosion & other damage.

2.Inspect hangers (3 and 5 tonne) for cracks, gouges, corrosion & other damage.

3.Inspect unit for clear WLL identity.


CARE IN USE

1.The load chain must always mesh correctly with the load sheave. With multi fall chain blocks twists can arise by turning over the bottom hook through the load chain.

2.Regularly lubricate the whole length of the load chain with machine or gear oil but be careful not to over lubricate as oil or grease on the brake discs can cause the brake to malfunction and slip.

3.Confirm that the brake is functioning properly by hoisting the load 100mm and check the brake when lowering the load.

4.Non-vertical (sideways pulling) of the hand chain is not recommended on our chain blocks.

5.The hand chain is equipped with a safety link. When the safety link opens or deforms, stop at once and inspect for the cause.

6.Confirm that the monorail beam or structure supporting the chain block is of sufficient strength to support the load to be lifted.

7.Never lift loads in excess of the WLL of the chain block.

8.Never walk or work under a hoisted load and never lift, support or transport people.

9.Use chain blocks manually only.

10.Do not permit more than one operator to pull on the hand chain at one time.

11.Lift loads correctly with proper slings and attachments. Never lift with the point of the hook and never use the load chain as a sling by back hooking.

12.Lifting a load with two chain blocks is not recommended. If the operation is unavoidable, hoist the load with utmost care, keeping the load balanced.

13.Never run the load chain out too far. When operated beyond the range of lift, an excessive load that can cause damage will be imposed on the chain block.

14.Chain blocks are designed for lifting loads vertically and should not be used for horizontal or angle hoisting.

15.Extreme temperatures will reduce the durability of the hoist. Loads should be hoisted or lowered very slowly and carefully in extreme temperatures.

16.Never leave a load hanging on the hoist.

17.Never use the chain or hook as a ground for welding.


Asbestos free brake, holding load at any desired height.

- Robust all-steel construction.

- Top and bottom hooks are fitted with safety latches as standard.

- All rotating components mounted on roller or ball bearings to reduce friction & increase efficiency.

Other related products:

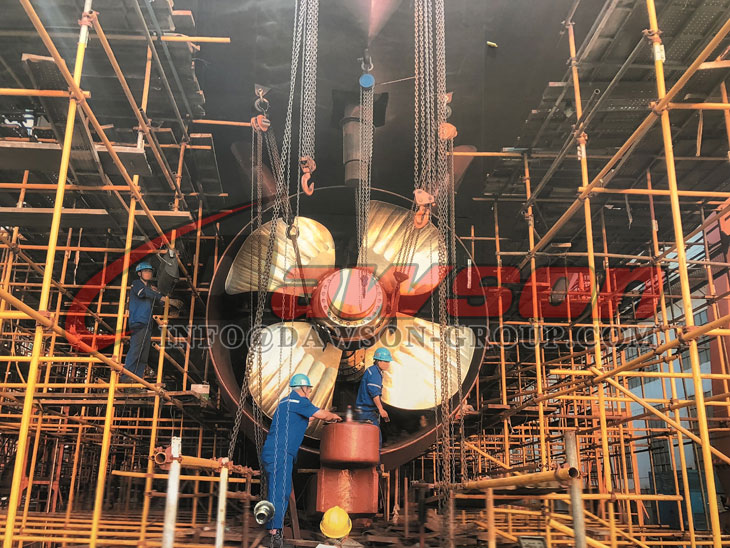

Application of Chain Hoist:

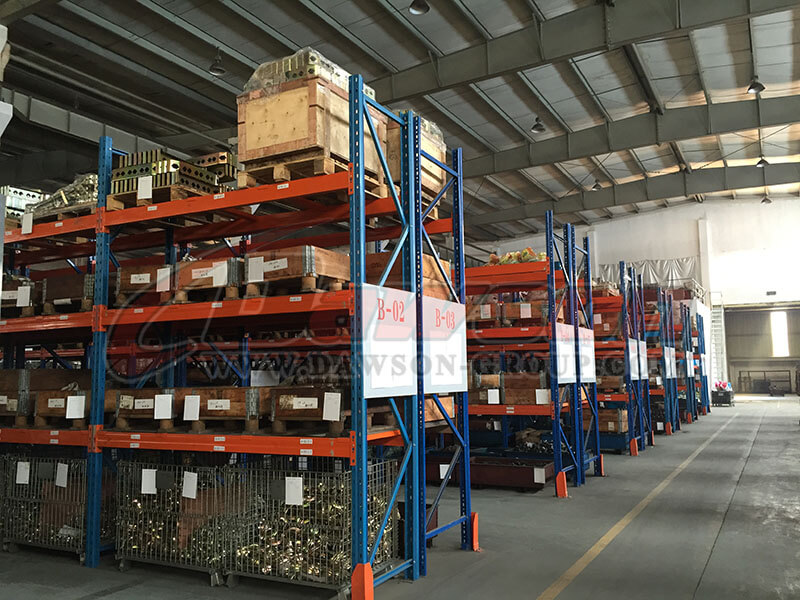

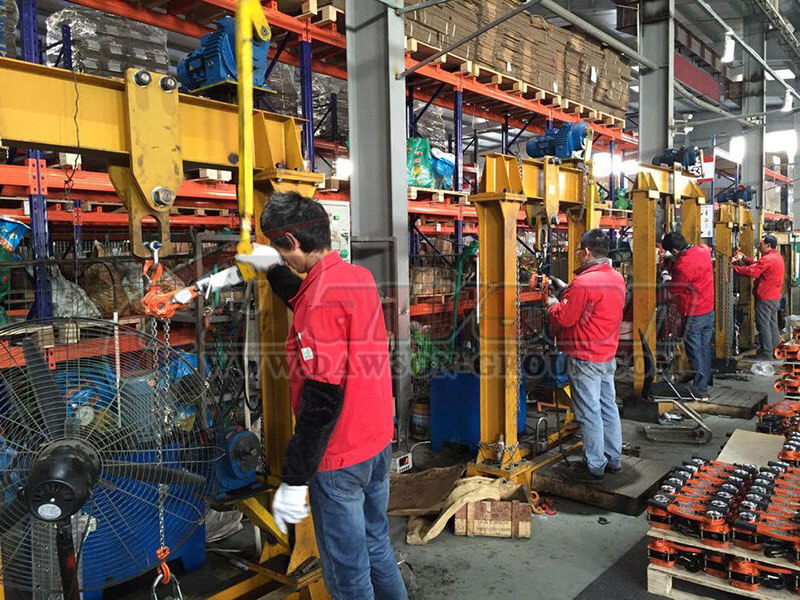

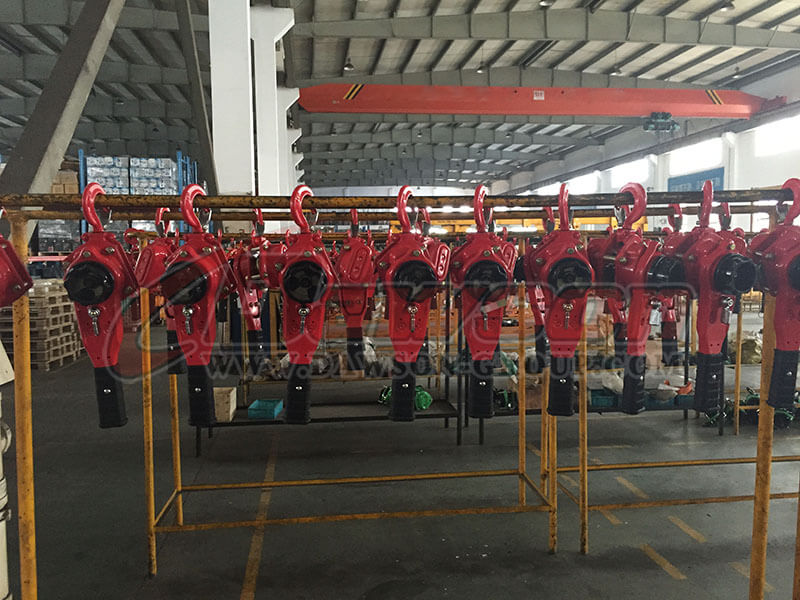

Factory and Package:
