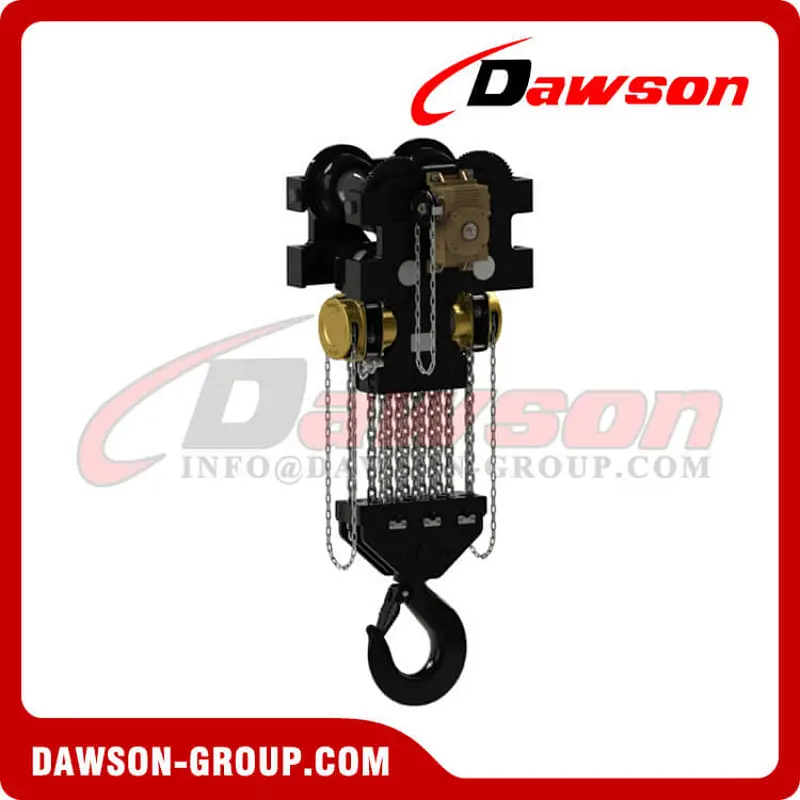

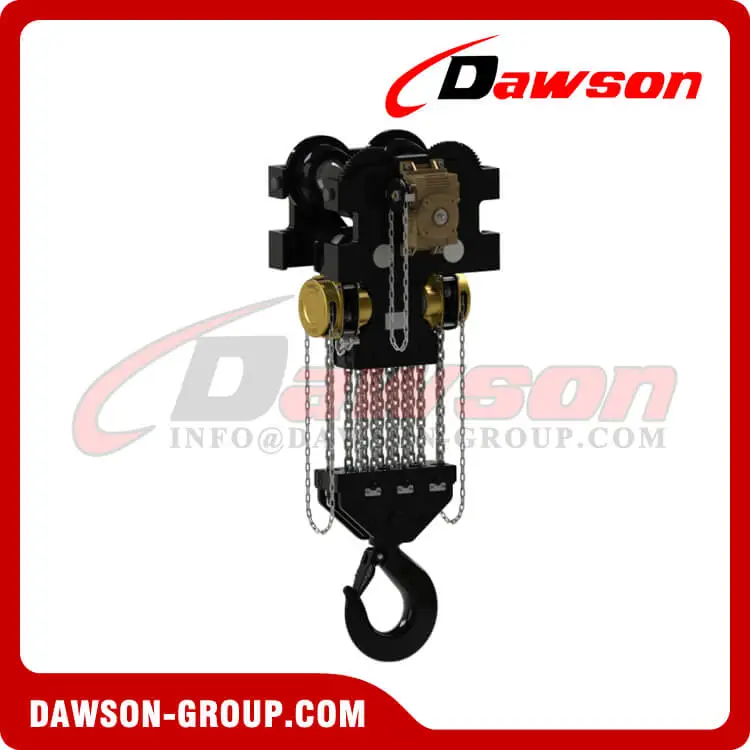

DS-HTG-3000 30T Low Headroom Hoist Trolley, 30000 KG Hand Pull Trolley Hoist Combination
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
| Model | DS-HTG-3000 | |
| Standard Lift Height | m | 3 |
| Full load when the pull force | N | 220 |
| Test Load | Kg | 45000 |
| No. of Falls of Load Chain | 12 | |
| Load Chain Diameter × Falls | mm | 10x30 |
| Hand Chain Diameter × Falls | mm | 5x25 |
| Net Weight | Kg | 470 |
| Package Weight | KG | 490 |
| Weight when lifting chain added per meter | KG | 26.4 |
| Weight when hand chain added per meter | KG | 1.362 |

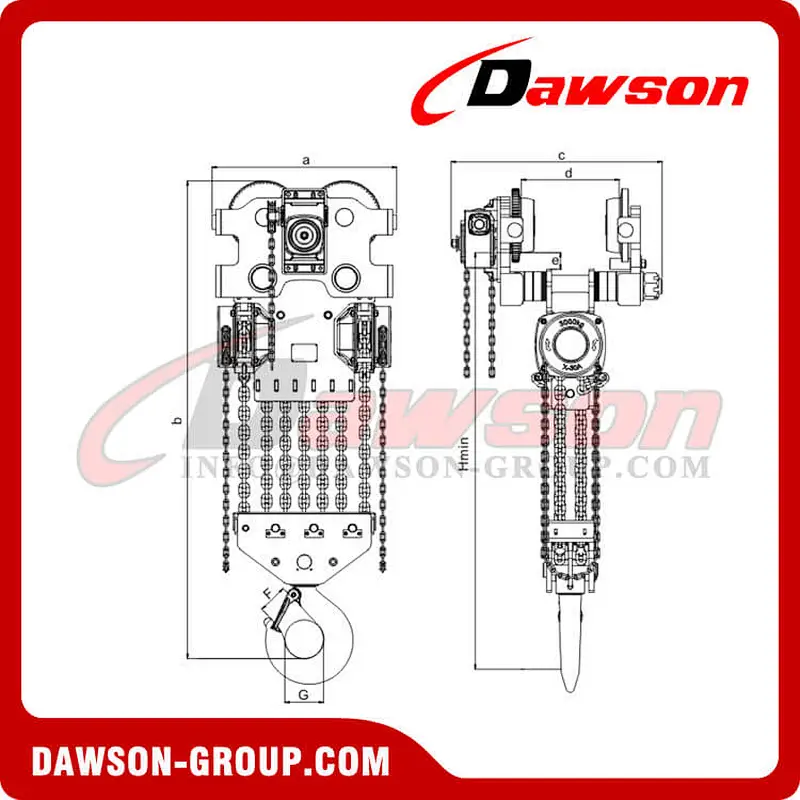

| Dimension | a | 626 |
| b | 1267 | |
| c | 675 | |
| Hmin | 1054 | |
| d | 305 | |
| e | 60 | |
| F | 92 | |
| G | 150 |
Use of environmental conditions:
Operating temperature range:-40℃ to +60℃.
Use of the environment: Please use below 100% RH, can not be used in water.
Use of materials: no use of anti-spark material or asbestos and other special materials.
Do not overload use
Welcome to buy the newest and competitive price DAWSON DS-HTG-3000 30Ton Low Headroom Hoist Trolley, 30000 KG Hand Pull Trolley Hoist Combination from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
For further information, please contact us. Email:info@dawson-group.com
Hot Tags: bulk chain hoist trolley, low price chain block trolley, high quality low headroom hoist trolley, wholesale low headroom chain hoist trolley, buy discount 30ton hand pull trolley hoist combination, customized 30t lowheadroom hoist trolley, cheap price chain hoist with manual trolley, chain hoist with trolley China supplier, 30000kg low headroom hoist trolley, hoist trolley China factory, chain block with trolley China exporter, chain hoist with monorail trolley in stock, geared trolley for lifting hoist dawson brands, geared trolleyOEM
