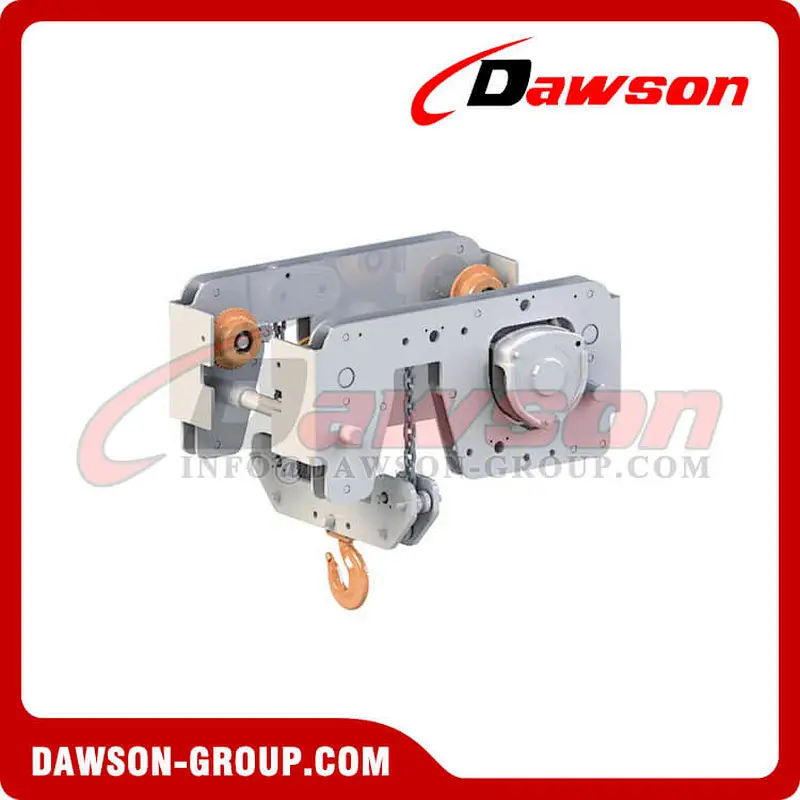

DS-SHB Marine Anti-corrosive Low-headroom Combination Hoist, Spark Resistant Combined Hoist
DS-SHB Marine Anti-corrosive Low-headroom Combination Hoist, Spark Resistant Combined Hoist
DS-SHB Marine Anti-corrosive Low-headroom Combination Hoist, Spark Resistant Combined Hoist
DS-SHB Marine Anti-corrosive Low-headroom Combination Hoist, Spark Resistant Combined Hoist
DS-SHB Marine Anti-corrosive Low-headroom Combination Hoist, Spark Resistant Combined Hoist

DS-SHB Marine Anti-corrosive Low-headroom Combination Hoist, Spark Resistant Combined Hoist

Model NO.
DS-SHB
Quantity:

DS-SHB Marine Anti-corrosive Low-headroom Combination Hoist, Spark Resistant Combined Hoist
non-sparking chain block, ex-proof combined hoist, marine anti-corrosive combined hoist, Combination Hoist - Dawson China

1. Bottom hook hanger can be lifted until the bottom surface of the beam, which allow the lifting height to the maximum, making full use of the space.

2.The trolley has anti-shedding protection, equipped with a rubber buffer device.

3. Explosion-proof model or anti-corrosion model is available.

4.Self-locking device is optional for the trolley; Overload limiter and storage chain bag optional for the hoist.

ModelDS-SHB-010DS-SHB-020DS-SHB-030DS-SHB-050DS-SHB-100DS-SHB-200
Capacityt12351020
Running heightm2.53333.53.5
Beam rangemm75-150100-150125-175125-175150-190150-190
Load chainØxFalls5x26x27x210x210x410x10

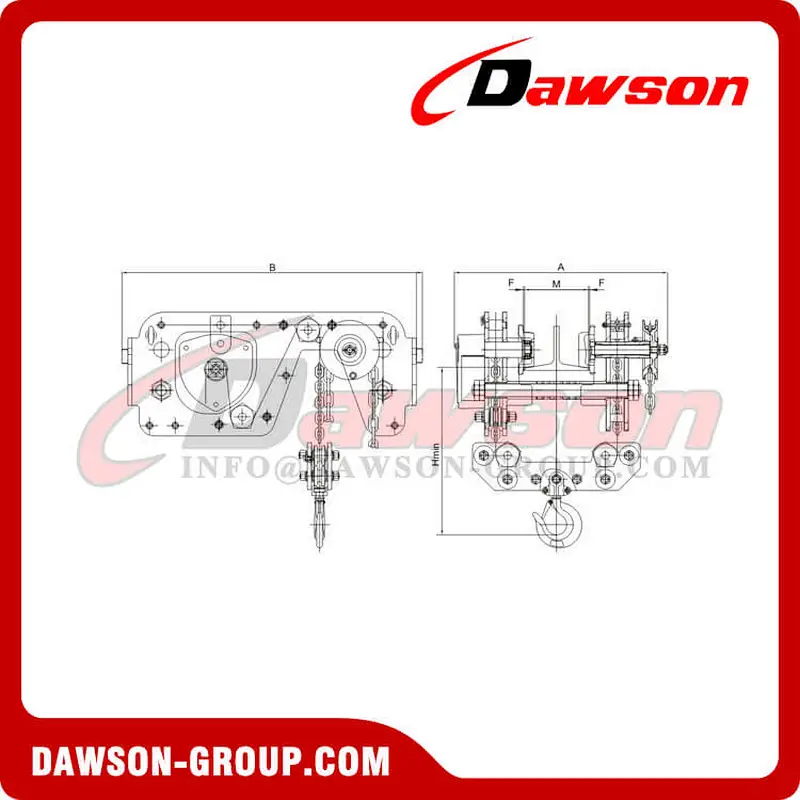

Dimensions(mm)A440513608655742798
B58468476988411051428
H145166198265310440
F1.5-3
Net weightkg6192141252320750
Extra wt. per mkg2.83.33.96.1210.324

Welcome to buy the newest and competitive price DAWSON DS-SHB Marine Anti-corrosive Low-headroom Combination Hoist, Spark Resistant Combined Hoist from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.


For further information, please contact us. Email:info@dawson-group.com


Hot Tags: bulk combination hoist, low price spark resistant low headroom combined hoist, wholesale ex-proof low headroom combination hoist, buy discount marine anti-corrosive low headroom combination hoist, hot sale marine anti-corrosive combination hoist, customized marine anti-corrosive combination block, cheap price explosion proof low headroom combination hoist, lifting equipment explosion proof combination hoistexplosion proof low headroom combination hoist China manufacturer, non-sparking combined hoist China factory, combination hoist China exporter, lifting hoist in stock, spark resistant low headroom combination hoist free sample, non-sparking combination hoist, explosion-proof combined hoist, combination hoist dawson brands, combination hoist OEM

 DAWSON manual chain hoists are commonly known as chain blocks and are designed for heavy duty lifting and materials handling operations. Chain blocks raise and lower loads by pulling on the hand chain. Chain blocks can be of single or double fall configurations depending on the capacity of the block.

Chain Hoist is widely used manual hoisting machinery which is easy to use and carry. It can be used in factory, mine, agriculture, electricity, construction site, wharf and dock. And it can also be used in installing of machinery, lifting, loading and unloading in the ware house, especially suitable to be used in the open air and the place without power source.

INSPECTION BEFORE USE

Ensure that the chain block name plate and WLL is clearly visible and legible.

The pre-use inspection for a chain block should include the following:


Load chain

1.Inspect chain for wear.

2.Inspect chain for gouges, nicks, arc burns, twisted & bent links and corrosion.

3.Inspect for correct reeving on multi-reeved units (3 and 5 tonne).

Lift wheels & Sheave wheels

1.Inspect lift wheel for foreign material, wear and corrosion.

2.Inspect dead end pins for wear, tightness and corrosion.


Hooks

1.Inspect hooks for signs of opening, cracking, bending, arc burns and corrosion.

2.Hooks should swivel freely.

3.Inspect safety latches for condition & operation.

4.Measure the hook throats for allowable service openings.

Hand chain

1.Inspect chain for wear.

2.Inspect chain for twisted or gouged links and corrosion.

3.Inspect connecting link for signs of opening.

Miscellaneous

1.Inspect frame and covers for distortion, cracks, gouges, corrosion & other damage.

2.Inspect hangers (3 and 5 tonne) for cracks, gouges, corrosion & other damage.

3.Inspect unit for clear WLL identity.


CARE IN USE

1.The load chain must always mesh correctly with the load sheave. With multi fall chain blocks twists can arise by turning over the bottom hook through the load chain.

2.Regularly lubricate the whole length of the load chain with machine or gear oil but be careful not to over lubricate as oil or grease on the brake discs can cause the brake to malfunction and slip.

3.Confirm that the brake is functioning properly by hoisting the load 100mm and check the brake when lowering the load.

4.Non-vertical (sideways pulling) of the hand chain is not recommended on our chain blocks.

5.The hand chain is equipped with a safety link. When the safety link opens or deforms, stop at once and inspect for the cause.

6.Confirm that the monorail beam or structure supporting the chain block is of sufficient strength to support the load to be lifted.

7.Never lift loads in excess of the WLL of the chain block.

8.Never walk or work under a hoisted load and never lift, support or transport people.

9.Use chain blocks manually only.

10.Do not permit more than one operator to pull on the hand chain at one time.

11.Lift loads correctly with proper slings and attachments. Never lift with the point of the hook and never use the load chain as a sling by back hooking.

12.Lifting a load with two chain blocks is not recommended. If the operation is unavoidable, hoist the load with utmost care, keeping the load balanced.

13.Never run the load chain out too far. When operated beyond the range of lift, an excessive load that can cause damage will be imposed on the chain block.

14.Chain blocks are designed for lifting loads vertically and should not be used for horizontal or angle hoisting.

15.Extreme temperatures will reduce the durability of the hoist. Loads should be hoisted or lowered very slowly and carefully in extreme temperatures.

16.Never leave a load hanging on the hoist.

17.Never use the chain or hook as a ground for welding.


Asbestos free brake, holding load at any desired height.

- Robust all-steel construction.

- Top and bottom hooks are fitted with safety latches as standard.

- All rotating components mounted on roller or ball bearings to reduce friction & increase efficiency.
