Model NO.
DSCK
Quantity:

DSCK 0.5T 1T 1.5T 2T 3T 5T 10T 20T Chain Block for Loading and Unloading

500kg 1000kg 1500kg 2000kg 3000kg 5000kg 10000kg 20000kg Manual Chain Hoist, Light Duty Chain Block for Lifting

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Introduction

●Small size, light weight, easy to easy to carry.

●The adoption of low-alloy structural steel plates, more safe and long service life.

●Grade 80 high strength load chain, High safety factor, Long service life

●Steady rotation, high efficiency, light hand pulling force

●Approved by CE,GS certificate.

●Double pawls, double load chain guide wheel ensure the safe working

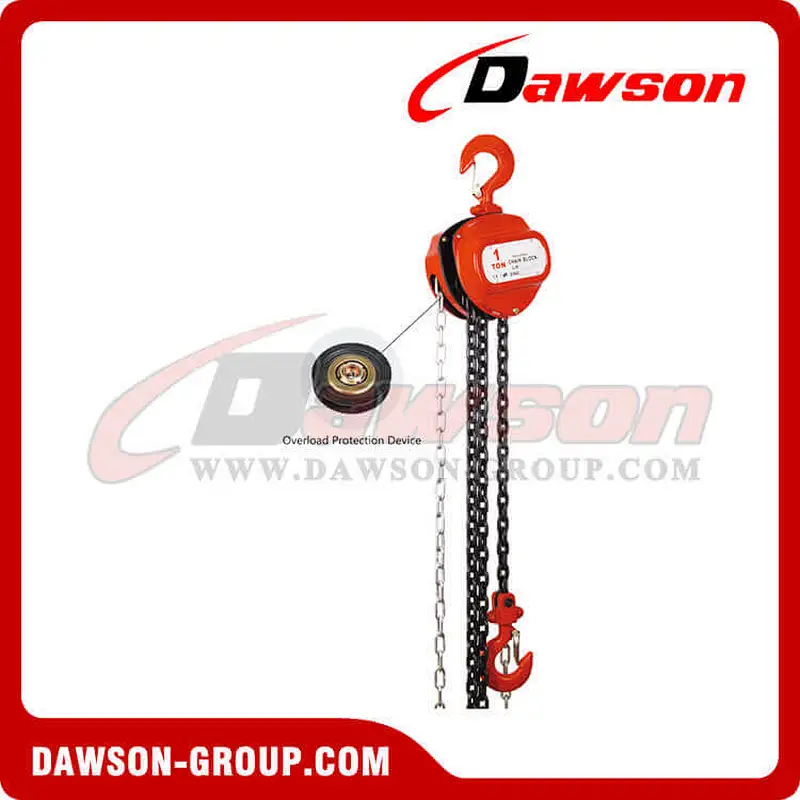

●Overload protection optioned.

ModelCapacity
(T)
Standard lift
(m)
Running test
(T)
Effort required to lift max load(N)No. of falls of load chainLoad chain
diameter(mm)

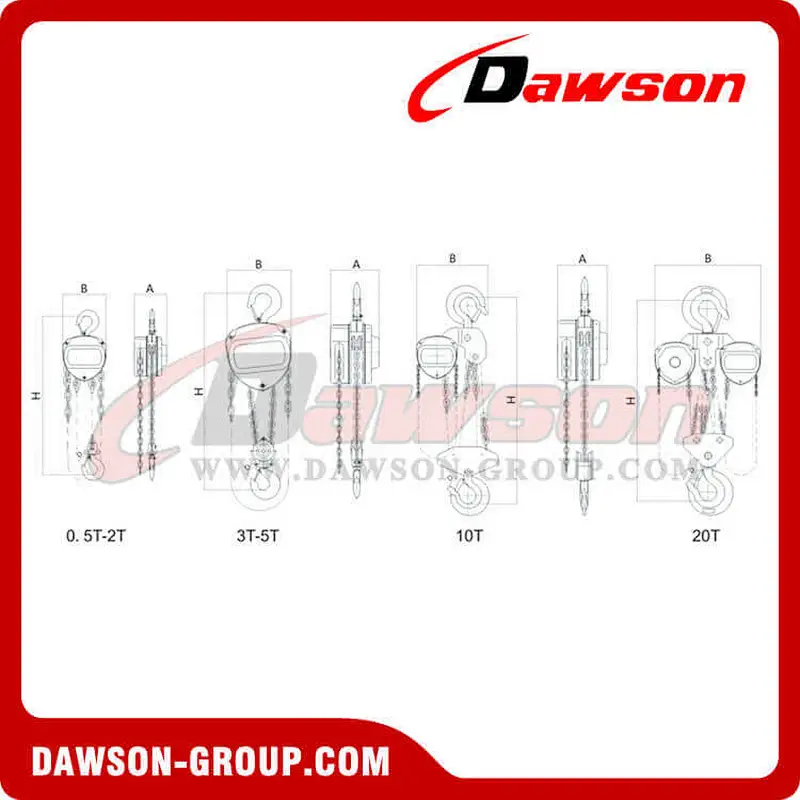

Dimension(mm)Net weight(kg)Packing
(L*W*H)(cm)
ABHD
DSCK-0.5T0.52.50.752001611312525528922*15*14
DSCK-1T12.51.5304161261473063211.525*19 *15
DSCK-1.5T1.52.52.25343161411833683617.525*19 *15
DSCK-2T23330426141183368361631*21*17
DSCK-3T334.534328141183486462734.5*24 *16
DSCK-5T537.5414210163215616464340*30 *17
DSCK-10T10315423410163404750577548*42 *18.5
DSCK-20T20330435*281019159510008118578*68 *20

Welcome to buy the newest and competitive price DAWSON DSCK Chain Block from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.


For further information, please contact us. Email:info@dawson-group.com

Hot Tags: bulk 500kg crane machinerylow price 20000kg manual chain blockhigh quality 10ton hand chain hoistwholesale 20000kg lifting chain blockbuy discount 10000kg heavy duty chain blockshot sale 5000kg lifting chain hoist for salecustomized 5ton chain blockcheap price 3ton manual lifting hoistlifting equipment 3000kg China supplierlifting chain hoist 2000kg China manufacturerchain hoist for heavy duty lifting 2t China factorychain hoist for mine 1.5ton China exporterchain hoist for construction site 1500kg in stockchain hoist for electricity 1000kg free samplechain hoist for dock 1 ton dawson brandshandling lifting toos 0.5ton OEM

DAWSON manual chain hoists are commonly known as chain blocks and are designed for heavy duty lifting and materials handling operations. Chain blocks raise and lower loads by pulling on the hand chain. Chain blocks can be of single or double fall configurations depending on the capacity of the block.

Chain Hoist is widely used manual hoisting machinery which is easy to use and carry. It can be used in factory, mine, agriculture, electricity, construction site, wharf and dock. And it can also be used in installing of machinery, lifting, loading and unloading in the ware house, especially suitable to be used in the open air and the place without power source.

INSPECTION BEFORE USE

Ensure that the chain block name plate and WLL is clearly visible and legible.

The pre-use inspection for a chain block should include the following:


Load chain

1.Inspect chain for wear.

2.Inspect chain for gouges, nicks, arc burns, twisted & bent links and corrosion.

3.Inspect for correct reeving on multi-reeved units (3 and 5 tonne).

Lift wheels & Sheave wheels

1.Inspect lift wheel for foreign material, wear and corrosion.

2.Inspect dead end pins for wear, tightness and corrosion.


Hooks

1.Inspect hooks for signs of opening, cracking, bending, arc burns and corrosion.

2.Hooks should swivel freely.

3.Inspect safety latches for condition & operation.

4.Measure the hook throats for allowable service openings.

Hand chain

1.Inspect chain for wear.

2.Inspect chain for twisted or gouged links and corrosion.

3.Inspect connecting link for signs of opening.

Miscellaneous

1.Inspect frame and covers for distortion, cracks, gouges, corrosion & other damage.

2.Inspect hangers (3 and 5 tonne) for cracks, gouges, corrosion & other damage.

3.Inspect unit for clear WLL identity.


CARE IN USE

1.The load chain must always mesh correctly with the load sheave. With multi fall chain blocks twists can arise by turning over the bottom hook through the load chain.

2.Regularly lubricate the whole length of the load chain with machine or gear oil but be careful not to over lubricate as oil or grease on the brake discs can cause the brake to malfunction and slip.

3.Confirm that the brake is functioning properly by hoisting the load 100mm and check the brake when lowering the load.

4.Non-vertical (sideways pulling) of the hand chain is not recommended on our chain blocks.

5.The hand chain is equipped with a safety link. When the safety link opens or deforms, stop at once and inspect for the cause.

6.Confirm that the monorail beam or structure supporting the chain block is of sufficient strength to support the load to be lifted.

7.Never lift loads in excess of the WLL of the chain block.

8.Never walk or work under a hoisted load and never lift, support or transport people.

9.Use chain blocks manually only.

10.Do not permit more than one operator to pull on the hand chain at one time.

11.Lift loads correctly with proper slings and attachments. Never lift with the point of the hook and never use the load chain as a sling by back hooking.

12.Lifting a load with two chain blocks is not recommended. If the operation is unavoidable, hoist the load with utmost care, keeping the load balanced.

13.Never run the load chain out too far. When operated beyond the range of lift, an excessive load that can cause damage will be imposed on the chain block.

14.Chain blocks are designed for lifting loads vertically and should not be used for horizontal or angle hoisting.

15.Extreme temperatures will reduce the durability of the hoist. Loads should be hoisted or lowered very slowly and carefully in extreme temperatures.

16.Never leave a load hanging on the hoist.

17.Never use the chain or hook as a ground for welding.


Asbestos free brake, holding load at any desired height.

- Robust all-steel construction.

- Top and bottom hooks are fitted with safety latches as standard.

- All rotating components mounted on roller or ball bearings to reduce friction & increase efficiency.


Other related products:

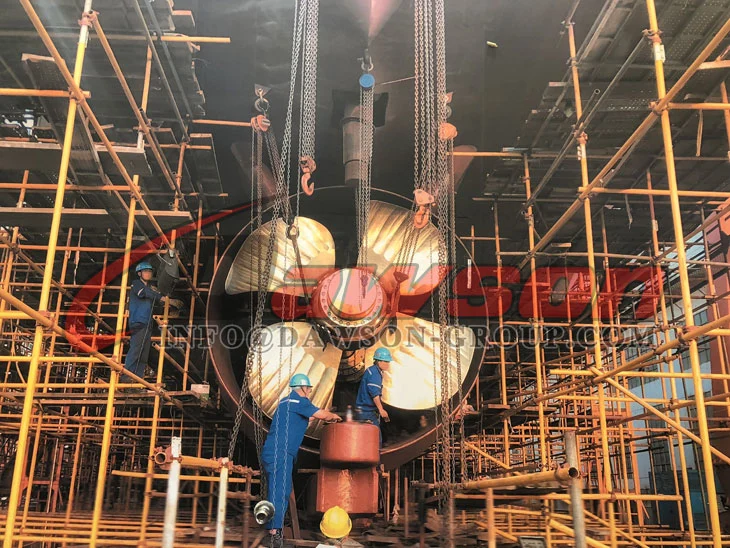

Application of Chain Hoist:

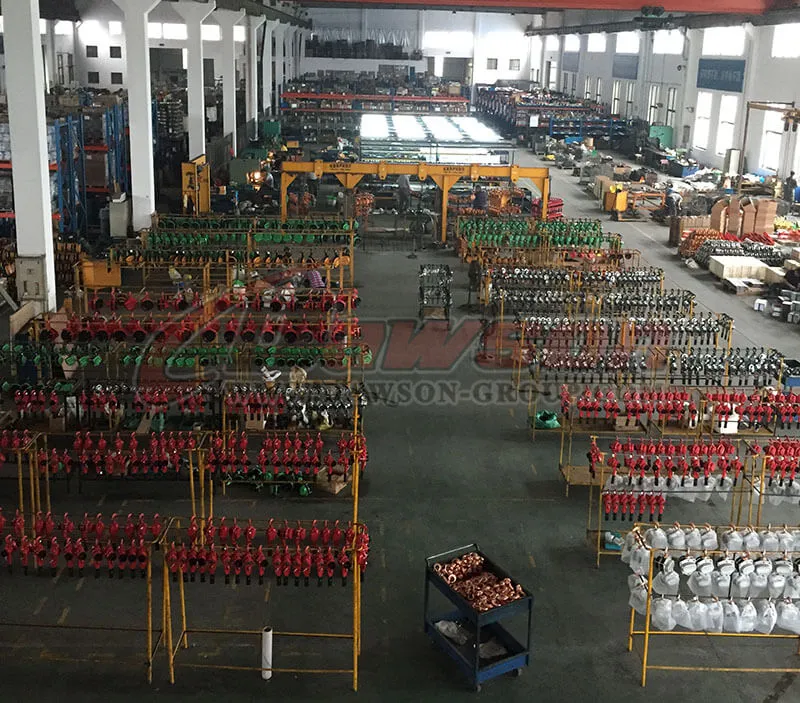

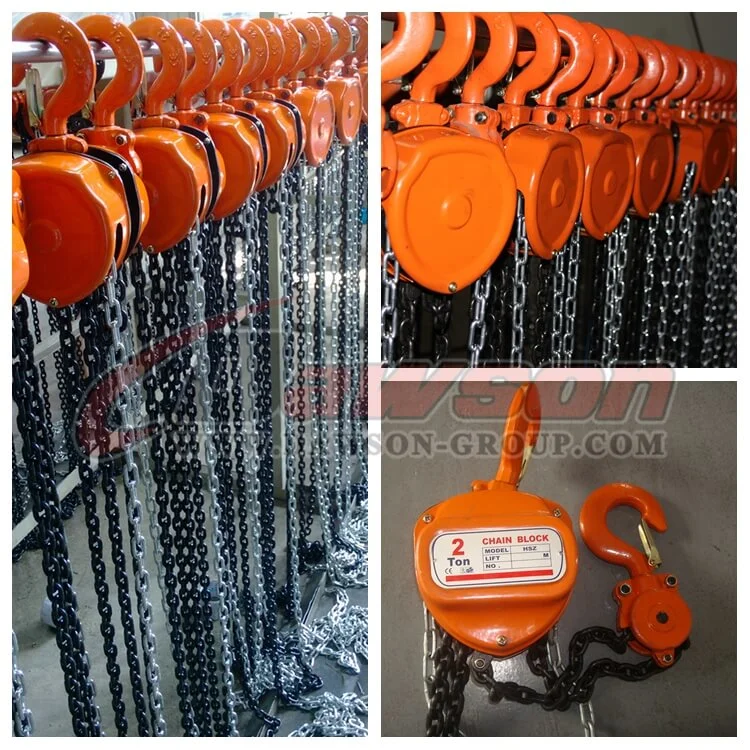

Factory & Package Show:
