DS-HTP 0.5T 1T 2T 3T 5T 10T Hand Pull Trolley Hoist Combination, 500KG 1000KG 2000KG 3000KG 5000KG 10000KG Low Headroom Hoist Trolley
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
| Model | DS-HTP-005 | DS-HTP-010 | DS-HTP-020 | DS-HTP-030 | DS-HTP-050 | DS-HTP-100 | |
| Rated Weight(kg) | 500kg | 1000kg | 2000kg | 3000kg | 5000kg | 10000kg | |
| Standard lifting height(m) | 3 | 3 | 3 | 3 | 3 | 3 | |
| Number of hoisting chains | 1 | 1 | 1 | 1 | 2 | 3 | |
| Full load when the pull force(N) | 240 | 305 | 360 | 370 | 370 | 400 | |
| Test Load(kg) | 750 | 1500 | 3000 | 4500 | 7500 | 15000 | |
| Lifting chain diameter × Number of rows(mm) | 5×15 | 6×18 | 8×24 | 10×30 | 10×30 | 10×30 | |
| Hand chain diameter × Number of rows(mm) | 5×25 | 5×25 | 5×25 | 5×25 | 5×25 | 5×25 | |
| Pack Weight(kg) | 13.5 | 22 | 42 | 56 | 82 | 140 | |
| Pack Size(cm) | 30*24*25 | 35*29*30 | 35*33*34 | 42*42*40 | 50*47*47 | 50*47*53 | |
| Lifting chain lifting height for each additional weight of 1 m(kg/m) | 0.541 | 0.77 | 1.36 | 2.2 | 4.4 | 6.6 | |
| Minimum clearance Hmin(mm) | 250 | 259 | 376 | 447 | 595 | 806 | |
| I-beam width(mm) | 50-203 | 74-203 | 85-203 | 100-203 | 114-203 | 124-203 | |
| Minimum corner radius(m) | 0.85 | 1 | 1.1 | 1.3 | 1.4 | 3 | |

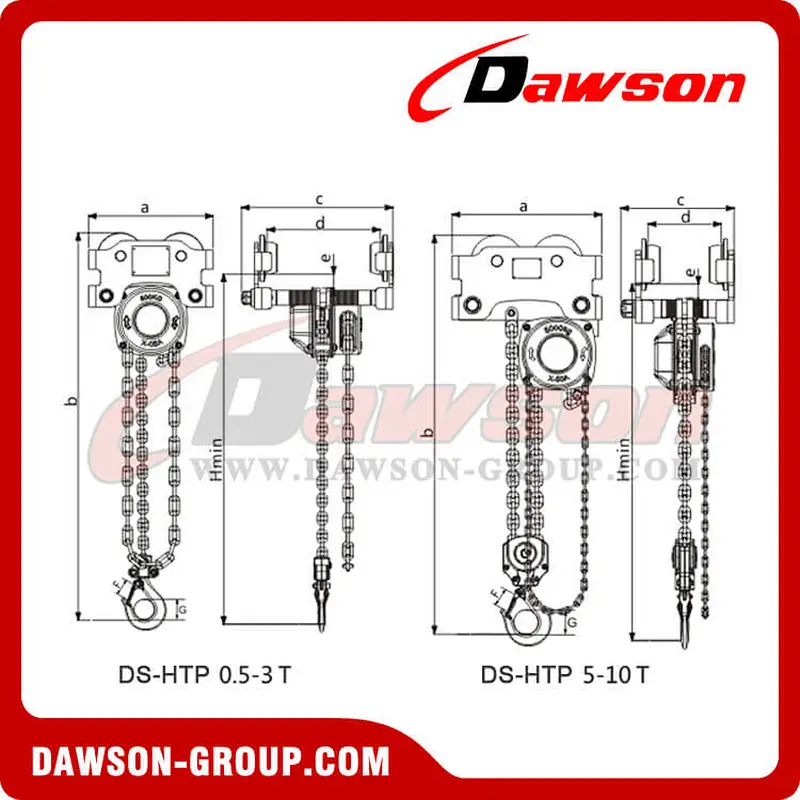

| Size | a | 210 | 240 | 280 | 340 | 420 | 452 |
| b | 312 | 382 | 481 | 588 | 753 | 988 | |
| c | 255 | 259 | 284 | 302 | 318 | 338 | |
| d | 190 | 203 | 203 | 203 | 205 | 203 | |
| e | 24 | 26 | 35 | 37 | 40 | 41 | |
| F | 22 | 30 | 34 | 41 | 47 | 61 | |
| G | 35 | 44 | 49 | 60 | 68 | 91 | |
Use of environmental conditions:
Operating temperature range:-40℃ to +60℃.
Use of the environment: Please use below 100% RH, can not be used in water.
Use of materials: no use of anti-spark material or asbestos and other special materials.
Do not overload use.
Welcome to buy the newest and competitive price DAWSON DS-HTP 0.5-10T Hand Pull Trolley Hoist Combination, Low Headroom Hoist Trolley from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
For further information, please contact us. Email:info@dawson-group.com
