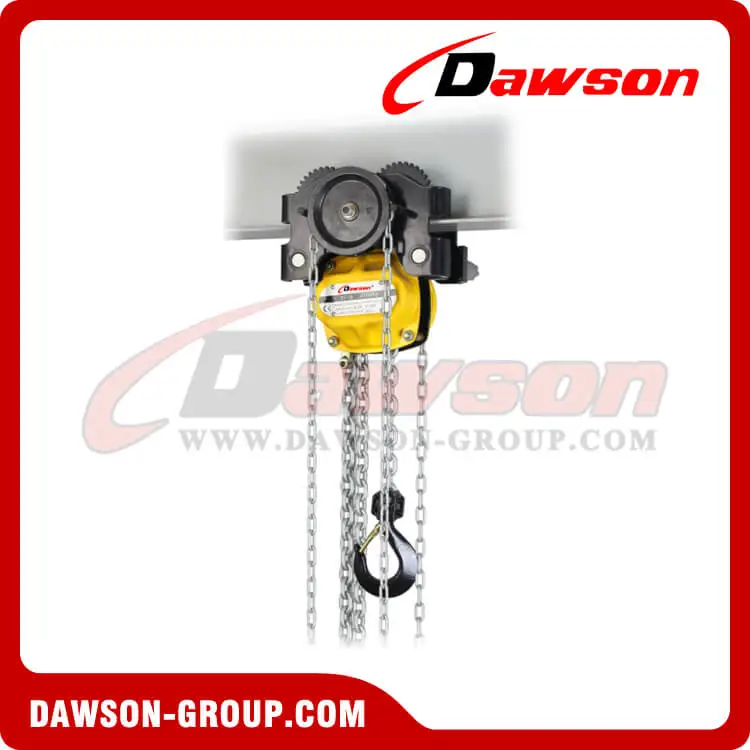

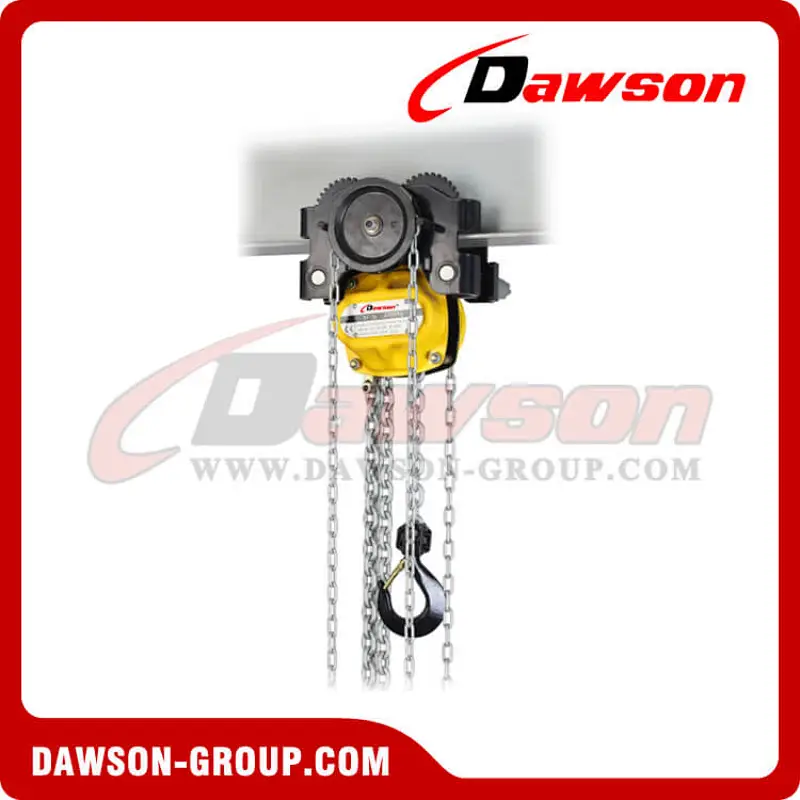

DS-HTG 500kg 1000kg 2000kg 3000kg 5000kg 10000kg Low Headroom Hoist Trolley, 0.5T 1T 2T 3T 5T 10T Hand Pull Car Hoist Combination
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Product Features:
1、This series of products gourd rated load 3000kg below the gourds are single-chain structure, the net less empty size, especially for space-constrained applications.
2、Car installation and adjustment is very convenient, and can be based on the width of the steel beam to adjust the precise.
3、The rated load of 5 tons below the car can be set to two basic standard specifications, A-type car with a maximum width of 180 mm I-beam, and can be easily converted to B-type to fit the maximum width degree of 300mm I-beam.
4、Trolley wheel design to ensure the largest track fit surface, and the use of the lubrication of the closed ball the bearings ensure good operation of the wheels.
5、The car standard configuration side tilt and anti-fall device.
| Model | DS-HTG-005 | DS-HTG-010 | DS-HTG-020 | DS-HTG-030 | DS-HTG-050 | DS-HTG-100 | |
| Rated Weight(kg) | 500kg | 1000kg | 2000kg | 3000kg | 5000kg | 10000kg | |
| Standard lifting height(m) | 3 | 3 | 3 | 3 | 3 | 3 | |
| Number of hoisting chains | 1 | 1 | 1 | 1 | 2 | 3 | |
| Full load when the pull force(N) | 240 | 305 | 360 | 370 | 370 | 400 | |
| Test Load(kg) | 750 | 1500 | 3000 | 4500 | 7500 | 15000 | |
| Lifting chain diameter × Number of rows(mm) | 5×15 | 6×18 | 8×24 | 10×30 | 10×30 | 10×30 | |
| Hand chain diameter × Number of rows(mm) | 5×25 | 5×25 | 5×25 | 5×25 | 5×25 | 5×25 | |
| Lifting chain lifting height for each additional weight of 1 m(kg/m) | 0.541 | 0.77 | 1.36 | 2.2 | 4.4 | 6.6 | |
| Pack Weight(kg) | 14.8 | 23.5 | 43.7 | 58 | 84 | 140 | |
| Pack Size(cm) | 30*24*25 | 35*29*30 | 35*33*34 | 42*42*40 | 50*47*47 | 50*47*53 | |
| Minimum clearance Hmin(mm) | 250 | 259 | 376 | 447 | 595 | 806 | |
| I-beam width(mm) | 50-203 | 74-203 | 85-203 | 100-203 | 114-203 | 124-203 | |
| Minimum corner radius(m) | 0.85 | 1 | 1.1 | 1.3 | 1.4 | 3 | |

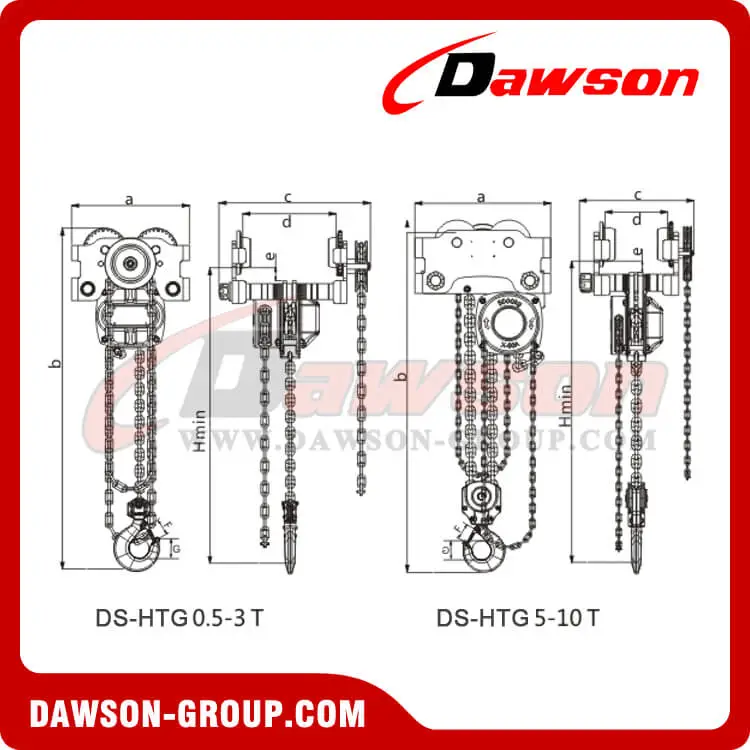

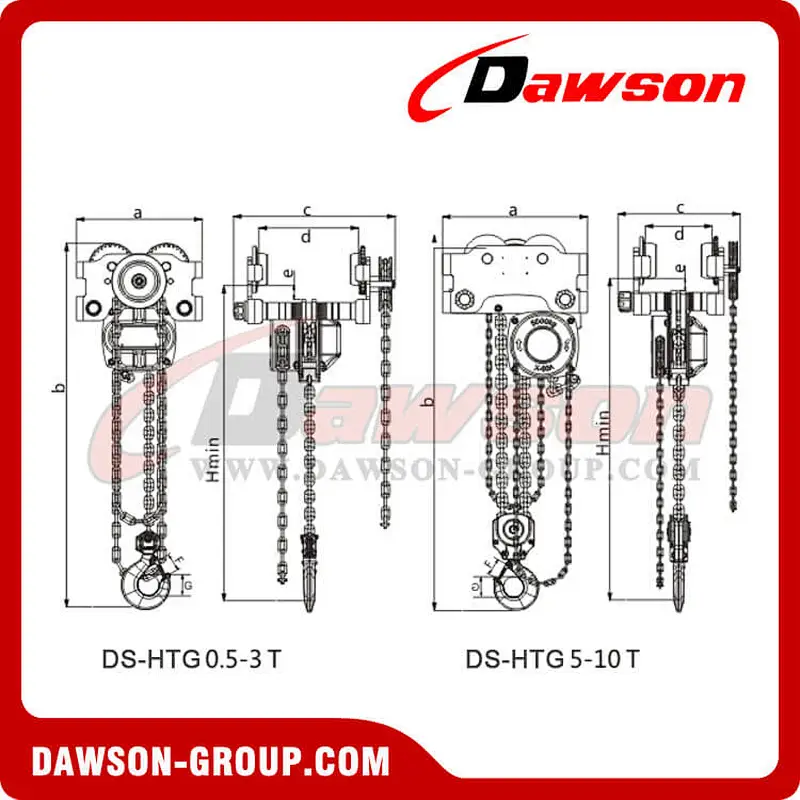

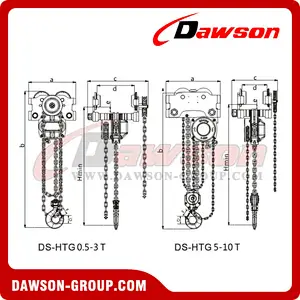

| Size | a | 210 | 240 | 280 | 340 | 420 | 452 |
| b | 312 | 382 | 481 | 588 | 753 | 988 | |
| c | 208 | 312 | 329 | 351 | 368 | 387 | |
| d | 190 | 203 | 203 | 203 | 205 | 203 | |
| e | 24 | 26 | 35 | 37 | 40 | 41 | |
| F | 22 | 30 | 34 | 41 | 47 | 61 | |
| G | 35 | 44 | 49 | 60 | 68 | 91 | |
Welcome to buy the newest and competitive price DAWSON DS-HTG Low Headroom Hoist Trolley, Hand Pull Car Hoist Combination from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
For further information, please contact us. Email:info@dawson-group.com
