DS-HSZ-B Series 0.5T 1T 1.5T 2T 3T 5T 10T 15T 20T Chain Block for Mines
500kg 1000kg 1500kg 2000kg 3000kg 5000kg 10000kg 15000kg 20000kg Manual Chain Hoist,
Lifting Chain Block, Hand Chain Hoist for Lifting
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Automatic Double Pawl Braking System.
Premium Grade Alloy Load Chain and Zinc Plated Hand Chain.
Drop Forged and Expertly Heat Treated Hooks for Great Strength and Long Wearing
| Model | DS-HSZ-0.5B | DS-HSZ-1B | DS-HSZ-1.5B | DS-HSZ-2B | DS-HSZ-3B | DS-HSZ-5B | DS-HSZ-10B | DS-HSZ-15B | DS-HSZ-20B | |
| capacity | tons | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 15 | 20 |
| Standard lift | m | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 |
| Running test load | KN | 7.5 | 15 | 22.5 | 30 | 45 | 75 | 125 | 200 | 250 |
| Effort required to lift rated load | N | 225 | 309 | 343 | 314 | 343 | 383 | 392 | 392 | 392 |
| Strands of load chain | 1 | 1 | 1 | 2 | 2 | 2 | 4 | 6 | 8 | |
| Diameter of load chain | mm | 6 | 6 | 8 | 6 | 8 | 10 | 10 | 10 | 10 |

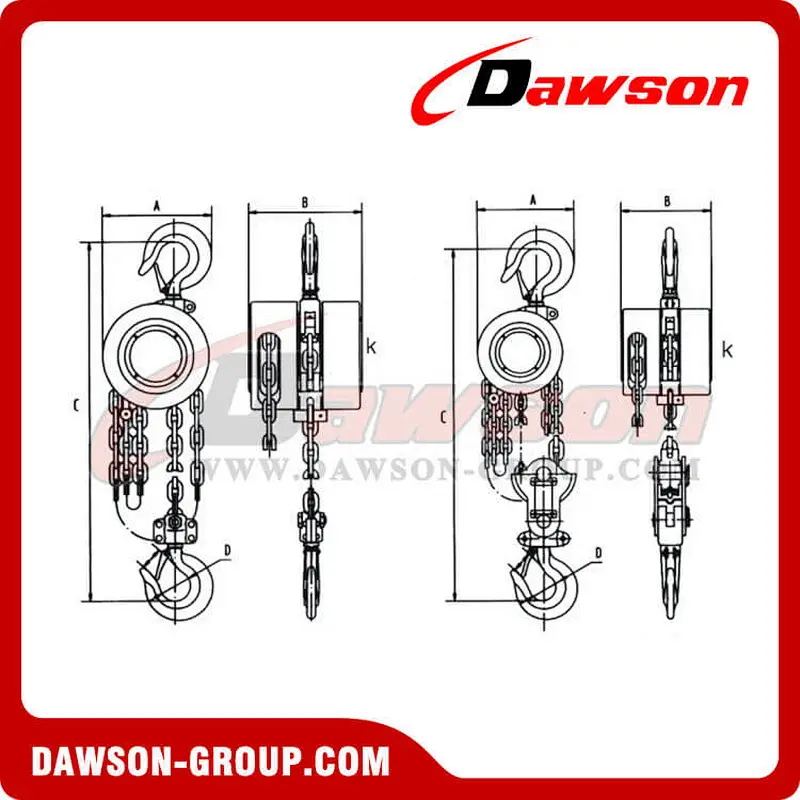

| Dimension (mm) | A | 120 | 142 | 178 | 142 | 178 | 210 | 358 | 400 | 580 |
| B | 108 | 122 | 139 | 122 | 139 | 162 | 162 | 196 | 189 | |
| C | 315 | 335 | 435 | 470 | 555 | 720 | 820 | 923 | 1040 | |
| D | 35 | 40 | 45 | 50 | 55 | 65 | 85 | 110 | 110 | |
| K | 23 | 26 | 29 | 34 | 37 | 41 | 50 | 80 | 80 | |
| Net weight | kg | 8 | 10 | 16 | 14 | 24 | 36 | 68 | 117 | 155 |
| Packing measurement | cm | 28x21x17 | 30x24x18 | 34x29x20 | 38x30x20 | 45x35x24 | 33x27x16 | 62x50x28 | 70x46x75 | 70x46x75 |
| Extra weight per metre of extra lift | kg | 1.7 | 1.7 | 2.3 | 2.5 | 3.7 | 5.3 | 9.7 | 14.1 | 19.4 |
Chain Hoist is widely used manual hoisting machinery which is easy to use and carry. It can be used in factory, mine, agriculture, electricity, construction site, wharf and dock. And it can also be used in installing of machinery, lifting, loading and unloading in the ware house, especially suitable to be used in the open air and the place without power source.
Welcome to buy the newest and competitive price DAWSON DS-HSZ-B Series Chain Block from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
For further information, please contact us. Email:info@dawson-group.com
Hot Tags: bulk 20000kg crane machinery, low price 20ton lifting chain block, high quality 15000kg handling lifting chain hoist, wholesale 15ton manual chain block, buy discount 10t heavy duty chain blocks, hot sale 10000kg lifting chain hoist for sale, customized 5000kg lifting chain block, cheap price 5t manual lifting hoist, lifting equipment 3000kg China supplier, 2000kg lifting chain hoist China manufacturer, chain hoist for wharf 2ton China factory, chain hoist for mines 1000kg China exporter, 1ton chain hoist for dock in stock, chain hoist 500kg free sample, chain hoist 0.5ton dawson brands, chain hoist OEM
Application of Chain Hoist:

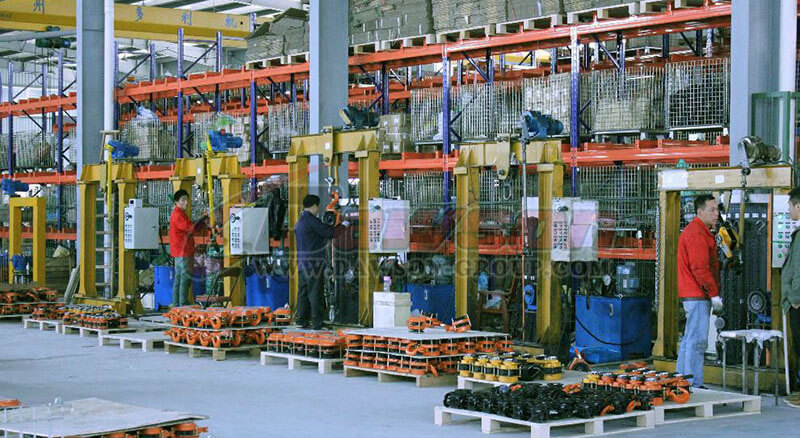

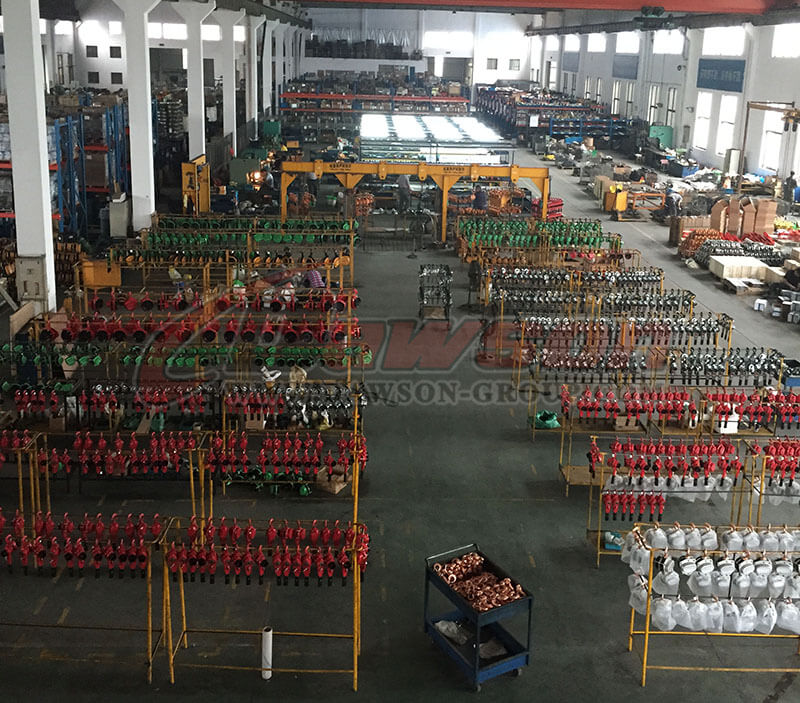

Factory show:
