DS-HSZ-A 622 Series 0.5T 1T 1.5T 2T 3T 5T 10T 20T Chain Block for Installing of Machinery
500kg 1000kg 1500kg 2000kg 3000kg 5000kg 10000kg 20000kg Chain Hoist, Manual Chain Block, Lifting Chain Hoist
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
| Model | DS-HSZ-622-0.5A | DS-HSZ-622-1A | DS-HSZ-622-1.5A | DS-HSZ-622-2A | DS-HSZ-622-3A | DS-HSZ-622-5A | DS-HSZ-622-10A | DS-HSZ-622-20A | ||
| Capacity | tons | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 | |
| Standard lift | m | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 | |
| Running test load | Kn | 7.5 | 15 | 22.5 | 30 | 45 | 75 | 150 | 300 | |
| Effort required to lift rated load | N | 231 | 309 | 320 | 360 | 340 | 414 | 414 | 414x2 | |
| Strands of load chain | 1 | 1 | 1 | 1 | 2 | 2 | 4 | 8 | ||
| Load chain diameter | mm | 6 | 6 | 8 | 8 | 8 | 10 | 10 | 10 | |
| Dimensions(mm) | A | 131 | 140 | 161 | 161 | 161 | 186 | 207 | 215 | |
| B | 127 | 158 | 187 | 187 | 210 | 253 | 398 | 650 | ||
| C | 270 | 317 | 399 | 414 | 465 | 636 | 798 | 890 | ||
| D | 36 | 40 | 45 | 50 | 58 | 64 | 85 | 110 | ||
| K | 30 | 34 | 38 | 41 | 48 | 52 | 64 | 85 | ||
| Net weight | kg | 10 | 12 | 18.5 | 20 | 27 | 45.5 | 83 | 193 | |
| Packing measurement | cm | 22x15 x19.5 | 23x18 x19.5 | 28x21 x24 | 28x21 x24 | 32x21 x26 | 40x21 x31 | 50x41 x21 | 64x38 x64 | |
| Extra weight per metre of extra lift | kg | 1.7 | 1.7 | 2.3 | 2.3 | 3.7 | 5.6 | 9.7 | 19.4 | |
Welcome to buy the newest and competitive price DAWSON HSZ-A 622 Series Chain Block from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
For further information, please contact us. Email:info@dawson-group.com
Hot Tags: bulk 5000kg lifting chain hoist, low price 5ton handling lifting tools, high quality 3ton lifting equipment, wholesale 3000kg manual chain block, buy discount 2ton hand chain blocks, hot sale 2000kg lifting hoist for sale, customized heavy duty chain block, cheap price 1.5ton manual hoist, lifting equipment 1500kg China supplier, lifting chain hoist for wharf 10ton China manufacturer, chain hoist for dock 10000kg China factory, 20ton heavy duty chain hoist China exporter, 20000kg heavy duty chain block in stock, chain hoist for electricity 1t free sample, chain hoist 1000kg for mines dawson brands, chain hoist for lifting OEM

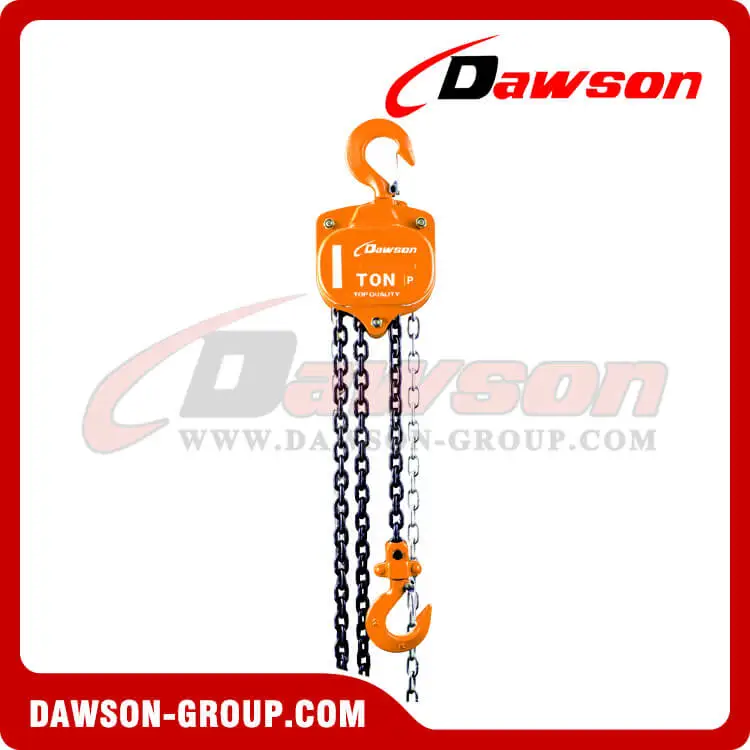

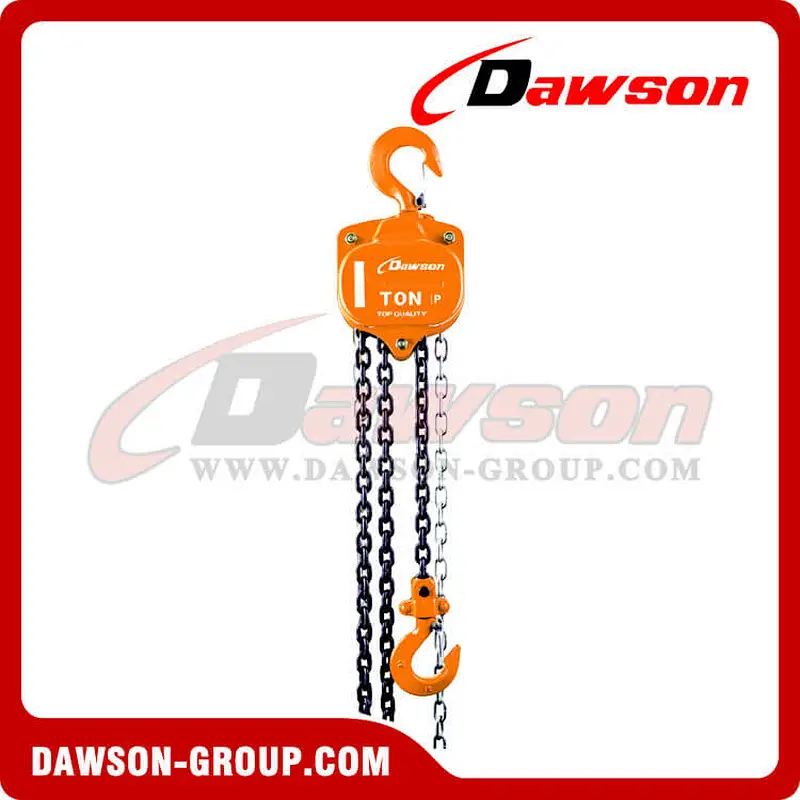

Dawson manual chain hoist is of modern design, featured by a very sturdy construction and safe operation, in combination with compactness and a low operating force.
- Asbestos free brake, holding load at any desired height.
- Robust all-steel construction.
- Top and bottom hooks are fitted with safety latches as standard.
- All rotating components mounted on roller or ball bearings to reduce friction & increase efficiency.
- The hoist is fitted with high grade alloy load chain & Overload Protection Devices are available upon request.
- Grade 80 Zinc Plated FEC CHAIN from Japan or RUD CHAIN from Germany are available upon request.
- Optional trolleys: Plain Trolley & Geared Trolley.
- Close headroom trolley hoist.
- Use of Materials Hoists.
- Inspection of Hoists.

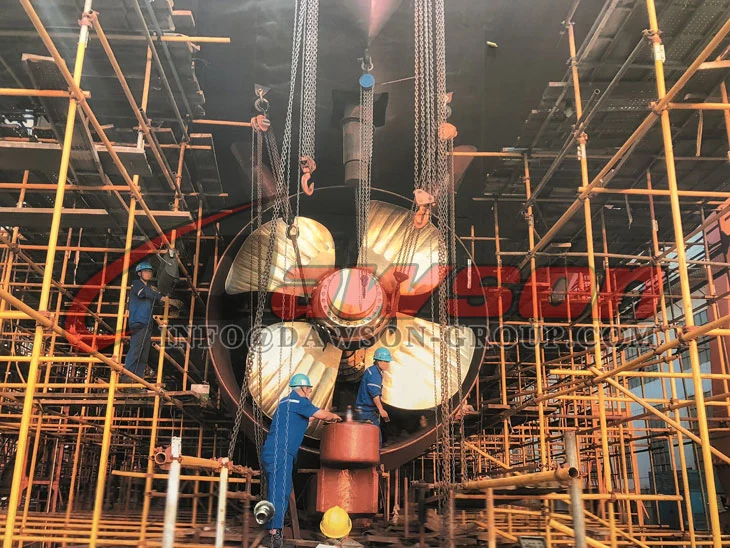

Chain Hoist is widely used manual hoisting machinery which is easy to use and carry. It can be used in factory, mine, agriculture, electricity, construction site, wharf and dock. And it can also be used in installing of machinery, lifting, loading and unloading in the ware house, especially suitable to be used in the open air and the place without power source.
Application of Chain Hoist:

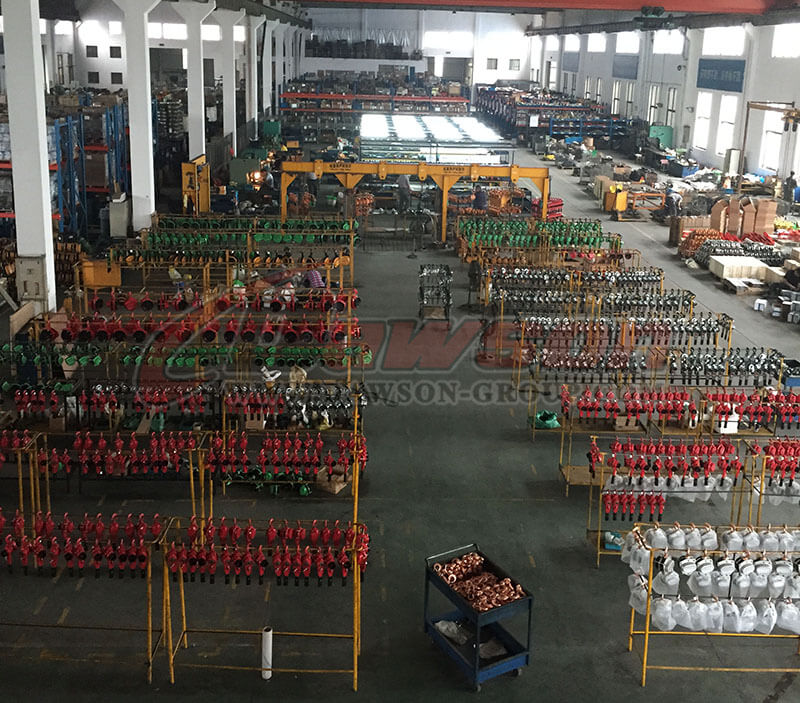

Factory and Package:
