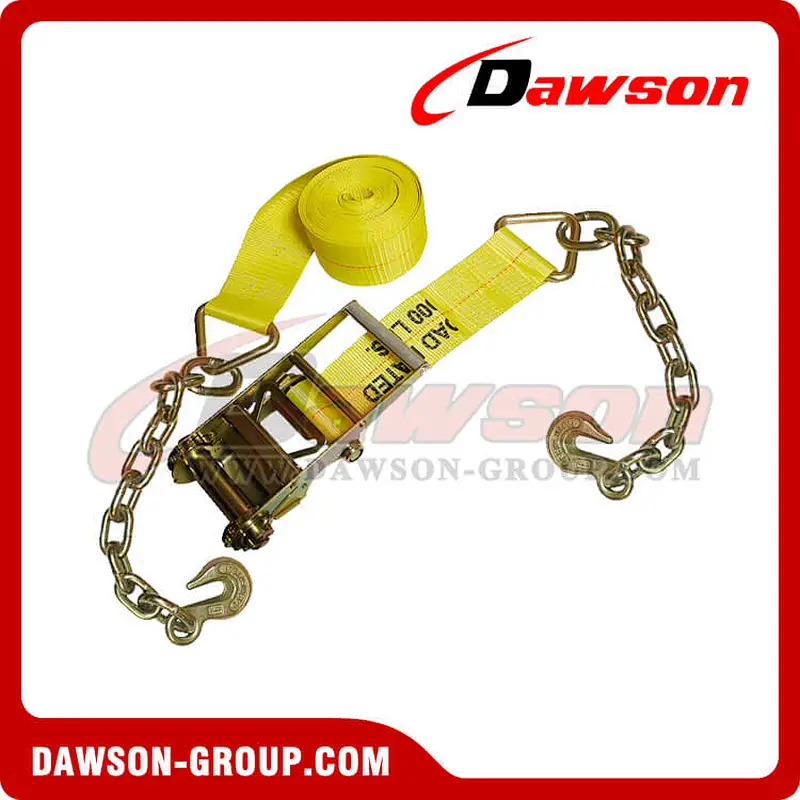

4 inch Ratchet Strap with Chain and Hook

4 inch Ratchet Strap with Chain and Hook
 - China Manufacturer, Supplier, Factory

Ratchet 24,000 lb B.S.

Web 20,000 lb B.S.

Hooks 16,200 lb B.S.

Assembly 5,400 lb W.L.L.

Ratchet Tie Down , Ratchet Straps ( America market)

**100% high tenacity polyester of lashing strap

**Low elongation

**Popular color of strap:orange,blue,yellow,red,black

**Width available:1"to 4"

**Breaking strength scope:1500Ibs-20000Ibs

Cautions

-Never use a lashing as a lifting sling.

-Never twist a webbing.

-Protect the webbing from sharp edges by such as protective sleeves.

-Chemical active environments ca effect the strength of sling.

-Polyester is resistant to acids, but affected by concentrated bases.

-Temperature range of -40 to +100

REMARKS:

*Part number :width-one or two pc-end fitting

*One pc means:endless,without end fitting

*Various end fitting available,see next page

*Cam buckle only for 1"items

Ratchet Lashings are used for tying down loads whilst transporting, shifting or moving them. They have replaced traditional jute ropes, chains and wires used for transportation and for a variety of other applications.

The main advantages of ratchet lashings are :

1. Load restraint using a tensioning device (ratchet)

2. Effective and safe control of loads whilst transportation

3. Extremely quick and efficient tie down and release of load thus saving time.

4. No damage to the load being tied down.

They are available in a large variety of configurations of different ratchets of various capacities and end fittings. Pictures shown here are only indicative and not exhaustive.

	ITEM	STRAP	END HARDWARE	WEB  B.S.	RATCHET  B.S.	ASSEMBLY  W.L.L.
	DG-US-RS-DR4	4'' Ratchet Strap	Delta Ring 20,000 lb B.S.	20,000 lb  B.S.	24,000 lb  B.S.	5,670 lb  W.L.L.
	DG-US-RS-CH4	4'' Ratchet Strap	Chain and Hook 16,200 lb B.S.	20,000 lb  B.S.	24,000 lb  B.S.	5,400 lb  W.L.L.
