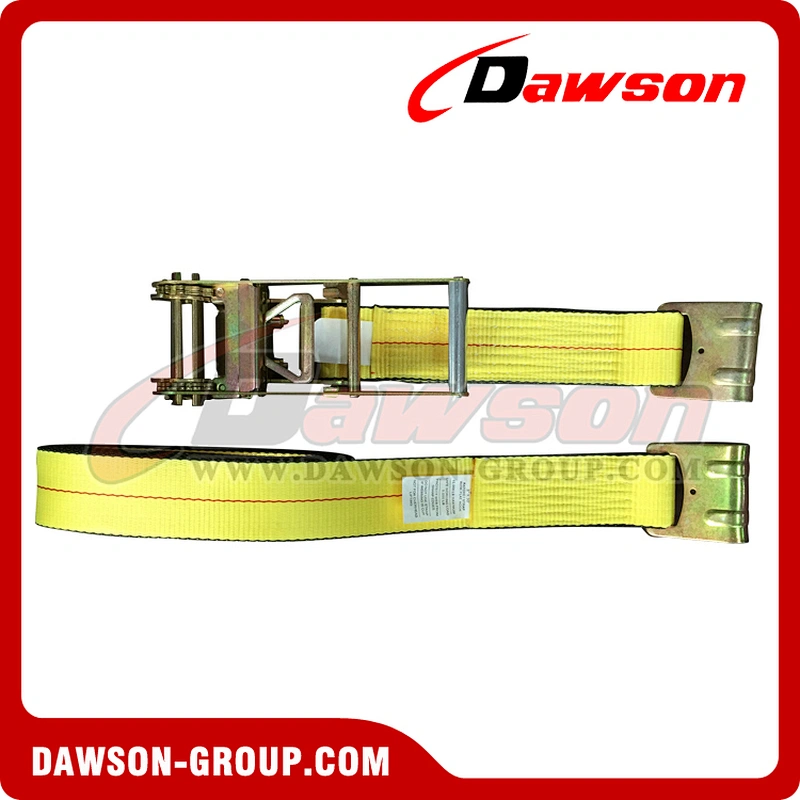

Ratchet Strap ASTM B.30.9
- China Manufacturer, Supplier, Factory
1"RATCHET AND CAM TIE DOWN
| Product No | Buckle Type | Strap(width×length) | End Fitting | WLL | M.B.S. | |
 | DSRSFH110 | Ratchet | 1'' X 10' | Flat Hook | 330lbs | 1,000lbs |
| DSCSFH110 | Cam | 1'' X 10' | 330lbs | 1,000lbs | ||
 | DSRSSH110 | Ratchet | 1'' X 10' | Stamped Snap Hook | 700lbs | 2,100lbs |
| DSCSSH110 | Cam | 1'' X 10' | 330lbs | 1,000lbs | ||
 | DSRSDJ110 | Ratchet | 1'' X 10' | Double J Hook | 700lbs | 2,100lbs |
| DSCSDJ110 | Cam | 1'' X 10' | 330lbs | 1,000lbs | ||
 | DSRSSK110 | Ratchet | 1'' X 10' | S Hook | 700lbs | 2,100lbs |
| DSCSSK110 | Cam | 1'' X 10' | 330lbs | 1,000lbs | ||
 | DSRSHK110 | Ratchet | 1'' X 10' | Hook & Keeper | 700lbs | 2,100lbs |
| DSCSHK110 | Cam | 1'' X 10' | 330lbs | 1,000lbs | ||
 | DSRSEL110 | Ratchet | 1'' X 10' | Endless | 700lbs | 2,100lbs |
| DSCSEL110 | Cam | 1'' X 10' | 330lbs | 1,000lbs |
2"RATCHET TIE DOWN
 | ITEM | Strap(width×length) | END HARDWARE | WLL | M.B.S. |
| DSRSDJ227 | 2"X 27' | DOUBLE J HOOK | 3,333LBS | 10,000LBS | |
| DSRSDJ230 | 2"X 30' | ||||
 | DSRSFH227 | 2"X 27' | FLAT HOOK | 3,333LBS | 10,000LBS |
| DSRSFH230 | 2"X 30' | ||||
 | DSRSGH227 | 2"X 27' | CHAIN GRAB HOOK | 3,333LBS | 10,000LBS |
| DSRSGH230 | 2"X 30' | ||||
 | DSRSSH227 | 2"X 27' | TWISTED SNAP HOOK | 3,333LBS | 10,000LBS |
| DSRSSH230 | 2"X 30' | ||||
 | DSRSCH227 | 2"X 27' | CHAIN ANCHOR ASSEMBLY | 3,333LBS | 10,000LBS |
| DSRSCH230 | 2"X 30' | ||||
 | DSRSDR227 | 2"X 27' | DELTA RING | 3,333LBS | 10,000LBS |
| DSRSDR230 | 2"X 30' | ||||
 | DSRSLFH227 | 2"X 27' | FLAT HOOK | 1,666LBS | 5,000LBS |
| DSRSLFH230 | 2"X 30' | ||||
 | DSRSLDR227 | 2"X 27' | DELTA RING | 1,666LBS | 5,000LBS |
| DSRSLDR230 | 2"X 30' |
3"/4" RATCHET AND CAM TIE DOWN
 | ITEM | Strap(width×length) | END HARDWARE | WLL | M.B.S. |
| DSRSDJ327 | 3"X 27' | DOUBLE J HOOK | 5,000LBS | 15,000LBS | |
| DSRSDJ430 | 4"X 30' | ||||
 | DSRSFH327 | 3"X 27' | FLAT HOOK | 5,000LBS | 15,000LBS |
| DSRSFH430 | 4"X 30' | ||||
 | DSRSGH327 | 3"X 27' | CHAIN GRAB HOOK | 5,000LBS | 15,000LBS |
| DSRSGH430 | 4"X 30' | ||||
 | DSRSCH327 | 3"X 27' | CHAIN ANCHOR ASSEMBLY | 5,000LBS | 15,000LBS |
| DSRSCH430 | 4"X 30' | ||||
 | DSRSFT327 | 3"X 27' | FORGED TRIANGLE | 5,000LBS | 15,000LBS |
| DSRSFT430 | 4"X 30' |
2" LOGISTIC TIE DOWN
 | ITEM | Strap(width×length) | END HARDWARE | BUCKLE | WLL | M.B.S. |
| DSWLRB212 | 2"X12' | E Track Fitting | RATCHET | 1,000LBS | 3,000LBS | |
| DSWLRB216 | 2"X16' | |||||
 | DSWERB212 | 2"X12' | 3 Piece End Fitting | RATCHET | 1,000LBS | 3,000LBS |
| DSWERB216 | 2"X16' | |||||
 | DSWLCB212 | 2"X12' | E Track Fitting | CAM BUCKLE | 833LBS | 2,500LBS |
| DSWLCB216 | 2"X16' | |||||
 | DSWBCB212 | 2"X12' | Butterfly Fitting | CAM BUCKLE | 416LBS | 1,250LBS |
| DSWBCB216 | 2"X16' |
Ratchet Tie Down , Ratchet Straps ( America market)
**100% high tenacity polyester of lashing strap
**Low elongation
**Popular color of strap:orange,blue,yellow,red,black
**Width available:1"to 4"
REMARKS:
*Part number :width-one or two pc-end fitting
*One pc means:endless,without end fitting
*Various end fitting available,see next page
Ratchet Lashings are used for tying down loads whilst transporting , shifting or moving them. They have replaced traditional jute ropes, chains and wires used for transportation and for a variety of other applications.
The main advantages of ratchet lashings are :
1. Load restraint using a tensioning device (ratchet)
2. Effective and safe control of loads whilst transportation
3. Extremely quick and efficient tie down and release of load thus saving time.
4. No damage to the load being tied down.
They are available in a large variety of configurations of different ratchets of various capacities and end fittings. Pictures shown here are only indicative and not exhaustive.
Hot Tags: Ratchet Strap, Ratchet Tie Down Strap, 1"Ratchet and Cam Tie Down, M.B.S 1000LBS Ratchet Strap, 2100LBS Cargo Lashing, Tie Down Strap with Flat Hook, 2"Ratchet Tie Down, 10000LBS Lashing Straps, Cargo Lashing Straps with Double J Hook, 3"Web Lashing, 4"Ratchet Lashing Straps, 15000LBS Truck Tie Down, 2"Logistic Tie Down, 1250LBS Cargo Tie Downs, 2500LBS Lashing Tiedowns, 3000LBS Web Lashing, Ratchet Lashing Straps with Cam Buckle, Truck Tie Downs China Manufacturer, Ratchet Tiedowns Factory, Webbing Ratchet Tiedown Supplier, Hot Sale Ratchet Lashings, Polyester Cargo Lashing, Truck Cargo Tie Downs In Stock, Web Lashing In Bulk, Customized Tie Down Tightening Strap, Competitive Price Ratchet Tiedowns, Truck Winch Replacement Strap for Transporting

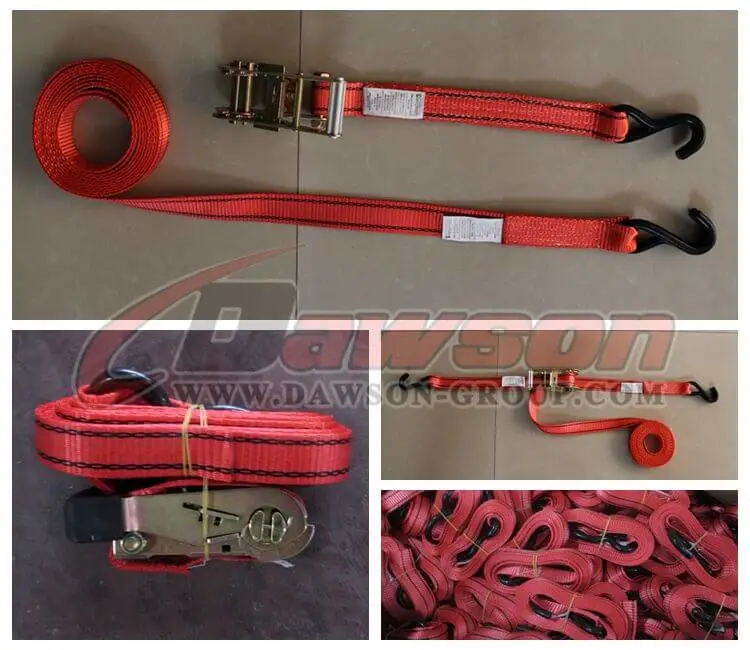

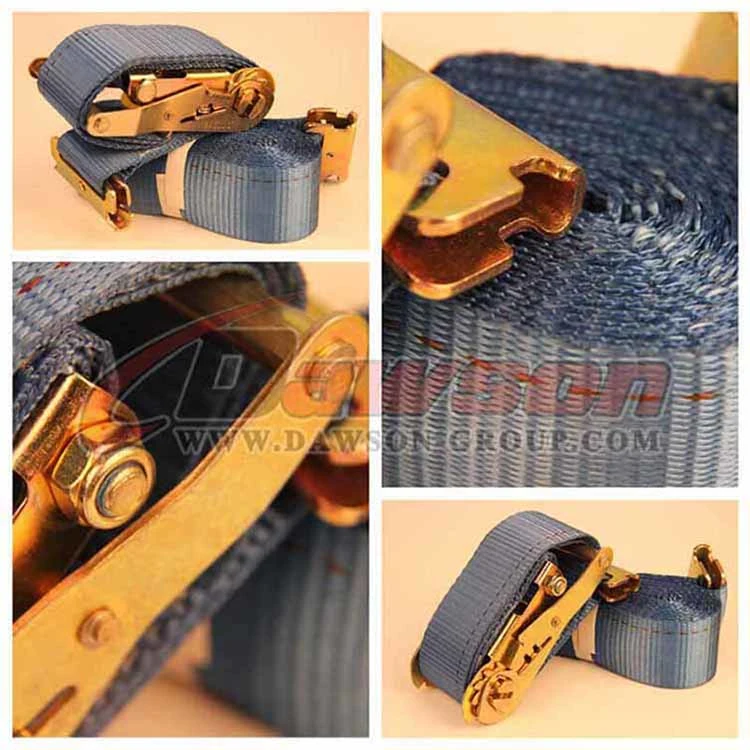

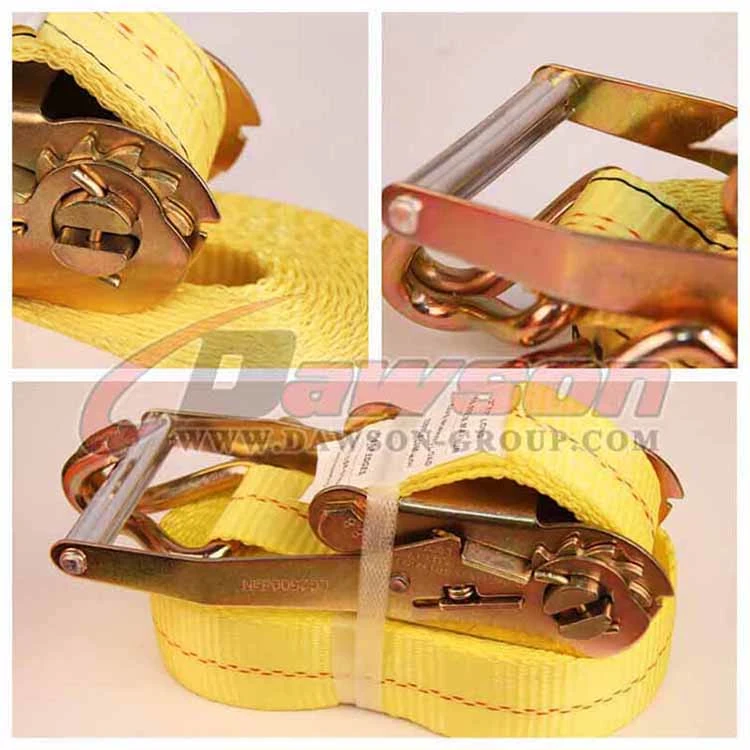

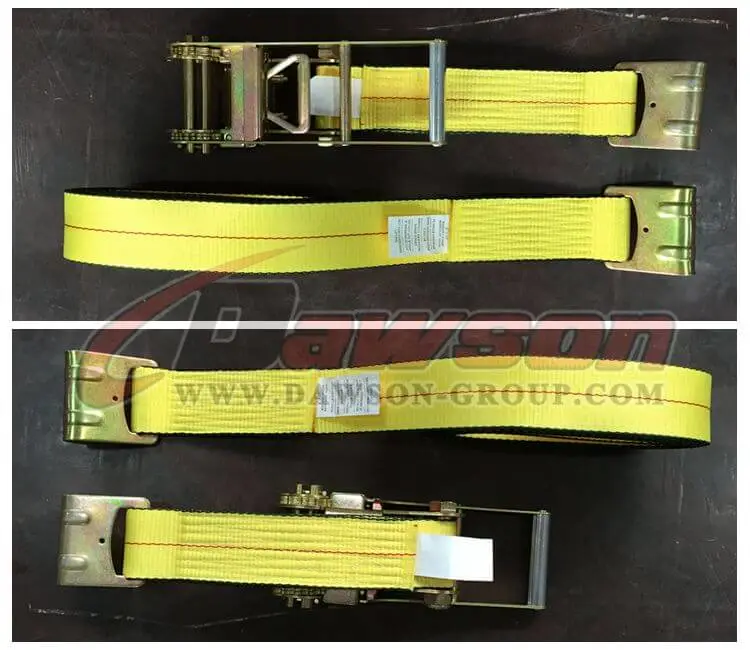

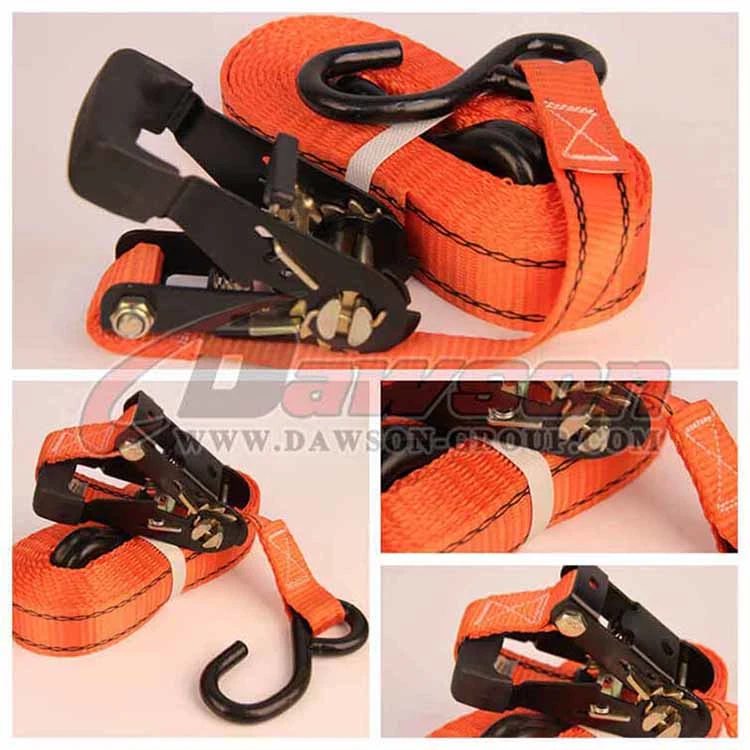

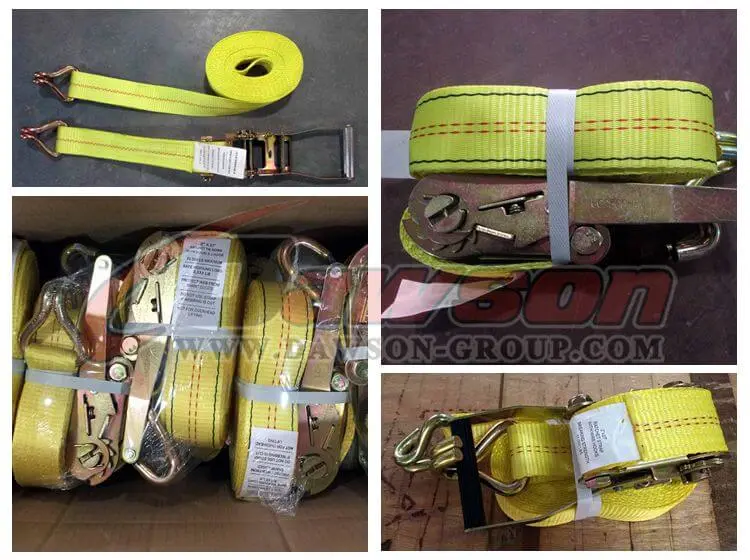

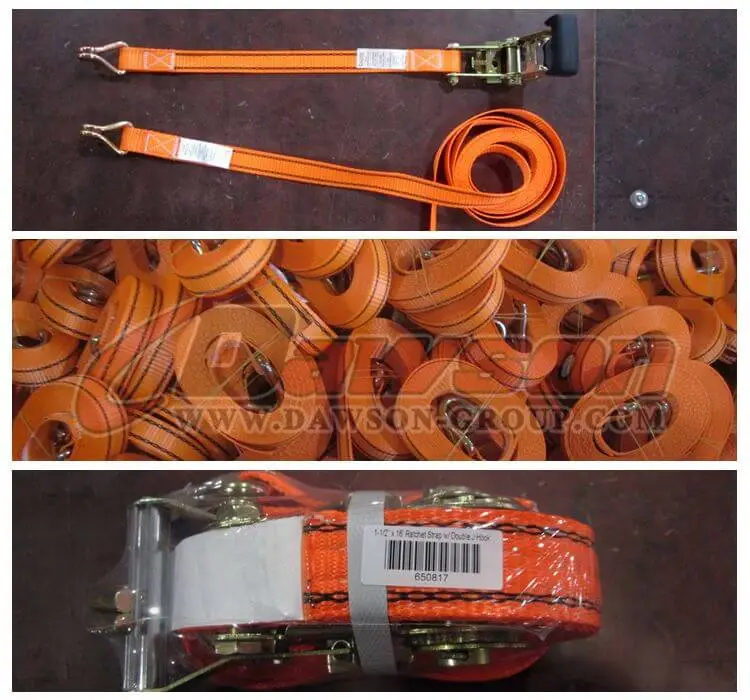

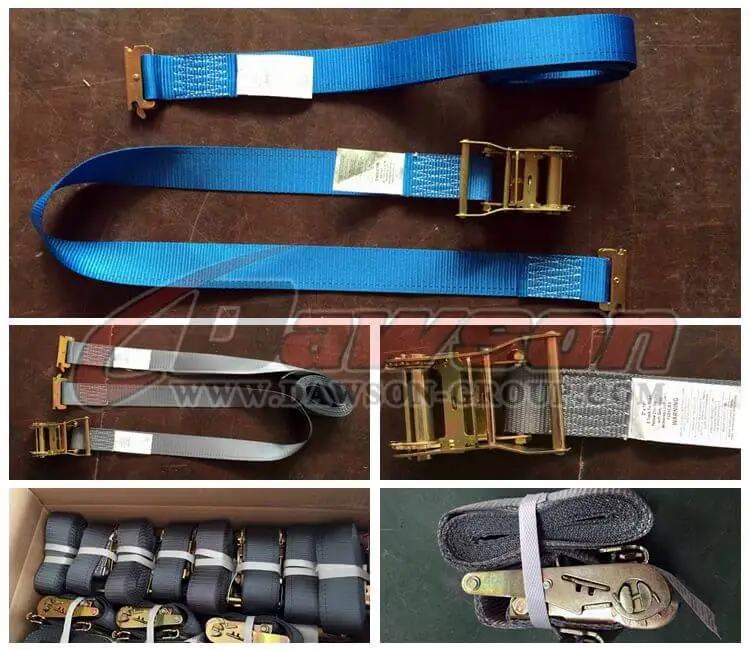

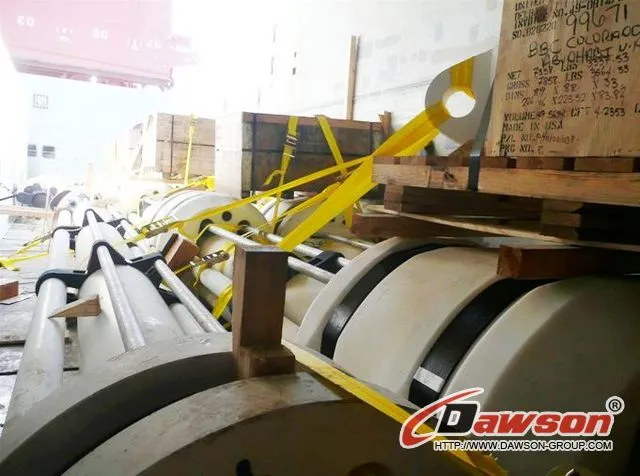

Application of Ratchet Strap ASTM B30.9:
