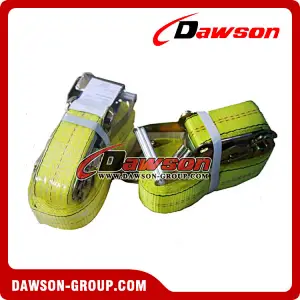

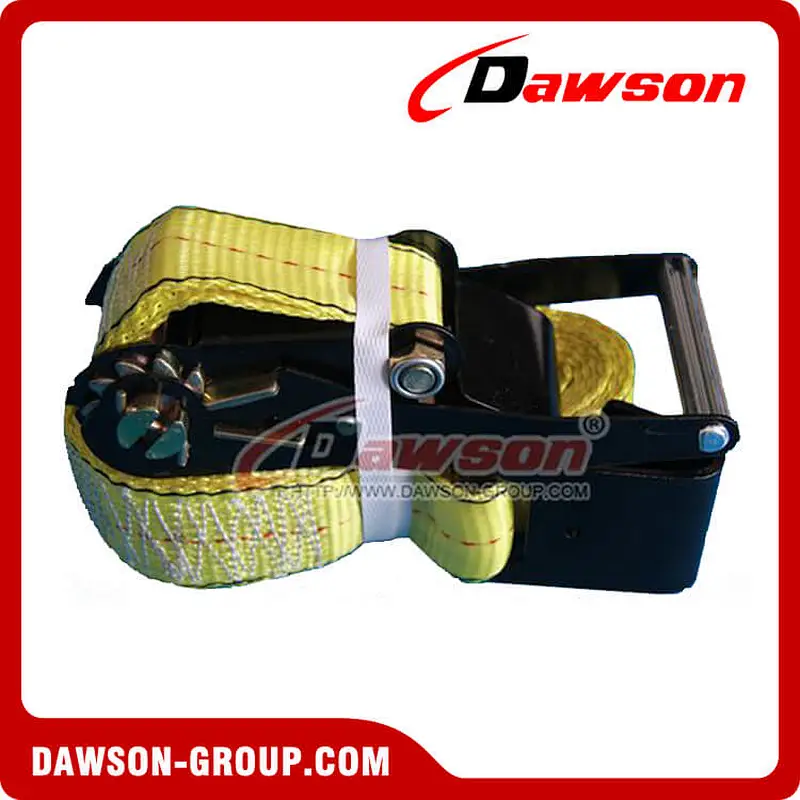

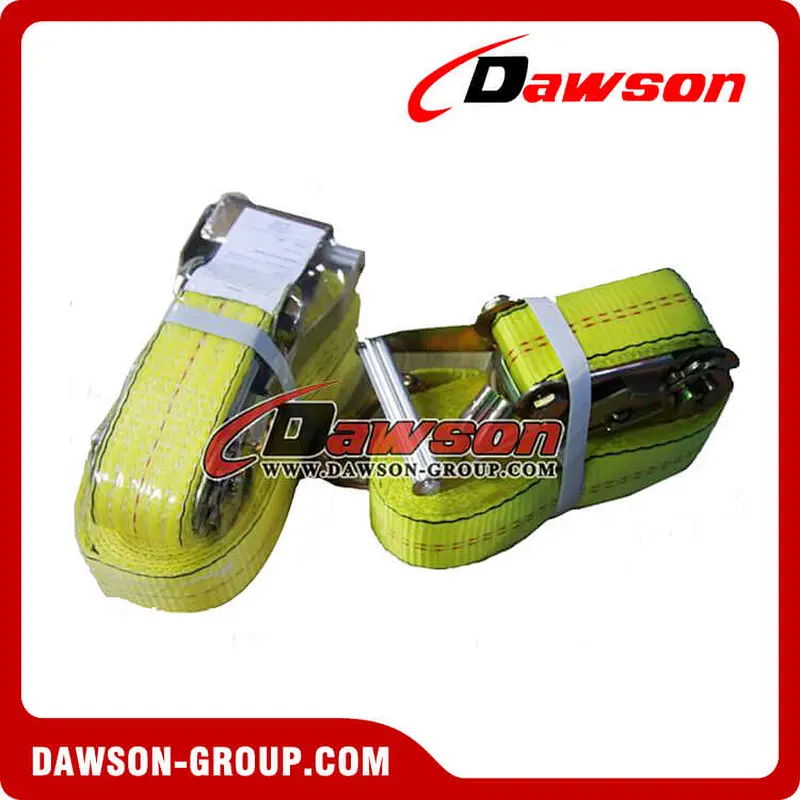

Ratchet Straps ASTM B.30.9
- China Manufacturer, Supplier, Factory

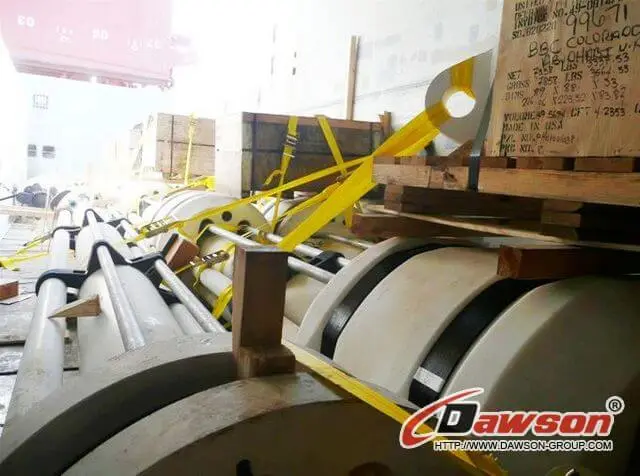

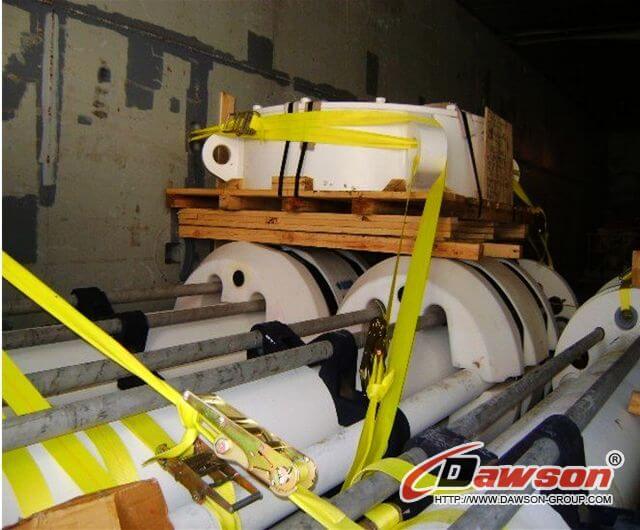

Ratchet Lashings are used for tying down loads whilst transporting , shifting or moving them. They have replaced traditional jute ropes, chains and wires used for transportation and for a variety of other applications.
The main advantages of ratchet lashings are :
1. Load restraint using a tensioning device (ratchet)
2. Effective and safe control of loads whilst transportation
3. Extremely quick and efficient tie down and release of load thus saving time.
4. No damage to the load being tied down.
They are available in a large variety of configurations of different ratchets of various capacities and end fittings. Pictures shown here are only indicative and not exhaustive.

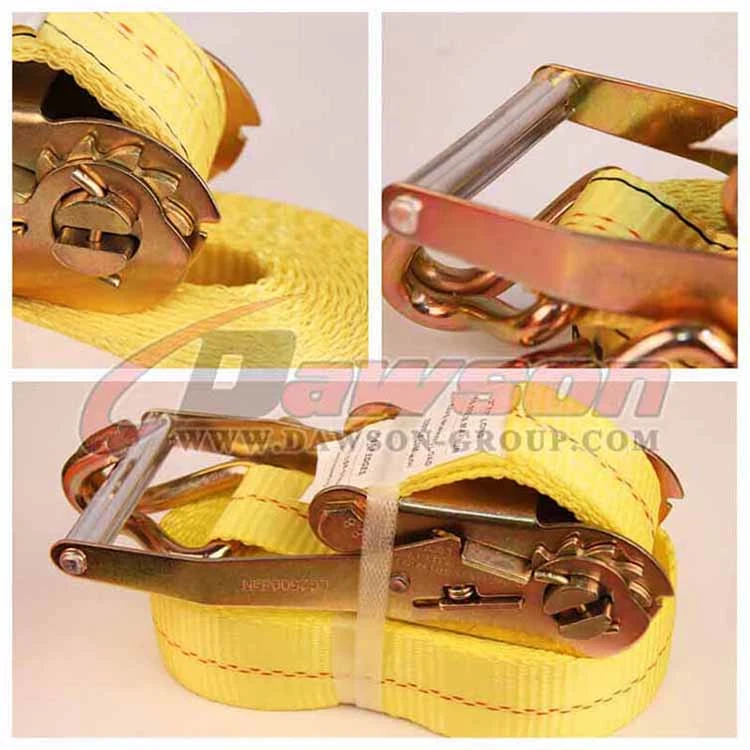

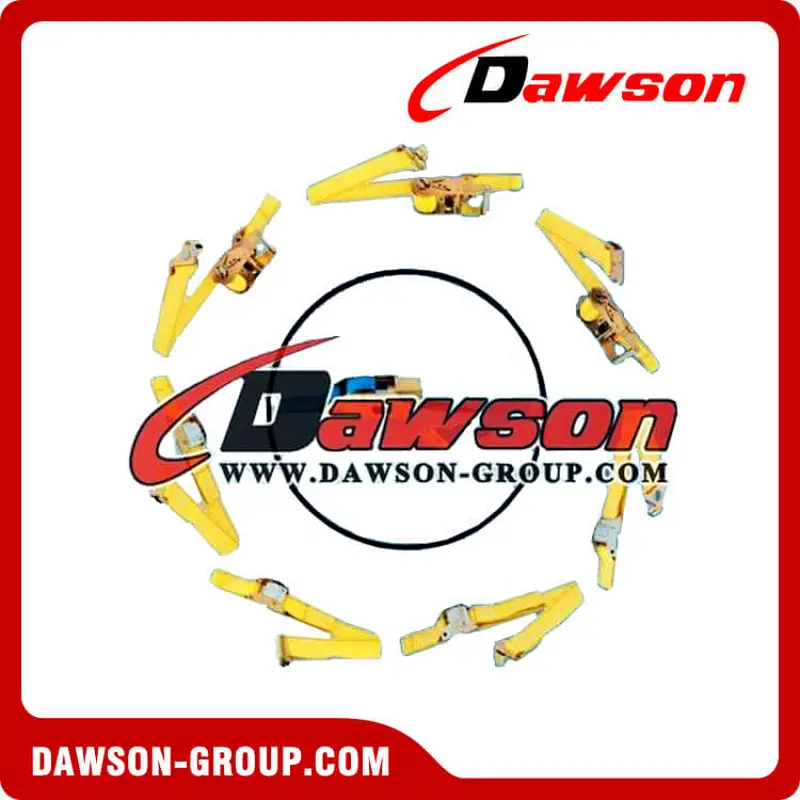

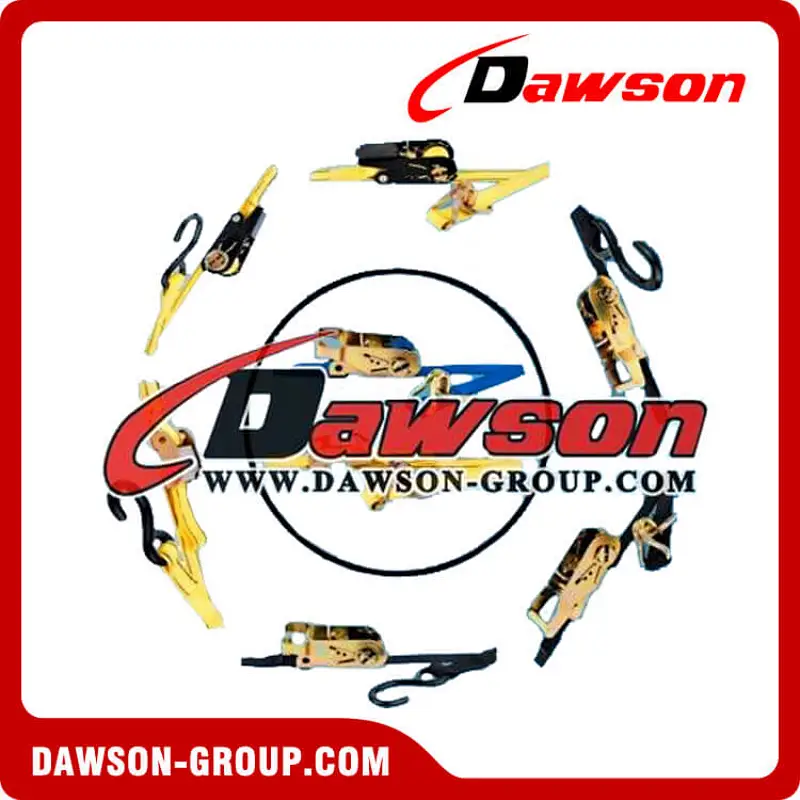

1"RATCHET & CAM BUCKLE TIE DOWN
| Product No | Buckle Type | Strap(width×length) | End Fitting | M.B.S. | |
 | DSRSFH110 | Ratchet | 1'' X 10' | Flat Hook | 1,000lbs |
| DSCSFH110 | Cam | 1'' X 10' | 1,000lbs | ||
 | DSRSSH110 | Ratchet | 1'' X 10' | Stamped Snap Hook | 2,100lbs |
| DSCSSH110 | Cam | 1'' X 10' | 1,000lbs | ||
 | DSRSDJ110 | Ratchet | 1'' X 10' | Double J Hook | 2,100lbs |
| DSCSDJ110 | Cam | 1'' X 10' | 1,000lbs | ||
 | DSRSSK110 | Ratchet | 1'' X 10' | S Hook | 2,100lbs |
| DSCSSK110 | Cam | 1'' X 10' | 1,000lbs | ||
 | DSRSHK110 | Ratchet | 1'' X 10' | Hook & Keeper | 2,100lbs |
| DSCSHK110 | Cam | 1'' X 10' | 1,000lbs | ||
 | DSRSEL110 | Ratchet | 1'' X 10' | Endless | 2,100lbs |
| DSCSEL110 | Cam | 1'' X 10' | 1,000lbs |

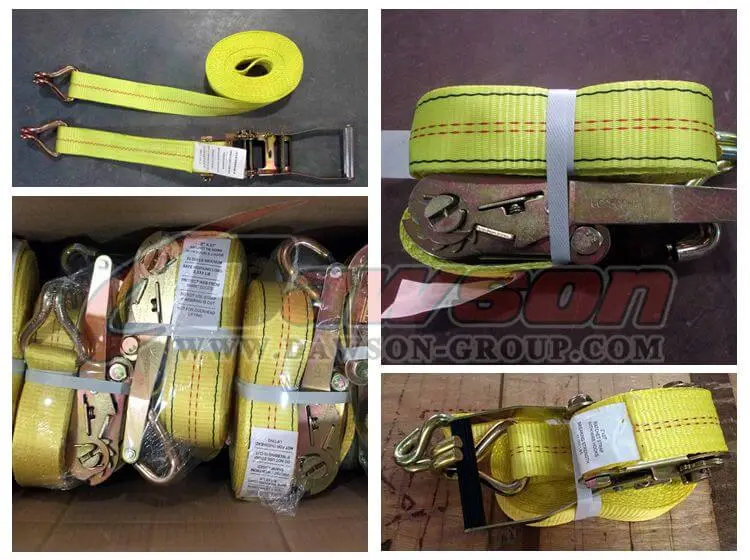

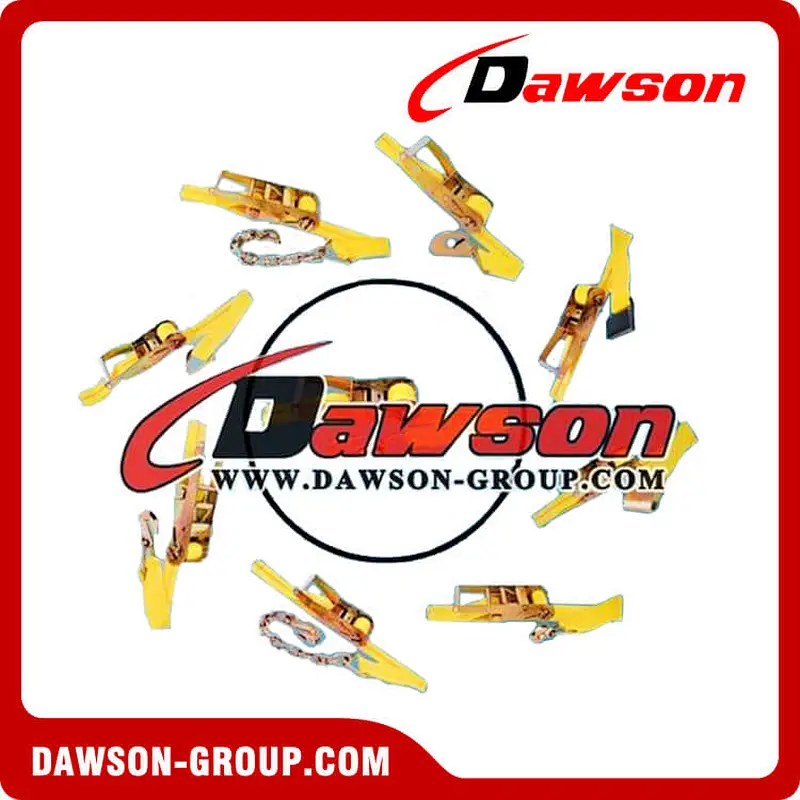

2"RATCHET TIE DOWN
 | ITEM | Strap(width×length) | END HARDWARE | M.B.S. |
| DSRSDJ227 | 2"X 27' | DOUBLE J HOOK | 10,000LBS | |
| DSRSDJ230 | 2"X 30' | |||
 | DSRSFH227 | 2"X 27' | FLAT HOOK | 10,000LBS |
| DSRSFH230 | 2"X 30' | |||
 | DSRSGH227 | 2"X 27' | CHAIN GRAB HOOK | 10,000LBS |
| DSRSGH230 | 2"X 30' | |||
 | DSRSSH227 | 2"X 27' | TWISTED SNAP HOOK | 10,000LBS |
| DSRSSH230 | 2"X 30' | |||
 | DSRSCH227 | 2"X 27' | CHAIN ANCHOR ASSEMBLY | 10,000LBS |
| DSRSCH230 | 2"X 30' | |||
 | DSRSDR227 | 2"X 27' | DELTA RING | 10,000LBS |
| DSRSDR230 | 2"X 30' | |||
 | DSRSLFH227 | 2"X 27' | FLAT HOOK | 5,000LBS |
| DSRSLFH230 | 2"X 30' | |||
 | DSRSLDR227 | 2"X 27' | DELTA RING | 5,000LBS |
| DSRSLDR230 | 2"X 30' |

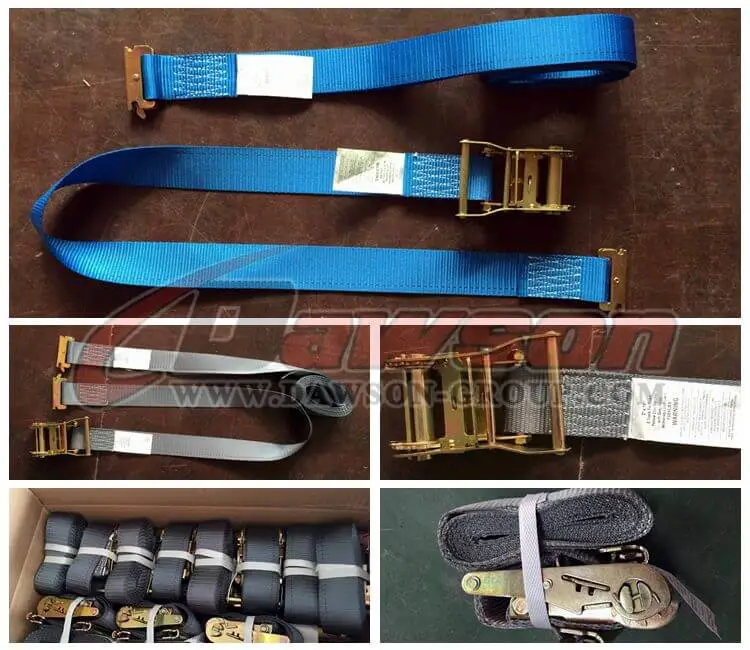

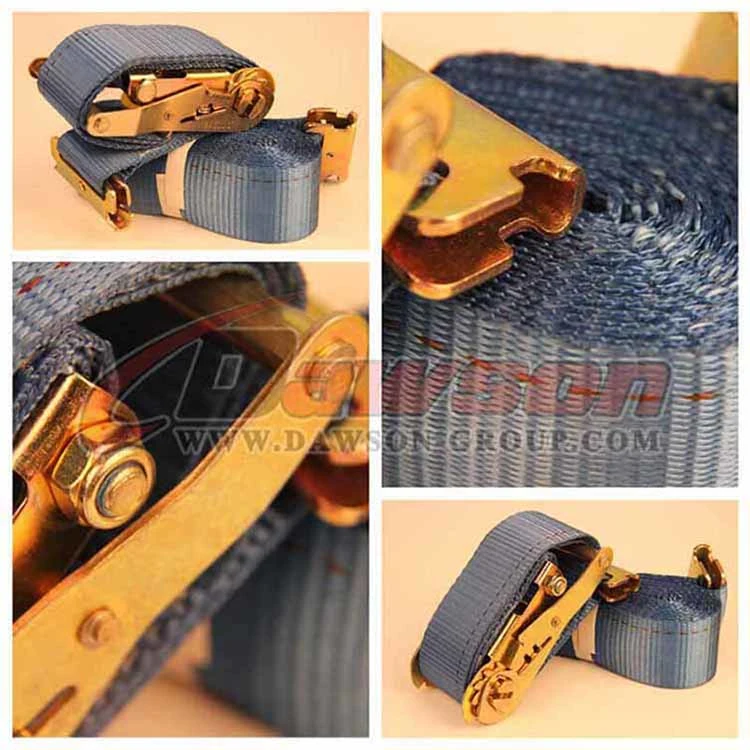

2" LOGISTIC TIE DOWN
 | ITEM | Strap(width×length) | END HARDWARE | BUCKLE | M.B.S. |
| DSWLRB212 | 2"X12' | E Track Fitting | RATCHET | 3,000LBS | |
| DSWLRB216 | 2"X16' | ||||
 | DSWERB212 | 2"X12' | 3 Piece End Fitting | RATCHET | 3,000LBS |
| DSWERB216 | 2"X16' | ||||
 | DSWLCB212 | 2"X12' | E Track Fitting | CAM BUCKLE | 2,500LBS |
| DSWLCB216 | 2"X16' | ||||
 | DSWBCB212 | 2"X12' | Butterfly Fitting | CAM BUCKLE | 1,250LBS |
| DSWBCB216 | 2"X16' |
3"/4" RATCHET AND CAM TIE DOWN
 | ITEM | Strap(width×length) | END HARDWARE | M.B.S. |
| DSRSDJ327 | 3"X 27' | DOUBLE J HOOK | 15,000LBS | |
| DSRSDJ430 | 4"X 30' | |||
 | DSRSFH327 | 3"X 27' | FLAT HOOK | 15,000LBS |
| DSRSFH430 | 4"X 30' | |||
 | DSRSGH327 | 3"X 27' | CHAIN GRAB HOOK | 15,000LBS |
| DSRSGH430 | 4"X 30' | |||
 | DSRSCH327 | 3"X 27' | CHAIN ANCHOR ASSEMBLY | 15,000LBS |
| DSRSCH430 | 4"X 30' | |||
 | DSRSFT327 | 3"X 27' | FORGED TRIANGLE | 15,000LBS |
| DSRSFT430 | 4"X 30' |

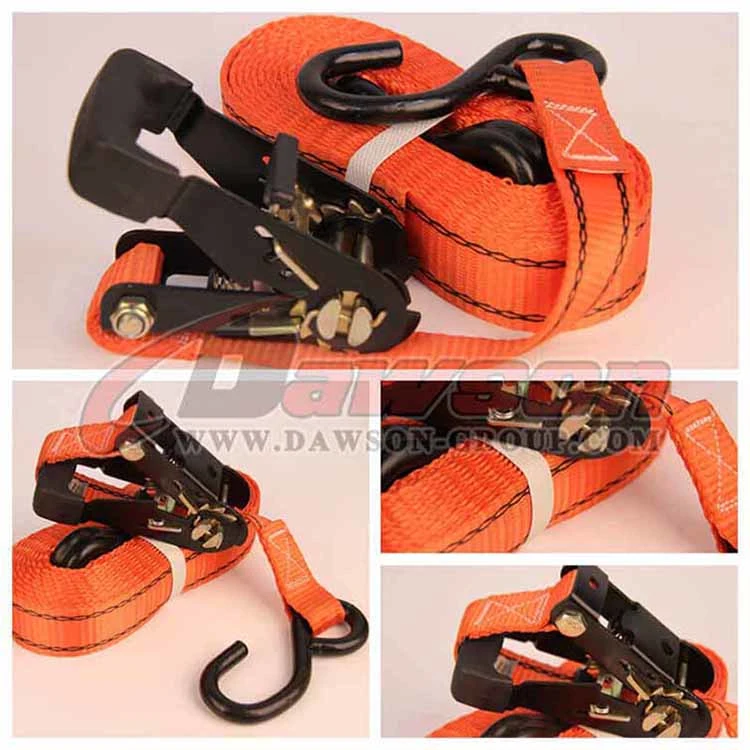

Ratchet Tie Down , Ratchet Straps ( America market)
**100% high tenacity polyester of lashing strap
**Low elongation
**Popular color of strap:orange,blue,yellow,red,black
**Width available:1"to 4"
**Breaking strength scope:1500Ibs-20000Ibs
Cautions
-Never use a lashing as a lifting sling.
-Never twist a webbing.
-Protect the webbing from sharp edges by suach as protective sleeves.
-Chemical active environments ca effect the strength of sling.
-Polyester is resistant to acids, but affetected by concentrared bases.
-Temperature range of -40 to +100
REMARKS:
*Part number :width-one or two pc-end fitting
*One pc means:endless,without end fitting

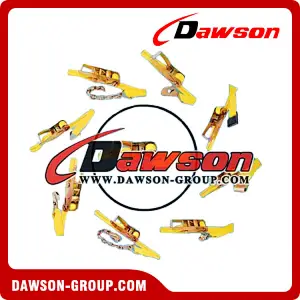

*Various end fitting available,see next page
*Cam buckle only for 1"items
Ratchet Lashings are used for tying down loads whilst transporting , shifting or moving them. They have replaced traditional jute ropes, chains and wires used for transportation and for a variety of other applications.
The main advantages of ratchet lashings are :
1. Load restraint using a tensioning device (ratchet)
2. Effective and safe control of loads whilst transportation
3. Extremely quick and efficient tie down and release of load thus saving time.
4. No damage to the load being tied down.
They are available in a large variety of configurations of different ratchets of various capacities and end fittings. Pictures shown here are only indicative and not exhaustive.
Hot Tags: Ratchet Strap, Ratchet Tie Down Strap, 1"Ratchet and Cam Tie Down, M.B.S 1000LBS Ratchet Belts, 2100LBS Tie Down Strap, Cargo Lashing with Flat Hook, 2"Ratchet Tie Down, 1250LBS Ratcheting Cargo, 2500LBS Ratchet Lashing, 3000LBS Winch Strap, 5000LBS Lashing Belt, 10000LBS Web Lashing, Cargo Lashing Straps with Double J Hook, 3"Lashing Straps, 4"Ratchet Lashing Straps, 15000LBS Logistic Tie Down, Ratchet Lashing Straps with Cam Buckle, China Truck Tie Downs Manufacturer, Webbing Ratchet Tiedown Factory, Ratchet Tiedowns Supplier, Hot Sale Ratchet Lashings, Polyester Replacement Straps, Truck Cargo Tie Downs In Stock, Web Lashing In Bulk, Customized Tie Down Tightening Strap, Competitive Price Replacement Ratcheting Belt
Other related products:

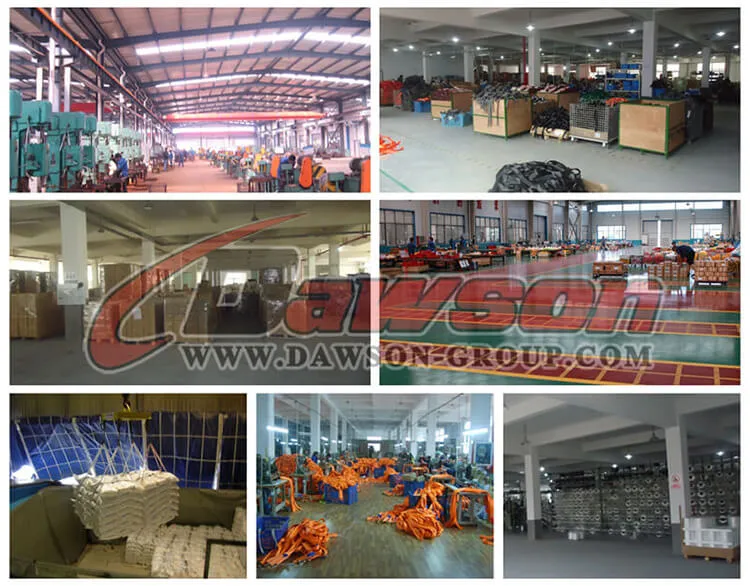

Factory & Package Show:
