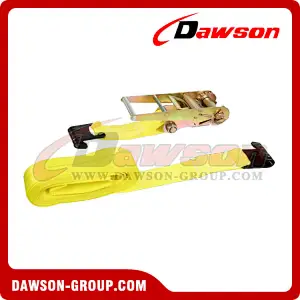

3 inch 30 feet Ratchet Strap With Flat Hook

3 inch 30 feet Ratchet Strap With Flat Hook
- China Manufacturer, Supplier, Factory

These 3"ratchet straps are considerably larger than the 2"ratchet straps and are meant for heavy duty applications. Made of heavy duty 20,000 lb yellow webbing, this webbing is stronger than the flat hook hardware! This ratchet strap has a 12"fixed end with durable black flat hooks for a ratchet strap you can depend on.

Qty: 1

Length: 30'

Width: 3"

Weight: 16.8 lbs

Webbing Break Strength: 20,000 lbs

Assembly Break Strength: 15,000 lbs

Work Load Limit: 5,000 lbs

Ratchet Tie Down , Ratchet Straps ( America market)

**100% high tenacity polyester of lashing strap

**Low elongation

**Popular color of strap:orange,blue,yellow,red,black

**Width available:1"to 4"

**Breaking strength scope:1500Ibs-20000Ibs

Cautions

-Never use a lashing as a lifting sling.

-Never twist a webbing.

-Protect the webbing from sharp edges by such as protective sleeves.

-Chemical active environments ca effect the strength of sling.

-Polyester is resistant to acids, but affected by concentrated bases.

-Temperature range of -40 to +100

REMARKS:

*Part number :width-one or two pc-end fitting

*One pc means:endless,without end fitting

*Various end fitting available,see next page

Ratchet Lashings are used for tying down loads whilst transporting , shifting or moving them. They have replaced traditional jute ropes, chains and wires used for transportation and for a variety of other applications.

The main advantages of ratchet lashings are :

1. Load restraint using a tensioning device (ratchet)

2. Effective and safe control of loads whilst transportation

3. Extremely quick and efficient tie down and release of load thus saving time.

4. No damage to the load being tied down.

They are available in a large variety of configurations of different ratchets of various capacities and end fittings. Pictures shown here are only indicative and not exhaustive.

	ITEM	STRAP	END HARDWARE	WEB  B.S.	Ratchet B.S.	Work  Load  Limit	ASSEMBLY  BREAK  STRENGTH

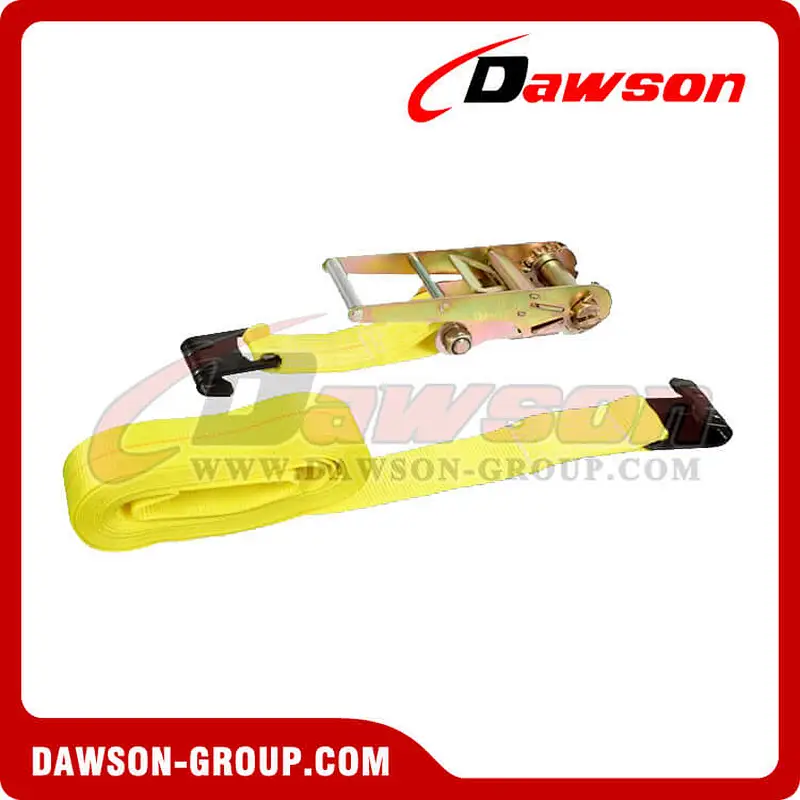

	DG-US-RS-FH330	3''X30' Ratchet Strap	Flat Hook	20,000 lbs B.S.	/	5,000 lbs	15,000 lbs W.L.L

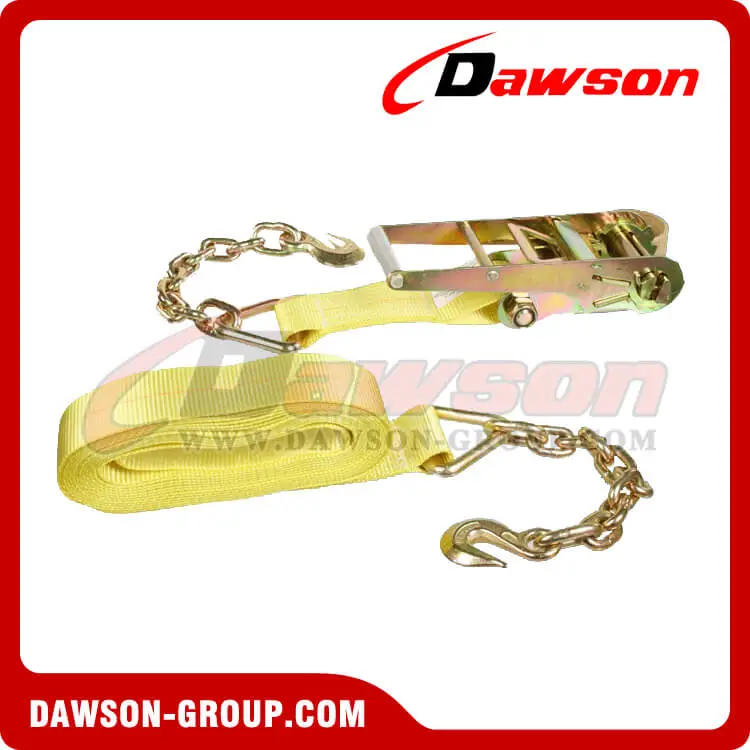

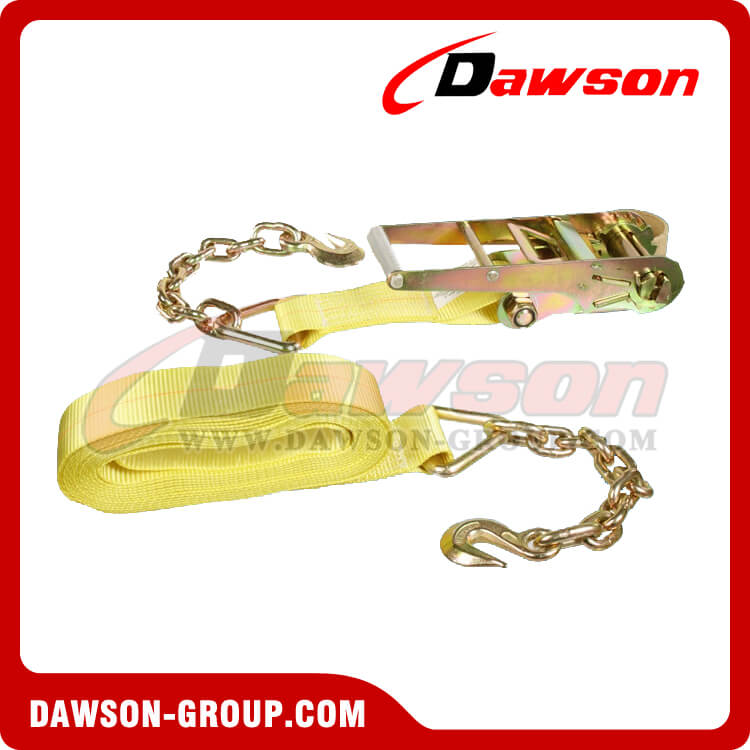

	DG-US-RS-CE330	3''X30' Ratchet Strap	Chain Extension	20,000 lbs B.S.	/	5,000 lbs	15,000 lbs W.L.L

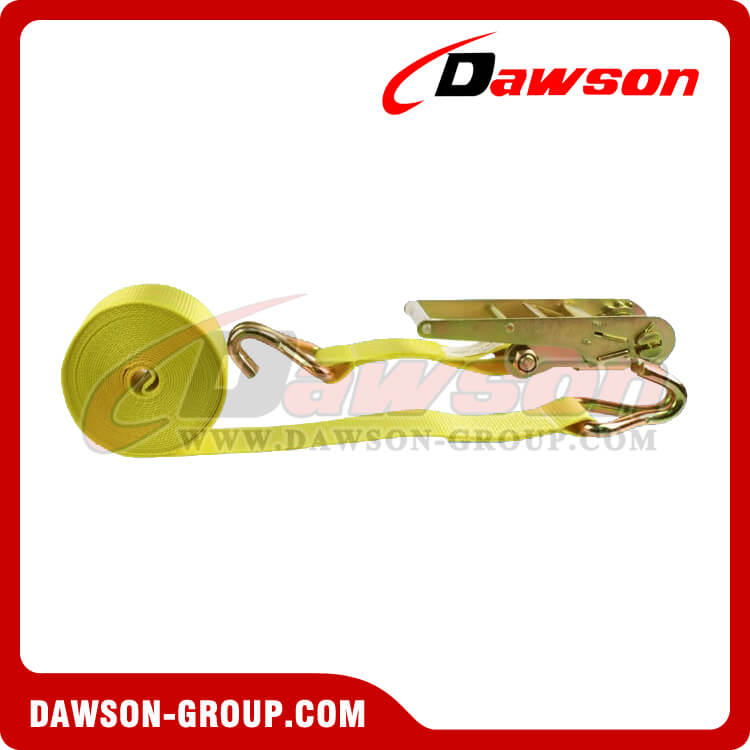

	DG-US-RS-DJH330	3''X30' Ratchet Strap	Double J-Hook	20,000 lbs B.S.	/	5,000 lbs	15,000 lbs W.L.L

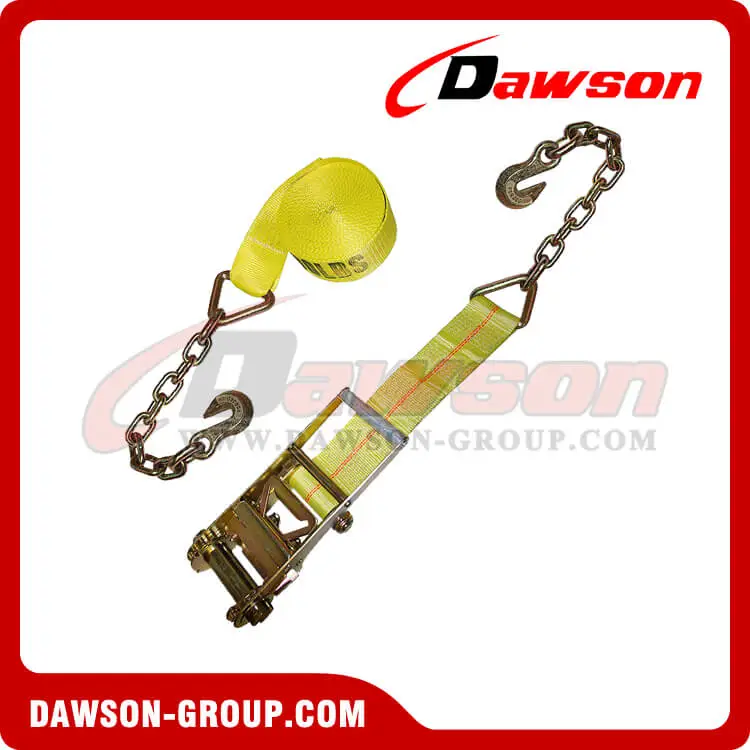

	DG-US-RS-CH330	3''X30' Ratchet Strap	Chain And Hook	18,000 lb  B.S.	17,000 lb  B.S.	/	5,400 lb  W.L.L
