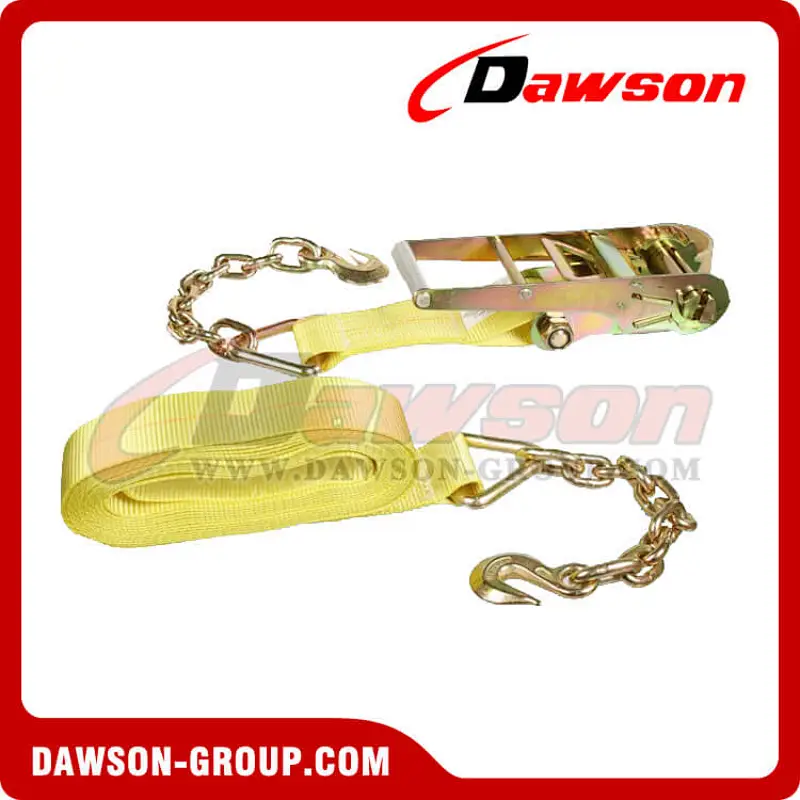

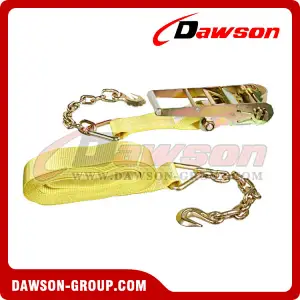

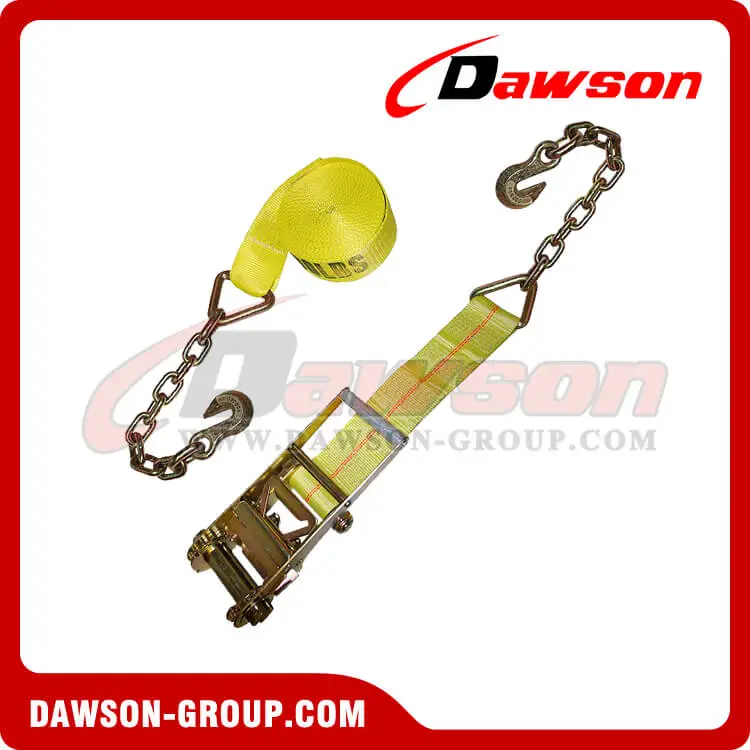

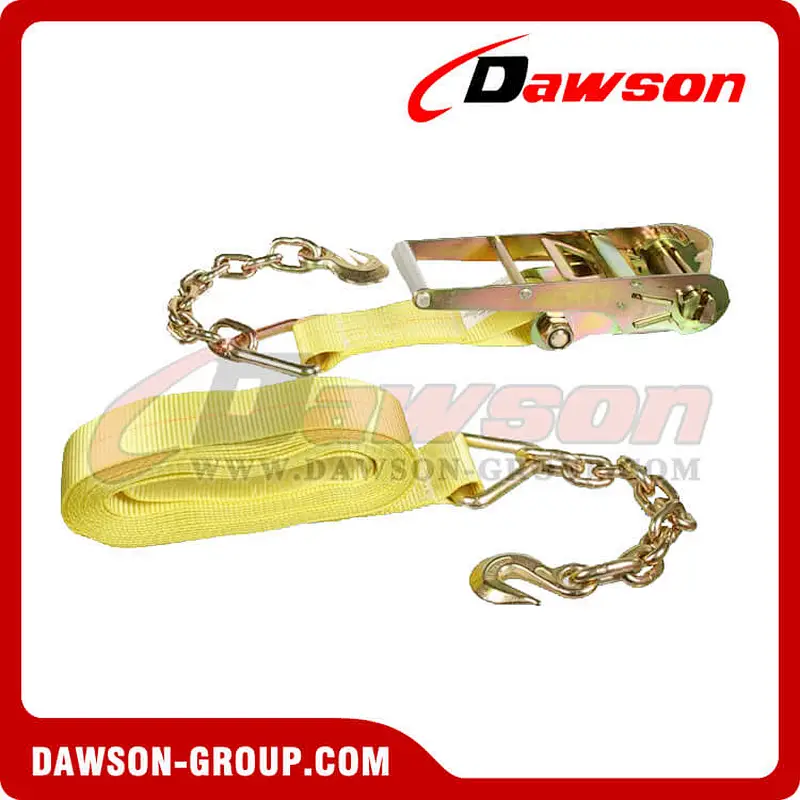

3 inch 30 feet Ratchet Strap with Chain and Hook

3 inch 30 feet Ratchet Strap with Chain and Hook
- China Manufacturer, Supplier, Factory

Ratchet 17,000 lb B.S.

Webbing 18,000 lb B.S.

Chain and Hook 16,200 lb B.S.

Assembly 5,400 lb W.L.L

Ratchet Tie Down , Ratchet Straps ( America market)

**100% high tenacity polyester of lashing strap

**Low elongation

**Popular color of strap:orange,blue,yellow,red,black

**Width available:1"to 4"

**Breaking strength scope:1500Ibs-20000Ibs

Cautions

-Never use a lashing as a lifting sling.

-Never twist a webbing.

-Protect the webbing from sharp edges by such as protective sleeves.

-Chemical active environments ca effect the strength of sling.

-Polyester is resistant to acids, but affected by concentrated bases.

-Temperature range of -40 to +100

Ratchet Lashings are used for tying down loads whilst transporting , shifting or moving them. They have replaced traditional jute ropes, chains and wires used for transportation and for a variety of other applications.

The main advantages of ratchet lashings are :

1. Load restraint using a tensioning device (ratchet)

2. Effective and safe control of loads whilst transportation

3. Extremely quick and efficient tie down and release of load thus saving time.

4. No damage to the load being tied down.

They are available in a large variety of configurations of different ratchets of various capacities and end fittings. Pictures shown here are only indicative and not exhaustive.

	ITEM	STRAP	END HARDWARE	WEB B.S.	Ratchet B.S.	Work Load Limit	ASSEMBLY BREAK STRENGTH
	DG-US-RS-FH330	3''X30' Ratchet Strap	Flat Hook	20,000 lbs B.S.	/	5,000 lbs	15,000 lbs W.L.L
	DG-US-RS-CE330	3''X30' Ratchet Strap	Chain Extension	20,000 lbs B.S.	/	5,000 lbs	15,000 lbs W.L.L
	DG-US-RS-DJH330	3''X30' Ratchet Strap	Double J-Hook	20,000 lbs B.S.	/	5,000 lbs	15,000 lbs W.L.L
	DG-US-RS-CH330	3''X30' Ratchet Strap	Chain And Hook	18,000 lb B.S.	17,000 lb B.S.	/	5,400 lb W.L.L
