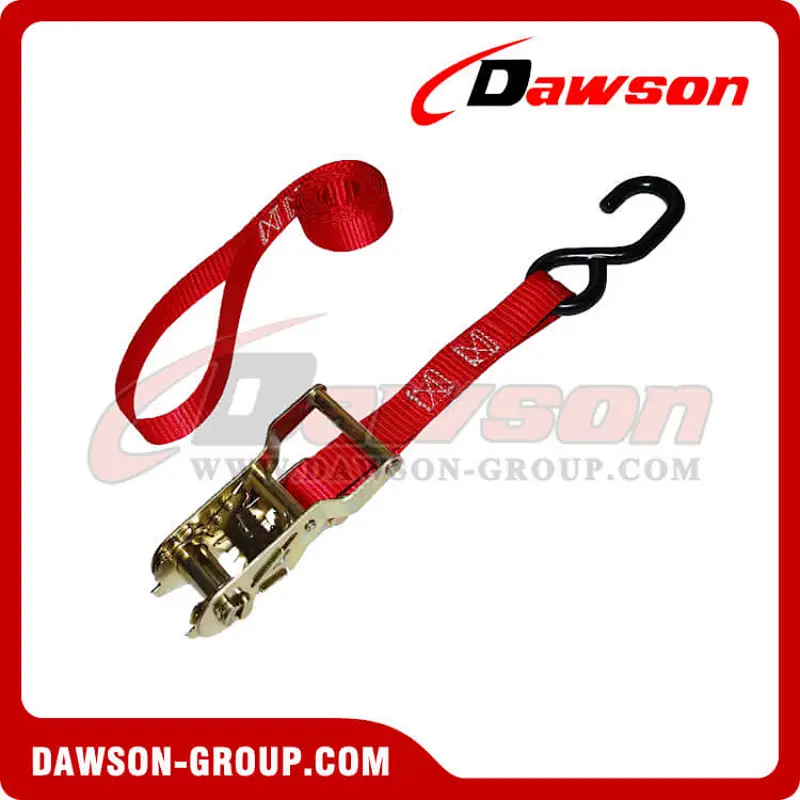

1 inch Ratchet Strap with S-Hook and Loop

1 inch Ratchet Strap with S-Hook and Loop
- China Manufacturer, Supplier, Factory

6” of webbing between the ratchet and hook

Ratchet Tie Down, Ratchet Straps ( America market)

**100% high tenacity polyester of lashing strap

**Low elongation

**Popular color of strap:orange,blue,yellow,red,black

**Width available:1"to 4"

**Breaking strength scope:1500Ibs-20000Ibs

Cautions

-Never use a lashing as a lifting sling.

-Never twist a webbing.

-Protect the webbing from sharp edges by suach as protective sleeves.

-Chemical active environments ca effect the strength of sling.

-Polyester is resistant to acids, but affetected by concentrared bases.

-Temperature range of -40 to +100

REMARKS:

*Part number :width-one or two pc-end fitting

*One pc means:endless,without end fitting

*Various end fitting available,see next page

Ratchet Lashings are used for tying down loads whilst transporting , shifting or moving them. They have replaced traditional jute ropes, chains and wires used for transportation and for a variety of other applications.

The main advantages of ratchet lashings are :

1. Load restraint using a tensioning device (ratchet)

2. Effective and safe control of loads whilst transportation

3. Extremely quick and efficient tie down and release of load thus saving time.

4. No damage to the load being tied down.

They are available in a large variety of configurations of different ratchets of various capacities and end fittings. Pictures shown here are only indicative and not exhaustive.

	ITEM	STRAP	END HARDWARE	WEB B.S.	Ratchet B.S.	ASSEMBLY W.L.L.
	DG-US-RS-WH1	1 inch ratchet strap	Wire Hooks 3,300 lbs B.S.	3,000lbs B.S.	3,300 lbs B.S.	833 lbs W.L.L.
	DG-US-LDRS-WH1	1 inch light duty ratchet strap	Wire Hooks 3,300 lbs B.S.	3,000lbs B.S.	1,500 lbs B.S.	500 lbs W.L.L.
	DG-US-RS-SH1	1 inch ratchet strap	Snap Hooks 3,300 lbs B.S.	3,000lbs B.S.	3,300 lbs B.S.	833 lbs W.L.L.
	DG-US-RS-SH13000	1 inch ratchet strap	S Hooks 3,300 lbs B.S.	3,000lbs B.S.	3,300 lbs B.S.	833 lbs W.L.L.
	DG-US-RSLD-SH1	1 inch ratchet strapLong End	S Hook 3,300 lbs B.S.	3,000lbs B.S.	/	833 lbs W.L.L.
	DG-US-RS-SHL1	1 inch ratchet strap	S Hooks and Loop 3,300 lbs B.S.	3,000lbs B.S.	3,300 lbs B.S.	833 lbs W.L.L.
	DG-US-RS-SLSH1	1 inch ratchet strap	Safety Latch S Hooks 1,500 lbs B.S.	3,000lbs B.S.	3,300 lbs B.S.	500 lbs W.L.L.
