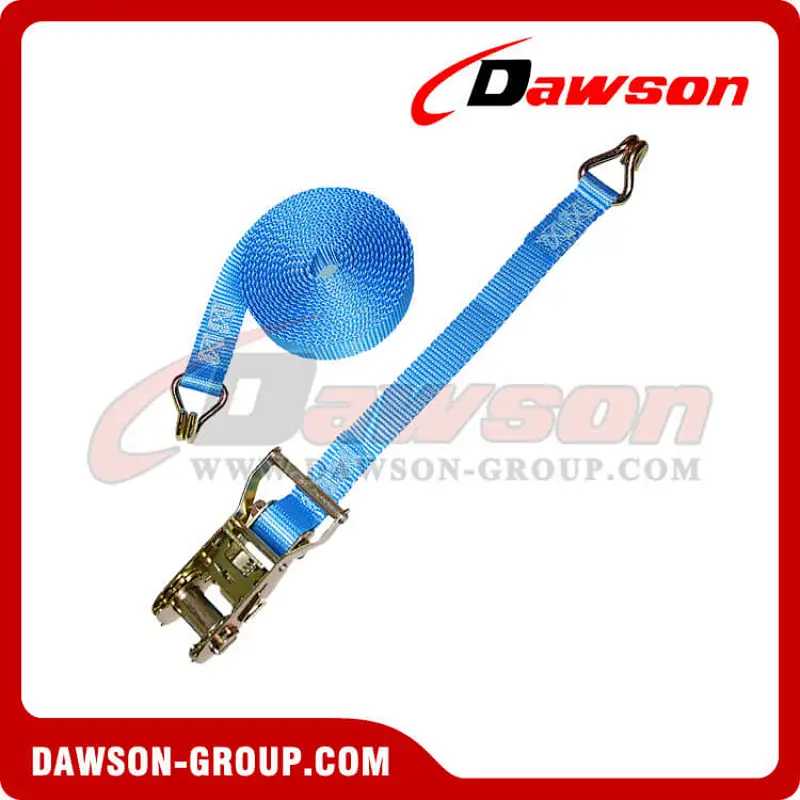

1 inch Heavy Duty Ratchet Strap with Wire Hook
- China Manufacturer, Supplier, Factory
Ratchet Tie Down , Ratchet Straps ( America market)
**100% high tenacity polyester of lashing strap
**Low elongation
**Popular color of strap:orange,blue,yellow,red,black
**Width available:1"to 4"
**Breaking strength scope:1500Ibs-20000Ibs
Cautions
-Never use a lashing as a lifting sling.
-Never twist a webbing.
-Protect the webbing from sharp edges by suach as protective sleeves.
-Chemical active environments ca effect the strength of sling.
-Polyester is resistant to acids, but affetected by concentrared bases.
-Temperature range of -40 to +100
REMARKS:
*Part number :width-one or two pc-end fitting
*One pc means:endless,without end fitting
*Various end fitting available,see next page
Ratchet Lashings are used for tying down loads whilst transporting , shifting or moving them. They have replaced traditional jute ropes, chains and wires used for transportation and for a variety of other applications.
The main advantages of ratchet lashings are :
1. Load restraint using a tensioning device (ratchet)
2. Effective and safe control of loads whilst transportation
3. Extremely quick and efficient tie down and release of load thus saving time.
4. No damage to the load being tied down.
They are available in a large variety of configurations of different ratchets of various capacities and end fittings. Pictures shown here are only indicative and not exhaustive.
| ITEM | STRAP | END HARDWARE | WEB B.S. | Ratchet B.S. | ASSEMBLY W.L.L. | |
 | DG-US-HDSRS-SH1 | 1 inch Heavy Duty Stainless Ratchet Strap | S Hooks 3,300 lbs B.S. | 6,600lbs B.S. | 3,300 lbs B.S. | 1,100 lbs W.L.L. |
 | DG-US-HDRHRS-SH1 | 1 inch Heavy Duty Rubber Handle Ratchet Strap | Snap Hooks 3,300 lbs B.S. | 6,600lbs B.S. | 3,300 lbs B.S. | 1,100 lbs W.L.L. |
 | DG-US-HDRHRS-SH16600 | 1 inch Heavy Duty Rubber Handle Ratchet Strap | S Hooks 3,300 lbs B.S. | 6,600lbs B.S. | 3,300 lbs B.S. | 1,100 lbs W.L.L. |
 | DG-US-HDRS-SH1 | 1 inch Heavy Duty Ratchet Strap | Snap Hooks 3,300 lbs B.S. | 6,600lbs B.S. | 3,300 lbs B.S. | 1,100 lbs W.L.L. |
 | DG-US-HDRS-SHSHL1 | 1 inch Heavy Duty Ratchet Strap | Snap Hook S Hook Loop 3,300 lbs B.S. | 6,600lbs B.S. | 3,300 lbs B.S. | 1,100 lbs W.L.L. |
 | DG-US-HDRS-WHDR1 | 1 inch Heavy Duty Ratchet Strap | Wire Hooks 3,300 lbs B.S. D-Rings 5,000 lbs B.S. | 5,000 lbs B.S | 3,300 lbs B.S. | 1,100 lbs W.L.L. |
 | DG-US-HDRS-WH1 | 1 inch Heavy Duty Ratchet Strap | Wire Hook 3,300 lbs B.S. | 6,600lbs B.S. | 3,300 lbs B.S. | 1,100 lbs W.L.L. |
 | DG-US-HDRS-VSHSL1 | 1 inch Heavy Duty Ratchet Strap | Vinyl S Hook Soft Loop 3,300 lbs B.S. | 6,600lbs B.S. | 3,300 lbs B.S. | 1,100 lbs W.L.L. |
 | DG-US-HDRS-SH16600 | 1 inch Heavy Duty Ratchet Strap | S Hooks 3,300 lbs B.S. | 6,600lbs B.S. | 3,300 lbs B.S. | 1,100 lbs W.L.L. |
 | DG-US-HDRS1 | 1 inch Heavy Duty Ratchet Strap | / | 6,600lbs B.S. | 3,300 lbs B.S. | 1,100 lbs W.L.L. |
 | DG-US-CRS-SH1 | 1 inch Custom Ratchet Strap | S Hook 500 lb B.S | 1,500lbs B.S. | 1,500 lb B.S | 500 lb W.L.L. |
 | DG-US-CRS1 | 1 inch CAMO Ratchet Strap | / | 3,000lbs B.S. | 3,300 lbs B.S. | 833 lbs W.L.L. |
