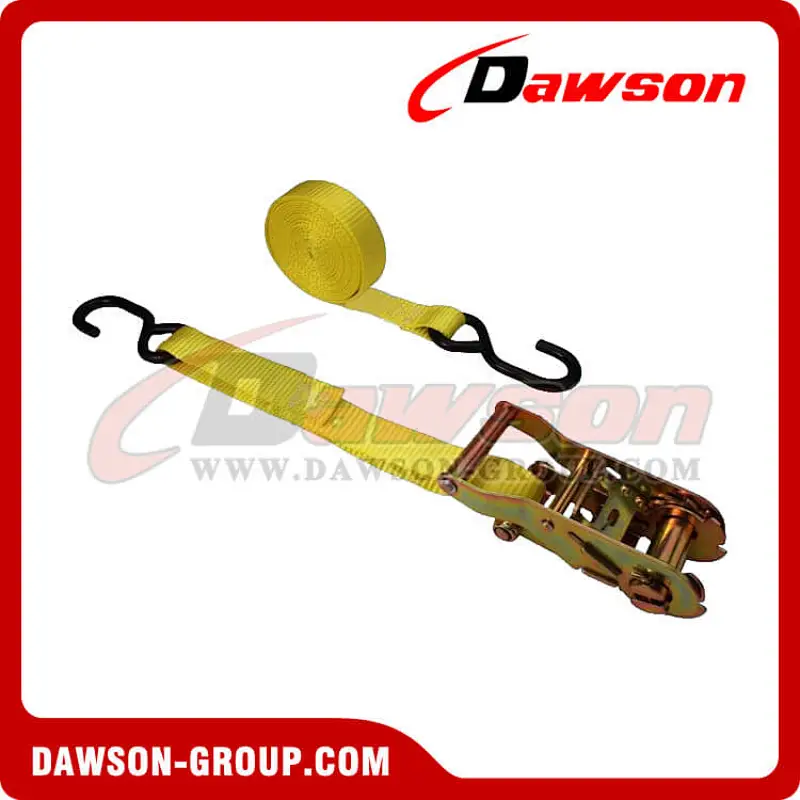

1 inch 20 feet Ratchet Strap With S-Hook
1 inch 20 feet Ratchet Strap With S-Hook

1 inch 20 feet Ratchet Strap With S-Hook

Model NO.
DS-US-RS-SH120
Quantity:

1 inch 20 feet Ratchet Strap With S-Hook
- China Manufacturer, Supplier, Factory

This 1''x20' ratchet tie down strap comes with vinyl coated s-hooks on each end. The strap is made from yellow industrial grade webbing and is also available in 1''x10' and 1''x15' lengths.

Length: 20'

Width: 1"

Weight: 1.65 lbs

Web Break Strength: 4000 lbs

Assembly Break Strength: 1,200 lbs

Work Load Limit: 400 lbs

Ratchet Tie Down , Ratchet Straps ( America market)

**100% high tenacity polyester of lashing strap

**Low elongation

**Popular color of strap:orange,blue,yellow,red,black

**Width available:1"to 4"

**Breaking strength scope:1500Ibs-20000Ibs

Cautions

-Never use a lashing as a lifting sling.

-Never twist a webbing.

-Protect the webbing from sharp edges by suach as protective sleeves.

-Chemical active environments ca effect the strength of sling.

-Polyester is resistant to acids, but affetected by concentrared bases.

-Temperature range of -40 to +100

REMARKS:

*Part number :width-one or two pc-end fitting

*One pc means:endless,without end fitting

*Various end fitting available,see next page

Ratchet Lashings are used for tying down loads whilst transporting , shifting or moving them. They have replaced traditional jute ropes, chains and wires used for transportation and for a variety of other applications.

The main advantages of ratchet lashings are :

1. Load restraint using a tensioning device (ratchet)

2. Effective and safe control of loads whilst transportation

3. Extremely quick and efficient tie down and release of load thus saving time.

4. No damage to the load being tied down.

They are available in a large variety of configurations of different ratchets of various capacities and end fittings. Pictures shown here are only indicative and not exhaustive.

ITEMSTRAPEND HARDWAREWebbing
Break Strength
Work
Load Limit
Assembly
Break Strength

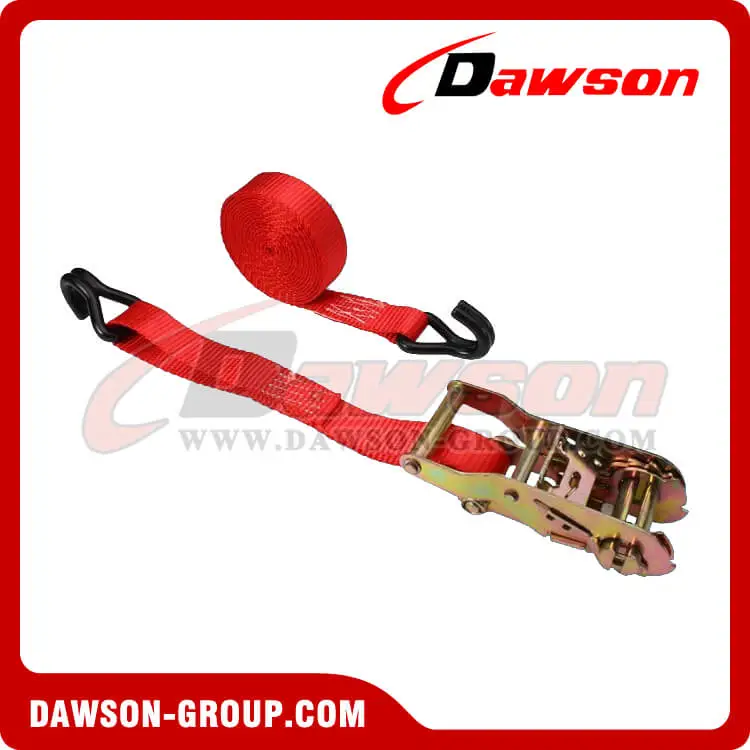

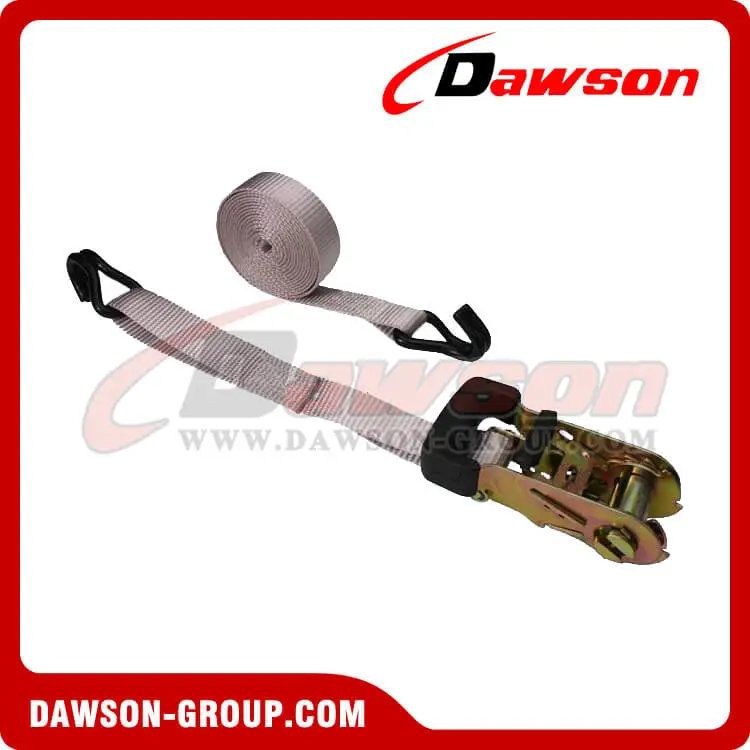

1'' x 20' Rubber Coated Ratchet Strap with Vinyl Coated Wire Hooks - Dawson Group - china manufacturer supplierDG-US-RCRS-VCWH1201’’×20’ Rubber Coated Ratchet StrapVinyl Coated Wire Hooks4,000 lbs1,000 lbs3,000lbs
DS-US-RS-VCWH1201’’×20’ Ratchet StrapVinyl Coated Wire Hooks4,000 lbs1,000 lbs3,000lbs
1'' x 20' Ratchet Strap With S-Hook - Dawson Group - china manufacturer supplierDS-US-RS-SH1201’’×20’ Ratchet StrapS Hook4,000 lbs400 lbs1,200lbs

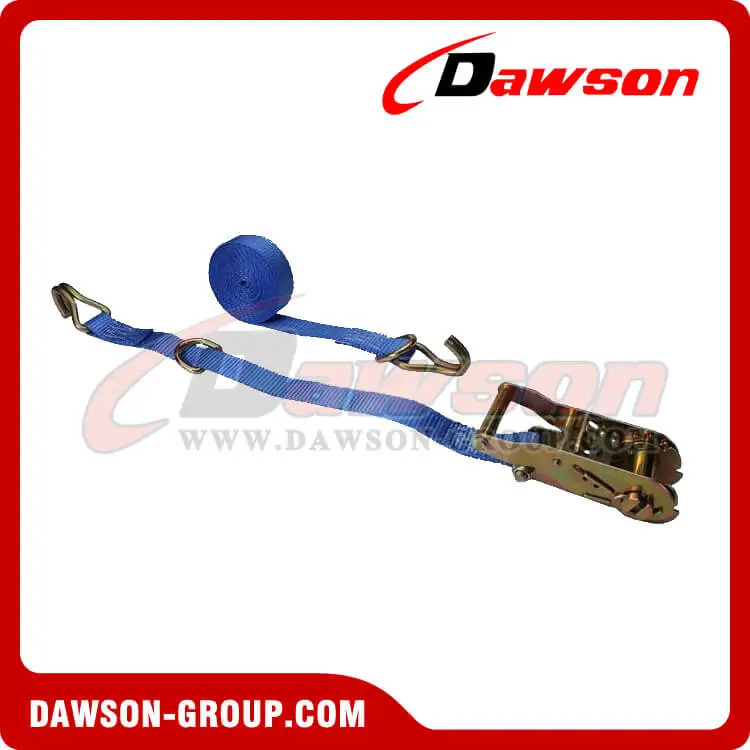

1'' x 20' Ratchet Strap With J-Hook D-Ring - Dawson Group - china manufacturer supplierDS-US-JHDR1201’’×20’ Ratchet StrapJ Hook D-Ring/1,000 lbs3,000lbs

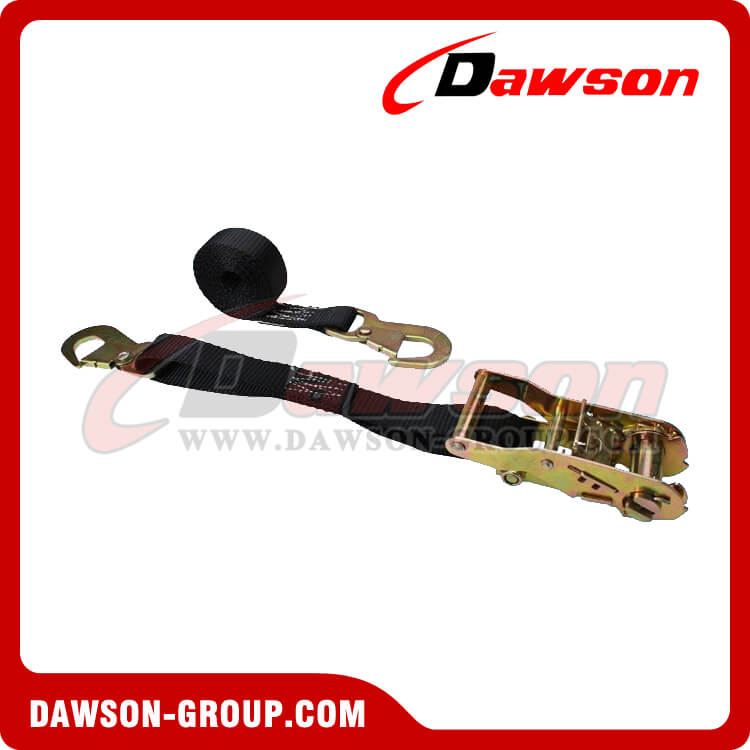

1'' x 20' Ratchet Strap with Flat Snap Hooks - Dawson Group - china manufacturer supplierDS-US-FSH1201’’×20’ Ratchet StrapFlat Snap Hooks/1,066 lbs3,200lbs

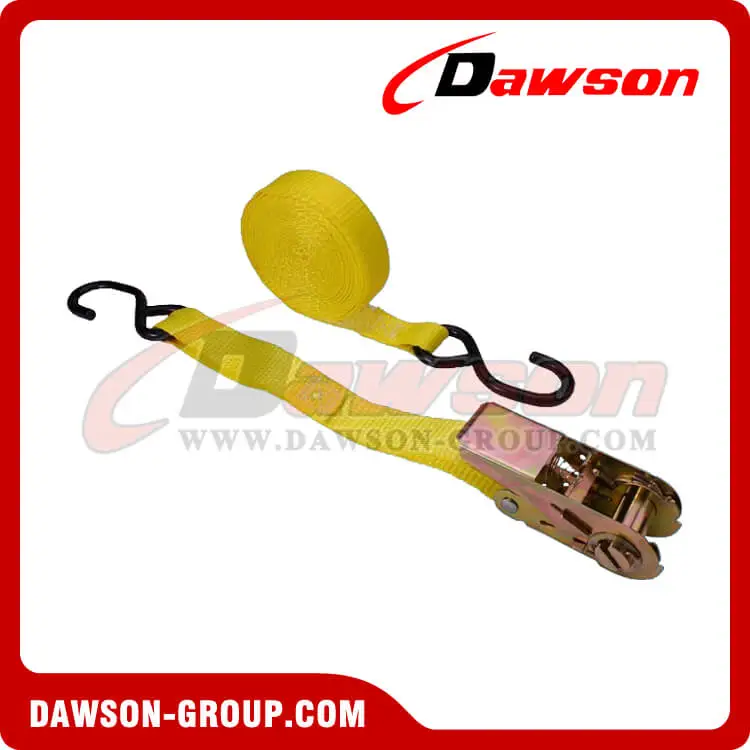

1'' x 20' Ratchet Strap with S-Hooks (Utility) - Dawson Group - china manufacturer supplierDS-US-SH1201’’×20’ Ratchet StrapS Hooks4,000 lbs400 lbs1,200lbs

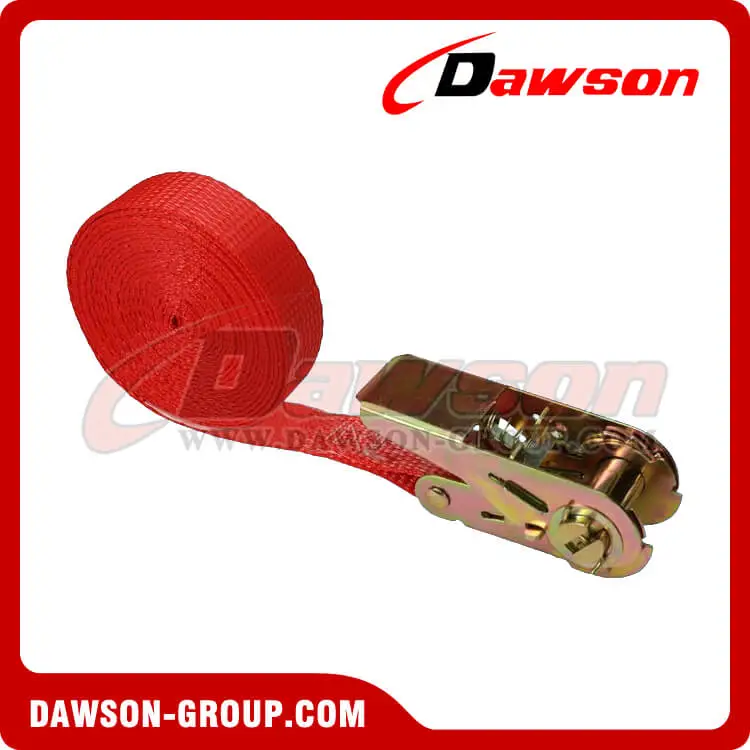

1'' x 20' Fixed Endless Ratchet Strap - Red Webbing - Dawson Group - china manufacturer supplierDS-US-RW1201’’×20’ Fixed Endless Ratchet StrapS Hooks/500 lbs1,500lbs

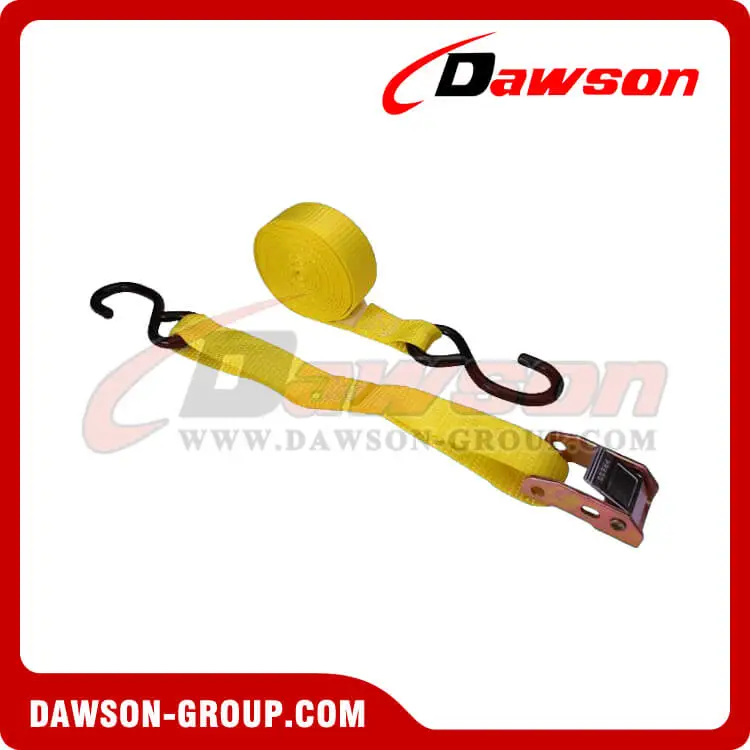

1'' x 20' Cam Strap With S-Hook - Dawson Group - china manufacturer supplierDS-US-CS-SH1201’’×20’ Cam StrapS Hook/400 lbs1,200lbs

Hot Tags: Ratchet Straps, Ratchet Tie Down Straps, 1 Inch Tie Down Lashing, 1'' x 20' Lashing Straps, WLL 400LBS Web Lashing, Cargo Lashing China Manufacturer, Truck Ratchet Straps Factory,  Cargo Truck Ratchet Tie Down Supplier, Endless Ratchet Strap In Stock, Customized Tie Down Ratchet Strap, High Quality Lashing Tie Down, Polyester Ratchet Belt Tie Down, Wholesale Tie Down Tightening Strap, Hot Sale Cargo Webbing, Ratcheting Cargo Lashing In Bulk, Buy Discount Tie Down Strap, Ratchet Lashing Straps In Bulk, Lashing Straps with S Hooks
