1 inch 20 feet Ratchet Strap With J-Hook and D-Ring

1 inch 20 feet Ratchet Strap With J-Hook and D-Ring
- China Manufacturer, Supplier, Factory

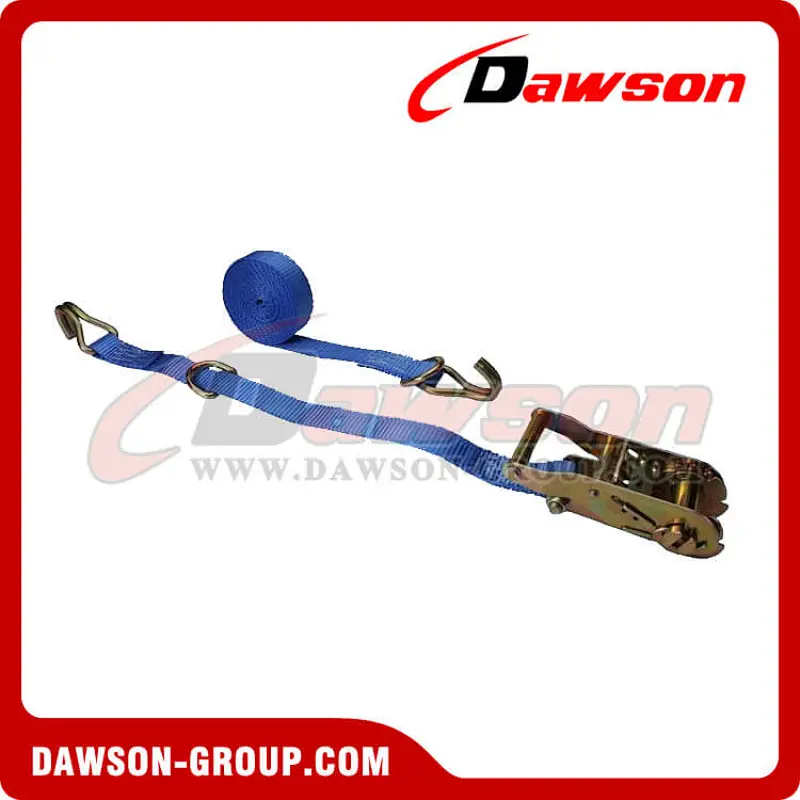

This ratchet tie down strap is a versatile strap and allows you to hook the strap back to itself using a floating d-ring. This tie down strap is has blue webbing and is 1"x20' long. This strap is also available in 1"x10' and 1"x15' lengths. Each end of the ratchet strap has a j-hook and a d-ring.

Length: 20'

Width: 1"

Weight: 1.75 lbs

Assembly Break Strength: 3,000 lbs

Work Load Limit: 1,000 lbs

Ratchet Tie Down , Ratchet Straps ( America market)

**100% high tenacity polyester of lashing strap

**Low elongation

**Popular color of strap:orange,blue,yellow,red,black

**Width available:1"to 4"

**Breaking strength scope:1500Ibs-20000Ibs

Cautions

-Never use a lashing as a lifting sling.

-Never twist a webbing.

-Protect the webbing from sharp edges by suach as protective sleeves.

-Chemical active environments ca effect the strength of sling.

-Polyester is resistant to acids, but affetected by concentrared bases.

-Temperature range of -40 to +100

REMARKS:

*Part number :width-one or two pc-end fitting

*One pc means:endless,without end fitting

*Various end fitting available,see next page

Ratchet Lashings are used for tying down loads whilst transporting , shifting or moving them. They have replaced traditional jute ropes, chains and wires used for transportation and for a variety of other applications.

The main advantages of ratchet lashings are :

1. Load restraint using a tensioning device (ratchet)

2. Effective and safe control of loads whilst transportation

3. Extremely quick and efficient tie down and release of load thus saving time.

4. No damage to the load being tied down.

They are available in a large variety of configurations of different ratchets of various capacities and end fittings. Pictures shown here are only indicative and not exhaustive.

	ITEM	STRAP	END HARDWARE	Webbing  Break Strength	Work  Load Limit	Assembly  Break Strength
	DG-US-RCRS-VCWH120	1’’×20’ Rubber Coated Ratchet Strap	Vinyl Coated Wire Hooks	4,000 lbs	1,000 lbs	3,000lbs

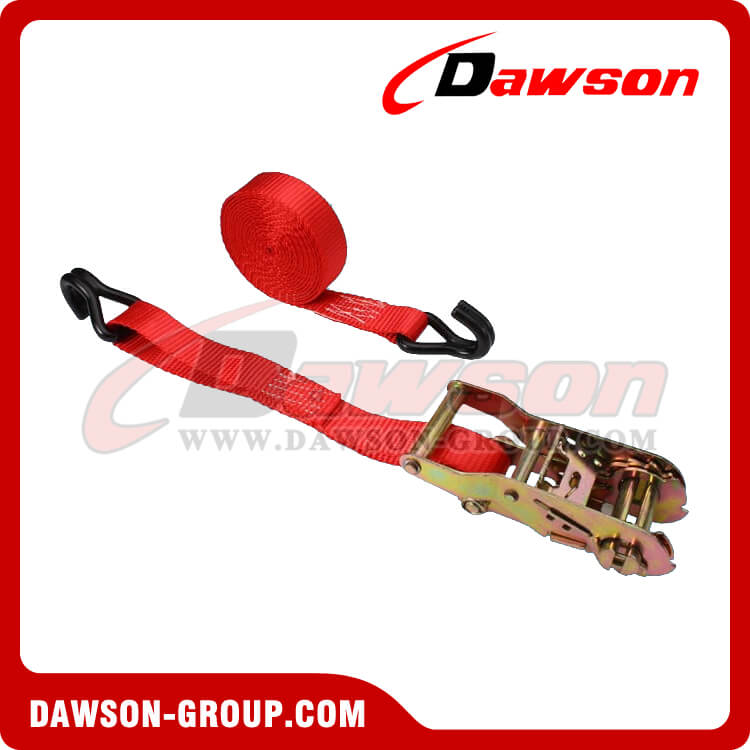

	DS-US-RS-VCWH120	1’’×20’ Ratchet Strap	Vinyl Coated Wire Hooks	4,000 lbs	1,000 lbs	3,000lbs
	DS-US-RS-SH120	1’’×20’ Ratchet Strap	S Hook	4,000 lbs	400 lbs	1,200lbs
	DS-US-JHDR120	1’’×20’ Ratchet Strap	J Hook D-Ring	/	1,000 lbs	3,000lbs

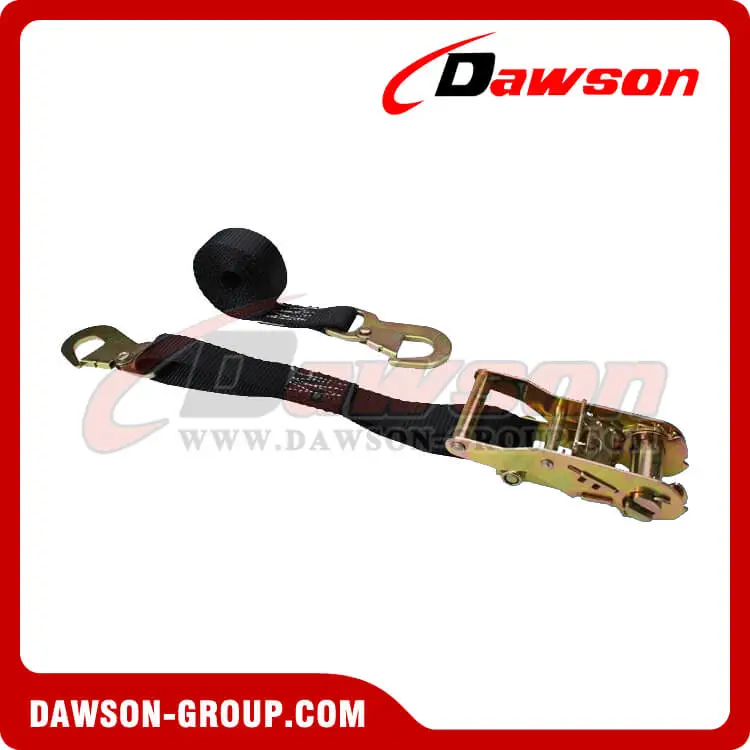

	DS-US-FSH120	1’’×20’ Ratchet Strap	Flat Snap Hooks	/	1,066 lbs	3,200lbs

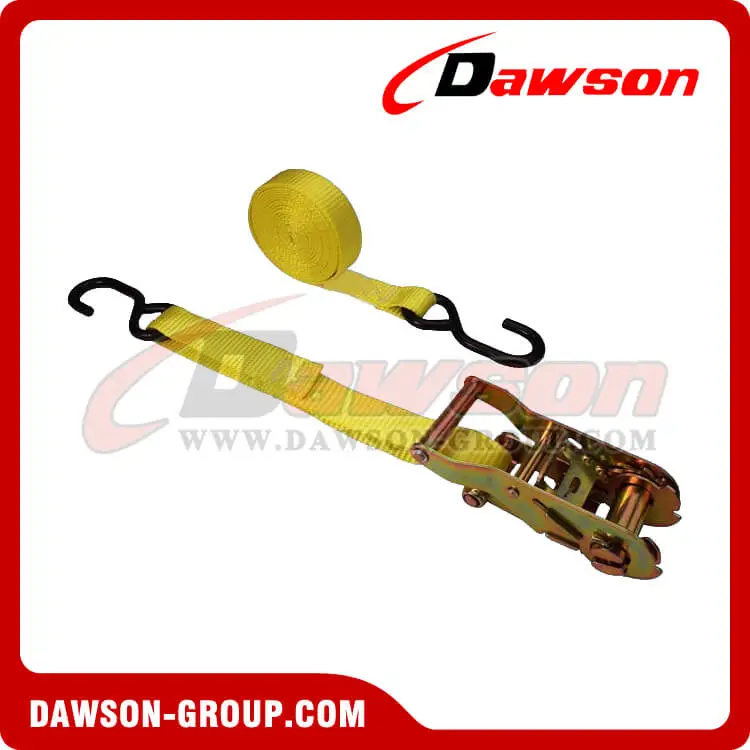

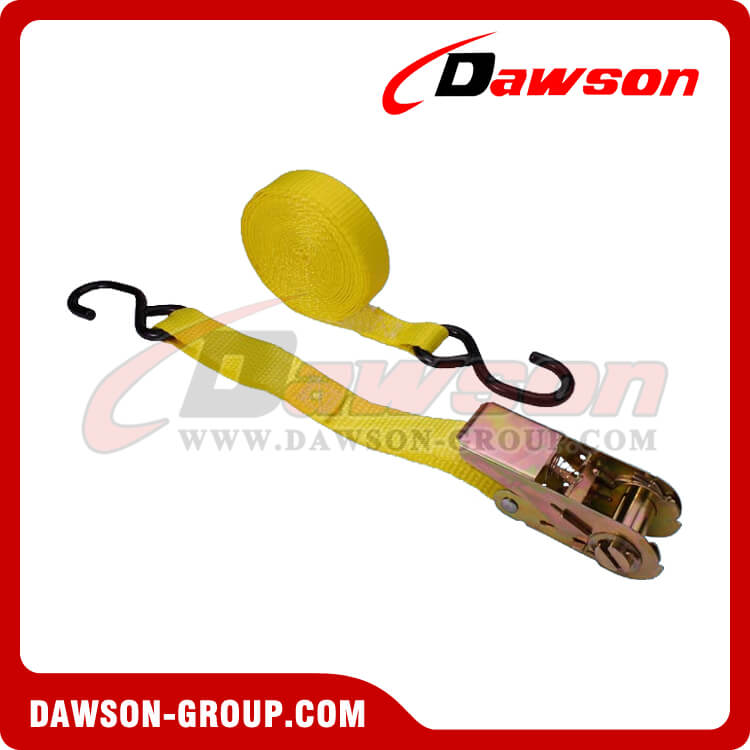

	DS-US-SH120	1’’×20’ Ratchet Strap	S Hooks	4,000 lbs	400 lbs	1,200lbs

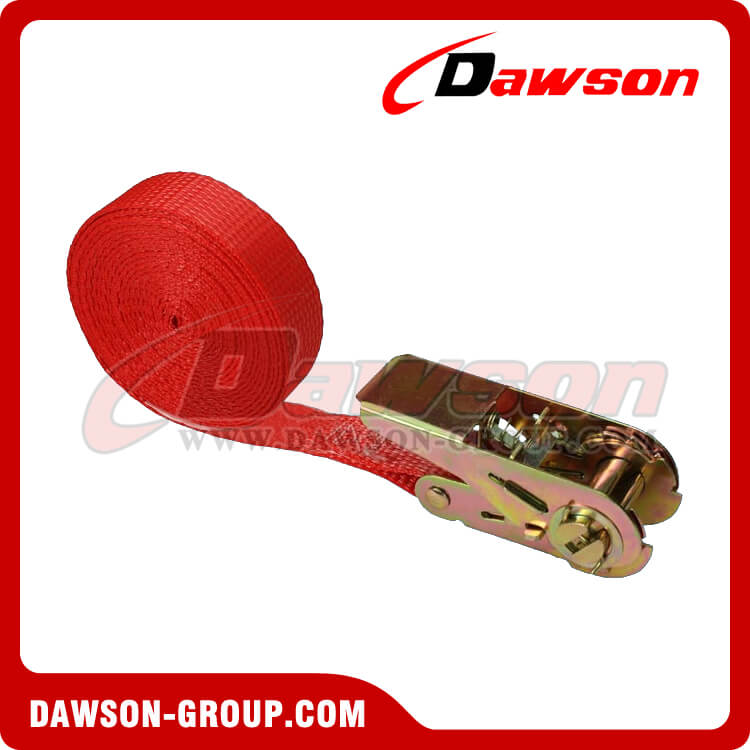

	DS-US-RW120	1’’×20’ Fixed Endless Ratchet Strap	S Hooks	/	500 lbs	1,500lbs

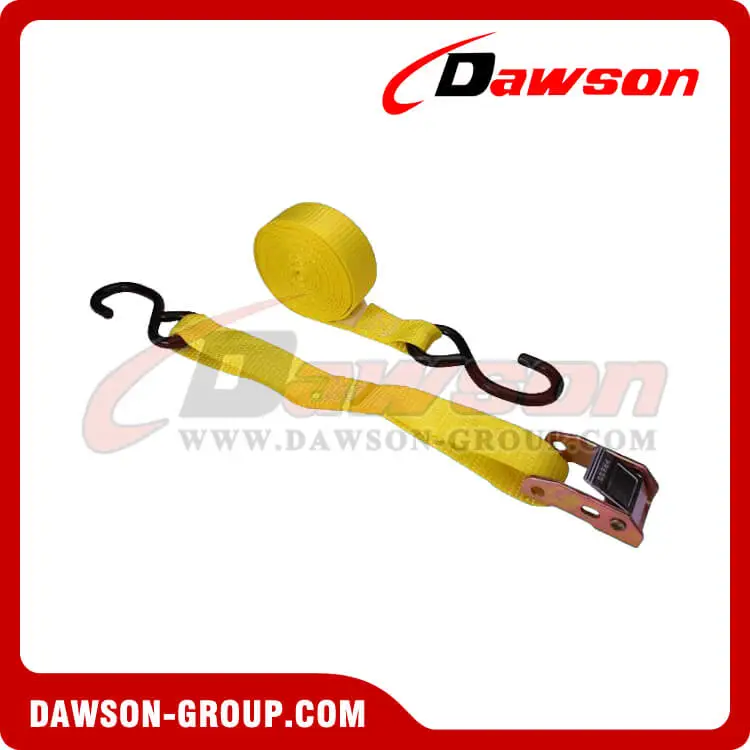

	DS-US-CS-SH120	1’’×20’ Cam Strap	S Hook	/	400 lbs	1,200lbs

Hot Tags: Ratchet Strap, 1 Inch Tie Down Lashing, 1"Lashing Belts, WLL 1000LBS Web Lashing, China Ratchet Tie Down, Tie Down Strap Factory, Ratchet Lashing Straps Supplier, Polyester Endless Ratchet Strap, Ratcheting Cargo Lashing In Bulk, Cheap Price Replacement Lashing Belt, Hot Sale Truck Tie Down Straps, Wholesale Truck Ratchet Tie Down, China Web Lashing In Stock, Competitive Price Lashing Strap, Ratchet Lashings with J-Hook, Webbing Tiedown with D-Ring, Ratchet Tie Down Lashing Belts, Ratchet Tie Down Cargo Straps, Truck Cargo Lashing Strap

Other related products:

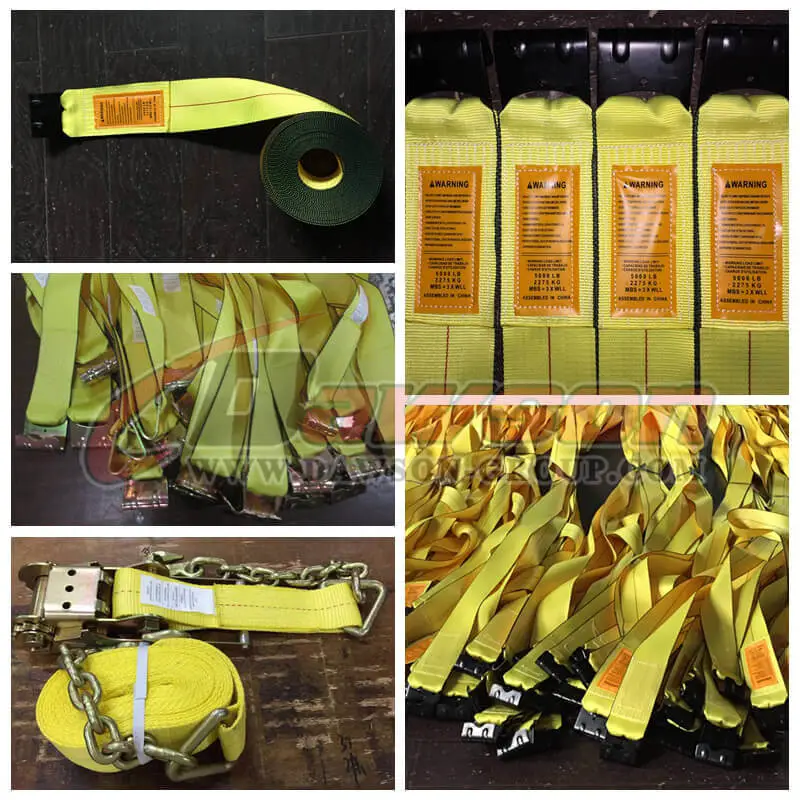

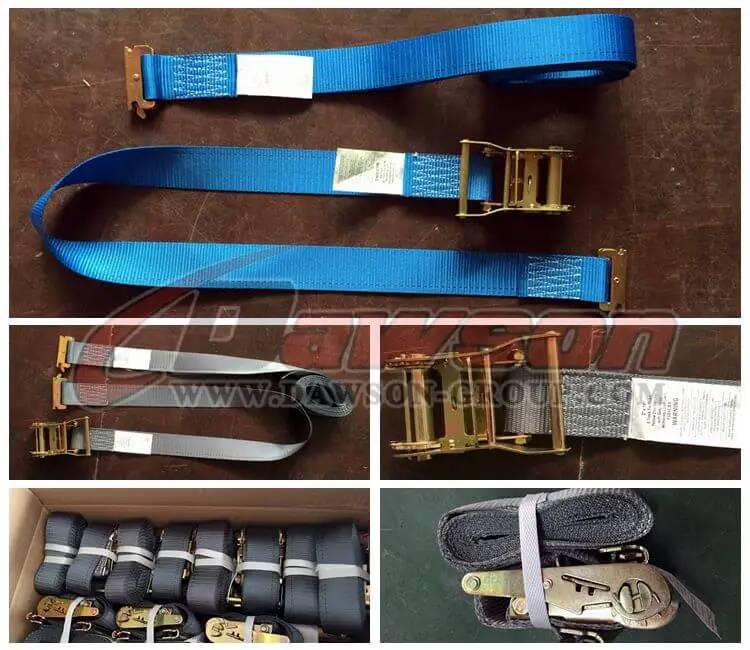

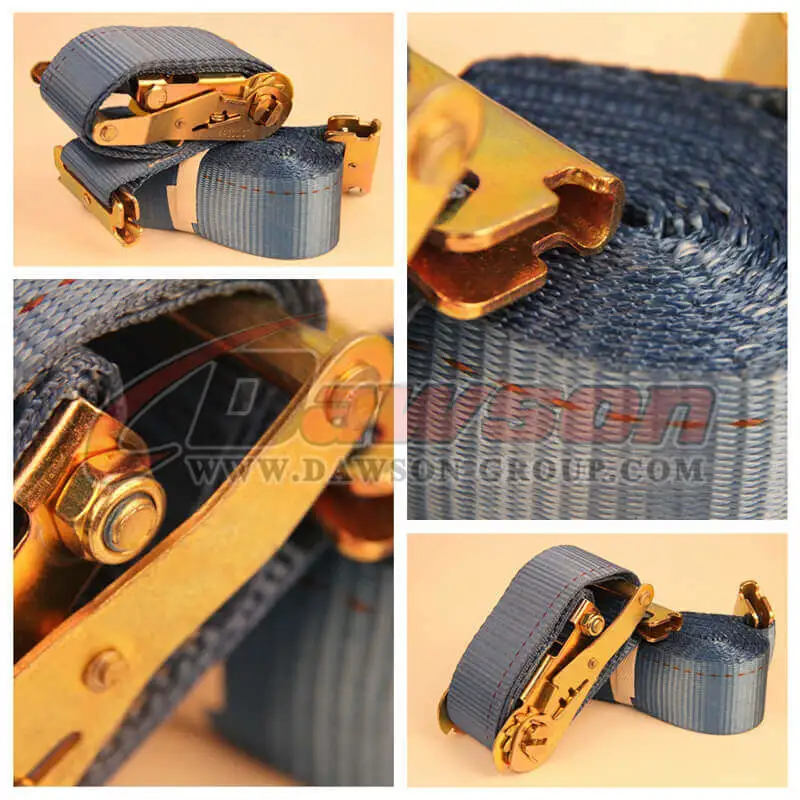

Factory & Package Show:
