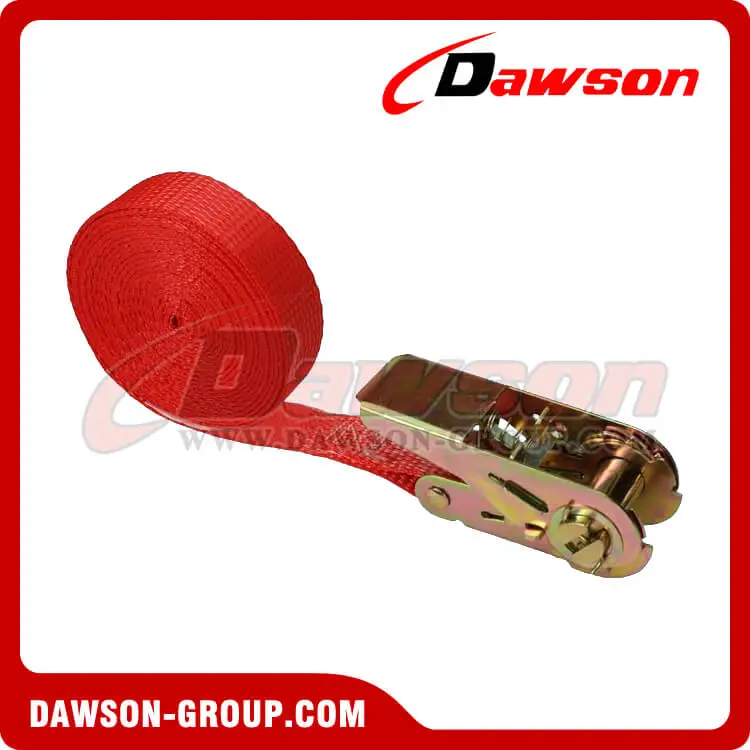

1 inch 20 feet Fixed Endless Ratchet Strap - Red Webbing
- China Manufacturer, Supplier, Factory
1-inch-20-feet-Endless-Ratchet-Straps are great for applications requiring a ratchet strap to wrap around an object and be able to"feed"itself back into the ratchet and crank it tight.
Qty: 1 (40 pieces/box)
Length: 20'
Width: 1"
Weight: 0.95 lbs
Assembly Break Strength: 1,500 lbs
Work Load Limit: 500 lbs
Ratchet Tie Down , Ratchet Straps ( America market)
**100% high tenacity polyester of lashing strap
**Low elongation
**Popular color of strap:orange,blue,yellow,red,black
**Width available:1"to 4"
**Breaking strength scope:1500Ibs-20000Ibs
Cautions
-Never use a lashing as a lifting sling.
-Never twist a webbing.
-Protect the webbing from sharp edges by suach as protective sleeves.
-Chemical active environments ca effect the strength of sling.
-Polyester is resistant to acids, but affetected by concentrared bases.
-Temperature range of -40 to +100
REMARKS:
*Part number :width-one or two pc-end fitting
*One pc means:endless,without end fitting
*Various end fitting available,see next page
Ratchet Lashings are used for tying down loads whilst transporting , shifting or moving them. They have replaced traditional jute ropes, chains and wires used for transportation and for a variety of other applications.
The main advantages of ratchet lashings are :
1. Load restraint using a tensioning device (ratchet)
2. Effective and safe control of loads whilst transportation
3. Extremely quick and efficient tie down and release of load thus saving time.
4. No damage to the load being tied down.
They are available in a large variety of configurations of different ratchets of various capacities and end fittings. Pictures shown here are only indicative and not exhaustive.
| ITEM | STRAP | END HARDWARE | Webbing Break Strength | Work Load Limit | Assembly Break Strength | |
 | DG-US-RCRS-VCWH120 | 1’’×20’ Rubber Coated Ratchet Strap | Vinyl Coated Wire Hooks | 4,000 lbs | 1,000 lbs | 3,000lbs |

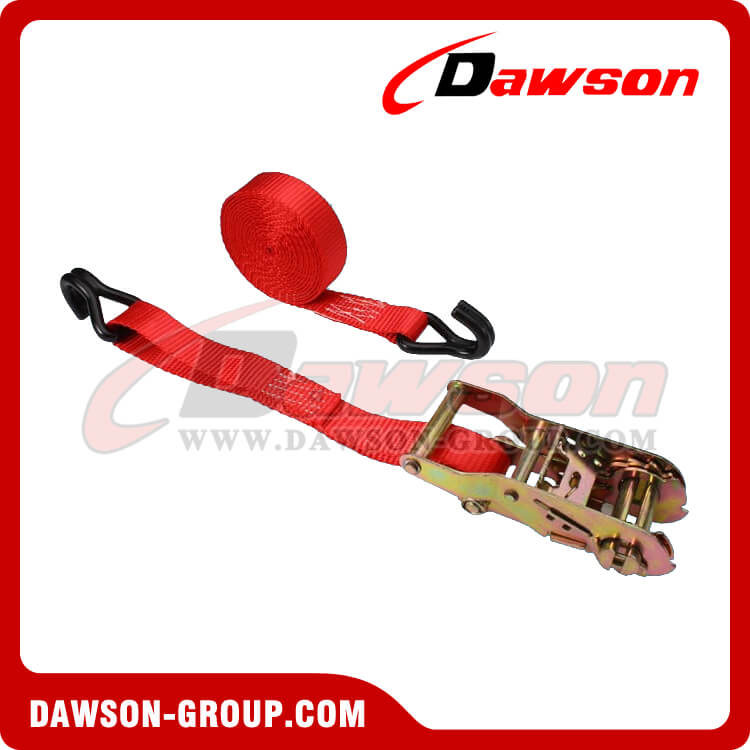

 | DS-US-RS-VCWH120 | 1’’×20’ Ratchet Strap | Vinyl Coated Wire Hooks | 4,000 lbs | 1,000 lbs | 3,000lbs |

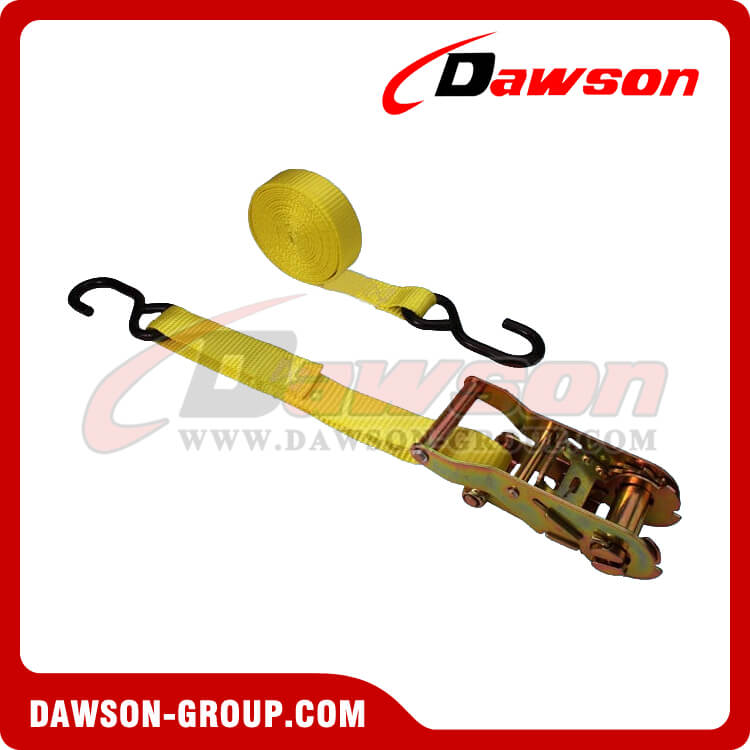

 | DS-US-RS-SH120 | 1’’×20’ Ratchet Strap | S Hook | 4,000 lbs | 400 lbs | 1,200lbs |

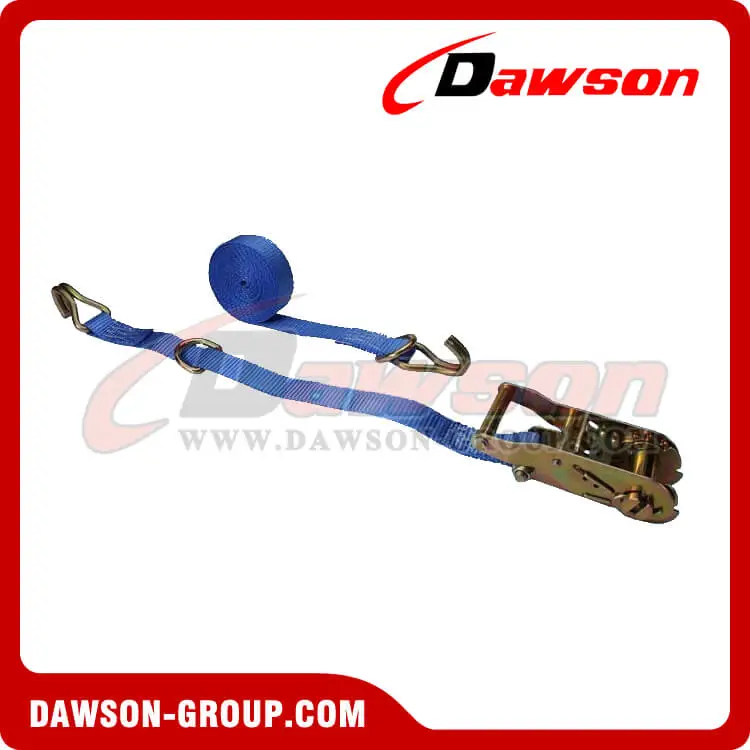

 | DS-US-JHDR120 | 1’’×20’ Ratchet Strap | J Hook D-Ring | / | 1,000 lbs | 3,000lbs |

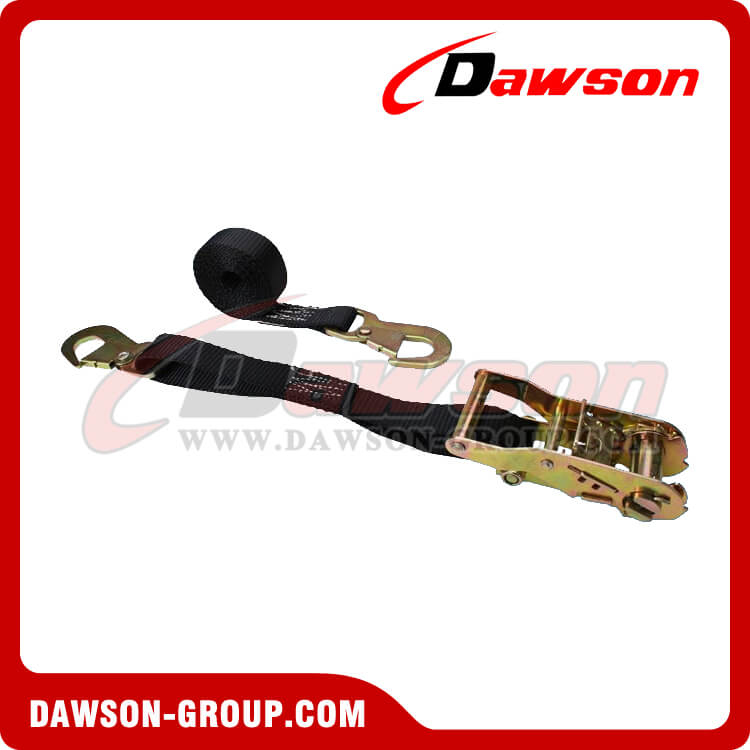

 | DS-US-FSH120 | 1’’×20’ Ratchet Strap | Flat Snap Hooks | / | 1,066 lbs | 3,200lbs |

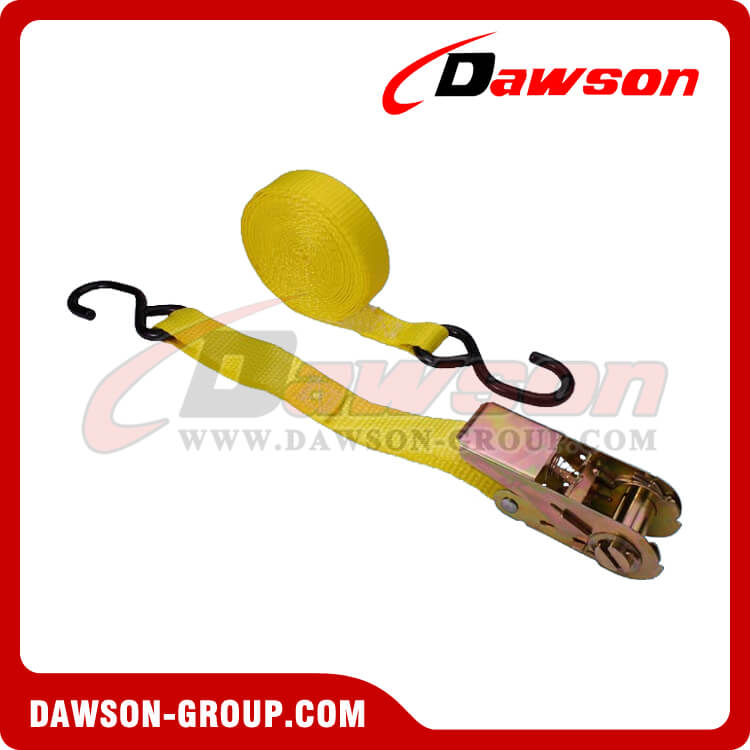

 | DS-US-SH120 | 1’’×20’ Ratchet Strap | S Hooks | 4,000 lbs | 400 lbs | 1,200lbs |
 | DS-US-RW120 | 1’’×20’ Fixed Endless Ratchet Strap | S Hooks | / | 500 lbs | 1,500lbs |

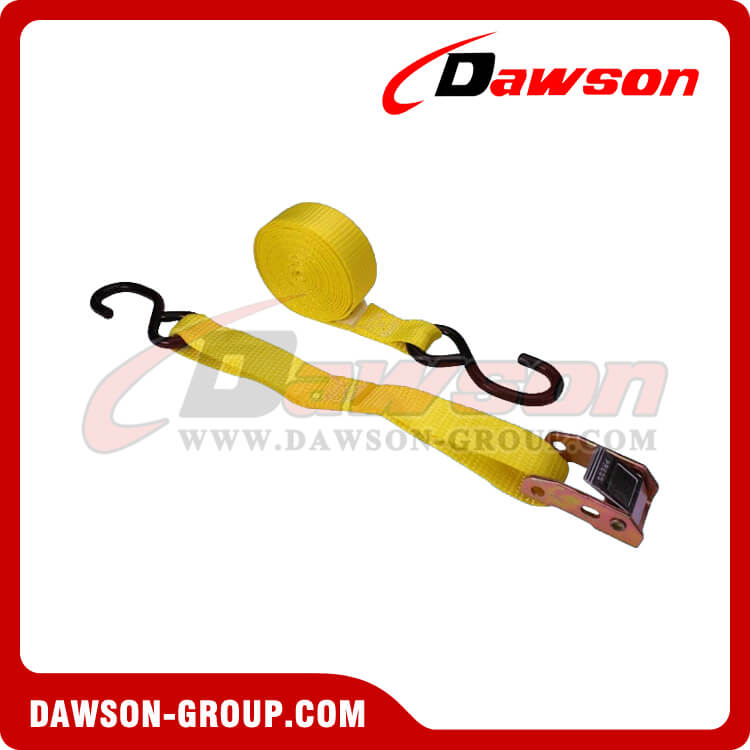

 | DS-US-CS-SH120 | 1’’×20’ Cam Strap | S Hook | / | 400 lbs | 1,200lbs |
Hot Tags: Fixed Endless Ratchet Strap, 1 Inch Tie Down Lashing, 1'' x 20' Endless Ratchet Strap, WLL 500LBS Tie Down Lashing, Ratchet Lashing Straps China Factory, Web Lashing Strap Supplier, China Tie Down Lashing Belts Manufacturer, Truck Ratchet Tie Down In Bulk, Polyester Cargo Lashing Belts, Fixed Endless Tie Down Strap, Customized Ratchet Belt Tie Down, Endless Cargo Lashing Straps, Ratchet Lashing Endless, High Quality Ratchet Tie Down Lashing, Cargo Lashing with S Hooks, Wholesale Lashing Strap Endless, Hot Sale Webbing Lashing Strap
Other related products:

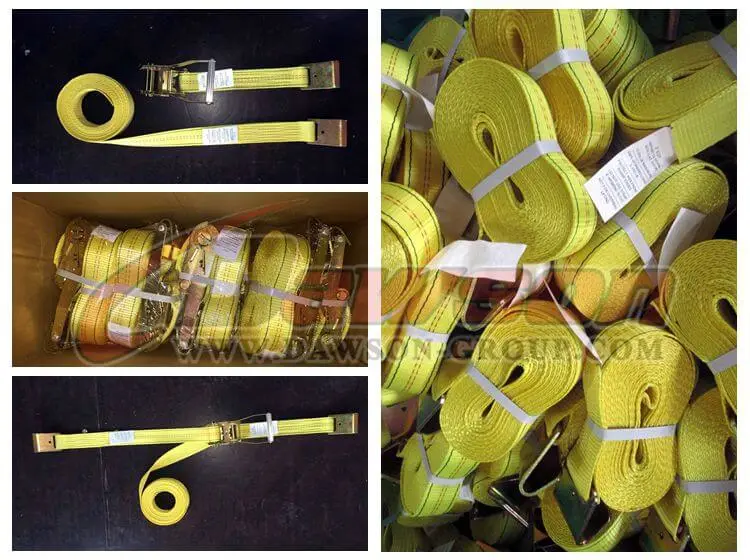

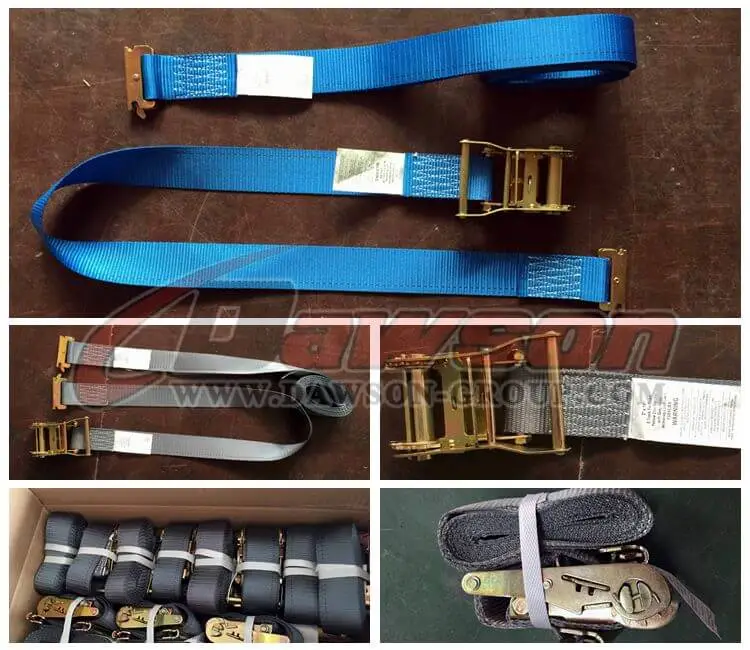

Factory & Package Show:
