1 inch 15 feet Endless Cam Buckle Strap - Blue Web
- China Manufacturer, Supplier, Factory
Cam straps are a good tightening system by letting you pull the strap through to tighten rather than ratcheting. Cam buckles allow you to tighten with less fear of damaging your precious cargo. They are applied quickly and can be very secure applied properly.
Qty: 1 (36 pieces/box)
Length: 15'
Width: 1"
Weight: 0.50 lbs
Assembly Break Strength: 770 lbs
Work Load Limit: 256 lbs
Ratchet Tie Down , Ratchet Straps ( America market)
**100% high tenacity polyester of lashing strap
**Low elongation
**Popular color of strap:orange,blue,yellow,red,black
**Width available:1"to 4"
**Breaking strength scope:1500Ibs-20000Ibs
Cautions
-Never use a lashing as a lifting sling.
-Never twist a webbing.
-Protect the webbing from sharp edges by suach as protective sleeves.
-Chemical active environments ca effect the strength of sling.
-Polyester is resistant to acids, but affetected by concentrared bases.
-Temperature range of -40 to +100
REMARKS:
*Part number :width-one or two pc-end fitting
*One pc means:endless,without end fitting
*Various end fitting available,see next page
Ratchet Lashings are used for tying down loads whilst transporting , shifting or moving them. They have replaced traditional jute ropes, chains and wires used for transportation and for a variety of other applications.
The main advantages of ratchet lashings are :
1. Load restraint using a tensioning device (ratchet)
2. Effective and safe control of loads whilst transportation
3. Extremely quick and efficient tie down and release of load thus saving time.
4. No damage to the load being tied down.
They are available in a large variety of configurations of different ratchets of various capacities and end fittings. Pictures shown here are only indicative and not exhaustive.
| ITEM | STRAP | END HARDWARE | Web Break Strength | Work Load Limit | Break Strength | |

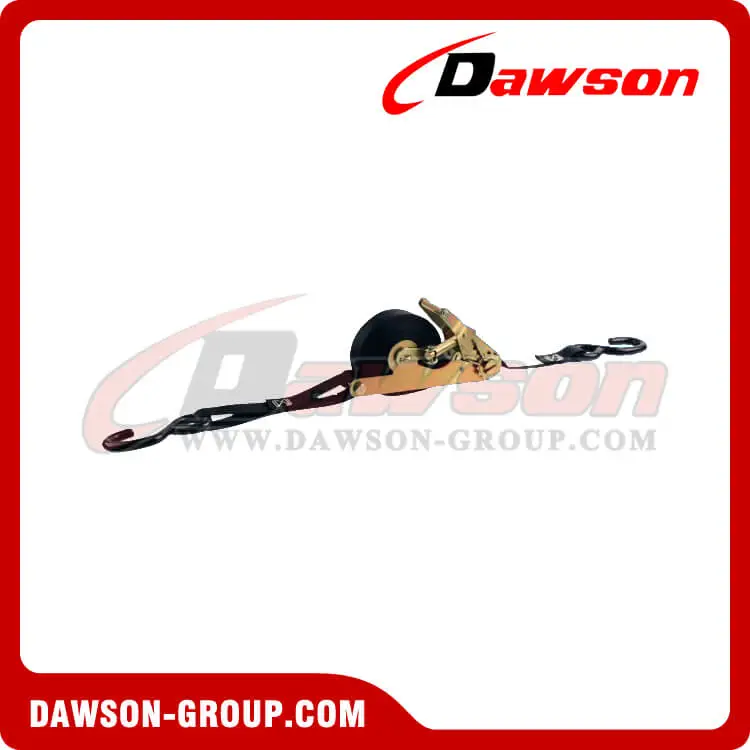

 | DG-US-SCRS-WH115 | 1’’×15’ Self Contained Ratchet Strap | Wire Hooks | / | 800 Lbs. | 2,400lbs |
 | DG-US-SCRS-HDSH115 | 1’’×15’ Self Contained Ratchet Strap | Heavy Duty S-Hooks | / | 800 Lbs. | 2,400lbs |

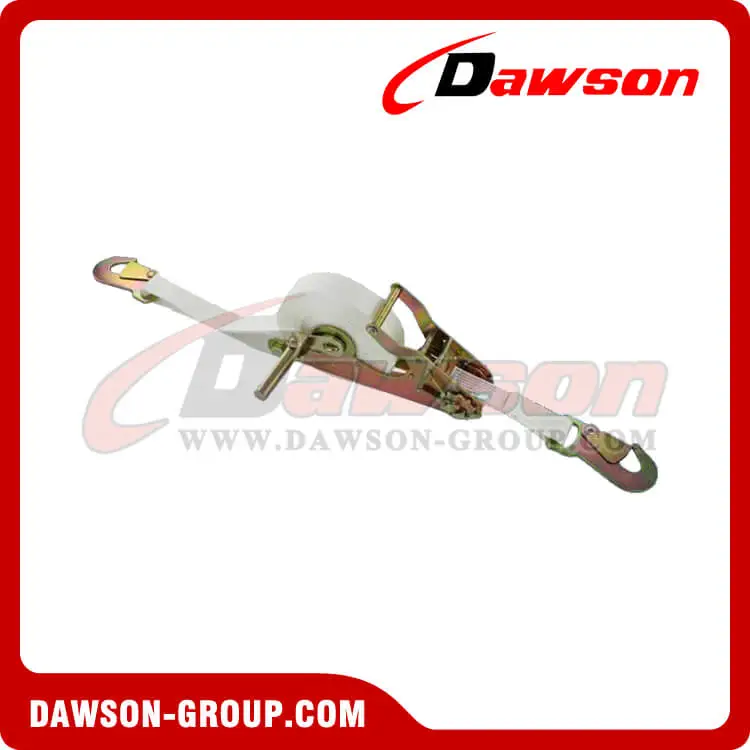

 | DG-US-SCRS-FSH115 | 1’’×15’ Self Contained Ratchet Strap | Flat Snap Hooks | / | 800 Lbs. | 2,400lbs |
 | DG-US-SCRS-FSHWB115 | 1’’×15’ Self Contained Ratchet Strap | Flat Snap Hooks White Webbing | / | 800 Lbs. | 2,400lbs |

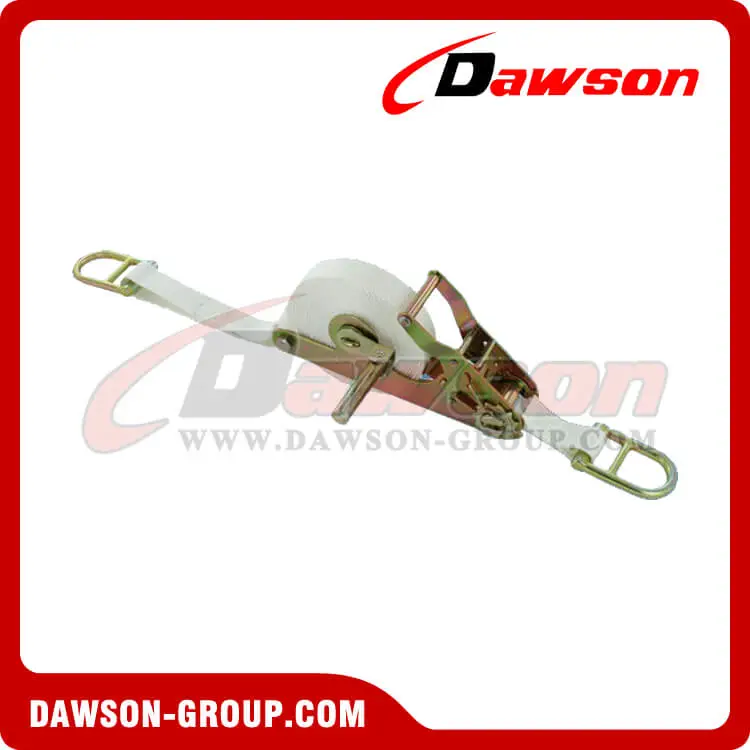

 | DG-US-SCRS-DDRWW115 | 1’’×15’ Self Contained Ratchet Strap | Double D-Rings White Webbing | / | 800 Lbs. | 2,400lbs |
 | DG-US-RCRS-VCWH115 | 1’’×15’ Rubber Coated Ratchet Strap | Vinyl Coated Wire Hooks | 4,000 lbs | 1,000 lbs | 3,000lbs |

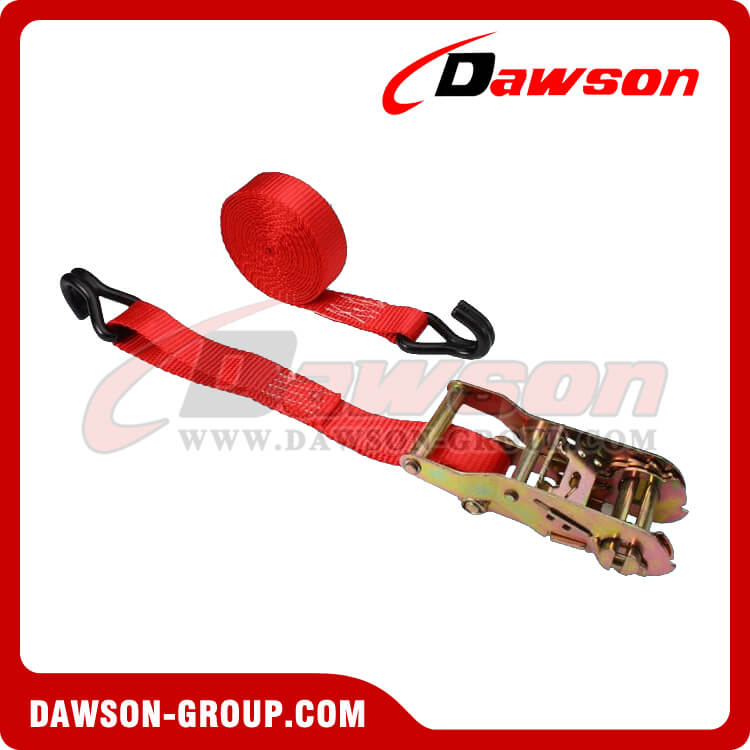

 | DG-US-RS-VCWH115 | 1’’×15’ Ratchet Strap | Vinyl Coated Wire Hooks | 4,000 lbs | 1,000 lbs | 3,000lbs |

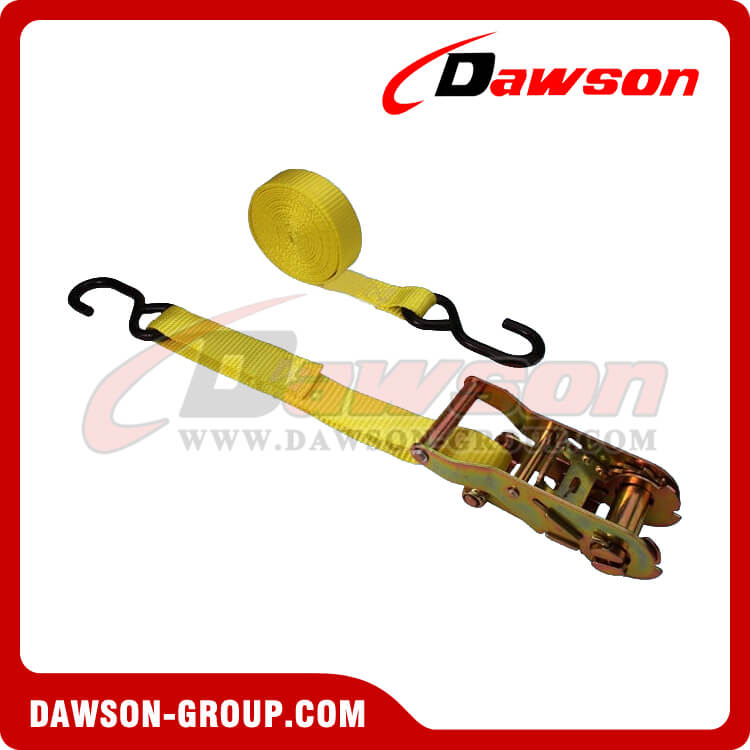

 | DG-US-RS-SH115 | 1’’×15’ Ratchet Strap | S Hook | 4,000 lbs | 400 lbs | 1,200lbs |

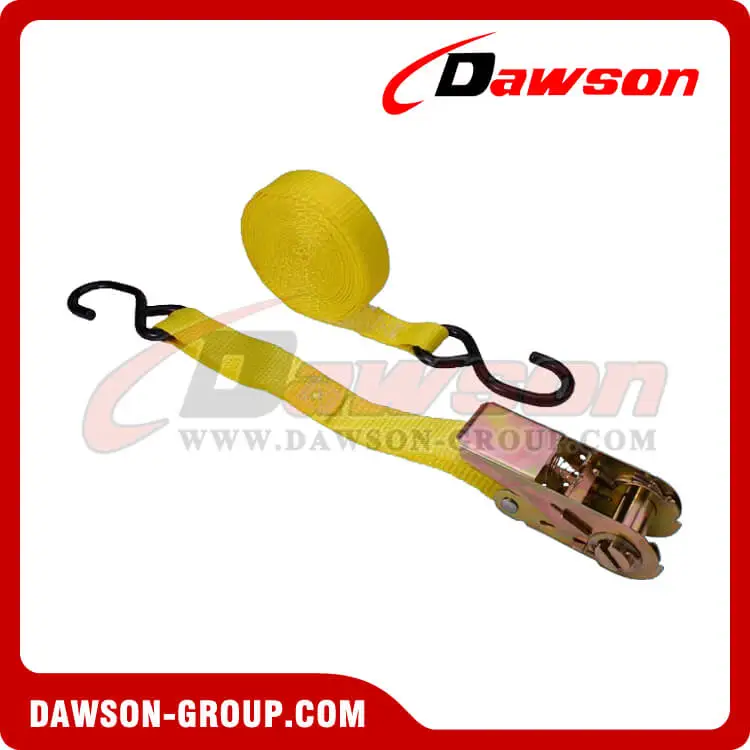

 | DG-US-SH115 | 1’’×15’Ratchet Strap (Utility) | S Hook | 4,000 lbs | 400 lbs | 1,200lbs |

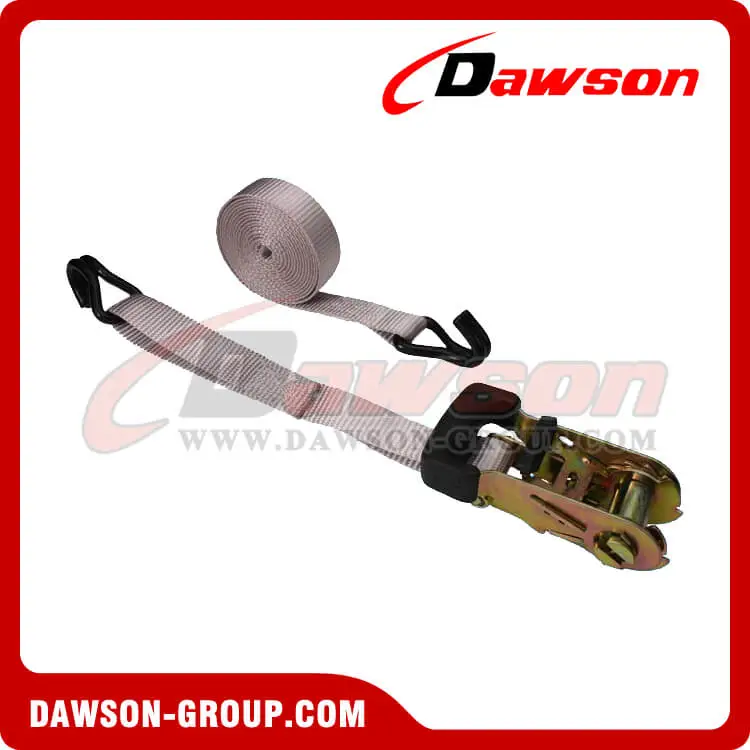

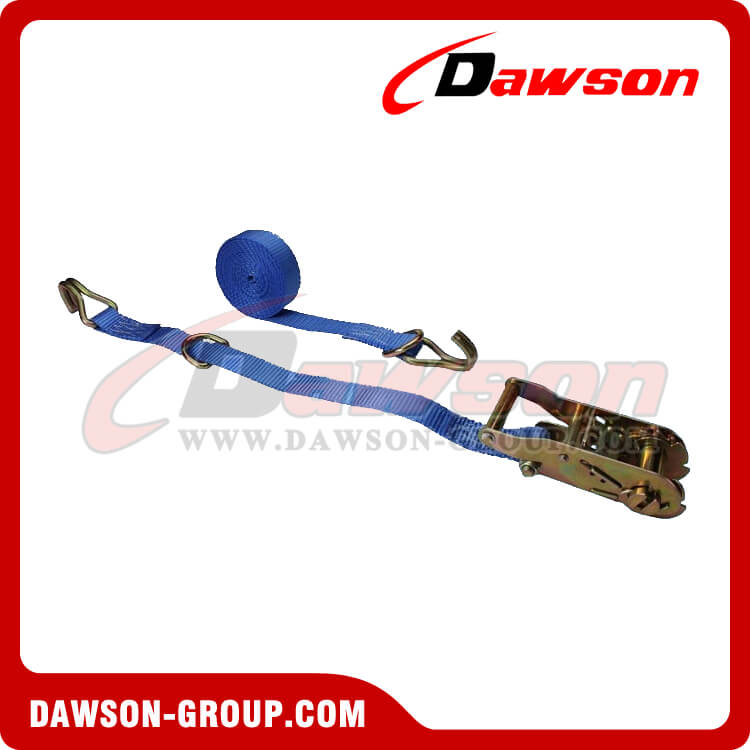

 | DG-US-RS-JHDR115 | 1’’×15’ Ratchet Strap | J Hook D-Ring | / | 1,000 lbs | 3,000lbs |

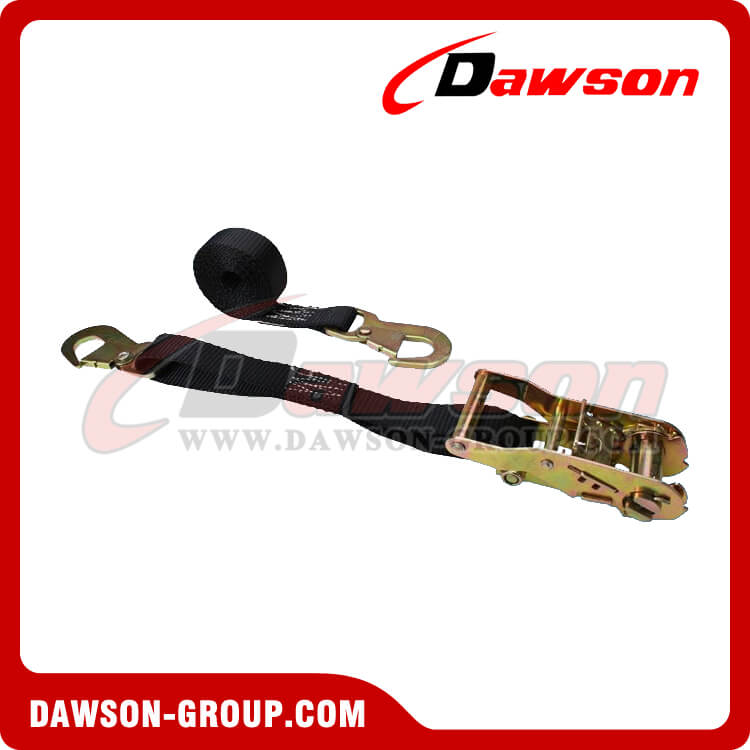

 | DG-US-RS-FSH115 | 1’’×15’ Ratchet Strap | Flat Snap Hooks | / | 1,066 lbs | 3,200lbs |
 | DG-US-ECBS-115 | 1’’×15’ Endless Cam Buckle Strap | / | / | 256 lbs | 770lbs |

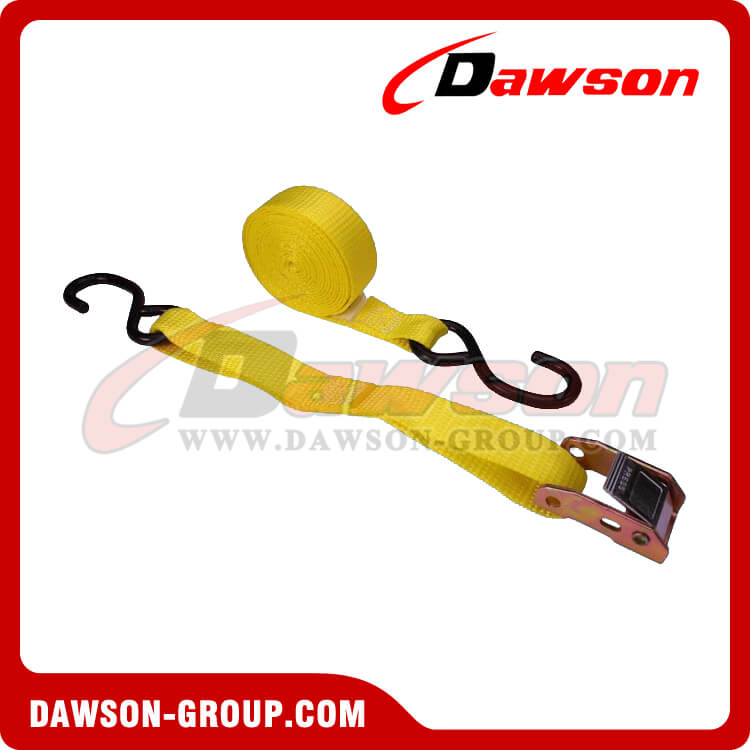

 | DG-US-CS-SH115 | 1’’×15’ Cam Strap | S Hook | / | 400 lbs | 1,200lbs |
Hot Tags: Endless Cam Buckle Strap, 1 Inch Cargo Lashing Belts, 1"×15' Cam Buckle Straps, WLL 256LBS Cam Straps, Polyester Webbing Cambuckle Strap, China Cargo Lashing Belt Factory, Webbing Tiedown Strap Supplier, Cam Buckle Lashing Strap In Bulk, Wholesale Cambuckle Cargo Strap, Cam Buckle Cargo Strap In Stock, Hot Sale Cambuckle Tie Down Strap, Customized Cambuckle Cargo Lashing, Competitive Price Cam Buckle Lashing Tie Down Strap, Buy Discount Replacement Tie Down Straps, China Tie Down Lashing Belt Assembly Manufacturer
Other related products:

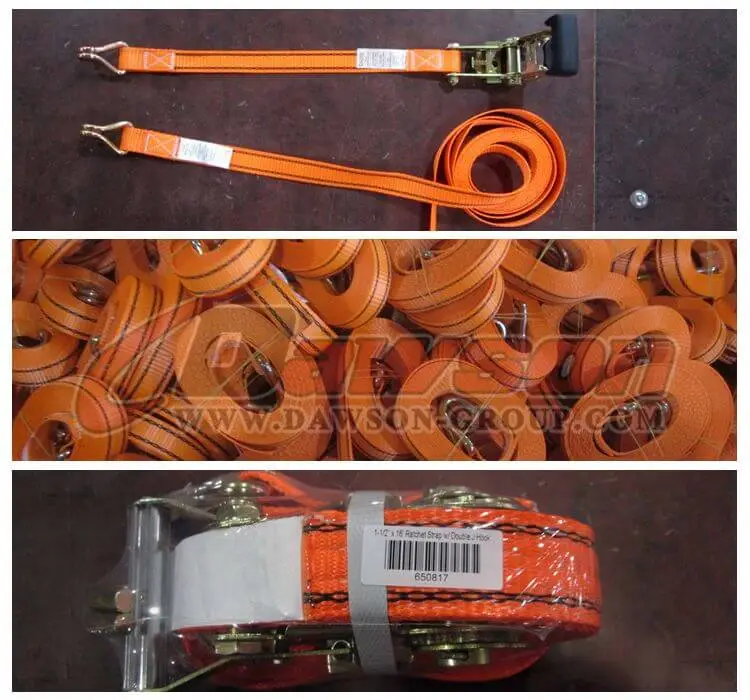

Factory&Package Show:
