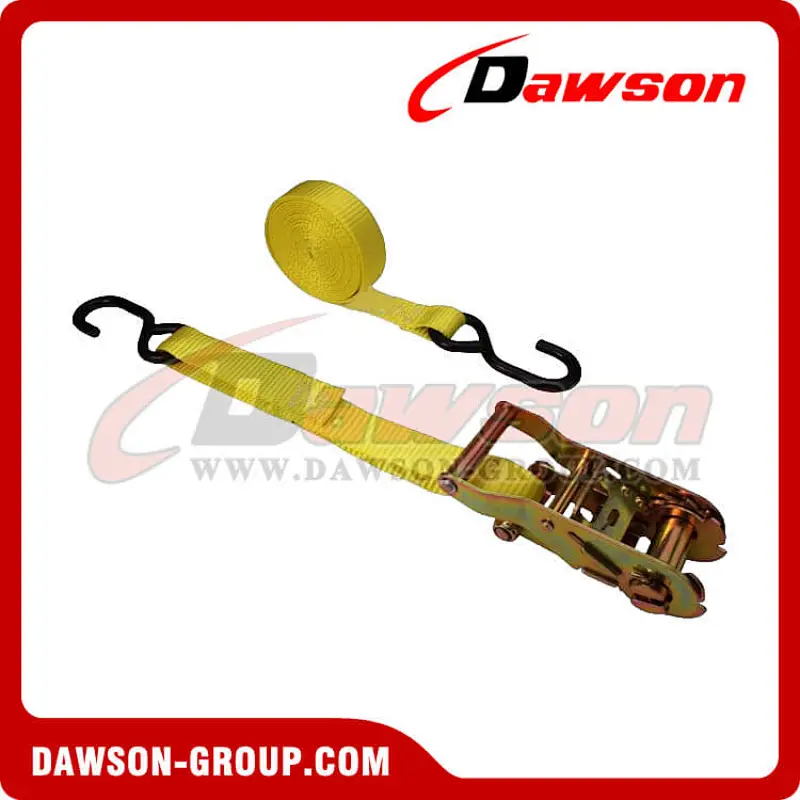

1 inch 10 feet Ratchet Strap With S-Hook
- China Manufacturer, Supplier, Factory
This 1"x10' ratchet tie down strap comes with vinyl coated s-hooks on each end. The strap is made from yellow industrial grade webbing and is also available in 1"x15' and 1"x20' lengths.
Qty: 1 (30 pieces/box)
Length: 10'
Width: 1"
Weight: 1.45 lbs
Web Break Strength: 4000 lbs
Assembly Break Strength: 1,200 lbs
Work Load Limit: 400 lbs
Ratchet Tie Down , Ratchet Straps ( America market)
**100% high tenacity polyester of lashing strap
**Low elongation
**Popular color of strap:orange,blue,yellow,red,black
**Width available:1"to 4"
**Breaking strength scope:1500Ibs-20000Ibs
Cautions
-Never use a lashing as a lifting sling.
-Never twist a webbing.
-Protect the webbing from sharp edges by suach as protective sleeves.
-Chemical active environments ca effect the strength of sling.
-Polyester is resistant to acids, but affetected by concentrared bases.
-Temperature range of -40 to +100
REMARKS:
*Part number :width-one or two pc-end fitting
*One pc means:endless,without end fitting
*Various end fitting available,see next page
Ratchet Lashings are used for tying down loads whilst transporting , shifting or moving them. They have replaced traditional jute ropes, chains and wires used for transportation and for a variety of other applications.
The main advantages of ratchet lashings are :
1. Load restraint using a tensioning device (ratchet)
2. Effective and safe control of loads whilst transportation
3. Extremely quick and efficient tie down and release of load thus saving time.
4. No damage to the load being tied down.
They are available in a large variety of configurations of different ratchets of various capacities and end fittings. Pictures shown here are only indicative and not exhaustive.
| ITEM | STRAP | END HARDWARE | Web Break Strength | Work Load Limit | Break Strength | |

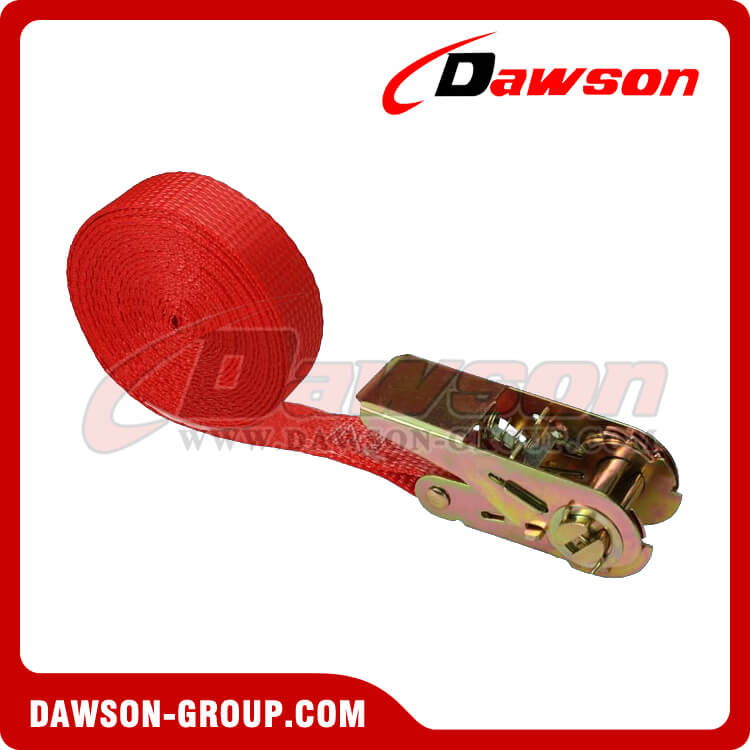

 | DG-US-ERS-113 | 1’’×13’ Endless Ratchet Strap | / | / | 500 lbs | 1,500lbs |

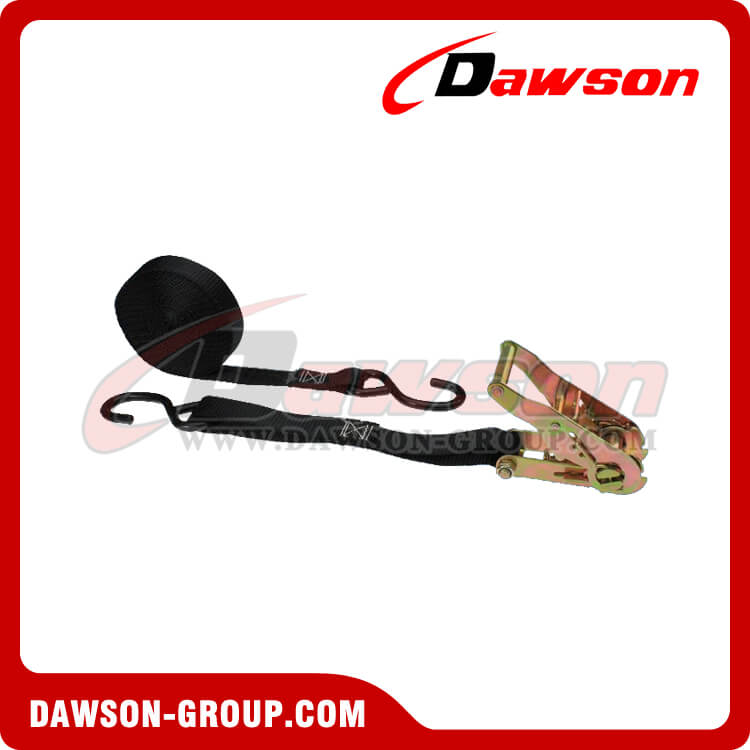

 | DG-US-RS-SHMRS110 | 1’’×10’ Ratchet Strap | S-Hooks Motorcycle Ratchet Strap | / | 833 Lbs | 2,500lbs |

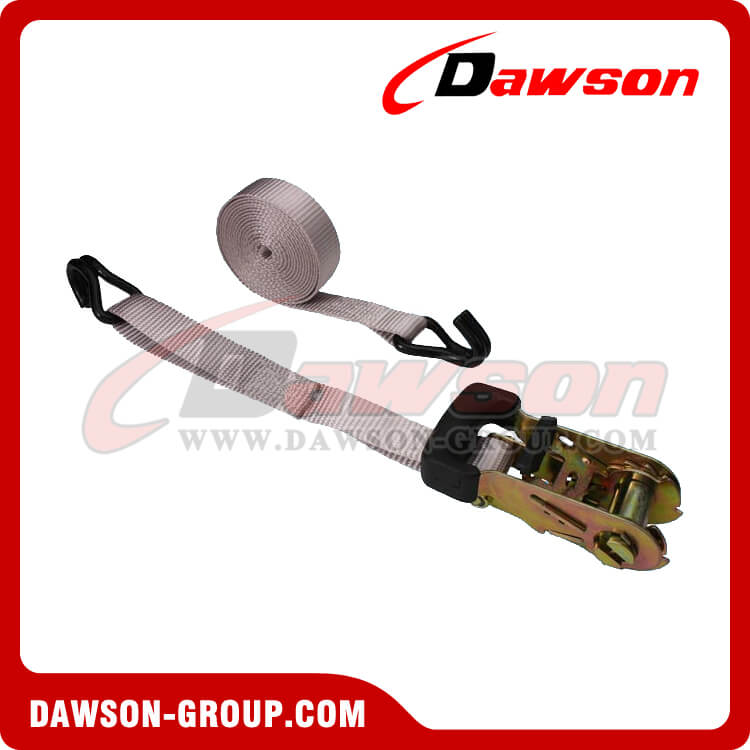

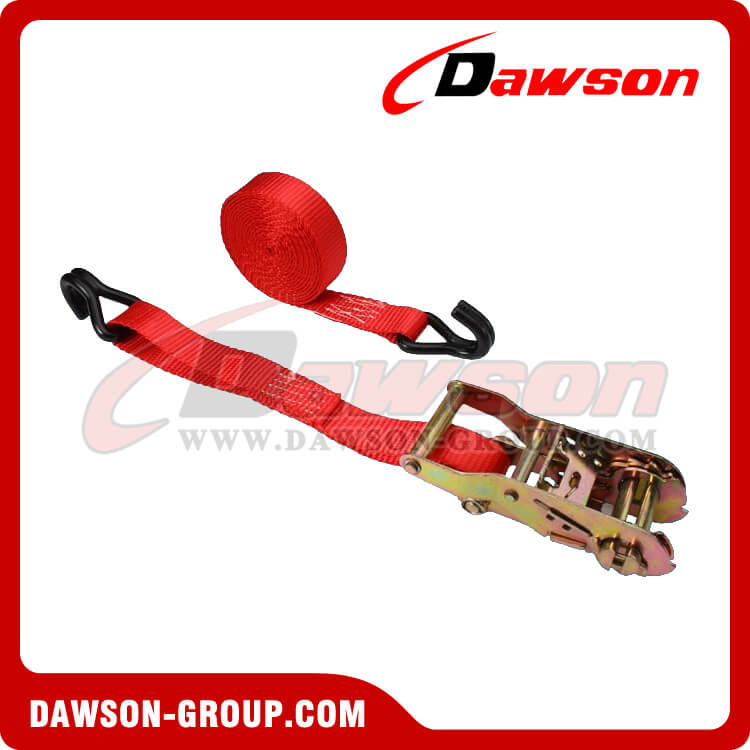

 | DG-US-RCRS-VCWH110 | 1’’×10’ Rubber Coated Ratchet Strap | Vinyl Coated Wire Hooks | 4,000 lbs | 1,000 lbs | 3,000lbs |
 | DG-US-RS-VCWH110 | 1’’×10’ Ratchet Strap | Vinyl Coated Wire Hooks | 4,000 lbs | 1,000 lbs | 3,000lbs |
 | DG-US-RS-SH110 | 1’’×10’ Ratchet Strap | S Hook | 4,000 lbs | 400 lbs | 1,200lbs |

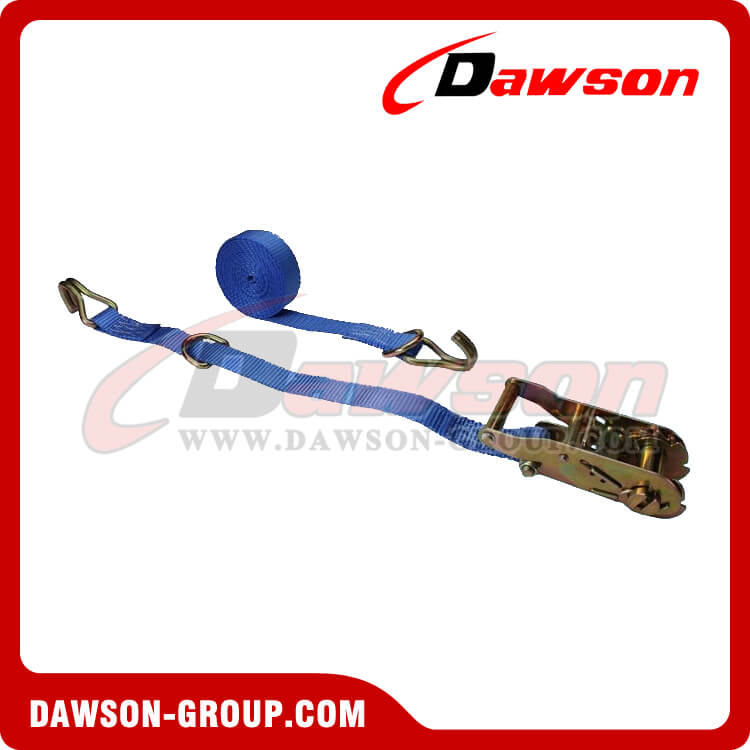

 | DG-US-RS-JHDR110 | 1’’×10’ Ratchet Strap | J-Hook D-Ring | / | 440 lbs | 1,320lbs |

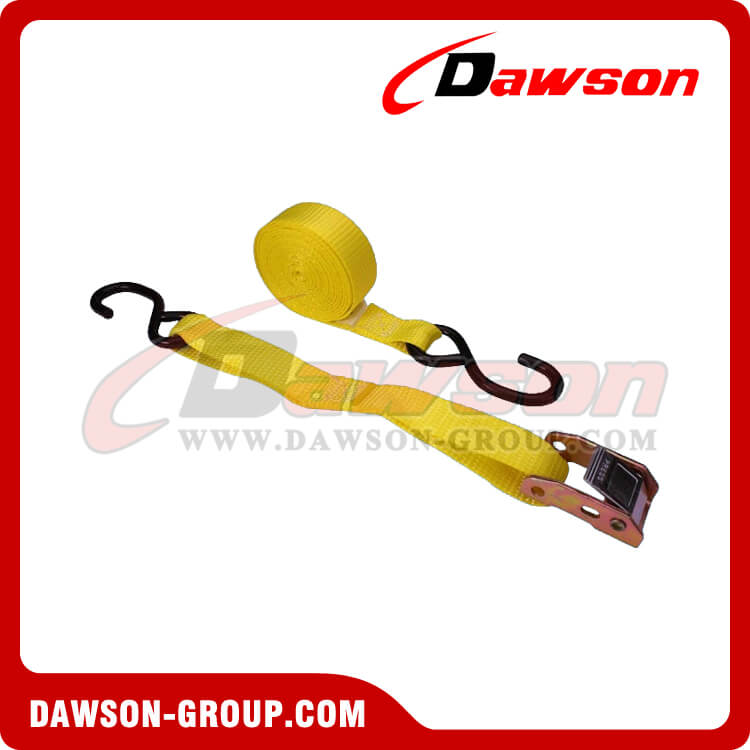

 | DG-US-CS-SH110 | 1’’×10’ Cam Strap | S Hook | / | 400 lbs | 1,200lbs |
Hot Tags: Ratchet Strap, Ratchet Tie Down Straps, 1 Inch China Tie Down Straps, 1"Ratcheting Straps, WLL 400LBS Ratchet Straps, China Webbing Lashing Strap Manufacturer, Cargo Truck Ratchet Tie Down, Replacement Lashing Belt Factory, Web Lashing Strap Supplier, Customized Tie Down Tightening Strap, High Quality Ratchet Belts, Replacement Strap with S Hooks, Polyester Ratchet Tiedown Strap, Wholesale Ratchet Strap, Competitive Price Cargo Lashing Belts, Truck Tie Down In Bulk, Ratchet Tie Down Lashing Belts, Buy Discount Lashing Tiedown Strap
Other related products:

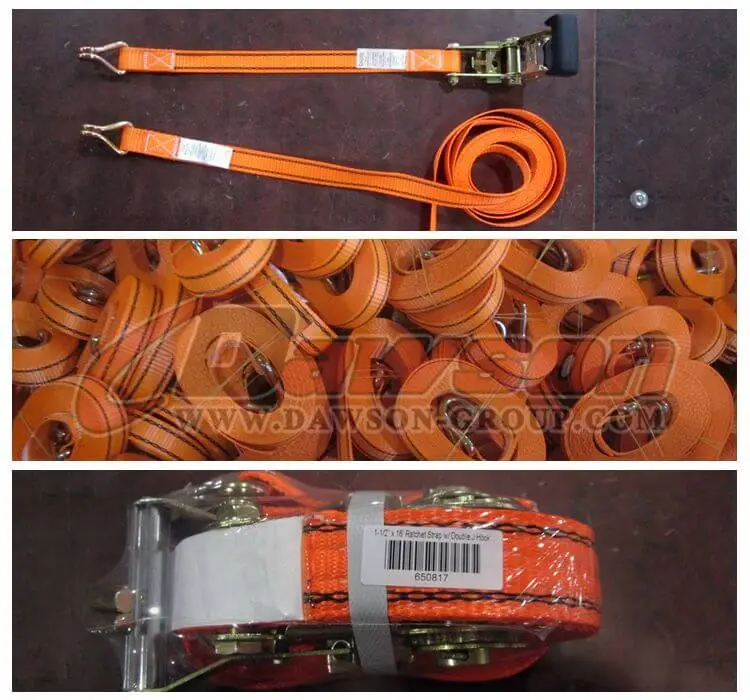

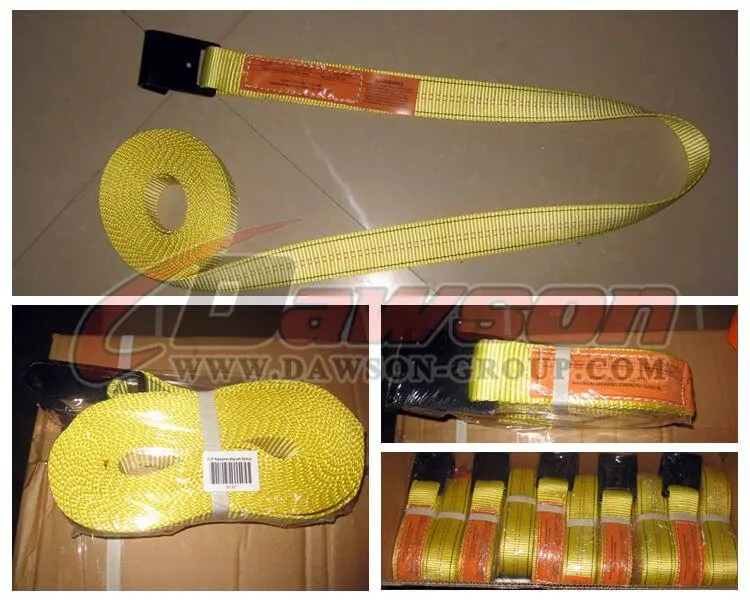

Factory&Package Show:
