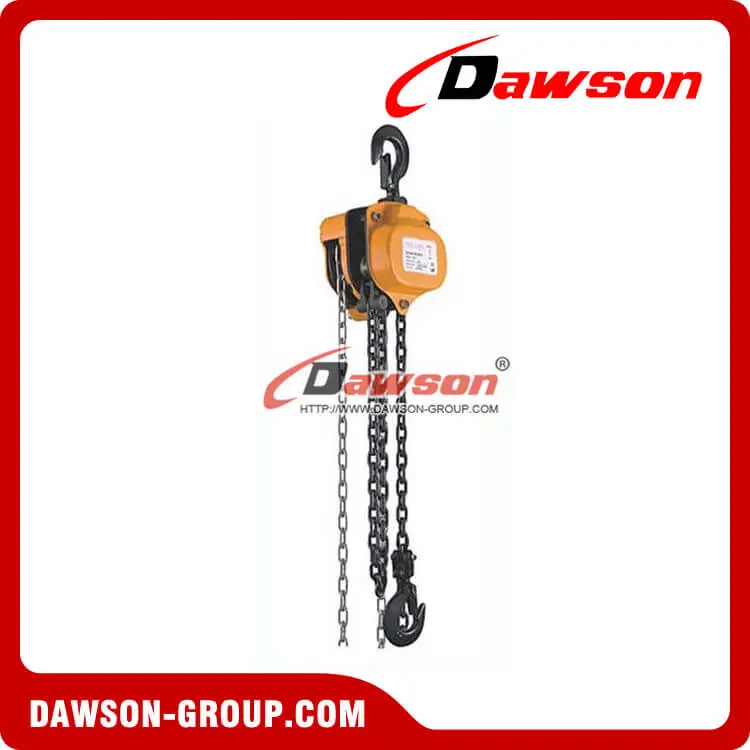

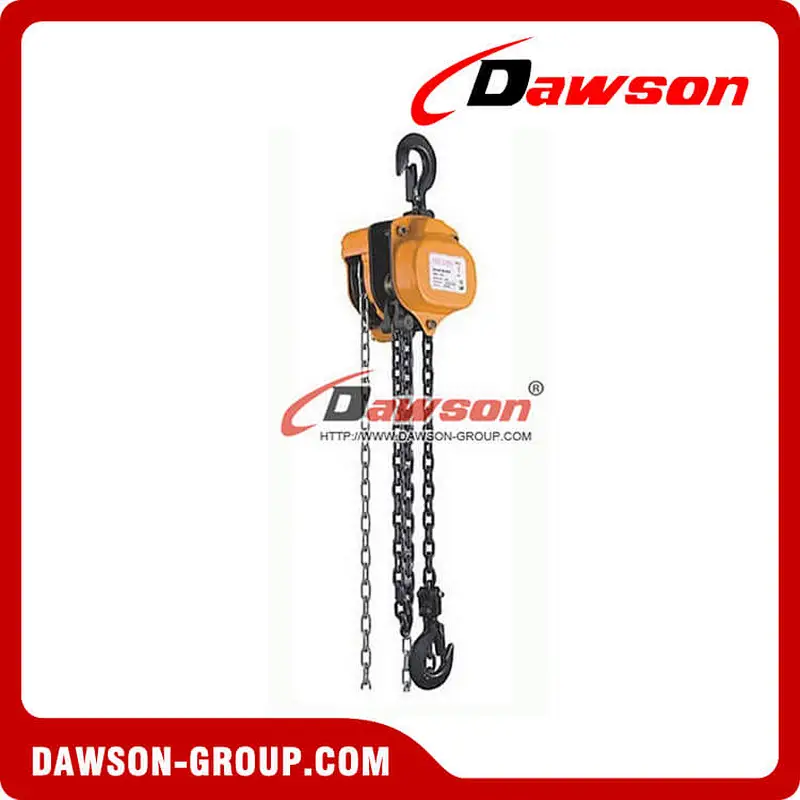

0.5T 1T 1.5T 2T 3T 5T 7.5T 10T 20T Manual Chain Block Chain Hoist for Installing of Machinery DSCB-A
500kg 1000kg 1500kg 2000kg 3000kg 5000kg 7500kg 10000kg 20000kg Hand Chain Hoist, Heavy Duty Chain Block for Lifting
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
DSCB-A: DSCB-A series chain block is of modern design, featured by a very sturdy construction and safe operation, in combination with compactness and a low operating force.
Technical Parameter of DSCB-A
| Model | DSCB-A | ||||||||
| Capacity (ton) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 | |
| Standard lifting height (m) | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | |
| Running Test Load (ton) | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 6.25 | 12.5 | 25 | |
| Headroon H (mm) | 271 | 400 | 453 | 420 | 620 | 704 | 720 | 1000 | |
| Effort to required to lifi max.load (N) | 221 | 304 | 343 | 314 | 343 | 382 | 392 | 392 | |
| No.of colums of load chain | 1 | 1 | 1 | 2 | 2 | 2 | 4 | 8 | |
| Load Chain Dia.(mm) | 6 | 6 | 8 | 6 | 8 | 10 | 10 | 10 | |

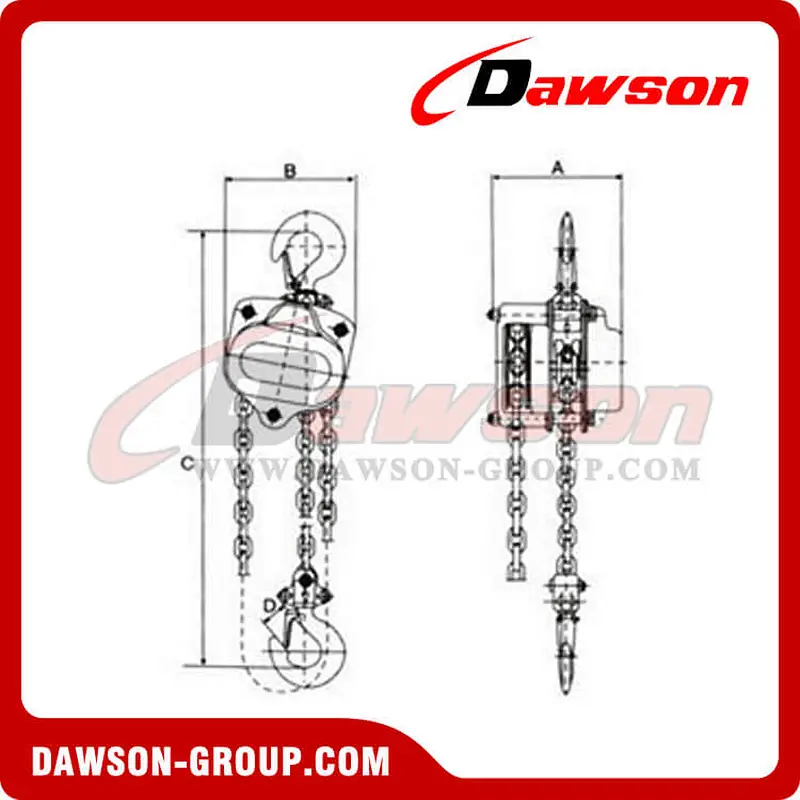

| Dimension (mm) | A | 138 | 164 | 198 | 164 | 195 | 228 | 367 | 598 |
| B | 114 | 124 | 142 | 124 | 142 | 167 | 167 | 200 | |
| C | 21.5 | 27 | 30 | 30 | 37 | 46 | 54 | 65 | |
| D | 145 | 182 | 219 | 182 | 213 | 252 | 252 | 252 | |
| Net Weight (kg) | 9 | 11 | 17 | 15 | 24 | 39 | 72 | 160 | |
| Paching Measurements (lxwxh) (mm) | 28×21×17 | 30×24×18 | 34×29×21 | 33×28×19 | 38×33×20 | 45×39×24 | 55×51×29 | 70×46×75 | |
| Extra Weight per meter of extre lift (kg) | 1.7 | 1.7 | 2.3 | 2.5 | 3.7 | 5.3 | 9.7 | 19.4 | |
Chain Hoist is widely used manual hoisting machinery which is easy to use and carry. It can be used in factory, mine, agriculture, electricity, construction site, wharf and dock. And it can also be used in installing of machinery, lifting, loading and unloading in the ware house, especially suitable to be used in the open air and the place without power source.
Welcome to buy the newest and competitive price DAWSON Chain Block DSCB-A from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
For further information, please contact us. Email:info@dawson-group.com
Hot Tags: bulk 20t chain hoist, low price 20000kg lifting chain block, high quality 10ton chain hoist, wholesale 10000kg manual chain block, buy discount 7.5t heavy duty chain blocks, hot sale 7500kg lifting chain hoist for sale, customized 5000kg lifting chain block, cheap price 5ton manual chain hoist, lifting tools 3t China supplier, lifting equipment chain hoist China manufacturer, chain hoist for lifting 3000kg China factory, lifting hoist 3t China exporter, hand chain hoist 2000kg in stock, chain hoist 2ton free sample, hand hoist 1500kg dawson brands, 1.5t manual chain hoist OEM
Other related products:

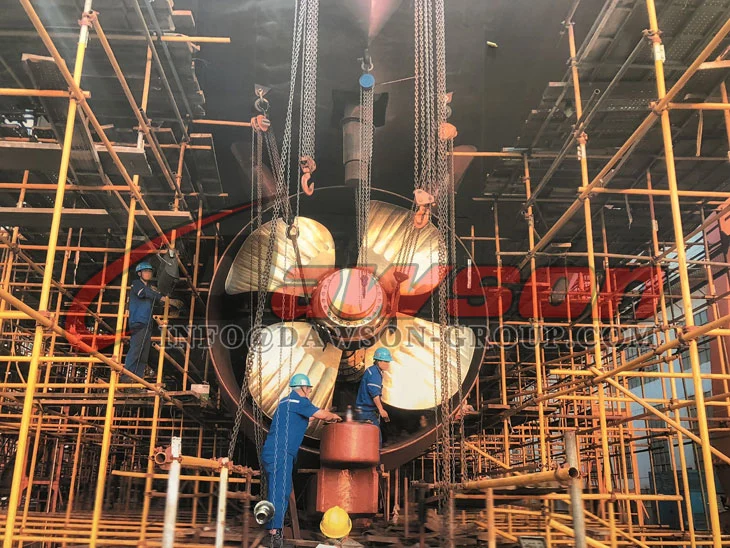

Application of Chain Hoist:

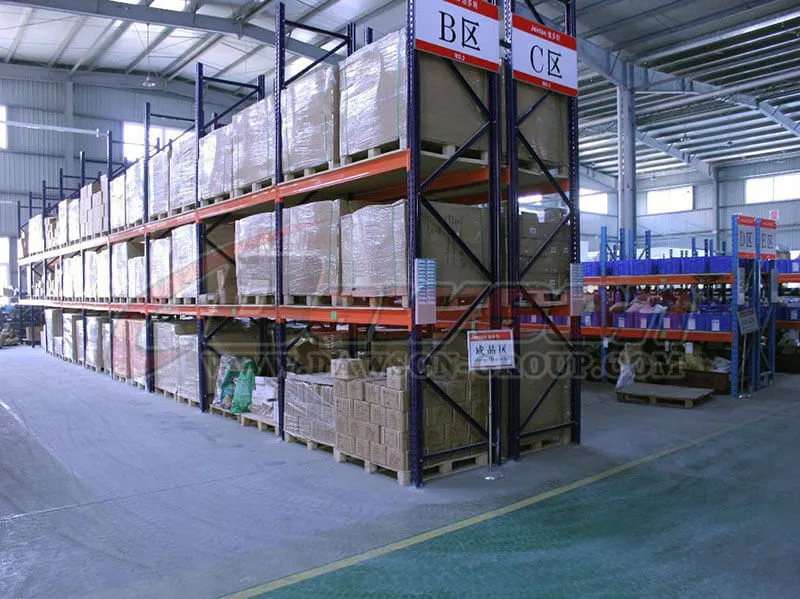

Factory and Package:
