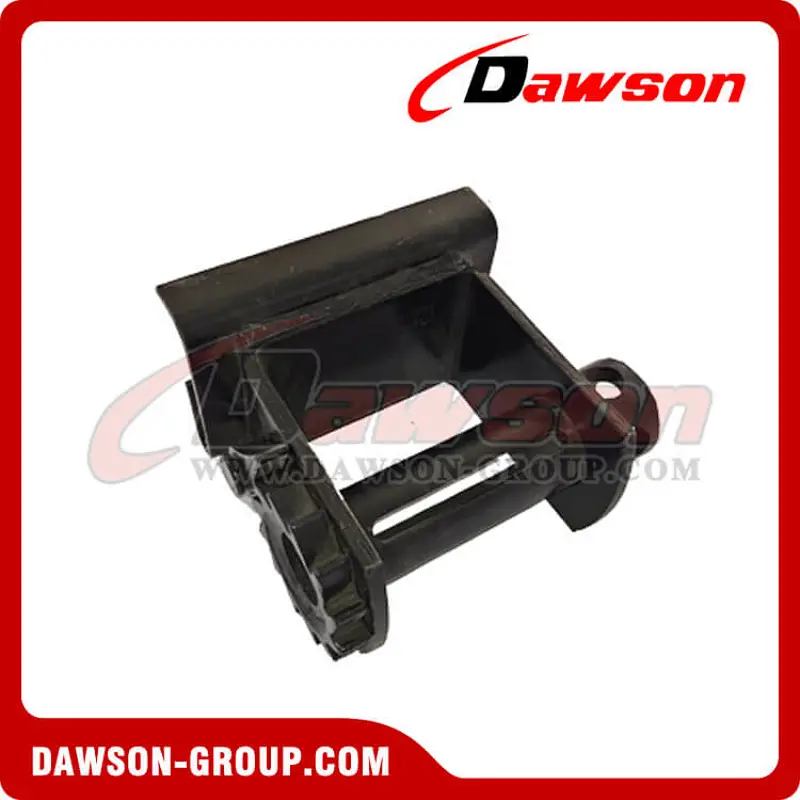

Utility Winch - Weld on or Sliding - Flatbed Truck Winches for Cargo Lashing Straps
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

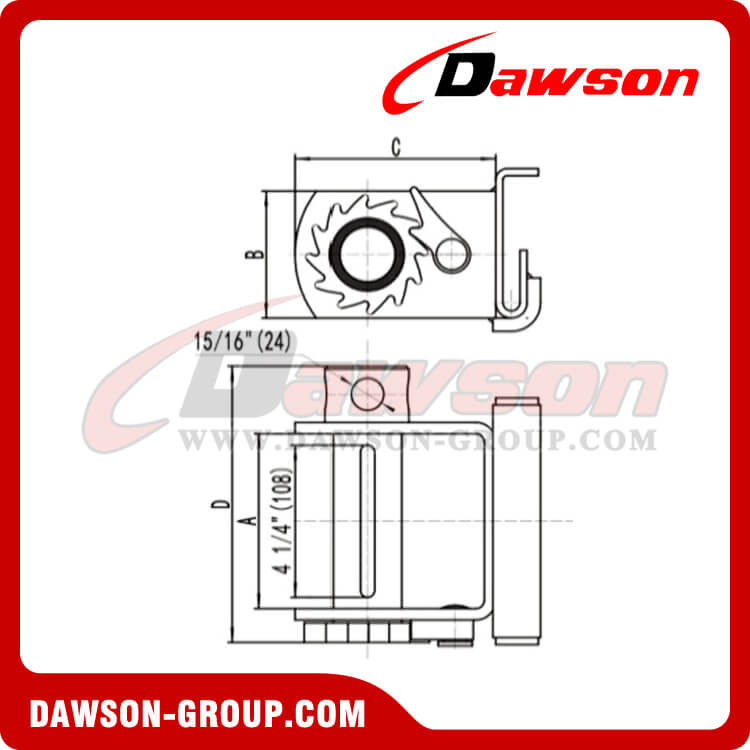

| Item | Description | P/N | A | B | C | D | Net Weight | Pallet specification | MOQ (PC) | ||||||
| mm | in. | mm | in. | mm | in. | mm | in. | KG | LBS | L x W x H(mm) | GW (KG) | ||||
| Utility winch | Weld on or Sliding,Bracket Height 140mm, Plate Thickness 8mm | DSTW10 | 124 | 4.84 | 90 | 3.51 | 140 | 5.46 | 196 | 7.64 | 5.52 | 12.14 | 19x108108 | 1134 | 200 |
Note: All weights & pallet specifications provided in this catalog are approximate only,load capacity of Australia winch is 6600lbs.
Flatbed Truck WINCHES
1、Winches are marked with working load capacity 5500 lbs.
2、Breaking strength is 16500 lbs.
3、Web slots are finished with elector deposited paint.
4、Surfaces are finished with electro deposited paint.
5、Packing requirement:Steel Pallet with Carton.
6、Comply with DOT and California CHP regulation as well WSTDA-T3 and Canadian Standard 905.
Certificate:
Factory & Package Show:
