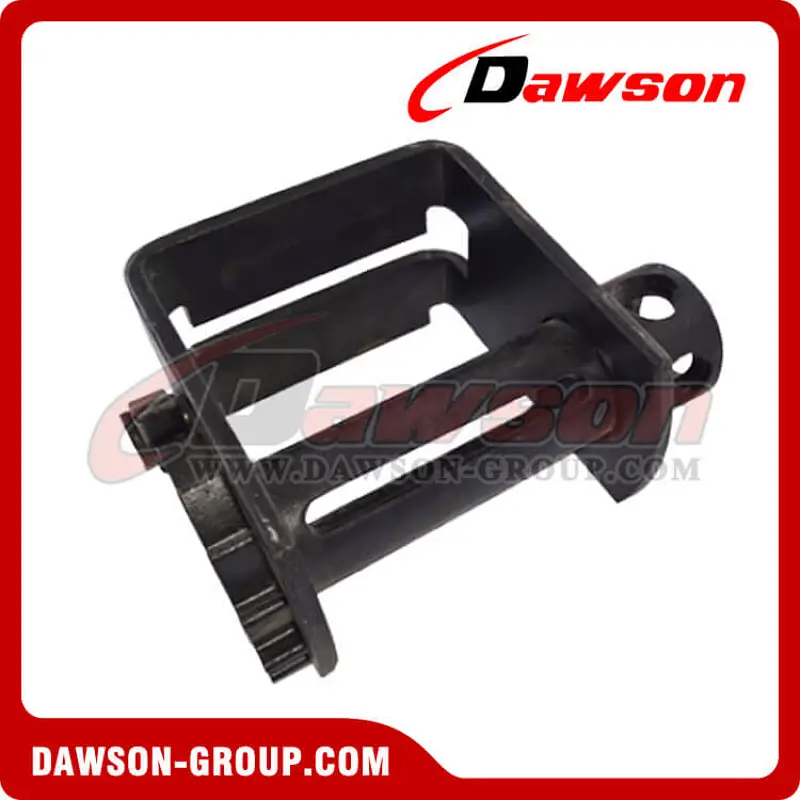

Double L Sliding Winch - Flatbed Truck Winches for Cargo Lashing Straps
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

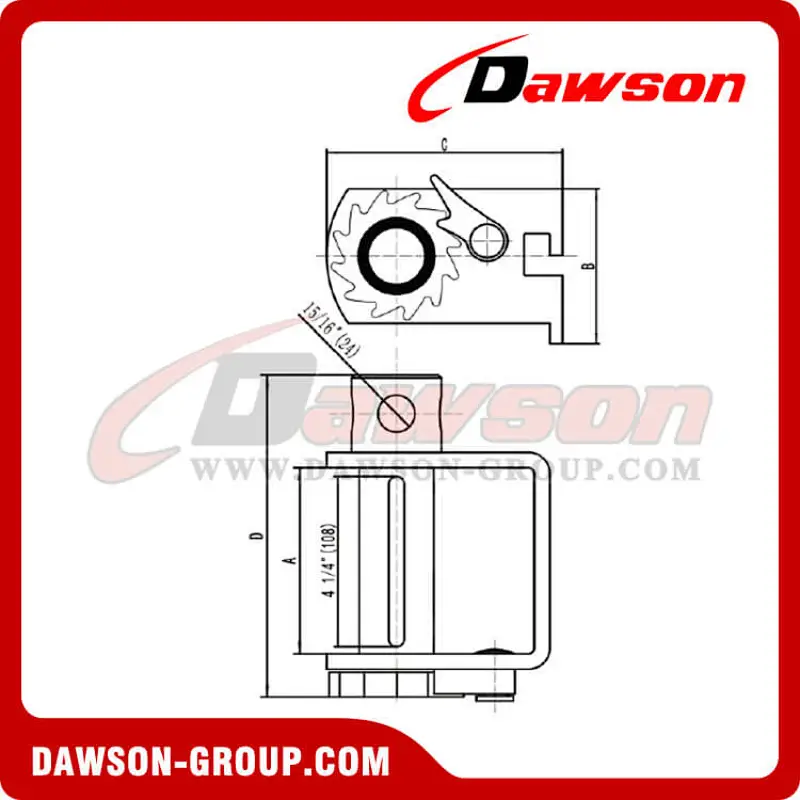

| Item | Description | P/N | A | B | C | D | Net Weight | Pallet specification | MOQ (PC) | ||||||
| mm | in. | mm | in. | mm | in. | mm | in. | KG | LBS | L x W x H(mm) | GW (KG) | ||||
| Double L Sliding Winch | Bracket Height 149mm, Plate Thickness 8mm | DSTW4 | 124 | 4.84 | 100 | 3.90 | 149 | 5.81 | 196 | 7.64 | 3.36 | 7.40 | 108x108x98 | 876 | 250 |
| Bracket Height 168mm, Plate Thickness 8mm | DSTW4S | 124 | 4.84 | 100 | 3.90 | 168 | 6.55 | 196 | 7.64 | 3.70 | 8.14 | 108x108x108 | 960 | ||
| Bracket Height 120mm, Plate Thickness 8mm | DSTW4LC | 124 | 4.84 | 110 | 3.90 | 120 | 4.68 | 196 | 7.64 | 3.58 | 7.88 | 108x108c83 | 930 | ||
Note: All weights & pallet specifications provided in this catalog are approximate only.
Flatbed Truck WINCHES
1、Winches are marked with working load capacity 5500 lbs.
2、Breaking strength is 16500 lbs.
3、Web slots are finished with elector deposited paint.
4、Surfaces are finished with electro deposited paint.
5、Packing requirement:Steel Pallet with Carton.
6、Comply with DOT and California CHP regulation as well WSTDA-T3 and Canadian Standard 905.

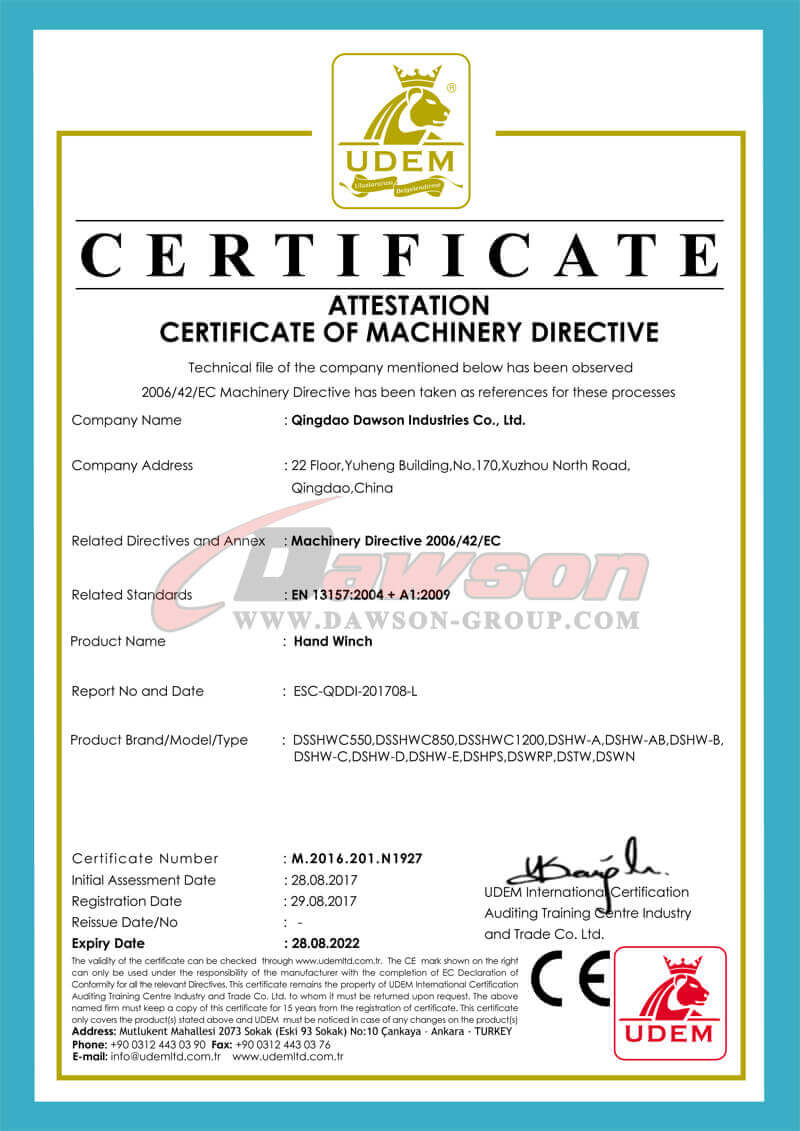

Certificate:
Factory & Package Show:
