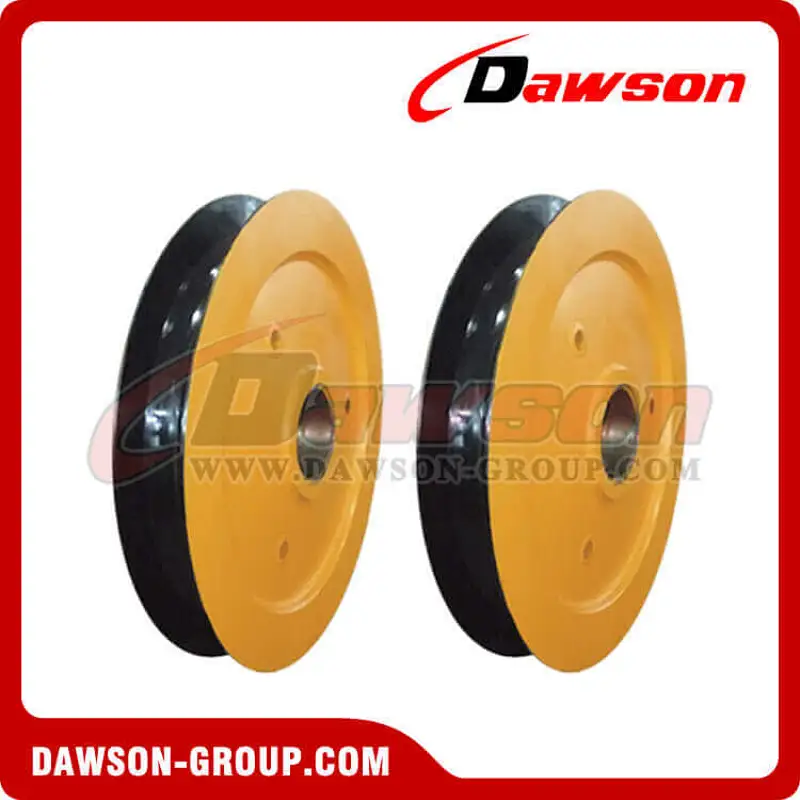

Ring Forging Double Plate Wide Groove Pulley
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
| Item No | Diameter(mm) | Dimensions (mm) | Bearing | Weight(kg) | ||||||||
| D | D1 | R | b | w | f | D2 | D3 | B | ||||
| DS-1321P | 10-14 | 450 | 495 | 7 | 37 | 28 | 8 | 55 | 63 | 64 | 221 | 21 |
| DS-1322P | 60 | 69 | 66 | 212 | 21 | |||||||
| DS-1323P | 65 | 75 | 68 | 213 | 22 | |||||||
| DS-1324P | 70 | 80 | 70 | 214 | 22 | |||||||
| DS-2321P | >14-19 | 560 | 620 | 10 | 50 | 38 | 8 | 80 | 90 | 74 | 216 | 36 |
| DS-2322P | 85 | 96 | 78 | 217 | 39 | |||||||
| DS-2323P | 90 | 102 | 82 | 218 | 40 | |||||||
| DS-2324P | 95 | 108 | 86 | 219 | 43 | |||||||
| DS-3321P | >19-23.5 | 710 | 781 | 12 | 60 | 46 | 10 | 95 | 108 | 90 | 219 | 66 |
| DS-3322P | 100 | 113 | 94 | 220 | 67 | |||||||
| DS-3323P | 110 | 124 | 102 | 222 | 70 | |||||||
| DS-3324P | 120 | 135 | 106 | 224 | 73 | |||||||
| DS-4321P | >23.5-30 | 900 | 990 | 15 | 73 | 57 | 10 | 130 | 146 | 106 | 226 | 123 |
| DS-4322P | 140 | 158 | 110 | 228 | 126 | |||||||
| DS-4323P | 150 | 170 | 116 | 230 | 130 | |||||||
| DS-4324P | 160 | 180 | 122 | 232 | 134 | |||||||
| DS-5321P | >30-37 | 1120 | 1232 | 19 | 92 | 72 | 12 | 160 | 188 | 128 | 42232 | 209 |
| DS-5322P | 170 | 202 | 136 | 42234 | 215 | |||||||
| DS-5323P | 180 | 212 | 136 | 42236 | 215 | |||||||
| DS-5324P | 190 | 225 | 142 | 42238 | 219 | |||||||
| DS-6321P | >37-43 | 1250 | 1376 | 22 | 104 | 82 | 12 | 160 | 188 | 128 | 42232 | 277 |
| DS-6322P | 170 | 202 | 136 | 42234 | 283 | |||||||
| DS-6323P | 180 | 212 | 136 | 42236 | 283 | |||||||
| DS-6324P | 190 | 228 | 142 | 42238 | 285 | |||||||
| DS-7321P | >43-50 | 1600 | 1752 | 26 | 123 | 98 | 14 | 190 | 225 | 148 | 42238 | 531 |
| DS-7322P | 200 | 235 | 154 | 42240 | 535 | |||||||
| DS-7323P | 220 | 260 | 168 | 42244 | 568 | |||||||
| DS-7324P | 240 | 278 | 182 | 42248 | 554 | |||||||
| DS-8231P | >50-58 | 1800 | 1972 | 29 | 135 | 110 | 14 | 190 | 225 | 148 | 42238 | 700 |
| DS-8232P | 200 | 235 | 154 | 42240 | 705 | |||||||
| DS-8233P | 220 | 260 | 168 | 42244 | 739 | |||||||
| DS-8234P | 240 | 278 | 182 | 42248 | 730 | |||||||
Welcome to buy the newest and competitive price DAWSON Ring Forging Double Plate Wide Groove Pulley from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
For further information, please contact us. Email:info@dawson-group.com
