Recessed Winch - Combination - Flatbed Truck Winches for Cargo Lashing Straps
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

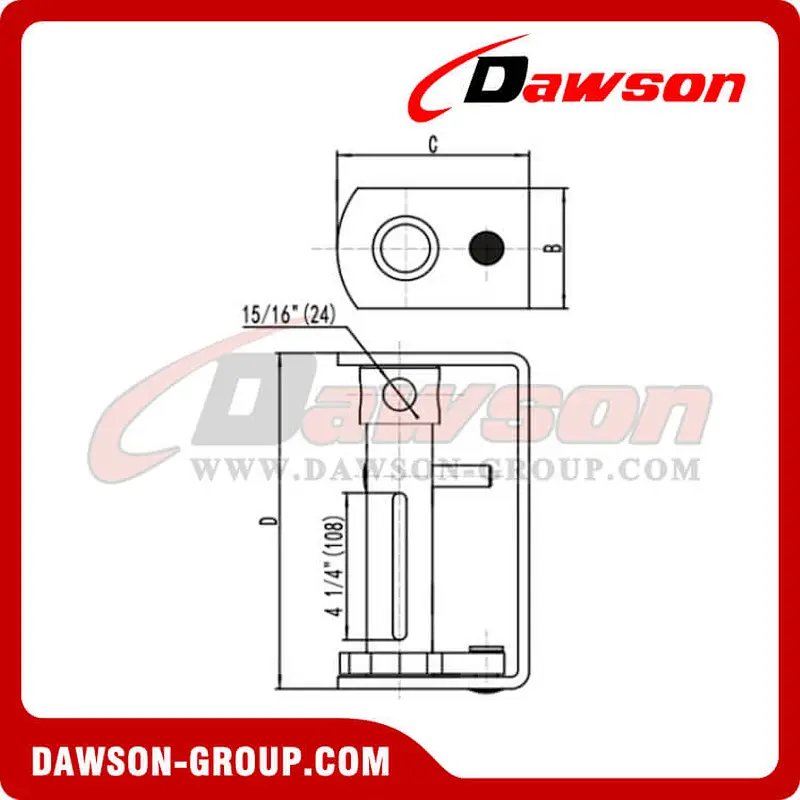

| Item | Description | P/N | A | B | C | D | Net Weight | Pallet specification | MOQ (PC) | ||||||
| mm | in. | mm | in. | mm | in. | mm | in. | KG | LBS | L x W x H(mm) | GW (KG) | ||||
| Recessed Winch | Combination,Bracket Height 140mm, Plate Thickness 9mm | DSTW7C | N/A | N/A | 90 | 3.51 | 140 | 5.46 | 251 | 9.79 | 5.56 | 12.23 | X94X107X93 | 1142 | 200 |
Note: All weights & pallet specifications provided in this catalog are approximate only,breaking strength of lashing winch is 11000lbs.
Flatbed Truck WINCHES
1、Winches are marked with working load capacity 5500 lbs.
2、Breaking strength is 16500 lbs.
3、Web slots are finished with elector deposited paint.
4、Surfaces are finished with electro deposited paint.
5、Packing requirement:Steel Pallet with Carton.
6、Comply with DOT and California CHP regulation as well WSTDA-T3 and Canadian Standard 905.

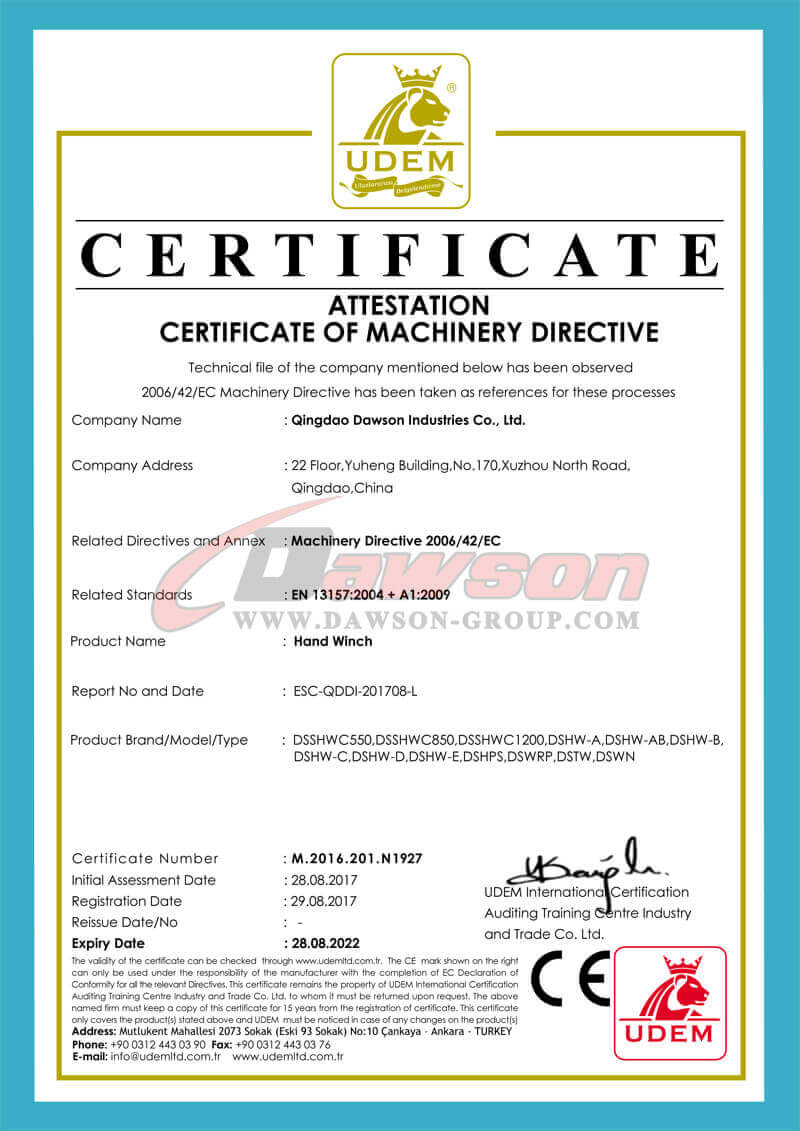

Certificate:
Factory & Package Show:
