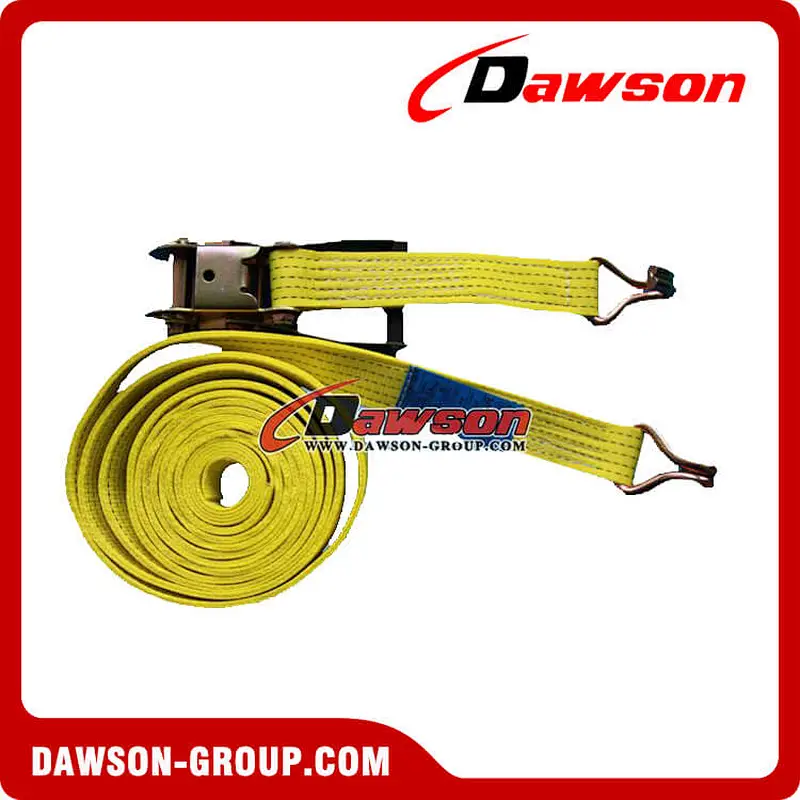

High Tenacity Polyester Double Ply Ratchet Straps
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

RATCHET TIE DOWN, RATCHET LASHING, RATCHET STRAPS, CARGO LASHING  (to EN 12195-2)

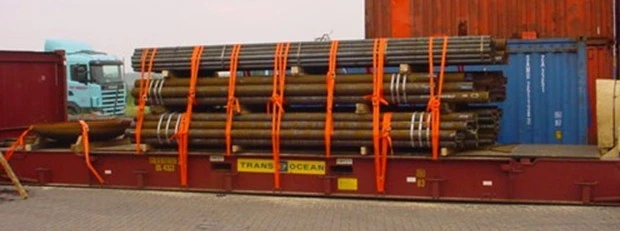

Ratchet Lashings are used for tying down loads whilst transporting , shifting or moving them. They have replaced traditional jute ropes, chains and wires used for transportation and for a variety of other applications.


The main advantages of ratchet lashings are :

1. Load restraint using a tensioning device (ratchet)

2. Effective and safe control of loads whilst transportation

3. Extremely quick and efficient tie down and release of load thus saving time.

4. No damage to the load being tied down.

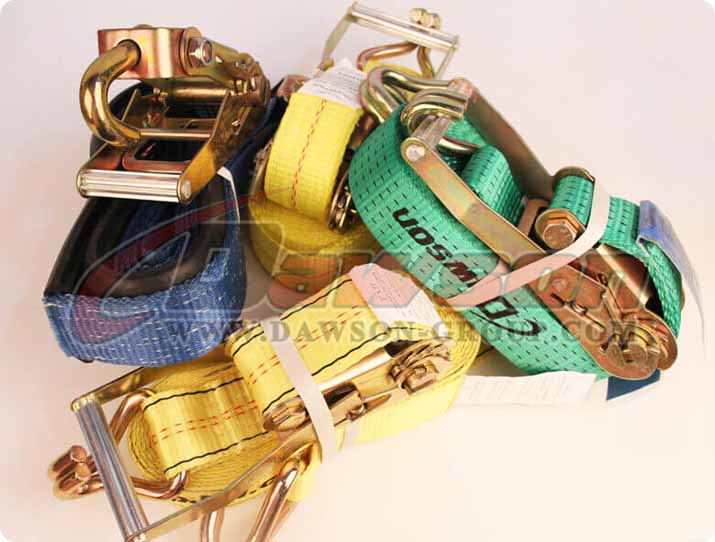

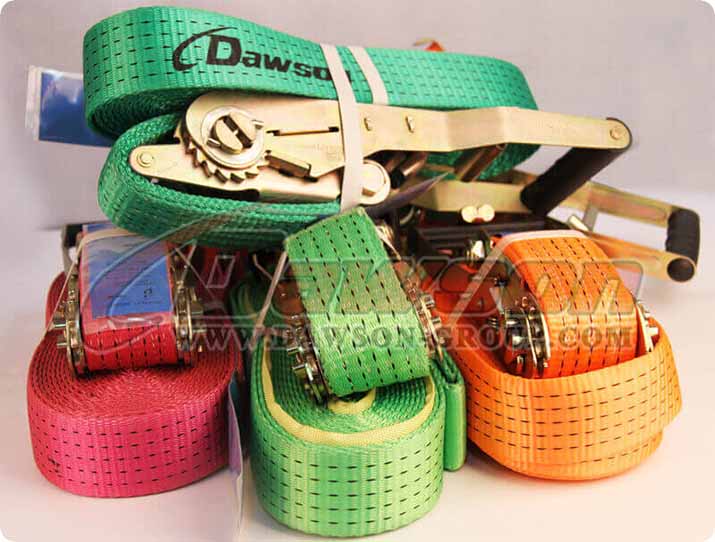

They are available in a large variety of configurations of different ratchets of various capacities and end fittings. Pictures shown here are only indicative and not exhaustive.

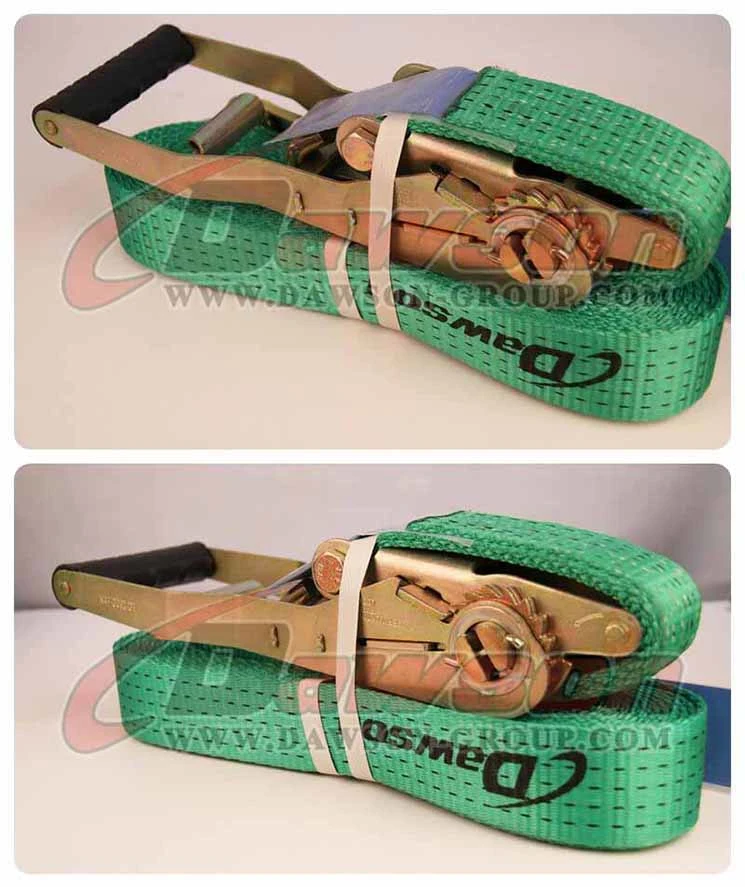

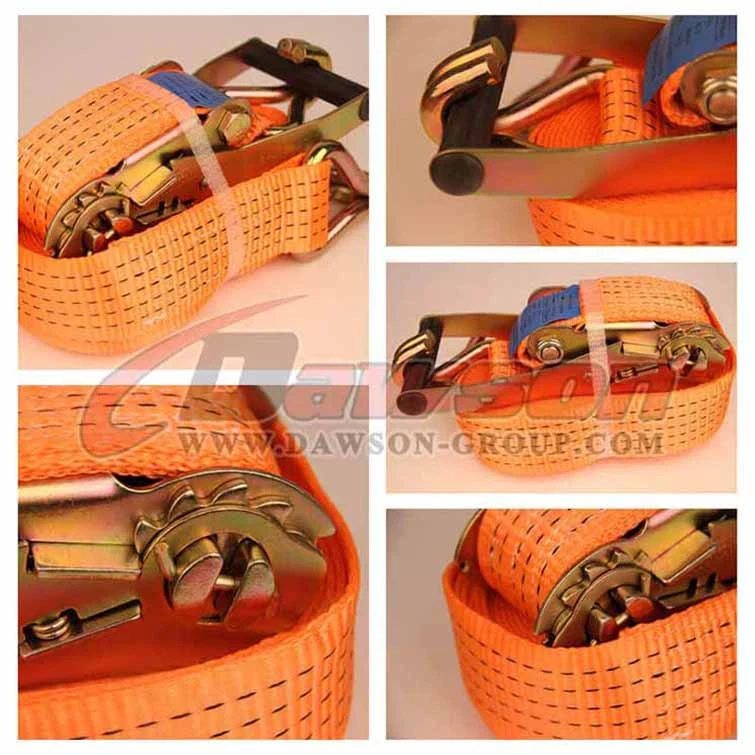

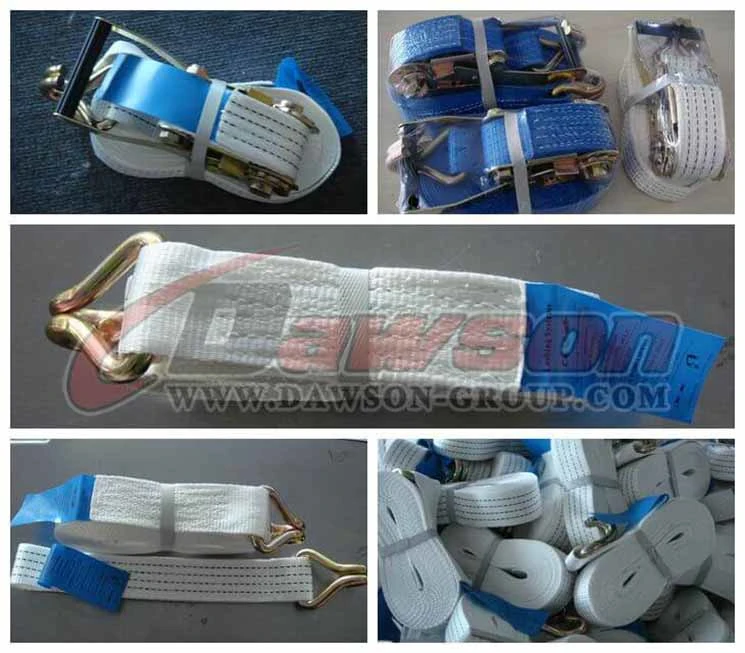

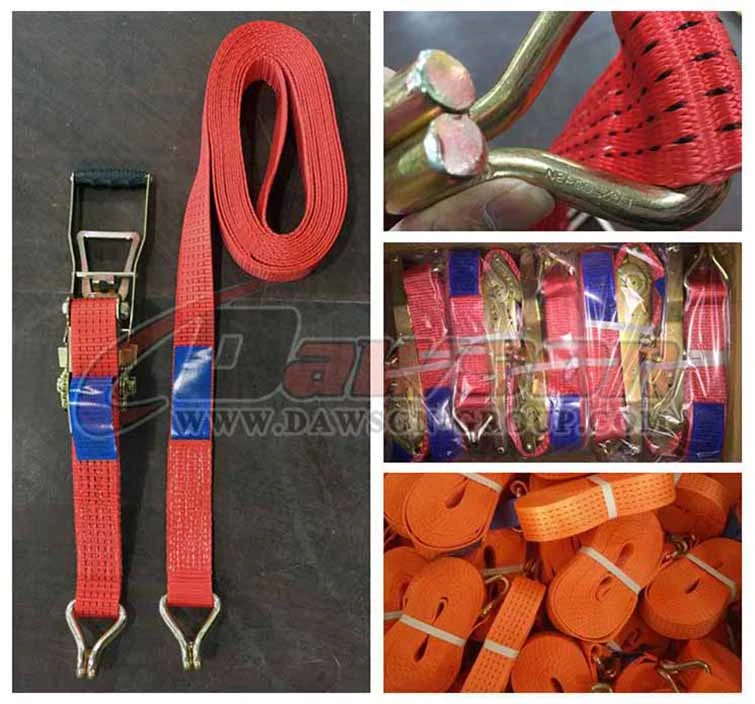

Ratchet Tie Down, Ratchet Straps (European market)

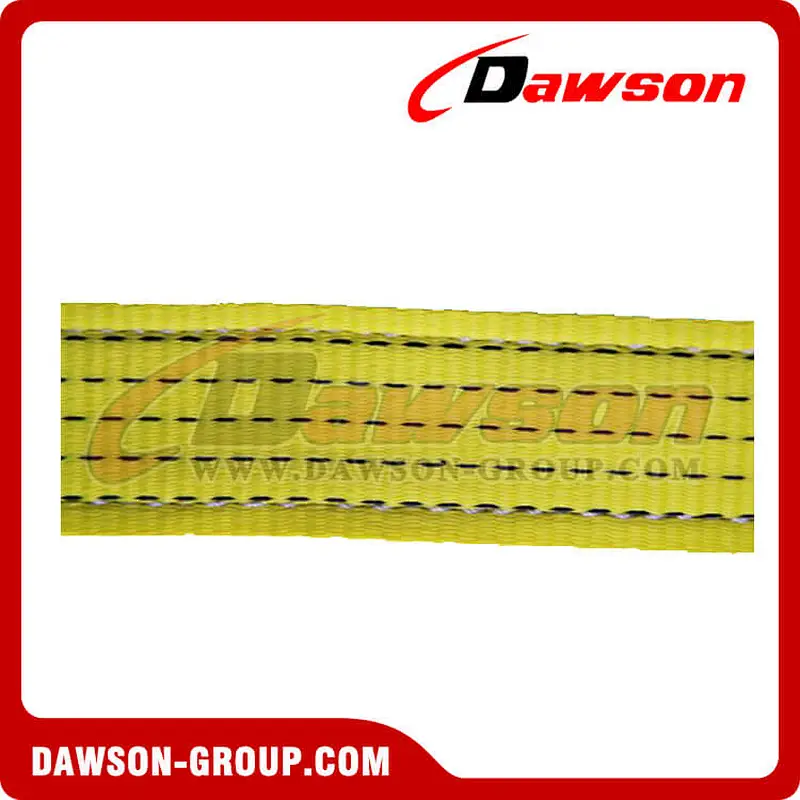

**100% high tenacity polyester of lashing strap

**Low elongation

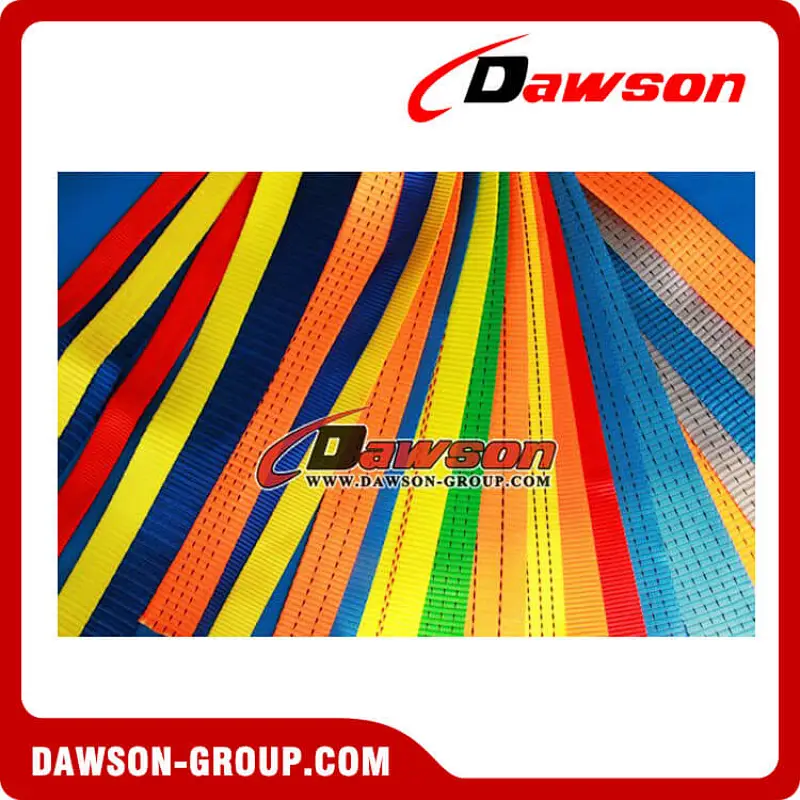

**Popular color of strap:orange,blue,yellow,red,black

**Width available:25mm to 100mm

**Breaking strength scope:0.5t to 10t

**Length available:1m to 10m

**According to EN 12195/2

Warning:

1.Only use undamaged ratchet lashing, the label indicating the capacity must be clearly legible.

2. Ratchet lashings must not be overload.

3. Do not tie knots in the webbing.

4.Protect the webbing against abrasion and/or cutting by using edge protectors and sleeves for sharp edges.

5.Avoid twisted positioning of the ratchet lashing.

6.Do not place loads on the ratchet lashing, which could cause damage.

7. Ratchet lashings should not be used as a load lifting gear.

	ITEM	STANDARD LENGTH	END FITTINGS	M.B.S.
	DSRTD5040DJ	0.5 + 7.5M	Double J Hook	4,000KG
	DSRTD5050DJ			5,000KG
	DSRTD5040TS	0.5 + 7.5M	Twisted  Snap Hook	4,000KG
	DSRTD5050TS			5,000KG
	DSRTD5040FS	0.5 + 7.5M	Flat  Snap Hook	4,000KG
	DSRTD5050FS			5,000KG
	DSRTD5040JK	0.5 + 7.5M	Double J Hook With Keeper	4,000KG
	DSRTD5050JK			5,000KG
	DSRTD5040SJ	0.5 + 7.5M	Single J Hook	4,000KG
	DSRTD5050SJ			5,000KG
	DSRTD5040FT	0.5 + 7.5M	Forged Hook With Triangle	4,000KG
	DSRTD5050FT			5,000KG
	DSRTD5040DJ	0.5 + 7.5M	Hook & Keeper	4,000KG
	DSRTD5050DJ			5,000KG
	DSRTD5040TG	0.5 + 7.5M	Triangle	4,000KG
	DSRTD5050TG			5,000KG
	DSRTD5040CK	0.5 + 7.5M	Claw Hook	4,000KG
	DSRTD5050CK			5,000KG

Hot Tags: Double Ply Ratchet Straps, 25MM Ratchet Lashing, 35MM Lashing Strap, 50MM Webbing Tiedown, 75MM Ratchet Lashing Straps, 100MM Tie Down Lashing, 4000KG Ratchet Strap, 4T Cargo Lashing, 4TON Lashing Strap, 5000KG Web Lashing System, 5T Webbing Tiedown, 5TON Truck Ratchet Strap, China Cargo Lashing Strap Manufacturer, Hot Sale Truck Cargo Tie Downs, Polyester Lashing Tiedowns, High Tenacity Truck Straps, Wholesale Ratchet Lashing Straps, Double Ply Lashing Strap Factory, Competitive Price Truck Straps, Customized Tie Down Ratcheting Cargo, Tie Down Ratchet Straps In Bulk

Other related products:

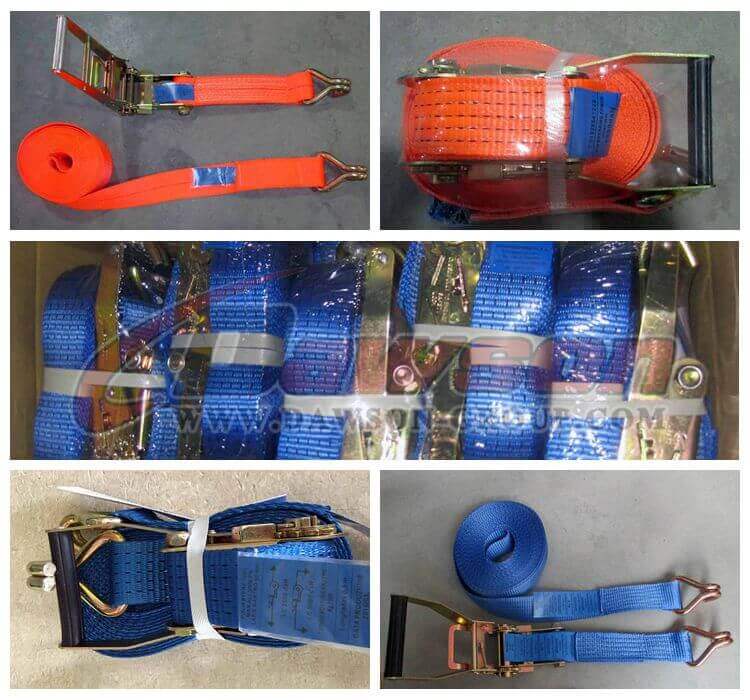

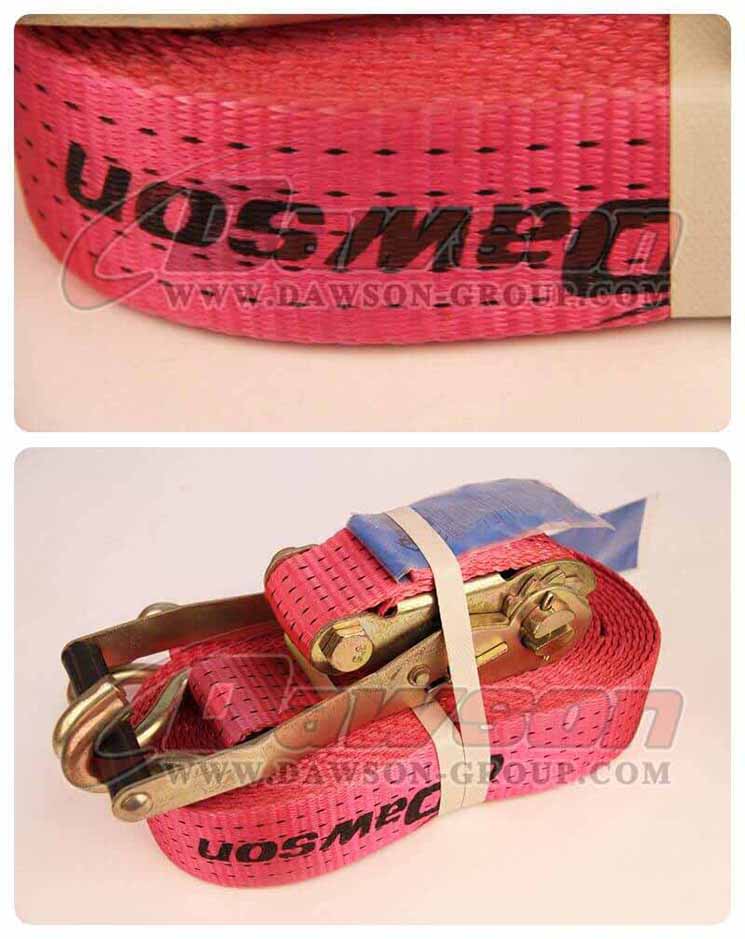

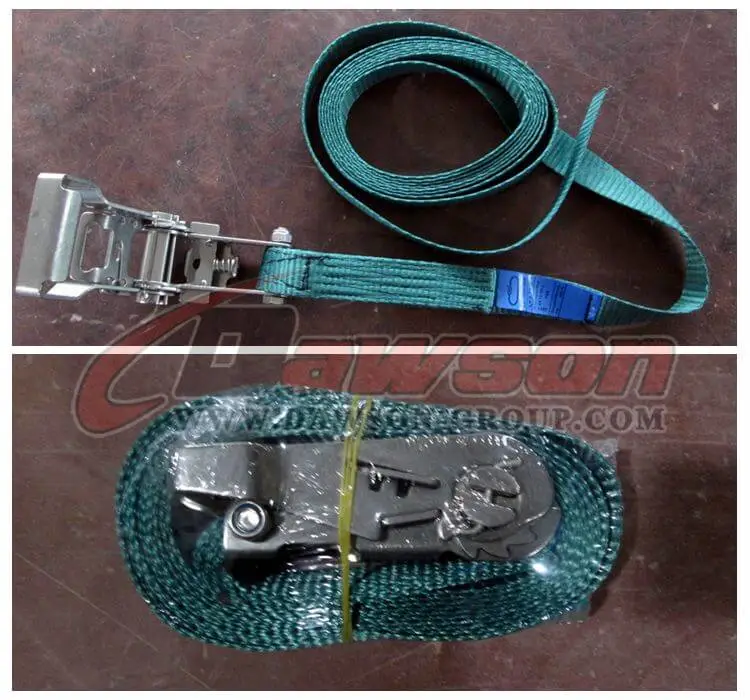

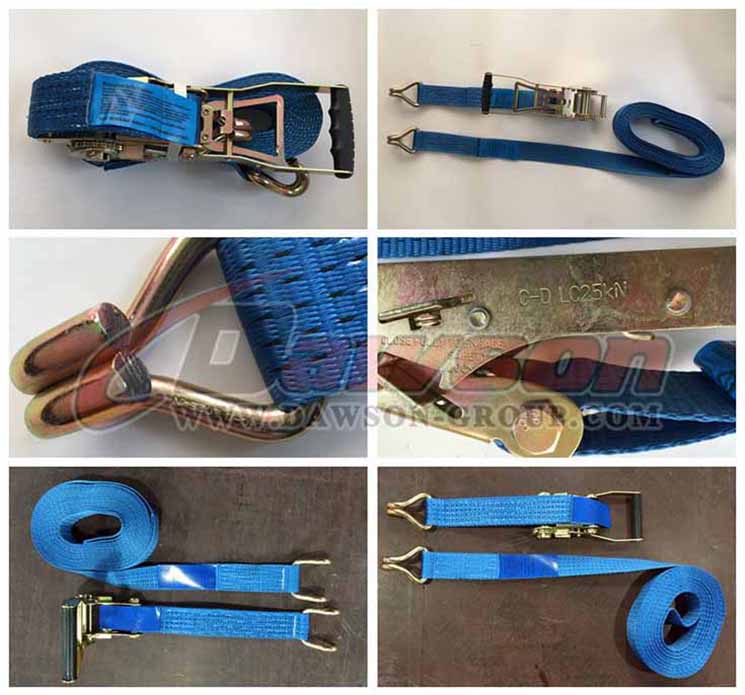

Factory & Package Show:
