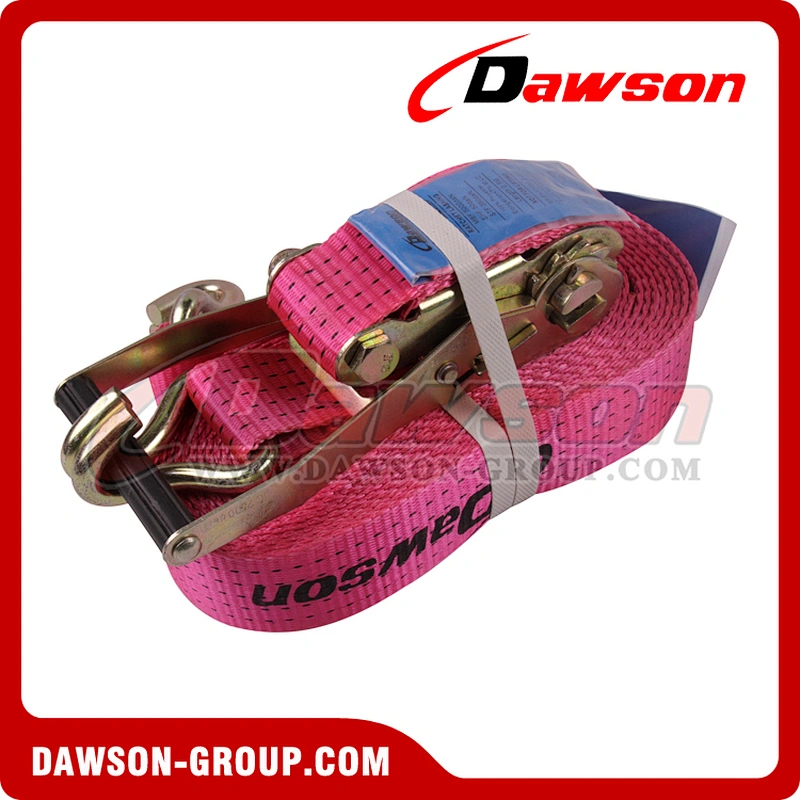

EN12195-2 Polyester Ratchet Tie Down
EN12195-2 Polyester Ratchet Tie Down

EN12195-2 Polyester Ratchet Tie Down

Model NO.
DSRTD2505SK
Quantity:

EN12195-2 Polyester Ratchet Tie Down, Ratchet Strap, Tie Down Lashing, Cargo Lashing
- China Manufacturer, Supplier, Factory

Ratchet Tie Down Rathet Straps EN12195-2 2001 Lashing Belt - China Manufacturer Supplier


RATCHET TIE DOWN, RATCHET LASHING, RATCHET STRAPS, CARGO LASHING  (to EN 12195-2)

Ratchet Lashings are used for tying down loads whilst transporting , shifting or moving them. They have replaced traditional jute ropes, chains and wires used for transportation and for a variety of other applications.


25MM/500KG RATCHET TIE DOWN

25mm 500kg SKITEMSTANDARD LENGTHEND FITTINGSLCM.B.S.
DSRTD2505SK0.4 + 4.6MS Hook  Vinyl Coated250KG500KG
25mm 500kg DJDSRTD2505DJ0.4 + 4.6MDouble J Hook250KG500KG
25mm 500kg CKDSRTD2505CK0.4 + 4.6MClaw Hook250KG500KG
25mm 500kg TGDSRTD2505TG0.4 + 4.6MTriangle250KG500KG


25MM/800KG RATCHET TIE DOWN

25mm 800kg SKITEMSTANDARD LENGTHEND FITTINGSLCM. B.S.
DSRTD2508SK0.4 + 4.6MS Hook Vinyl Coated400KG800KG
 25mm 800kg DJDSRTD2508DJ0.4 + 4.6MDouble J Hook400KG800KG
25mm 800kg CK DSRTD2508CK0.4 + 4.6MClaw Hook400KG800KG
 25mm 800kg TGDSRTD2508TG0.4 + 4.6MTriangle400KG800KG


28MM/1.5T RATCHET TIE DOWN

28mm 1.5T DJITEMSTANDARD LENGTHEND FITTINGSLCM.B.S.
DSRTD2815DJ0.4 + 4.6MDouble J Hook750KG1500KG
 28mm 1.5T CKDSRTD2815CK0.4 + 4.6MClaw Hook750KG1500KG
 28mm 1.5T TGDSRTD2815TG0.4 + 4.6MTriangle750KG1500KG
28mm 1.5T HK DSRTD2815HK0.4 + 4.6MHook & Keeper750KG1500KG


35MM/2T/3T RATCHET TIE DOWN

35mm 2T 3T DJITEMSTANDARD LENGTHEND FITTINGSLCM.B.S.
DSRTD3520DJ0.5 + 5.5MDouble J Hook1,000KG2,000KG
DSRTD3530DJ1,500KG3,000KG
 35mm 2T 3T SJDSRTD3520SJ0.5 + 5.5MSingle J Hook1,000KG2,000KG
DSRTD3530SJ1,500KG3,000KG
 35mm 2T 3T CKDSRTD3520CK0.5 + 5.5MClaw Hook1,000KG2,000KG
DSRTD3530CK1,500KG3,000KG
 35mm 2T 3T TGDSRTD3520TG0.5 + 5.5MTriangle1,000KG2,000KG
DSRTD3530TG1,500KG3,000KG
 35mm 2T 3T HKDSRTD3520HK0.5 + 5.5MHook & Keeper1,000KG2,000KG
DSRTD3530HK1,500KG3,000KG



50MM/4T/5T RATCHET TIE DOWN

double J hookITEMSTANDARD LENGTHEND FITTINGSLCM.B.S.
DSRTD5040DJ0.5 + 7.5MDouble J Hook2,000KG4,000KG
DSRTD5050DJ2,500KG5,000KG
Twisted Snap HookDSRTD5040TS0.5 + 7.5MTwisted  Snap Hook2,000KG4,000KG
DSRTD5050TS2,500KG5,000KG
Flat Snap HookDSRTD5040FS0.5 + 7.5MFlat  Snap Hook2,000KG4,000KG
DSRTD5050FS2,500KG5,000KG
Double J Hook With KeeperDSRTD5040JK0.5 + 7.5MDouble J Hook With Keeper2,000KG4,000KG
DSRTD5050JK2,500KG5,000KG
Single J HookDSRTD5040SJ0.5 + 7.5MSingle J Hook2,000KG4,000KG
DSRTD5050SJ2,500KG5,000KG
Forged Hook With TriangleDSRTD5040FT0.5 + 7.5MForged Hook With Triangle2,000KG4,000KG
DSRTD5050FT2,500KG5,000KG
Hook & KeeperDSRTD5040DJ0.5 + 7.5MHook & Keeper2,000KG4,000KG
DSRTD5050DJ2,500KG5,000KG
TriangleDSRTD5040TG0.5 + 7.5MTriangle2,000KG4,000KG
DSRTD5050TG2,500KG5,000KG
Claw HookDSRTD5040CK0.5 + 7.5MClaw Hook2,000KG4,000KG
DSRTD5050CK2,500KG5,000KG


75MM/10,000KG RATCHET TIE DOWN

75mm 10000KG CKITEMSTANDARD LENGTHEND FITTINGSLCM.B.S.
DSRTD75100CK0.5 + 9.5MClaw Hook5,000KG10,000KG
 75mm 10000KG DJDSRTD75100DJ0.5 + 9.5MDouble J Hook5,000KG10,000KG

The main advantages of ratchet lashings are :

1. Load restraint using a tensioning device (ratchet)

2. Effective and safe control of loads whilst transportation

3. Extremely quick and efficient tie down and release of load thus saving time.

4. No damage to the load being tied down.

They are available in a large variety of configurations of different ratchets of various capacities and end fittings. Pictures shown here are only indicative and not exhaustive.


Ratchet Tie Down, Ratchet Straps (European market)

**100% high tenacity polyester of lashing strap

**Low elongation

**Popular color of strap:orange,blue,yellow,red,black

**Width available:25mm to 100mm

**Breaking strength scope:0.5t to 10t

**Length available:1m to 10m

**According to EN 12195/2

Warning:

1.Only use undamaged ratchet lashing, the label indicating the capacity must be clearly legible.

2. Ratchet lashings must not be overload.

3. Do not tie knots in the webbing.

4.Protect the webbing against abrasion and/or cutting by using edge protectors and sleeves for sharp edges.

5.Avoid twisted positioning of the ratchet lashing.

6.Do not place loads on the ratchet lashing, which could cause damage.

7. Ratchet lashings should not be used as a load lifting gear.

Hot Tags: Polyester Ratchet Tie Down, China Ratchet Strap Factory, 25MM Ratchet Tie Down, 28MM Cargo Lashing, 35MM Tie Down Lashing, 50MM Truck Tie Downs, 75MM Ratchet Cargo Lashing Strap, 100MM Webbing Strap, LC 250KG Ratchet Strap, MBS 500KG Ratchet Tie Down, Cargo Lashing with S Hook, 400KG Tie Down Strap Supplier, 800KG Tiedown Strap with Double J Hook, 750KG Web Lashing, 1500KG Tie Down Straps with Triangle, 1000KG Ratchet Lashings, Hot Sale 2000KG Truck Tiedown with Claw Hook, LC 1500KG Ratchet Lashing Tiedown Strap In Stock, 3000KG Lashing Tiedowns with Hook & Keeper, 2000KG Ratchet Strap, 4000KG Ratchet Lashing Straps, LC 2500KG Webbing Load Restraint System, 5000KG EN12195-2 Truck Winch Replacement Strap, 5000KG Lashing Tiedowns, 10000KG Lashing Strap, Customized Tie Down Lashing, Competitive Price Cargo Lashing Ratchet Strap

Other related products:

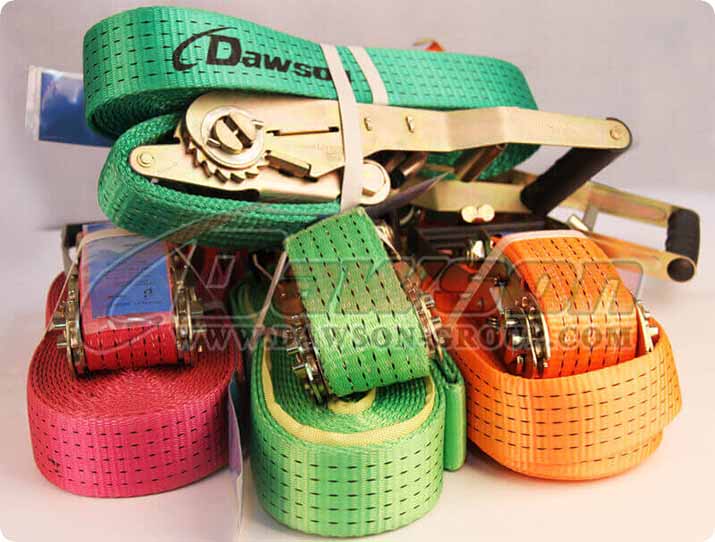

Ratchet Strap Endless - China Supplier (2)

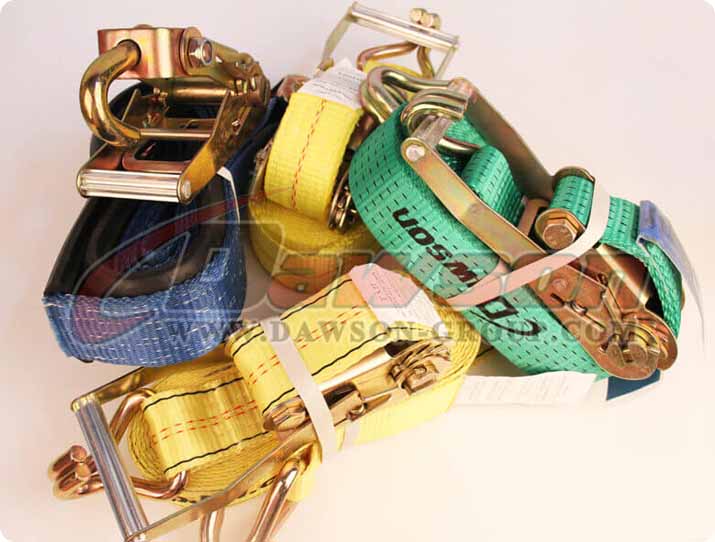

Ratchet Strap Endless - China Manufacturer Supplier (4)

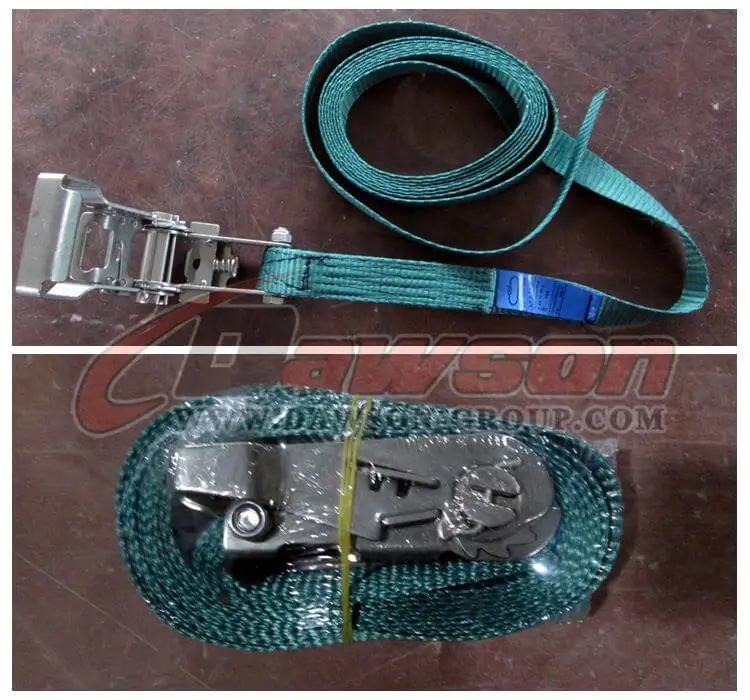

Ratchet Strap Endless - China Manufacturer Supplier

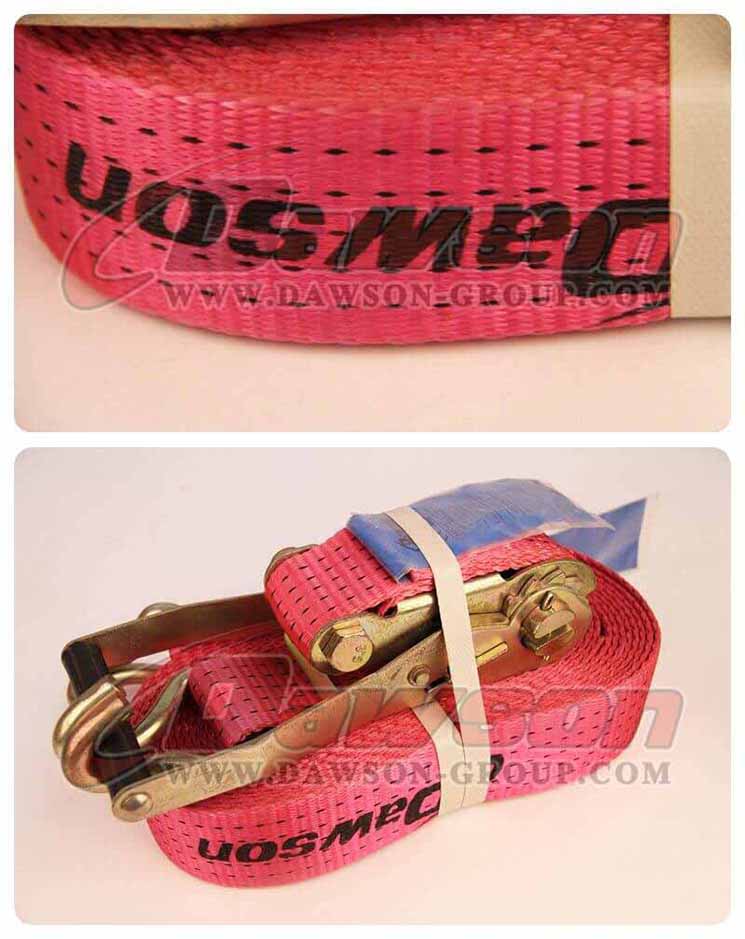

Ratchet Strap Endless - China manufacturer supplier (2)

Ratchet Strap Endless - China Supplier Manufacturer

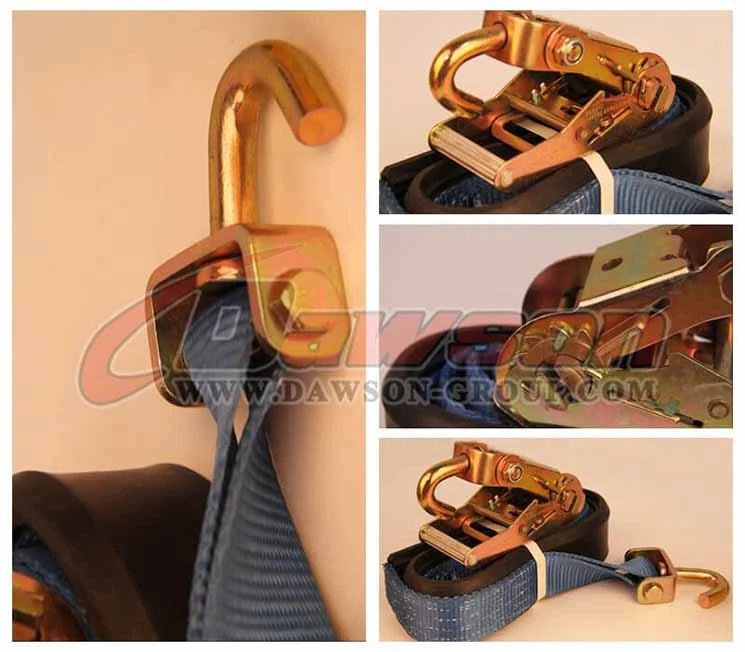

Ratchet Strap Endless (2)

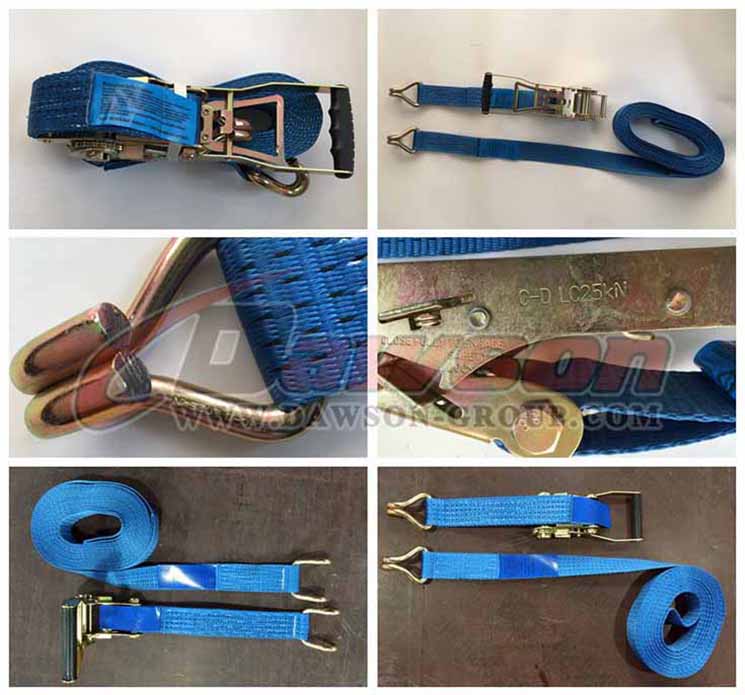

Ratchet Strap Endless - China Manufacturer Supplier

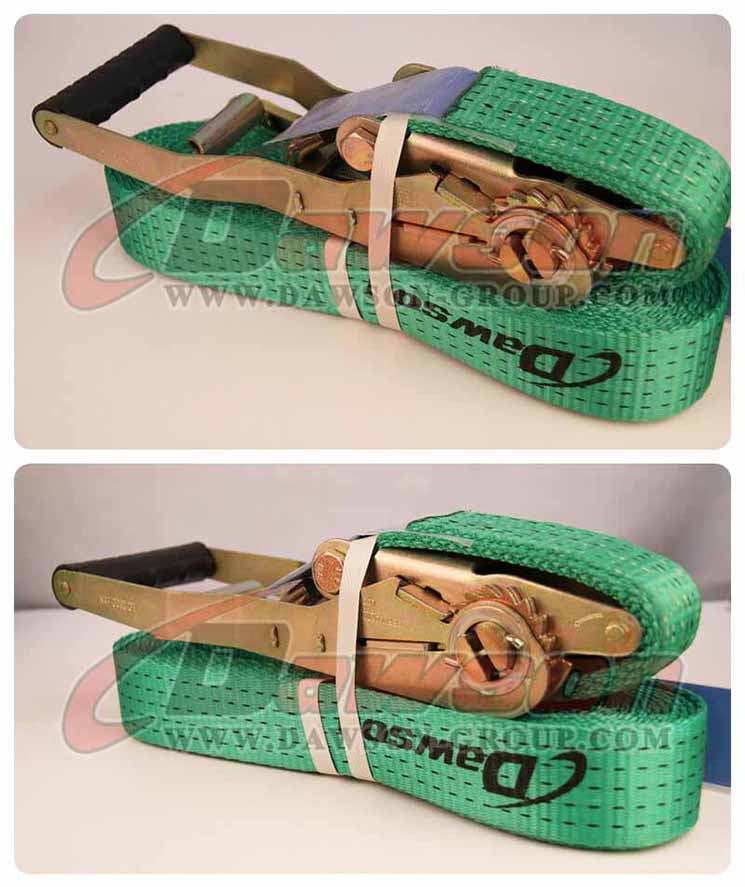

Ratchet Strap Endless - China Manufacturer Supplier

Factory & Package Show:

China Cargo Lashing Strap with Wire Hooks Dawson Factory

Package of Cargo Lashing Strap with Wire Hooks - China Manufacturer Supplier


If need more information , please contact us :info@dawson-group.com
