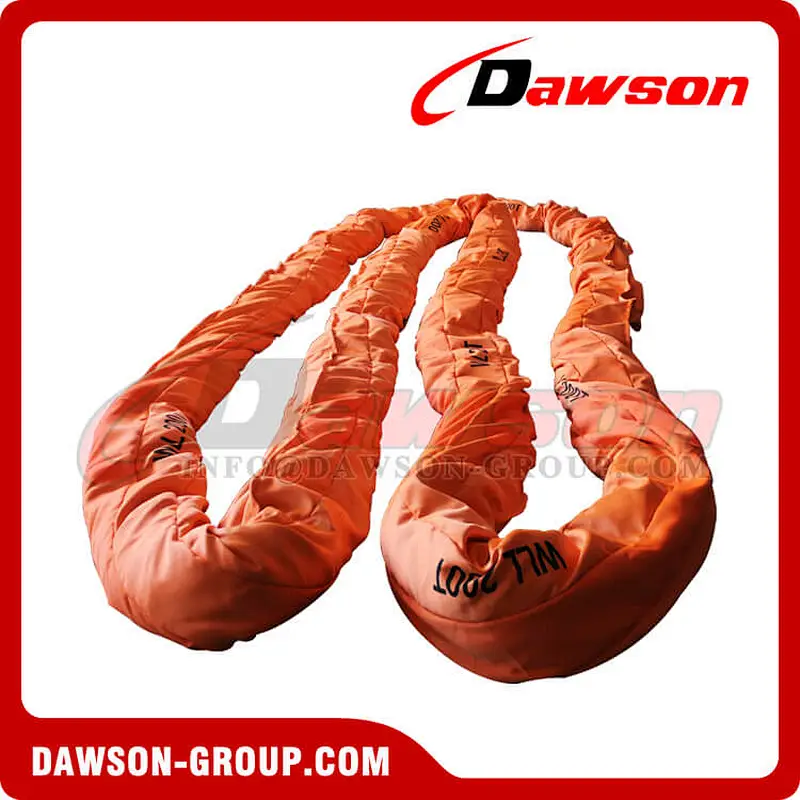

WLL 200T Polyester Round Slings
WLL 200T Polyester Round Slings

WLL 200T Polyester Round Slings

Model NO.
DSRES-200T
Quantity:

WLL 200T Polyester Round Slings - 200000KG Soft Lifting Slings - Heavy Duty Crane Lifting Slings

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

200 Ton Round Slings, 2000000KG Polyester Lifting Slings - Dawson Group Ltd. - China Manufacturer, Supplier

The round slings are usually made up of  polyester The surface of round sling can prevent the object wear and tear or scratch even it can lift the object that would be damaged. The  round cover belt  isn't bearing weight , but only protecting the inside parallelly-ranged silk-bunch .The outside round round cover belt will break first or warn when overloading gravely or using for a long time, then the accident will be in case.

The safety coefficient is 7:1 ,according to your special needs, 5:1, 6:1,8:1 for your choice. The working load is diffientiated by colors according to international standard easy to identify even if the sling has been abraded.


When ordering it is important to make clear whether the length specified is circumference or effective working length.

Material: 100% high-strength polyester yarn

Safety Factor:6:1 7:1 8:1

Standard: ISO: ISO4878

           European: EN1492-2:2000

           Australian: AS 4497

Polyester-Roundslings - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Type

-Polyester round sling

Technical specifications

-Colour coded according to EN 1492-2 & AS 4497

-Capacity stripes; each stripe is equal to 1 tonne capacity.

-The safe working load is clearly and continuously printed on the sleeve.

-Extra strong PU-impregnated webbing of the sleeve, which does not allow dirt to enter.

-Each sling is packed in plastic with CE declaration of conformity or Test Certificate.

Characteristics:

-Low elongation.

-Extremely wear-resistant.

Norms

-According to Machine Directive 98/37/EC & AS 4497

-Safety Factor: 7:1

POLYESTER ROUND SLING - CHINA MANUFACTURER, SUPPLIER, FACTORY
POLYESTER ROUND SINGS - CHINA MANUFACTURER, SUPPLIER, FACTORYItemColor coded
according to
EN1492-2
Working Load Limit with 1 round slingWorking Load Limit with 2
round slings
Straight
lift
Chocked
lift
0-7βStraight
lift up to 45
Choked
lift up to 45
Straight
lift
45-60
Choked
lift
45-60
0-77-4545-6045-60
straight liftchoker lift0-7β 0-7β 7-45β 45-60β 45-60 1straight to 45choker to 45straight 45-60choker 45-60
1.00.82.01.41.00.70.51.41.121.00.8
DSRES-1TWLL1T1.0008002.0001.4001.0007005001.4001.1201.000800
DSRES-2TWLL 2T2.0001.6004.0002.8002.0001.4001.0002.8002.2402.0001.600
DSRES-3TWLL 3T3.0002.4006.0004.2003.0002.1001.5004.2003.3603.0002.400
DSRES-4TWLL 4T4.0003.2008.0005.6004.0002.8002.0005.6004.4804.0003.200
DSRES-5TWLL 5T5.0004.00010.0007.0005.0003.5002.5007.0005.6005.0004.000
DSRES-6TWLL 6T6.0004.80012.0008.4006.0004.2003.0008.4006.7206.0004.800
DSRES-8TWLL 8T8.0006.40016.00011.2008.0005.6004.00011.2008.9608.0006.400
DSRES-10TWLL 10T10.0008.00020.00014.00010.0007.0005.00014.00011.20010.0008.000
DSRES-12TWLL 12T12.0009.60024.00016.80012.0008.4006.00016.80013.40012.0009.600
CodeW.L.L.ColorDiameterMin. lengthMax. length
Tonsmmmm
DSRES-1T1.01T190.580
DSRES-2T2.02T250.580
DSRES-3T3.03T280.580
DSRES-4T4.04T320.580
DSRES-5T5.05T360.580
DSRES-6T6.06T381.080
DSRES-8T8.08T431.080
DSRES-10T10.010T482.080
DSRES-12T12.010T532.080
DSRES-15T15.010T602.080
DSRES-20T20.010T702.080
DSRES-30T30.010T862.080
DSRES-50T50.010T1192.080
DSRES-100T100.010T1402.080
DSRES-300T300.010T2802.080
DSRES-500T500.010T3502.580
DSRES-800T800.010T4262.580
DSRES-1000T1000.010T4763.080


⇒Perfect for hugging and gripping many uneven and odd shaped loads.Welcome to buy the newest and competitive price DAWSON WLL 200T Polyester Round Slings from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.

Dawson Endless Round Lifting Sling Features:



⇒Light in Weight, But High in Strength.

⇒100% polyester construction that assures low elongation 3% at rated capacity and still returns to original length. Thus minimizes adjustments for stretch and reduces headroom problems of your lift.

⇒Polyester jacket helps protect internal load-bearing fibers from abrasion, wear, UV degradation, and harmful dirt and debris.

⇒All-polyester construction virtually eliminates moisture absorption, rot and mildew. It also offers good resistance to common industrial acids (except concentrated sulfuric acid), and alcohol, dry cleaning solvent, hydrocarbons, halogenated hydrocarbons, ketones, crude oil, lubricating oils, soaps, detergents, seawater and weak alkali. Caution: Never use at temperatures above 194°F (90°C) or below -40°F (-40°C). Do not expose to strong alkalis at elevated temperatures,

⇒Load stability and balance can be achieved by spreading sling legs.

⇒Wear points can be shifted to extend sling life.


1 TON ROUND SLINGS, 2 TON ROUND SLINGS, 3 TON ROUND SLINGS, 4 TON ROUND SLINGS, 5 TON ROUND SLINGS, 6 TON ROUND SLINGS, 8 TON ROUND SLINGS, 10 TON ROUND SLINGS, 12 TON ROUND SLINGS, 15 TON ROUND SLINGS, 20 TON ROUND SLINGS, 30 TON ROUND SLINGS, 40 TON ROUND SLINGS, 50 TON ROUND SLINGS, 80 TON ROUND SLINGS, 100 TON ROUND SLINGS, 120 TON ROUND SLINGS, 150 TON ROUND SLINGS, 200 TON ROUND SLINGS, 300 TON ROUND SLINGS, 500 TON ROUND SLINGS, 800 TON ROUND SLINGS, 1000 TON ROUND SLINGS

1T ROUND SLINGS, 2T ROUND SLINGS, 3T ROUND SLINGS, 4T ROUND SLINGS, 5T ROUND SLINGS, 6T ROUND SLINGS, 8T ROUND SLINGS, 10T ROUND SLINGS, 12T ROUND SLINGS, 15T ROUND SLINGS, 20T ROUND SLINGS, 30T ROUND SLINGS, 40T ROUND SLINGS, 50T ROUND SLINGS, 80T ROUND SLINGS, 100T ROUND SLINGS, 120T ROUND SLINGS, 150T ROUND SLINGS, 200T ROUND SLING, 300T ROUND SLINGS, 500T ROUND SLINGS, 800T ROUND SLINGS, 1000T ROUND SLINGS

1000KG ROUND SLINGS, 2000KG ROUND SLINGS, 3000KG ROUND SLINGS, 4000KG ROUND SLINGS, 5000KG ROUND SLINGS, 6000KG ROUND SLINGS, 8000KG ROUND SLINGS, 10000KG ROUND SLINGS, 12000KG ROUND SLINGS, 15000KG ROUND SLINGS, 20000KG ROUND SLINGS, 30000KG ROUND SLINGS, 40000KG ROUND SLINGS, 50000KG ROUND SLINGS, 80000KG ROUND SLINGS, 100000KG ROUND SLINGS, 120000KG ROUND SLINGS, 150000KG ROUND SLINGS, 200000KG ROUND SLING, 300000KG ROUND SLINGS, 500000KG ROUND SLINGS, 800000KG ROUND SLINGS, 1000000KG ROUND SLINGS

Products about 200T Polyester Round Slings:

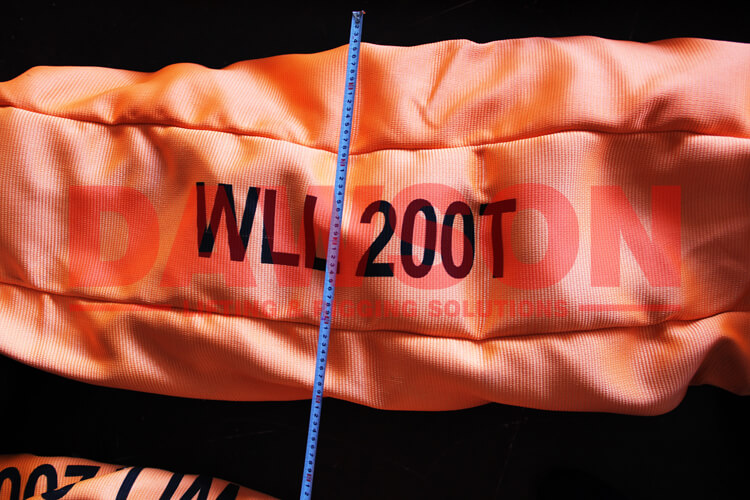

WLL 200000KG Crane Lifting Slings - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

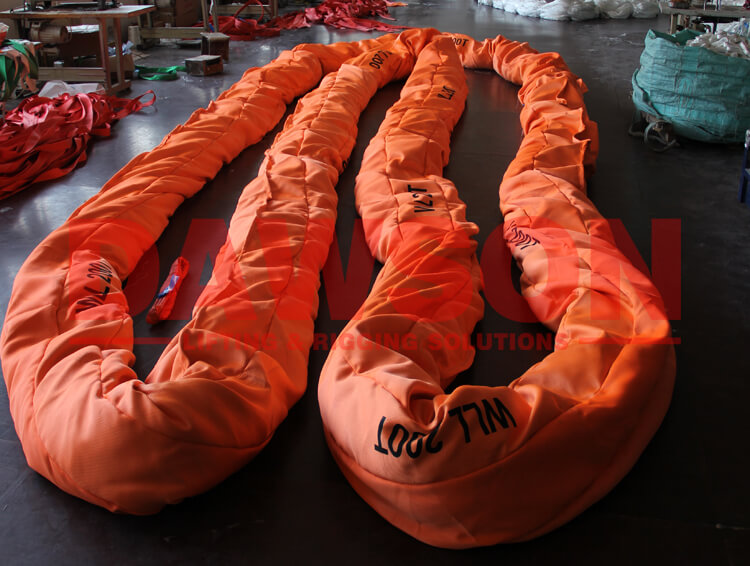

200T Soft Heavy Duty Endless Type Round Slings - Dawson Group Ltd. - China Manufacturer, Supplier

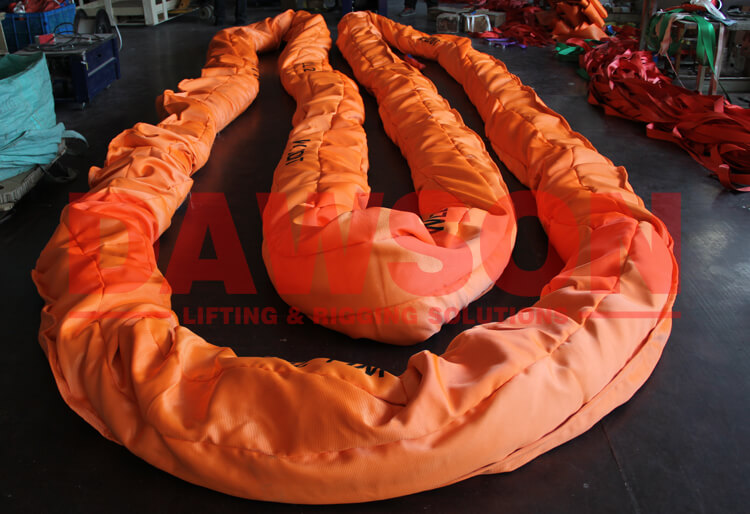

WLL 200T Heavy Duty Soft Lifting Slings - Dawson Group Ltd. - China Manufacturer, Supplier

WLL 200 Ton Soft Lifting Slings, 200000KG Round Slings for Crane Lifting - Dawson Group Ltd. - China Manufacturer, Supplier

Hot Tags: Round Sling, Polyester RoundSling, Soft Round Sling, Heavy Lift Round Slings, Endless Round Lifting Sling, Lifting Slings, China Round Slings, Crane Lifting Slings, Polyester Lifting Slings China Supplier, Synthetic Round Sling Factory China, Low Price 200T Round Slings, 200Ton Endless Round Slings, 200000kg Round Lifting Slings, Buy Discount Round Sling for Lifting, Cheap Price Heavy Duty Lift Slings, Hot Sale Round Lifting Sling, Durable Lifting Sling In Stock, Wholesale Heavy Round Slings for Lifting, China Industrial Lifting Sling Manufacturer, Rigging Sling, Crane Slings, Safety Factor 200T Endless Type Round Slings

Other Related Products:

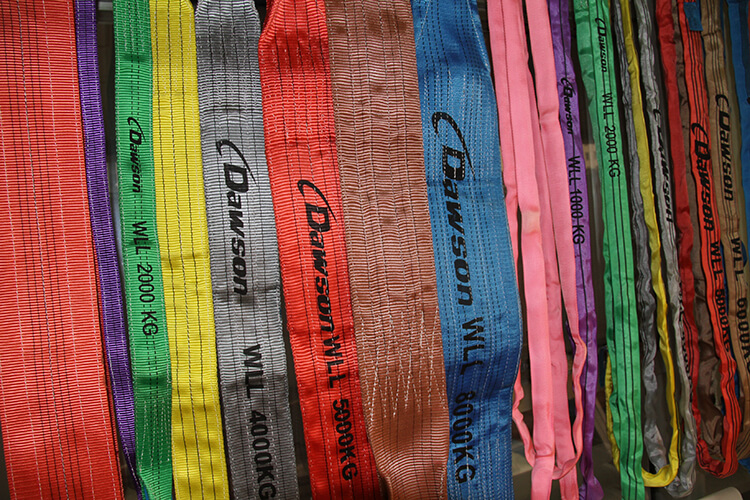

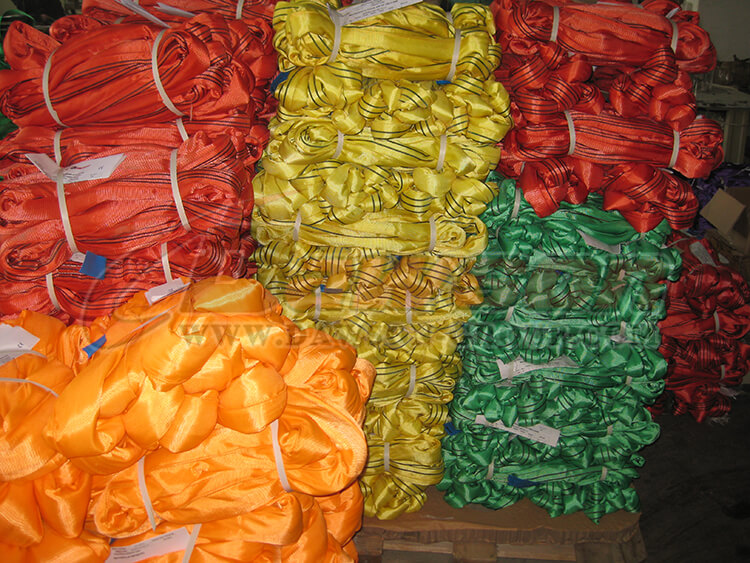

WLL 150T Polyester Round Slings - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

WLL 150T Polyester Round Slings - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

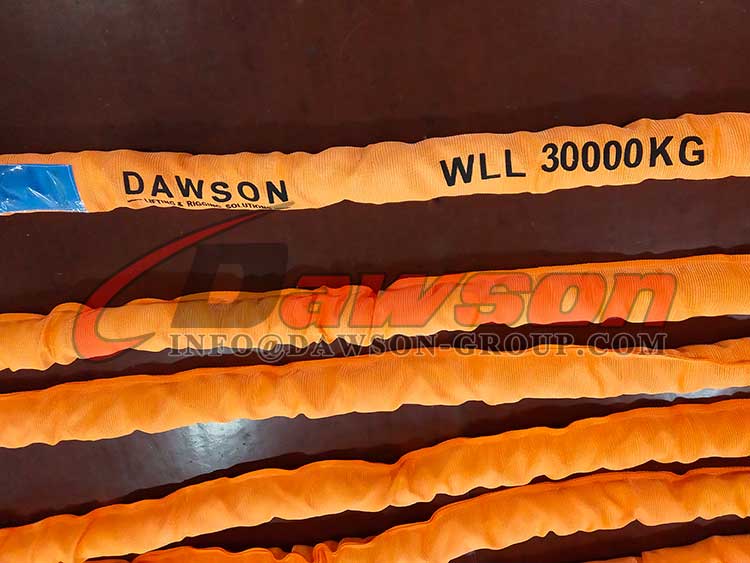

30T Round Sling, Polyester Round Slings - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

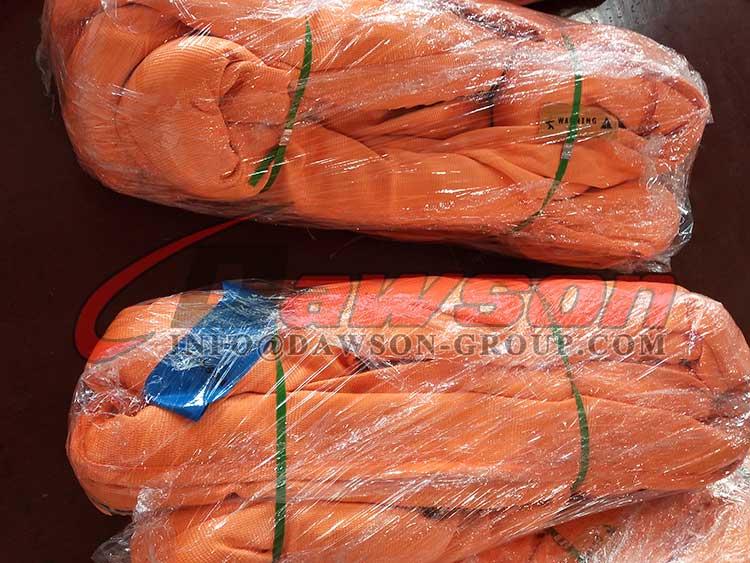

Heavy Duty 40000KG Lifting Slings, Synthetic Lifting Sling - Dawson Group Ltd. - China Manufacturer, Supplier

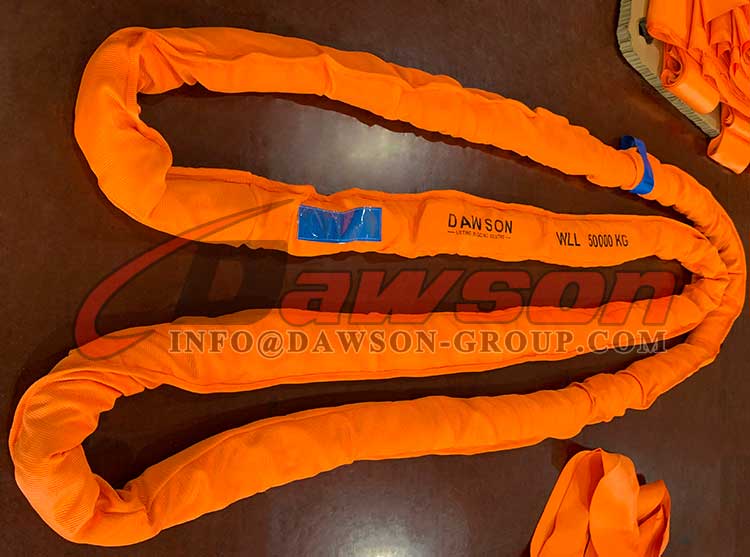

50000KG Round Slings, Polyester Round Slings - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

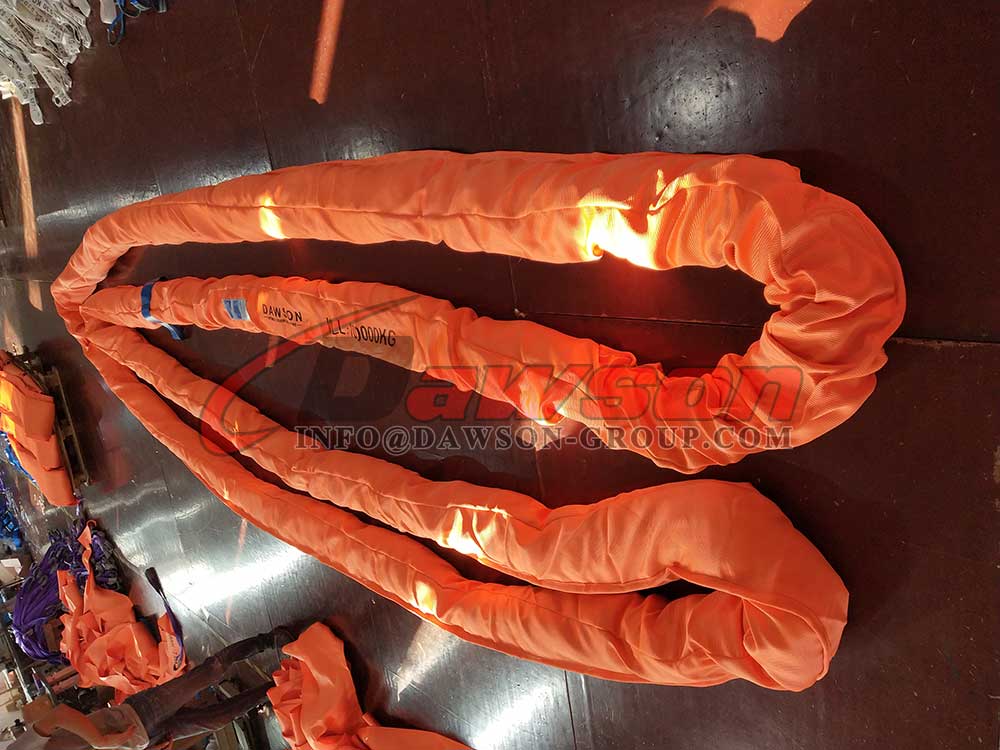

Heavy Duty 100000KG Polyester Round Sling, 100 Ton RoundSlings - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Application of  200T Polyester Round Slings:

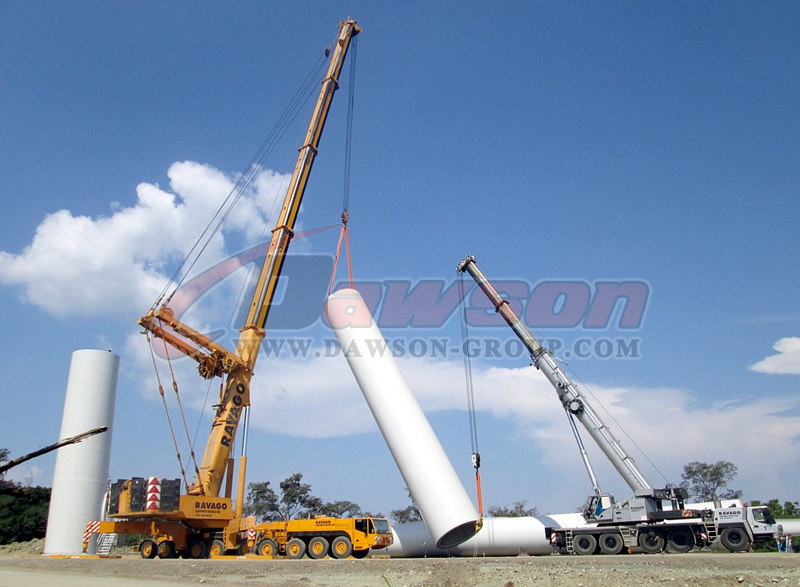

China Dawson Application of Polyester Round Sling Supplier, Factory

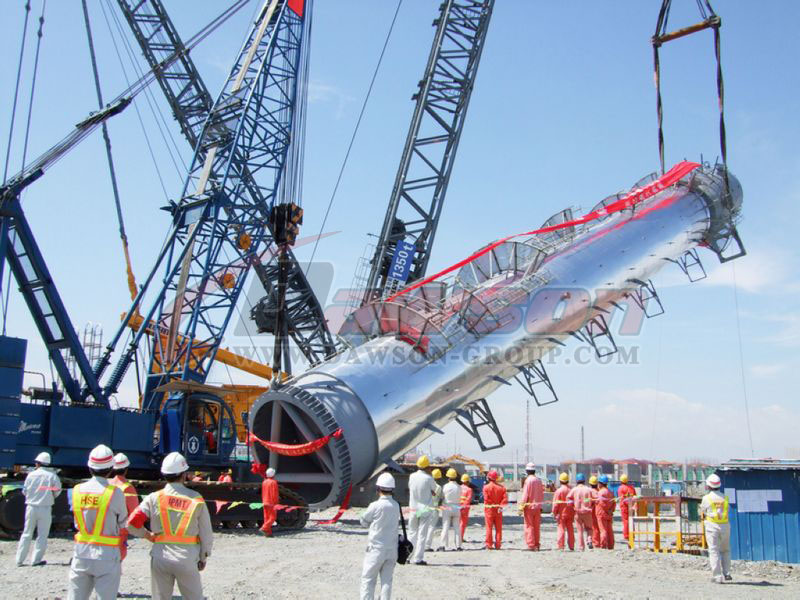

China-Round-Slings-China-Polyester-Round-Slings-Webbing-Slings-Dawson-Group-Supplier-Factory

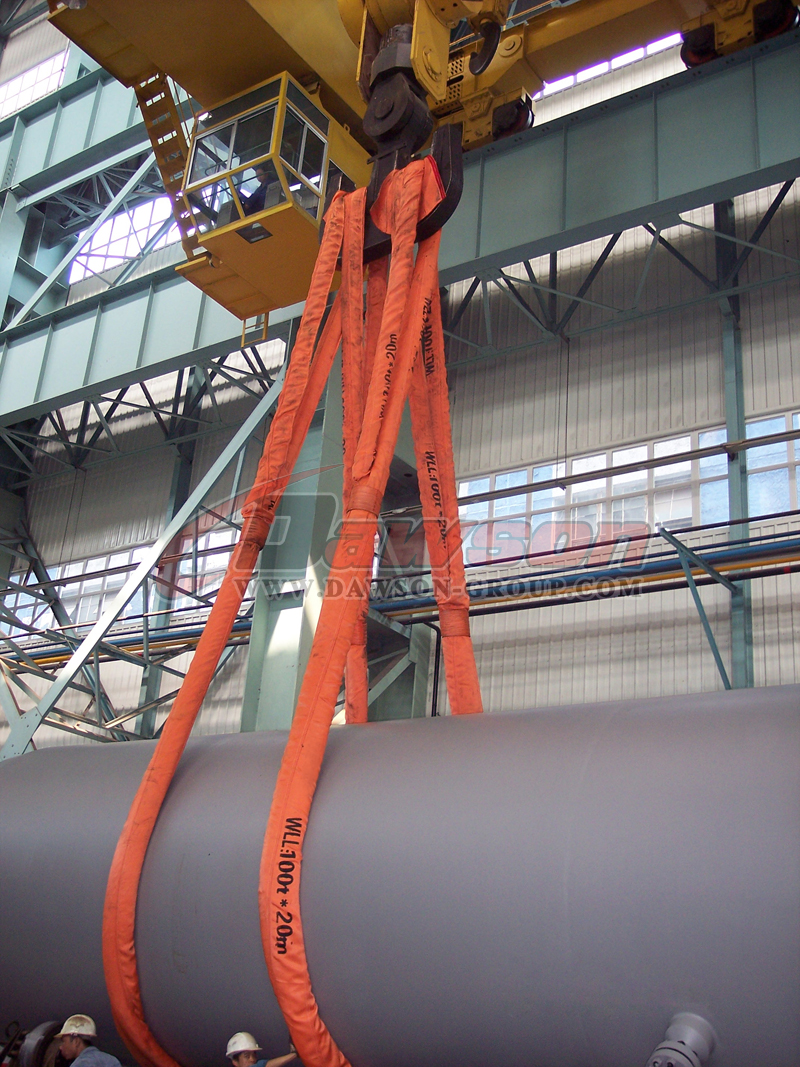

CHINA DAWSON HEAVY DUTY ROUND SLINGS DAWSON GROUP SUPPLIER, FACTORY

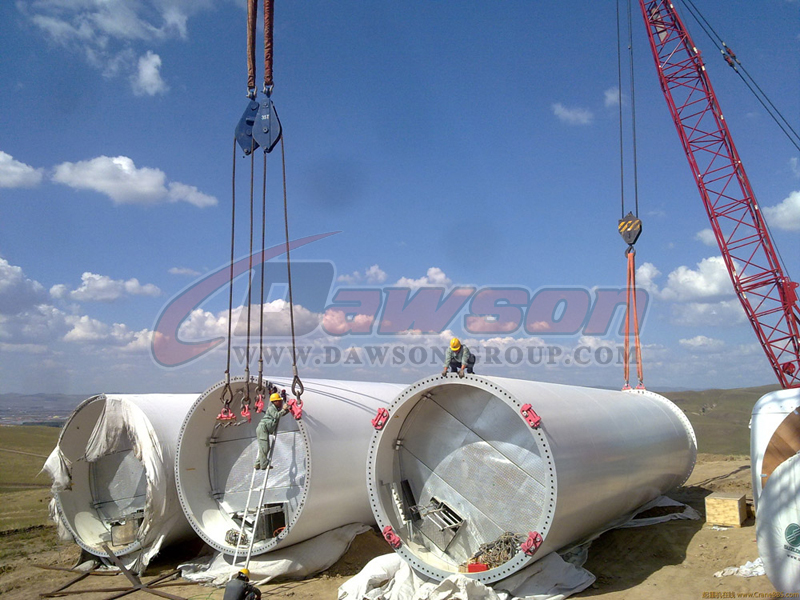

China Dawson Polyester Round Slings Application Supplier, Factory

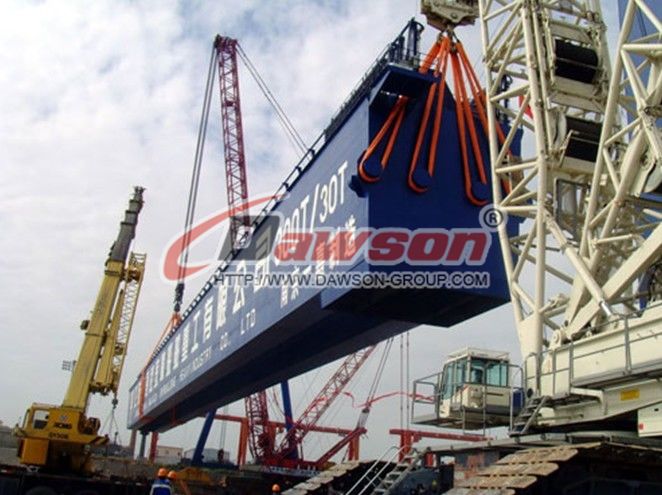

China-Dawson-Polyester-Round-Slings-Lifting-Slings-Supplier-Exporter

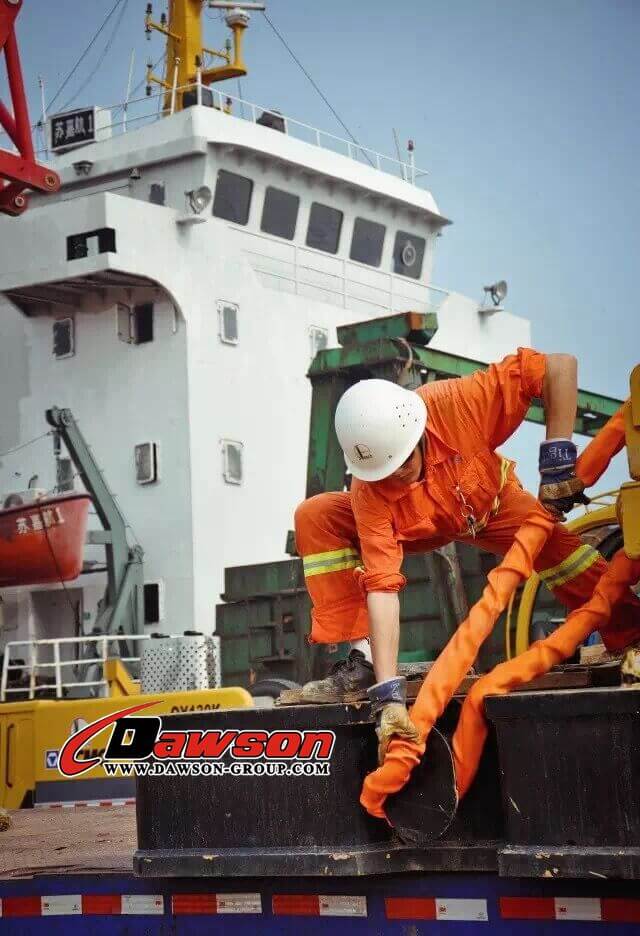

CHINA HEAVY DUTY POLYESTER ROUND SLINGS - LIFTING SLINGS CRANE SLINGS - DAWSON GROUP LTD. - FACTORY

Factory & Package Show:

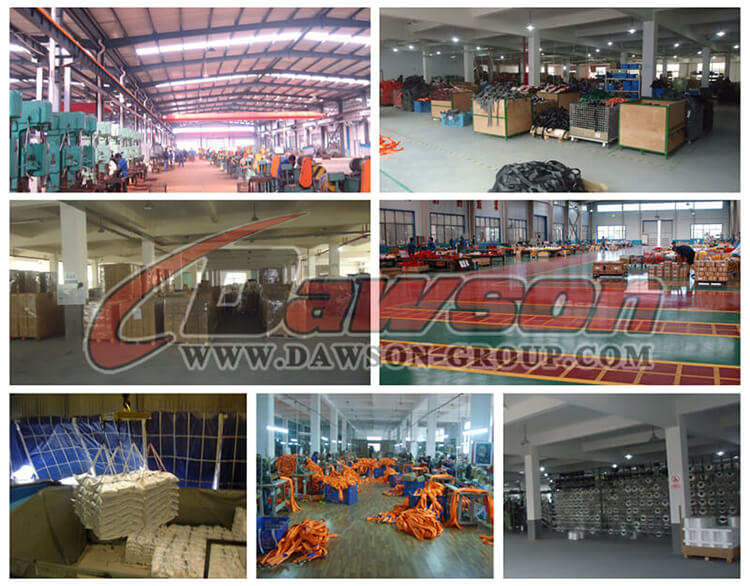

China Factory of Polyester Round Slings - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
