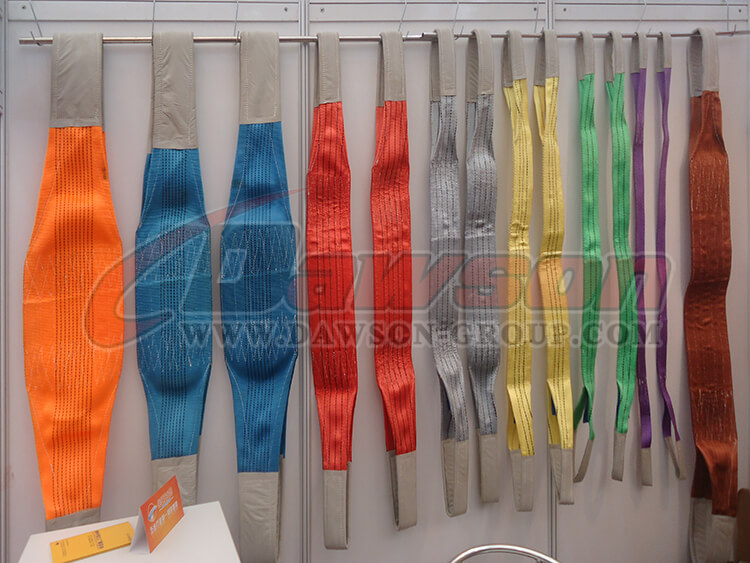

Synthetic Webbing Sling (ASME / ANSI B30.9), Flat Crane Lifting Slings
- Dawson Group Ltd. - China Manufacturer Supplier

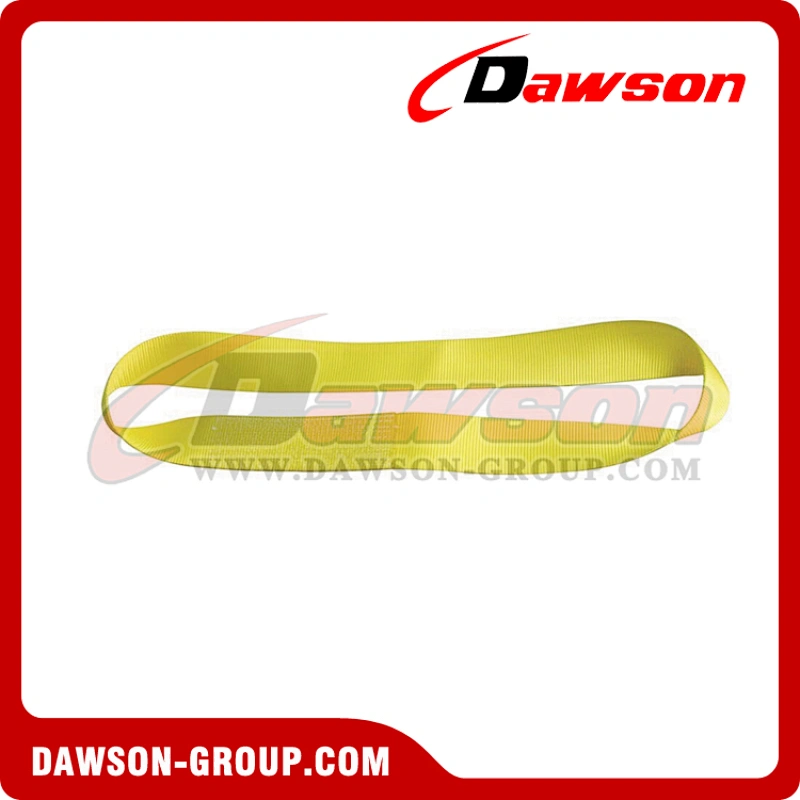

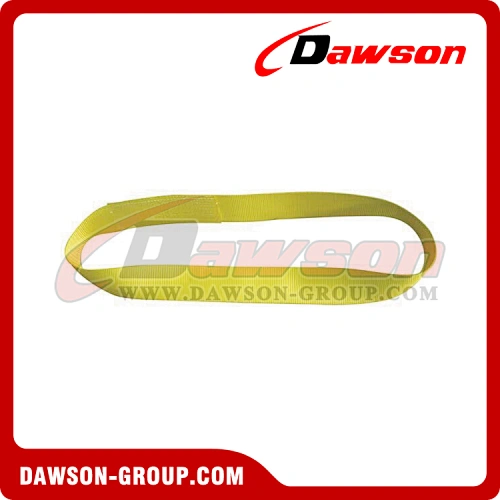

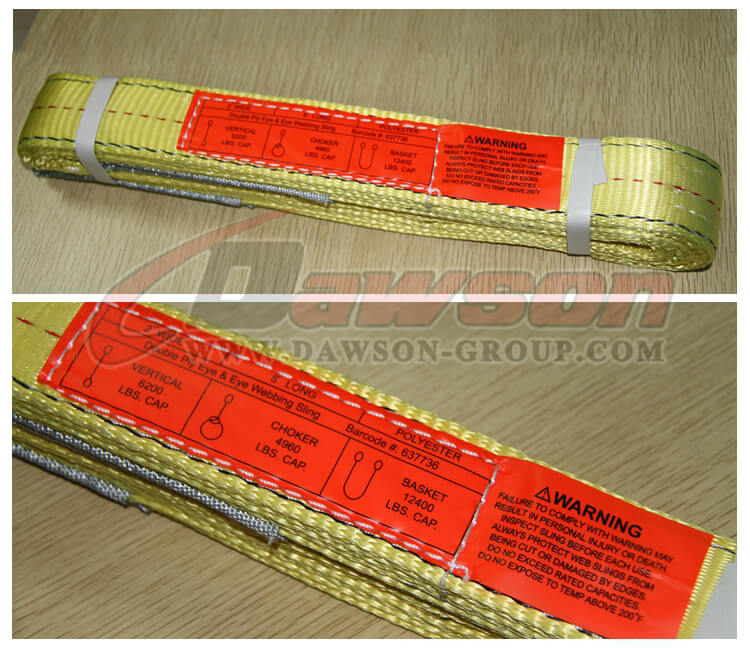

Double Ply Eye & Eye Webbing Sling Class 5
 | Item | Webbing Width (inch) | Vertical | Choker | Vertical Basket | 60 Basket | 45 Basket | 30 Basket | M.B.S. |
 |  |  |  |  |  | ||||
| lbs | lbs | lbs | lbs | lbs | lbs | lbs | |||
| DSWSEE-2-6010 | 1 | 2,200 | 1,760 | 4,400 | 3,811 | 3,111 | 2,200 | 11,000 | |
| DSWSEE-2-6015 | 1-1/2 | 3,300 | 2,640 | 6,600 | 5,716 | 4,667 | 3,300 | 16,500 | |
| DSWSEE-2-6017 | 1- 3/4 | 3,800 | 3,040 | 7,600 | 6,582 | 5,374 | 3,800 | 19,000 | |
| DSWSEE-2-6020 | 2 | 4,400 | 3,520 | 8,800 | 7.621 | 6,222 | 4,400 | 22,000 | |
| DSWSEE-2-6030 | 3 | 6,600 | 5,280 | 13,200 | 11,432 | 9,333 | 6,600 | 33,000 | |
| DSWSEE-2-6040 | 4 | 8,200 | 6,560 | 16,400 | 14,203 | 11,595 | 8,200 | 41,000 | |
| DSWSEE-2-6050 | 5 | 10,200 | 8,160 | 20,400 | 17,667 | 14,423 | 10,200 | 51,000 | |
| DSWSEE-2-6060 | 6 | 12,300 | 9,840 | 24,600 | 21,304 | 17,393 | 12,300 | 61,500 |
Class 5 means rated loads are based on a stuffer weave construction webbing possessing a minimum certified tensile strength of 6,800 lbs/inch width.
Double Ply Eye & Eye Webbing Sling Class 7
| Item | Webbing Width (inch) | Vertical | Choker | Vertical Basket | 60 Basket | 45 Basket | 30 Basket | M.B.S. |
| | | | | | ||||
| lbs | lbs | lbs | lbs | lbs | lbs | lbs | |||
| DSWSEE-2-9010 | 1 | 3,100 | 2,480 | 6,200 | 5,370 | 4,384 | 3,100 | 15,500 | |
| DSWSEE-2-9015 | 1 - 1/2 | 4,700 | 3,760 | 9,400 | 8,141 | 6,646 | 4,700 | 23,500 | |
| DSWSEE-2-9017 | 1- 3/4 | 5,400 | 4,320 | 10,800 | 9,353 | 7,636 | 5,400 | 27,000 | |
| DSWSEE-2-9020 | 2 | 6,200 | 4,960 | 12,400 | 10,739 | 8,767 | 6,200 | 31,000 | |
| DSWSEE-2-9030 | 3 | 8,800 | 7,040 | 17,600 | 15,242 | 12,444 | 8,800 | 44,000 | |
| DSWSEE-2-9040 | 4 | 11,000 | 8,800 | 22,000 | 19,052 | 15,554 | 11,000 | 55,000 | |
| DSWSEE-2-9050 | 5 | 13,700 | 10,960 | 27,400 | 23,729 | 19,372 | 13,700 | 68,500 | |
| DSWSEE-2-9080 | 6 | 16,500 | 13,200 | 33,000 | 28,578 | 23,331 | 16,500 | 82,500 | |
| DSWSEE-2-9060 | 8 | 22,750 | 18,200 | 45,500 | 39,403 | 32,169 | 22,750 | 113,750 | |
| DSWSEE-2-9100 | 10 | 28,400 | 22,720 | 56,800 | 49,189 | 40,158 | 28,400 | 142,000 |
Class 7 means rated loads are based on a stuffer weave construction webbing possessing a minimum certified tensile strength of 9,800 lbs/inch width
Lifting method and maximum safety working load parameter(from 2 ply eye-eye webbing sling)
Welcome to buy the newest and competitive price DAWSON Synthetic Webbing Sling (ASME / ANSI B30.9), Flat Crane Lifting Slings from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
Other sizes can be produced upon request, more information, please contact us: info@dawson-group.com
1 TON WEBBING SLINGS, 2 TON WEBBING SLINGS, 3 TON WEBBING SLINGS, 4 TON WEBBING SLINGS, 5 TON WEBBING SLINGS, 6 TON WEBBING SLINGS, 8 TON WEBBING SLINGS, 10 TON WEBBING SLINGS, 12 TON WEBBING SLINGS, 16 TON WEBBING SLINGS, 20 TON WEBBING SLINGS, 30 TON WEBBING SLINGS, 40 TON WEBBING SLINGS, 50 TON WEBBING SLINGS, 60 TON WEBBING SLINGS, 100 TON WEBBING SLINGS
1T WEBBING SLINGS, 2T WEBBING SLINGS, 3T WEBBING SLINGS, 4T WEBBING SLINGS, 5T WEBBING SLINGS, 6T WEBBING SLINGS, 8T WEBBING SLINGS, 10T WEBBING SLINGS, 12T WEBBING SLINGS, 16T WEBBING SLINGS, 20T WEBBING SLINGS, 30T WEBBING SLINGS, 40T WEBBING SLINGS, 50T WEBBING SLINGS, 60T WEBBING SLINGS, 100T WEBBING SLINGS
1000KG WEBBING SLINGS, 2000KG WEBBING SLINGS, 3000KG WEBBING SLINGS, 4000KG WEBBING SLINGS, 5000KG WEBBING SLINGS, 6000KG WEBBING SLINGS, 8000KG WEBBING SLINGS, 10000KG WEBBING SLINGS, 12000KG WEBBING SLINGS, 16000KG WEBBING SLINGS, 20000KG WEBBING SLINGS, 30000KG WEBBING SLINGS, 40000KG WEBBING SLINGS, 50000KG WEBBING SLINGS, 60000KG WEBBING SLINGS, 100000KG WEBBING SLINGS
Other related products:
Hot Tags: Webbing Sling, Lifting Slings, Endless Webbing Sling, China Flat Web Sling, Crane Lifting Slings, Polyester Lifitng Slings China Supplier, Synthetic Webbing Slings Factory China, Low Price Nylon Webbing Sling, Buy Discount Web Sling for Lifting, Cheap Price Endless Web Sling, Hot Sale Lifting Sling Belt, Crane Lifting Sling In Stock, Wholesale Web Sling, China Flat Webbing Sling Manufacturer, Industrial Lifting Slings, ASME / ANSI B30.9 Webbing Sling

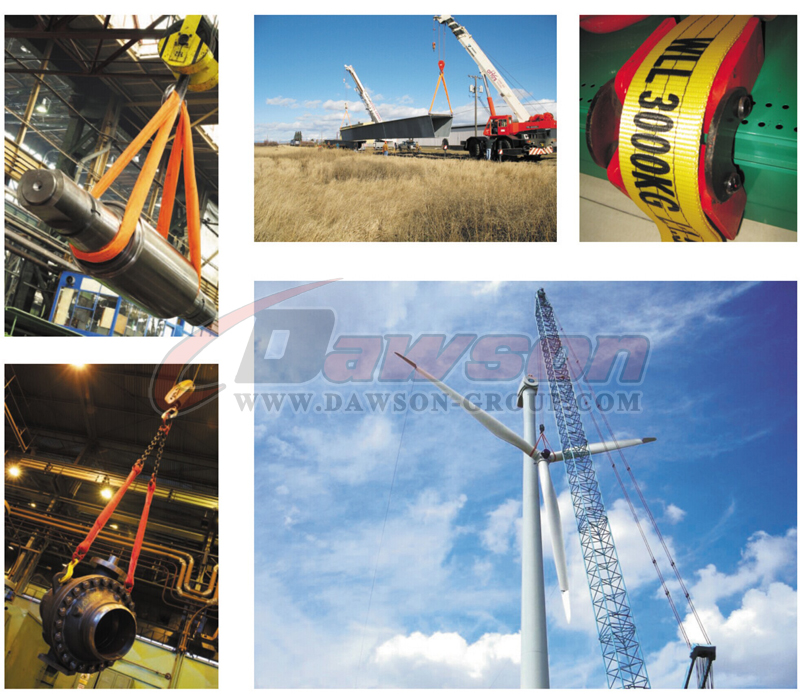

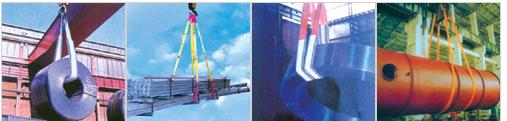

Application of Synthetic Webbing Sling (ASME/ANSI B30.9):
