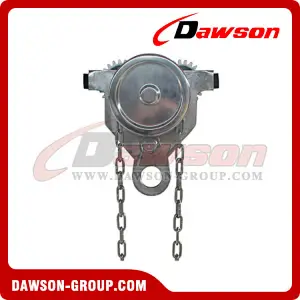

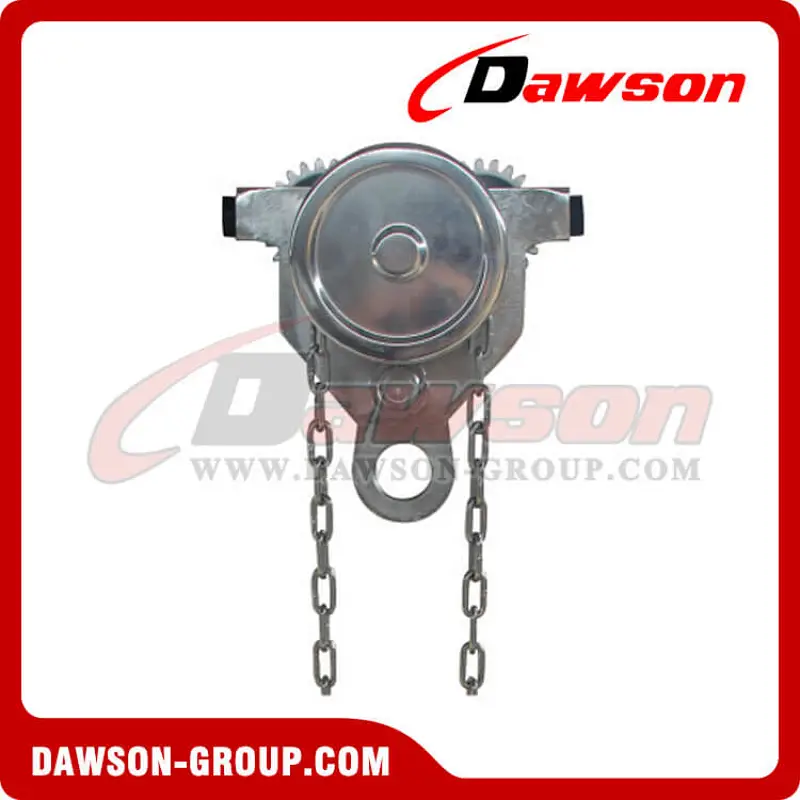

Stainless Steel Push and Geared Trolley / Stainless Steel Push & Gear Trolley
Stainless steel push trolley, stainless steel geared trolley, push trolley, chain hoist with trolley - Dawson China
| el | GCSL1 | GCSL2 | GCSL3 | GCSL5 | GCSL10 | GCSL20 | |
| GCST1 | GCST2 | GCST3 | GCST5 | GCST10 | GCST20 | ||
| Capacity T | 1 | 2 | 3 | 5 | 10 | 20 | |
| Test load KN | 1.5 | 3 | 4.5 | 7.5 | 15 | 30 | |
| Standard lifting height m | 3 | 3 | 3 | 3 | 3 | 3 | |
| Hand pull (horizontal straight) N | 50 | 90 | 95 | 140 | 240 | 250 | |

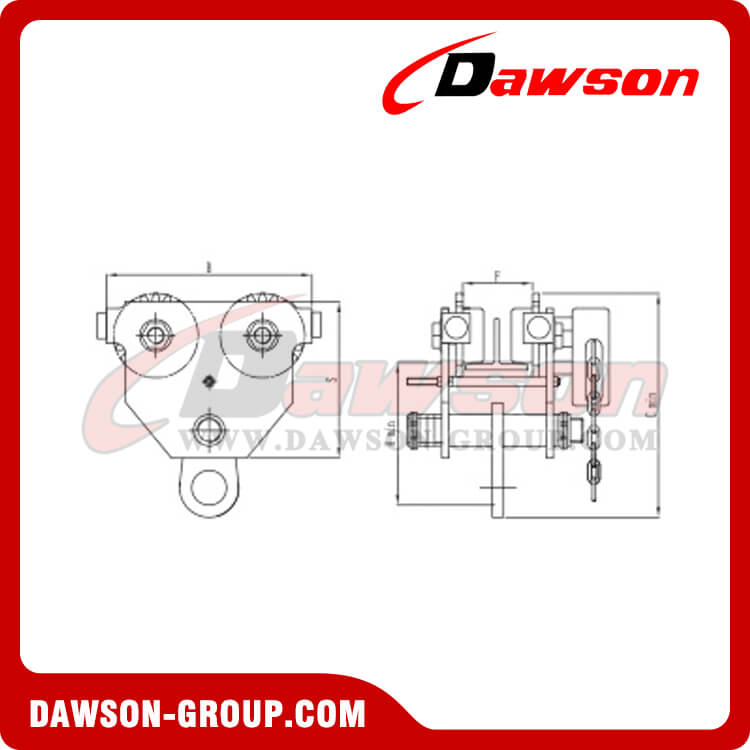

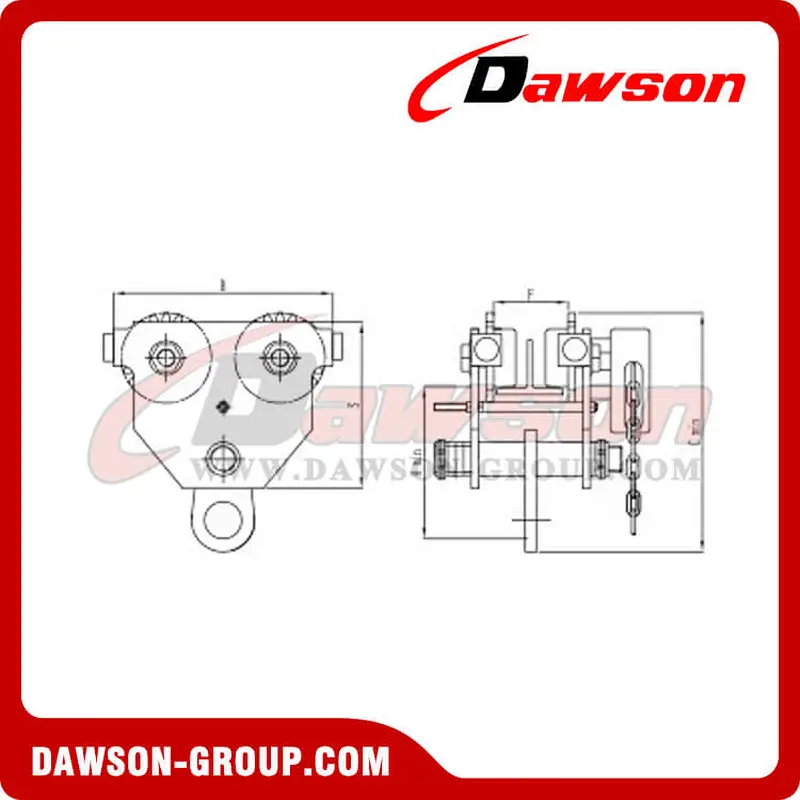

| Dimension (mm) | B | 220 | 260 | 315 | 350 | 390 | 410 |
| D | 170 | 190 | 220 | 240 | 265 | 265 | |
| H min | 170 | 190 | 200 | 210 | 230 | 320 | |
| C | 260 | 290 | 320 | 360 | 410 | 510 | |
| Track width(mm) | F | 90-122 | 102-152 | 110-165 | 122-172 | 130-210 | 130-210 |
| Net weight | GCSL | 15 | 20 | 26 | 34 | 51 | 115 |
| GCST | 13 | 17 | 23 | 30 | 47 | 106 | |
Welcome to buy the newest and competitive price DAWSON Stainless Steel Push and Geared Trolley / Stainless Steel Push & Gear Trolley from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
For further information, please contact us. Email:info@dawson-group.com

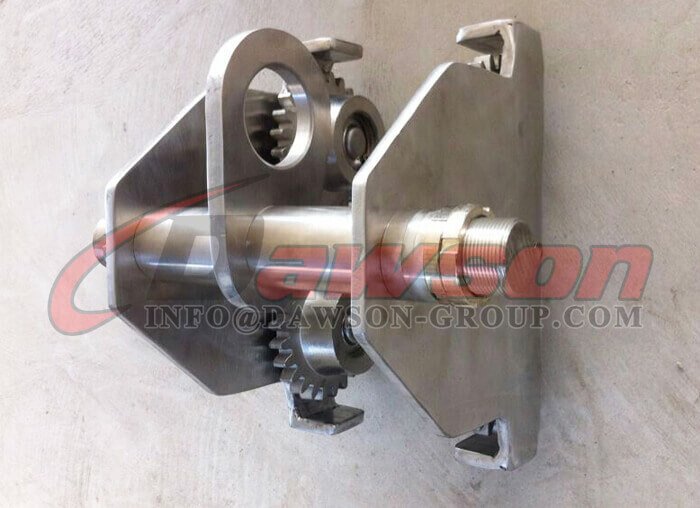

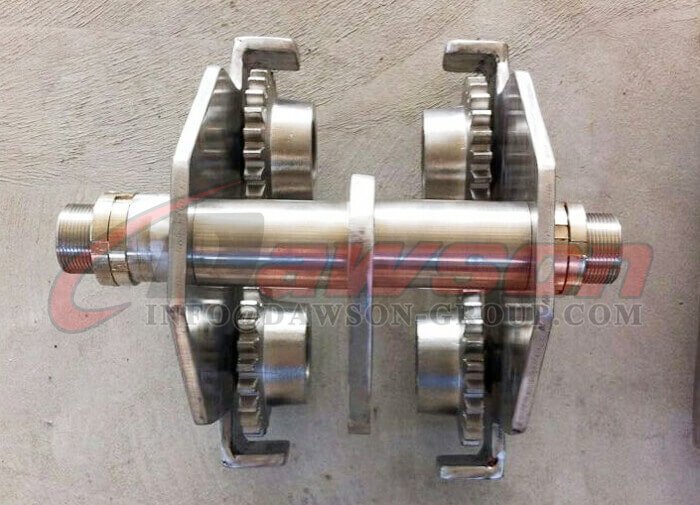

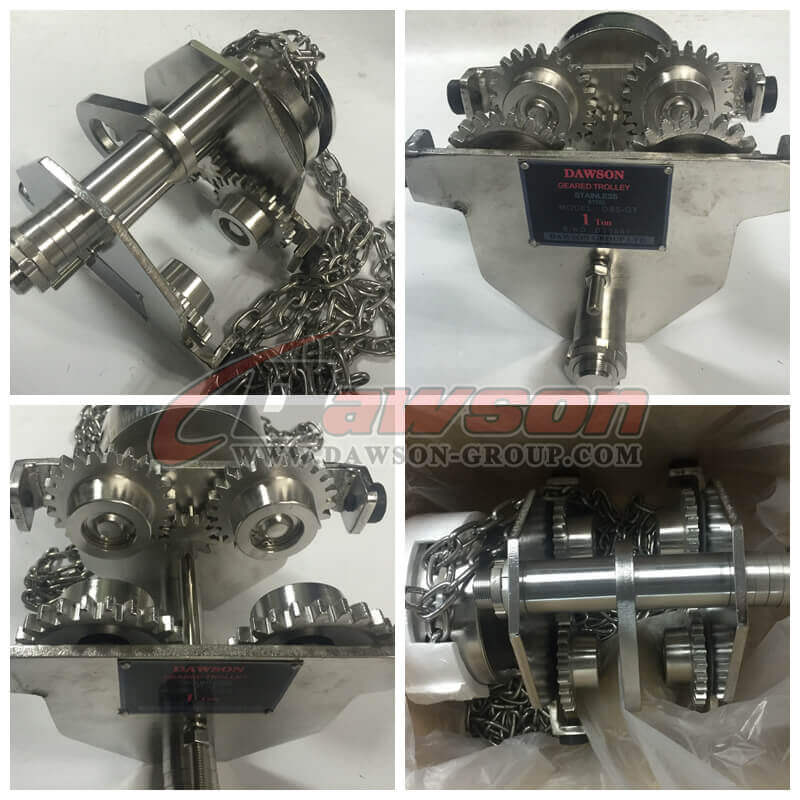

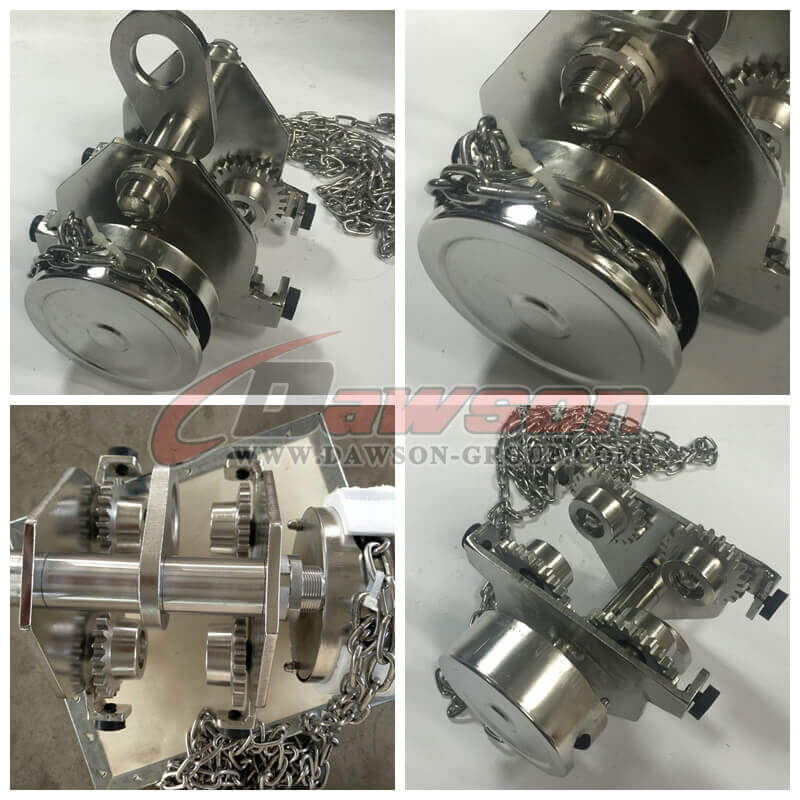

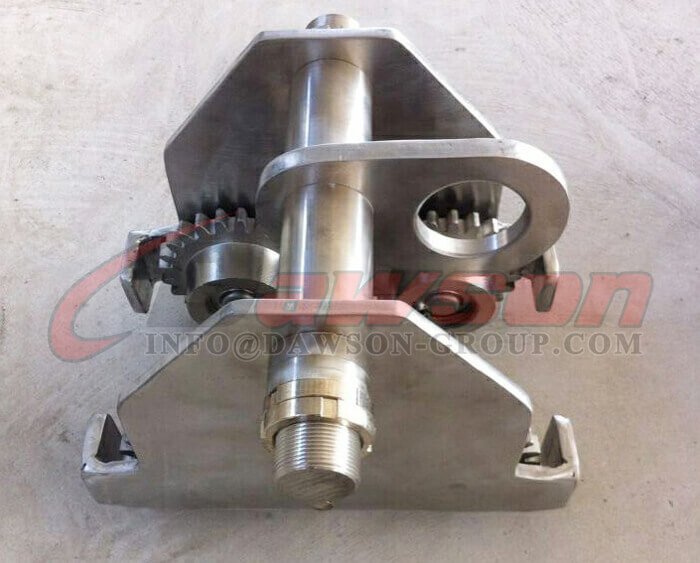

Products Show:

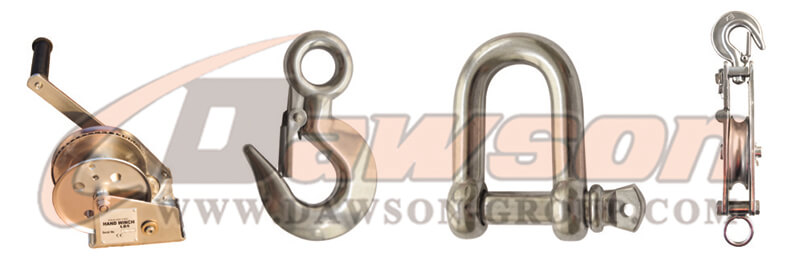

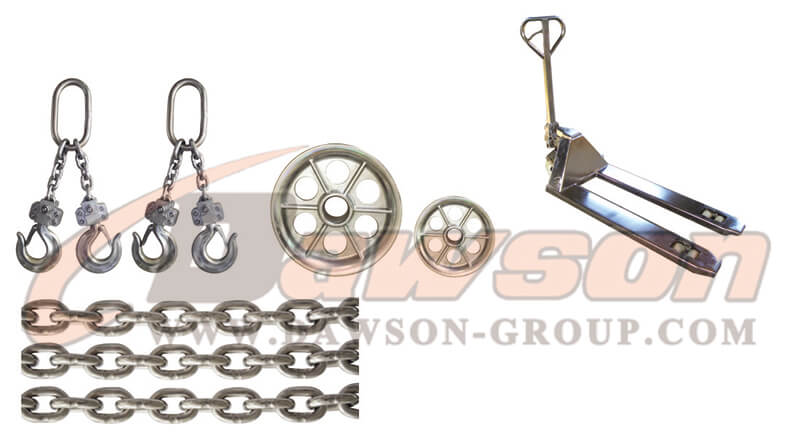

Other stainless steel lifting equipment:
Application:

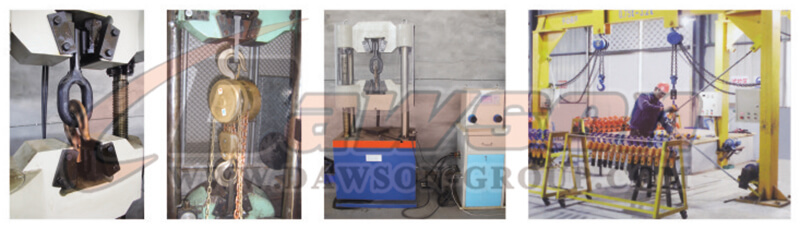

Equipments for Stainless Steel Trolley Clamp:

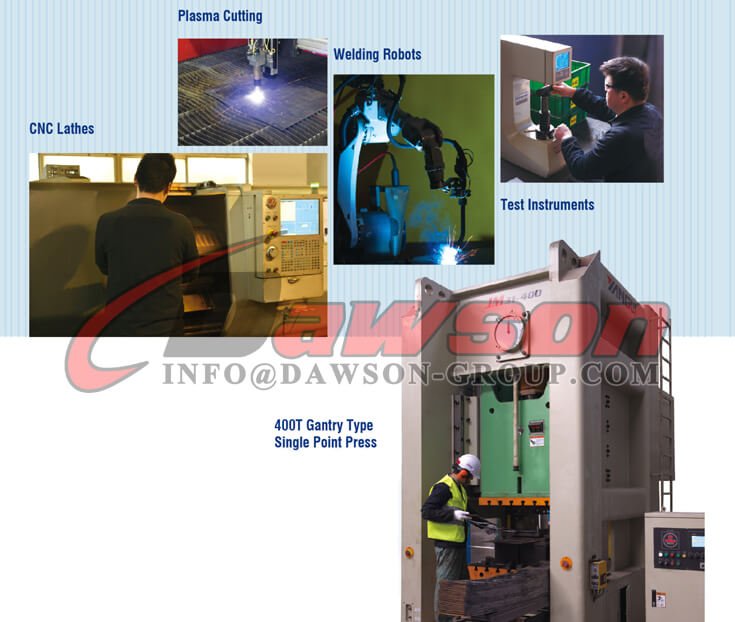

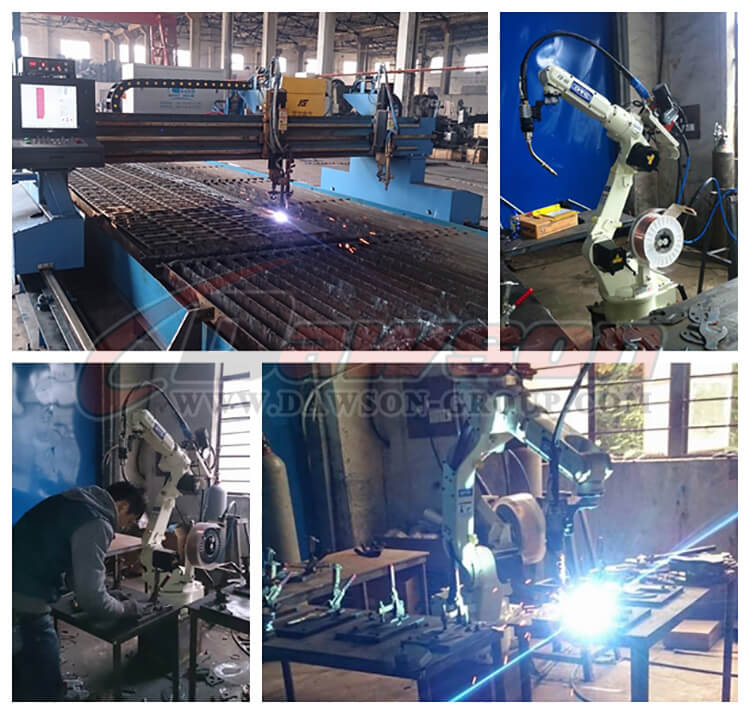

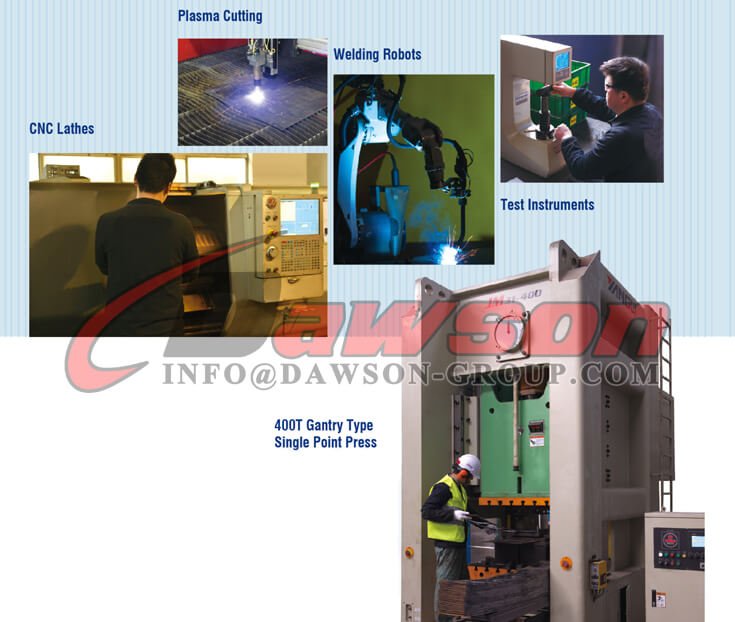

Factory & Package Show:
