Corner Protector/Protective Sleeve
Polyester web slings have a tendency damaged, abraded or cut when tension between the sling and the load(having rough/sharp surface) develops. To prevent any accidents, it is of up most importance to provide sufficient padding to the edges and abrasive surfaces.

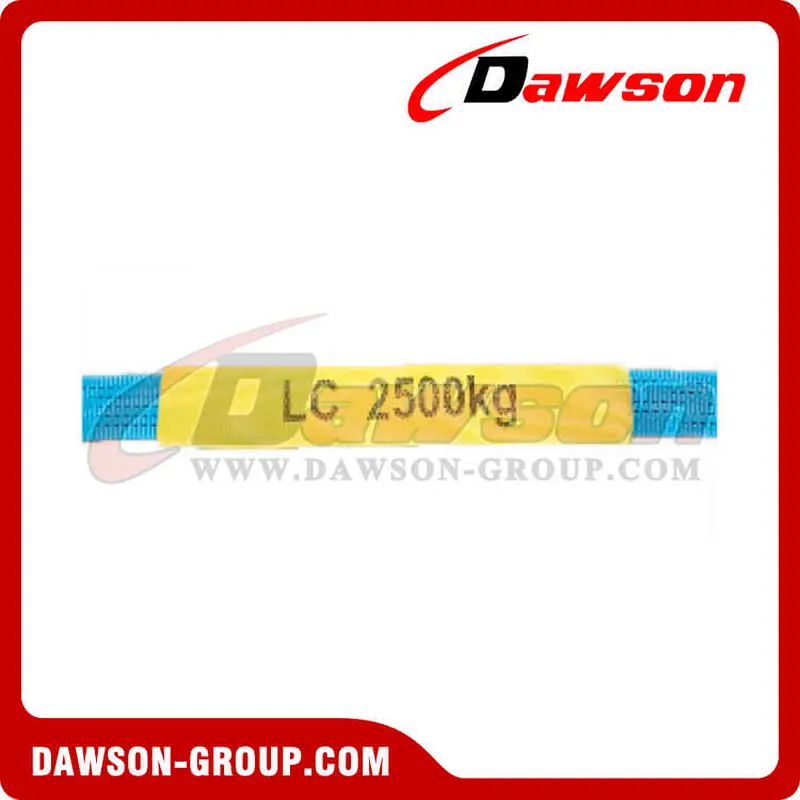

The main purpose to use Protective Sleeves is to increase the lift of the sling. The protect the sling from the sharp edges or rough surfaces to which they are exposed at the time of use. Anti Cut Sleeves protect the slings from almost anything. These sleeves are ideal for lifting products with ultra sharp edges such as Steel coils, Glass sheets etc.
 |  | ||||||||

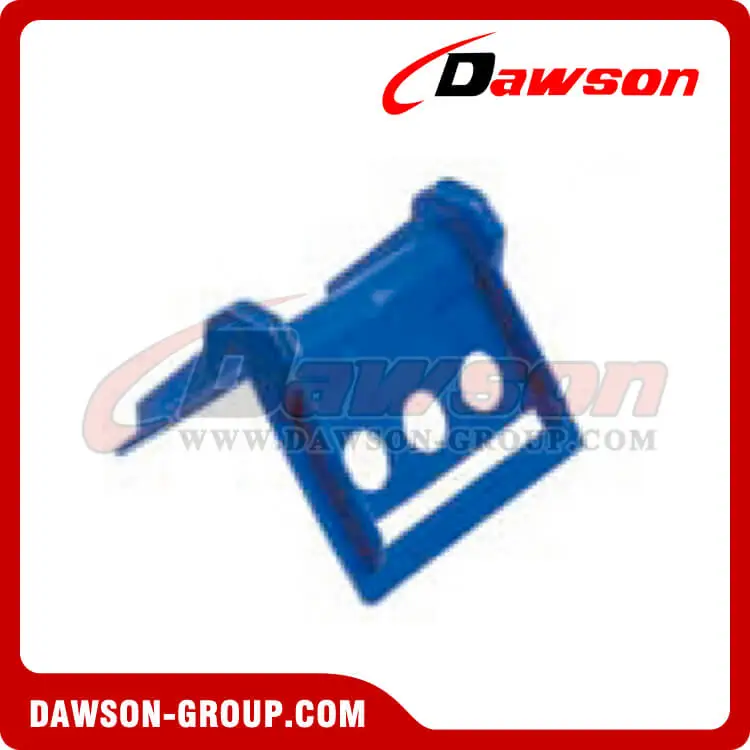

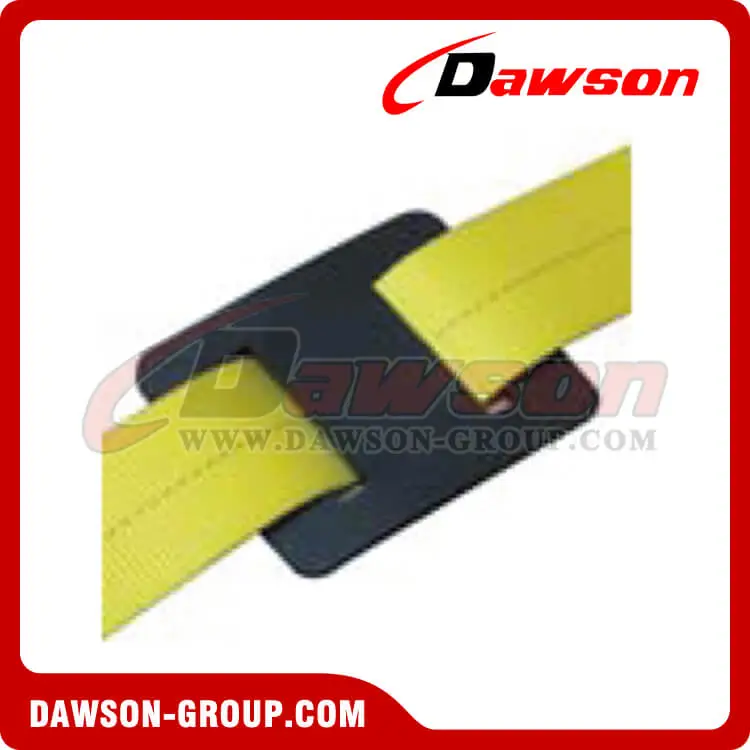

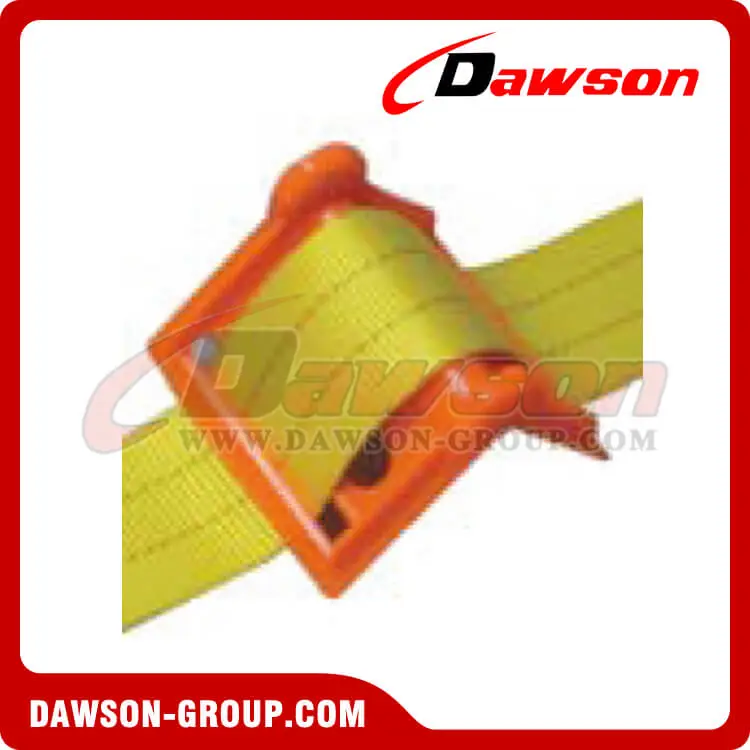

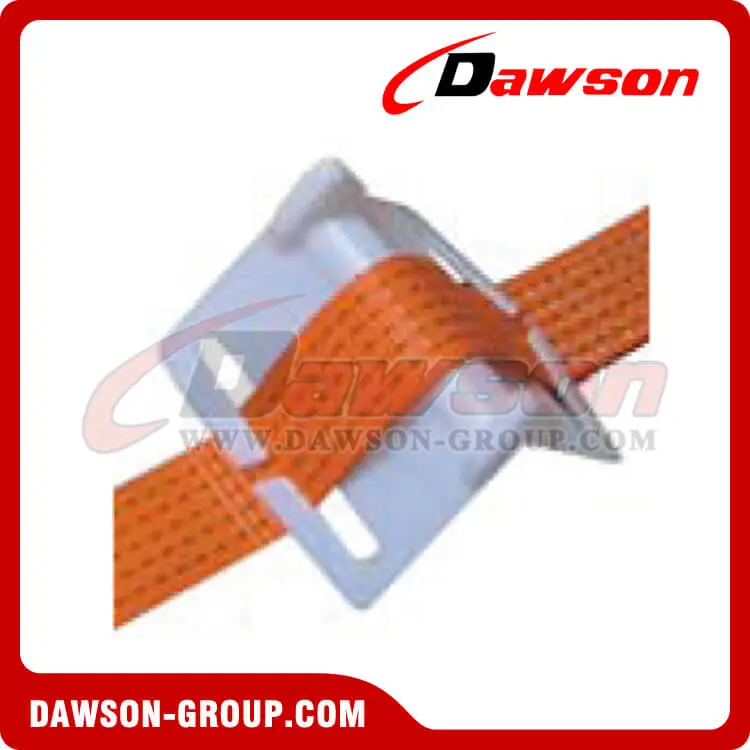

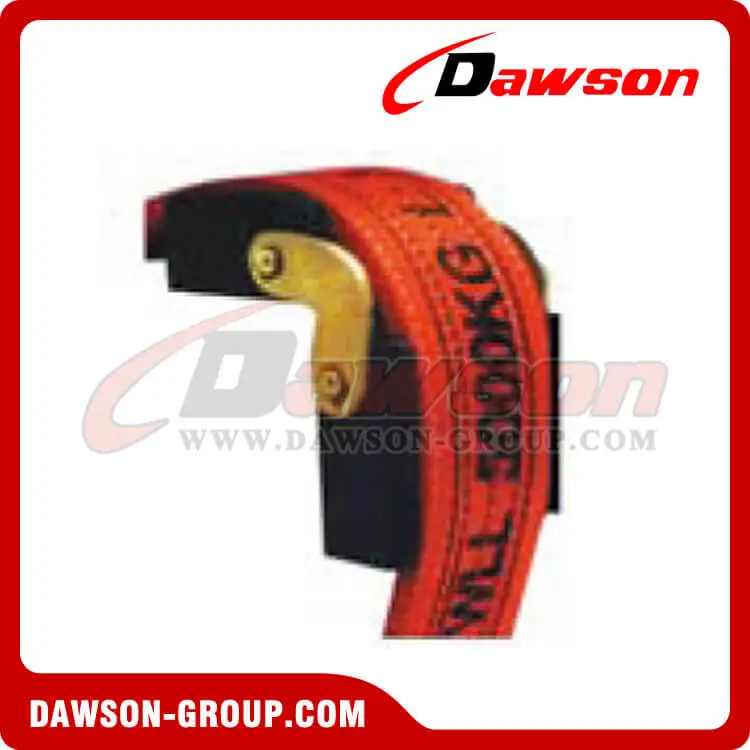

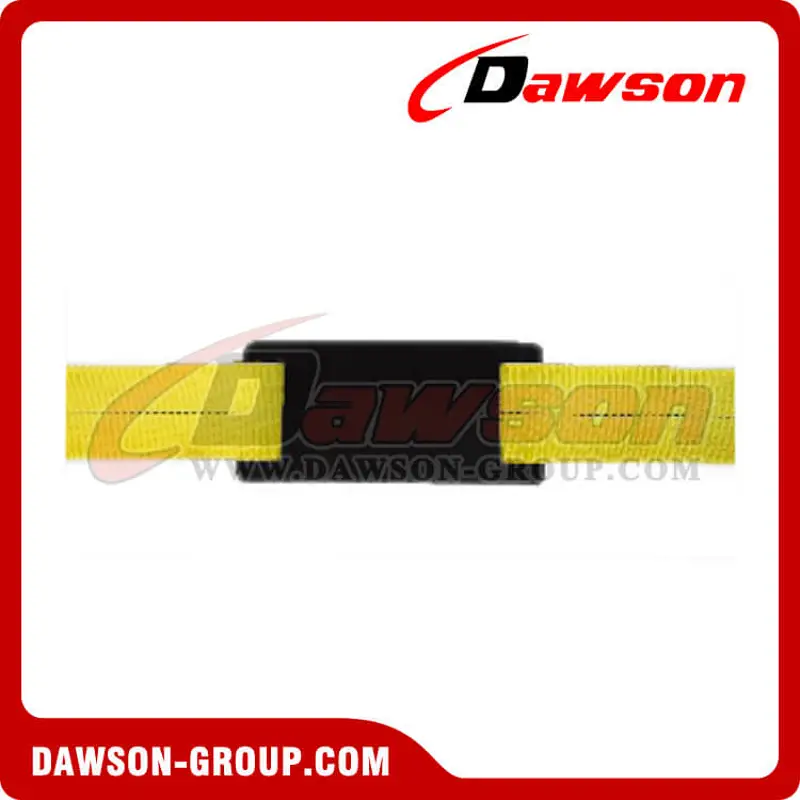

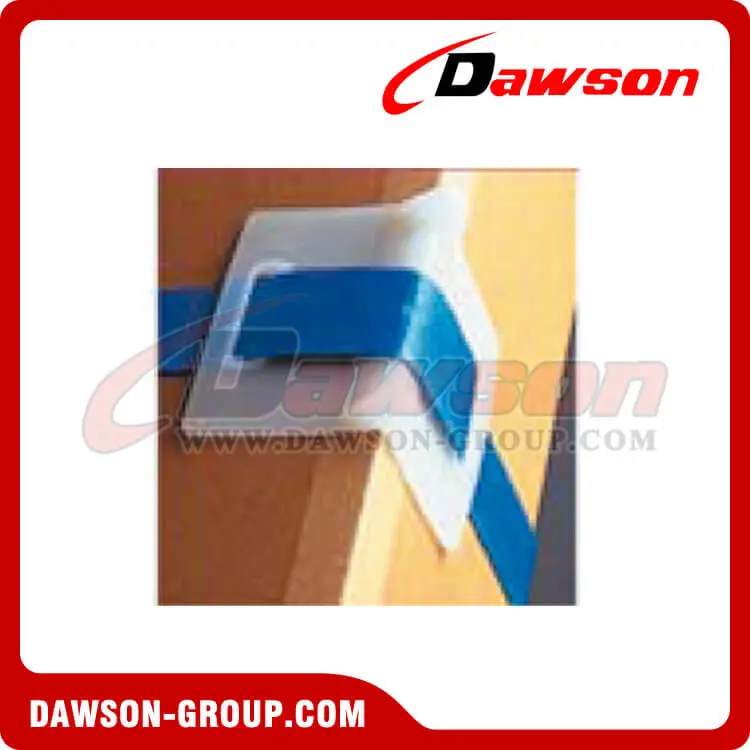

| Model | Material | For Webbing Width | Angle | Dimensions in mm | |||||
| A | B | C | D | E | F | ||||
| YCP01 | STEEL | 25-100mm | 90° | 103 | 103 | ||||
| YCP02 | PE | 50mm | 90° | 135 | 135 | 3 | 65 | ||
| YCP03 | HDPE | 25-100mm | 90° | 190 | 190 | 19 | |||
| YCP04 | HDPE | 25-100mm | 84° | 183 | 136.5 | 5 | |||
| YCP05 | STEEL | 50mm | 90° | 89.5 | 77 | 2.5 | 68.4 | ||
| YCP06 | PE | 50mm | 100° | 179 | 131.5 | 34 | |||
| YCP07 | PE | 50mm | 90° | 135 | 135 | 3 | 65 | ||
| YCP08 | PE | 100mm | 88° | 146 | 195 | ||||
| YCP09 | PE | 50mm | 90° | 150 | 196 | 34 | |||

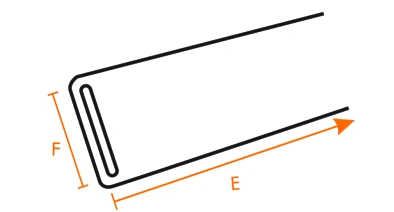

| YPS01-35 YPS01-50 | PVC | 35mm 50mm | 500 500 | 50 75 | |||||
| YPS02 | PES | 25-200mm | 350 | ||||||
| YPS03 | PES | 25-200mm | 350 | ||||||
| YPS04 | PES | 25-200mm | 350 | ||||||
| YPS05-35 YPS05-50 | PLASTIC | 35mm 50mm | 4 4 | 80 100 | 250 280 | ||||
| YPS06 | PLASTIC | 75mm | 4 | ||||||
Welcome to buy the newest and competitive price DAWSON Protective Sleeves Corner Protector from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
