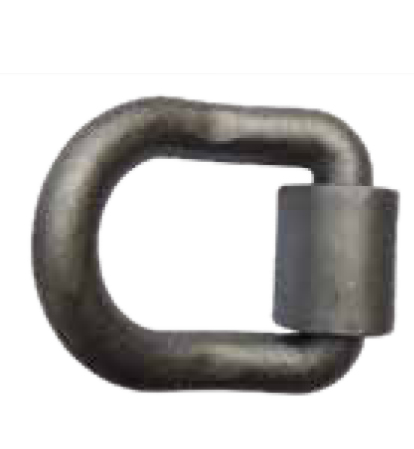

Forged D-Ring With U Bracket - Flatbed Truck Tie Down Accessories
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

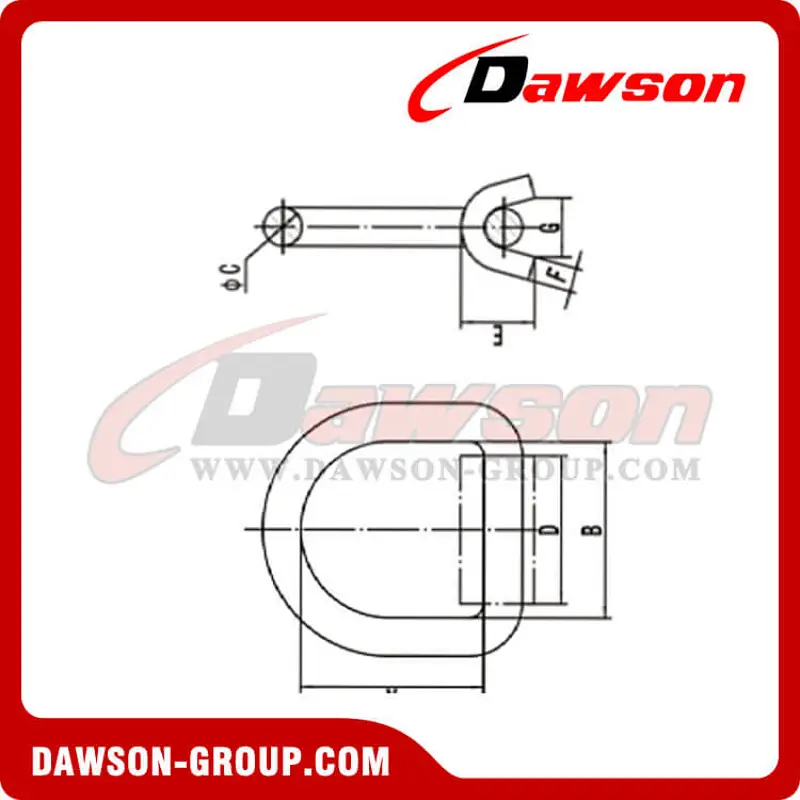

| Item | Description | P/N | A | B | C | D | E | F | G | Net Weight | Pallet Specification | MOQ (PC) | |||||||||
| mm | in. | mm | in. | mm | in. | mm | in. | mm | in. | mm | in. | mm | in. | KG | LBS | L x W x H (mm) | GW (KG) | ||||
| D-Ring With U Bracket | 1/2"D-Ring With U Bracket | DSDRW12 | 63 | 2.46 | 57 | 2.22 | 13 | 0.51 | 50 | 1.95 | 24 | 0.94 | 8 | 0.31 | 27 | 1.05 | 0.46 | 1.012 | 71x78x49 | 950 | 2000 |
| 5/8"D-Ring With U Bracket | DSDRW58 | 75 | 2.93 | 75 | 2.93 | 16 | 0.62 | 64 | 2.50 | 30 | 1.17 | 10 | 0.39 | 30 | 1.17 | 0.83 | 1.826 | 68x71x68 | 1026 | 1200 | |
| 3/4"D-Ring With U Bracket | DSDRW34 | 74 | 2.89 | 74 | 2.89 | 20 | 0.78 | 64 | 2.50 | 33 | 1.29 | 10 | 0.39 | 34 | 1.33 | 1.07 | 2.354 | 90x98x54 | 891 | 800 | |
| 1"D-Ring With U Bracket | DSDRW1 | 75 | 2.93 | 76 | 2.96 | 25.4 | 0.99 | 64 | 2.50 | 41 | 1.60 | 10 | 0.39 | 40 | 1.56 | 1.85 | 4.07 | 37x48x88 | 775 | 400 | |
| 1"D-Ring With U Bracket | DSDRW1S | 99 | 3.86 | 74.5 | 2.91 | 25.4 | 0.99 | 64 | 2.50 | 41 | 1.60 | 10 | 0.39 | 40 | 1.56 | 2.02 | 4.444 | 37x58x88 | 843 | 400 | |
| 1"D-Ring With U Bracket,lower half is angled 55" | DSDRW1B | 99 | 3.86 | 74.5 | 2.91 | 25.4 | 0.99 | 64 | 2.50 | 41 | 1.60 | 10 | 0.39 | 40 | 1.56 | 1.96 | 4.312 | 37x58x95 | 819 | 400 | |
Note: All weights & pallet specifications provided in this catalog are approximate only.
Other Related Products:
 D3001 |  D3001-R |  D3002 |  D3003 |
 D3004 |  D3005 |  D3006 |  D3007 |
 D3009 |  D3010 |  D3010-B |  D3011 |

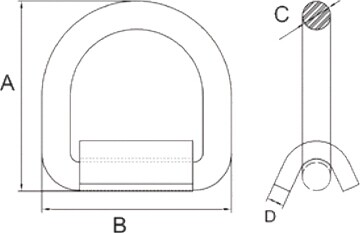

| Forged d ring | A | B | C | D | MBS |  |
| D3001 | 3 1/2" | 3 1/2" | 1/2" | 7.5mm | 12000lbs/5500kgs | |

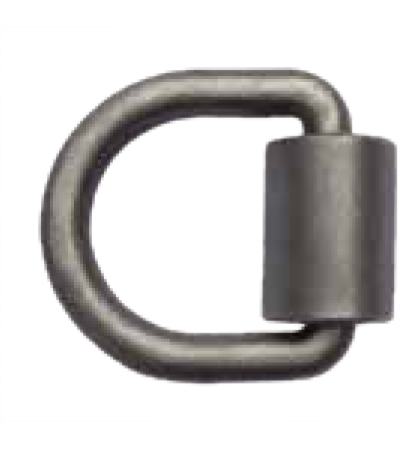

| D3002 | 4 1/4" | 4 1/4" | 5/8" | 10mm | 18000lbs/8000kgs | |
| D3003 | 4 1/2" | 4 1/2" | 3/4" | 10mm | 26500lbs/12000kgs | |

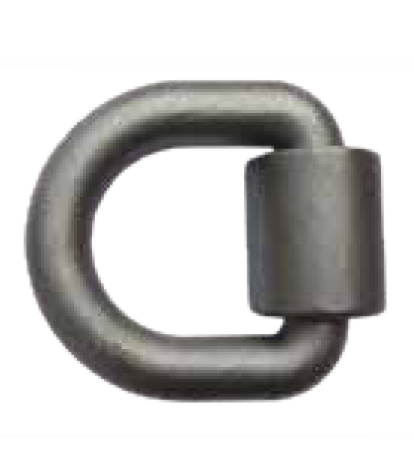

| D3004 | 5" | 5" | 1" | 11mm | 47000lbs/21000kgs | |
| D3005 | 6" | 5" | 1" | 11mm | 47000lbs/21000kgs | |
| D3006 | 6" | 5" | 1" | 11mm | 47000lbs/21000kgs | |

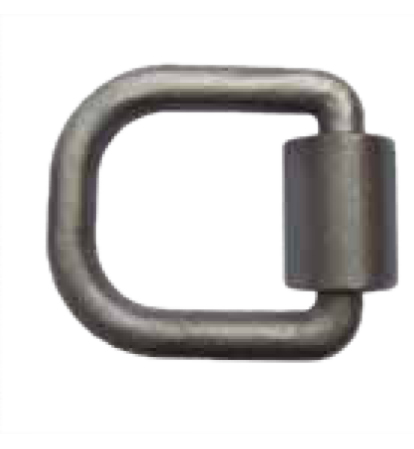

| D3007 | 5/16" | 5" | 20mm | 10mm | 11000lbs/5000kgs | |

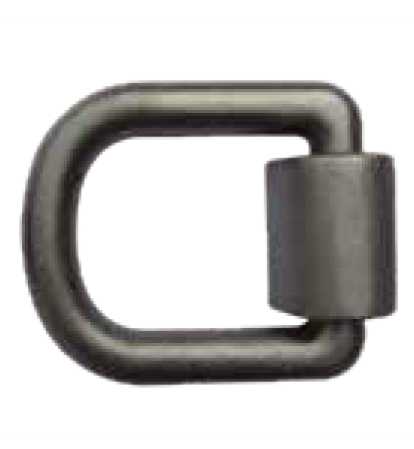

| D3009 | 6 1/2" | 5.7" | 1" | 15mm | 28600lbs/13000kgs | |

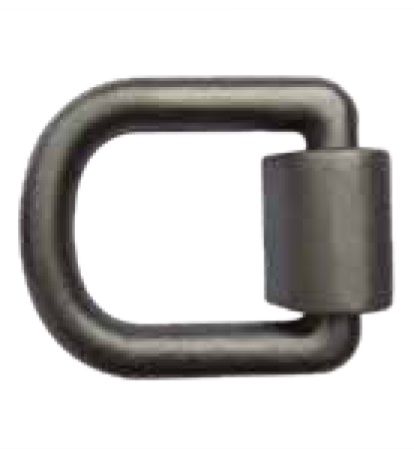

| D3010 | 6 1/2" | 5.7" | 1" | 15mm | 44000lbs/20000kgs | |

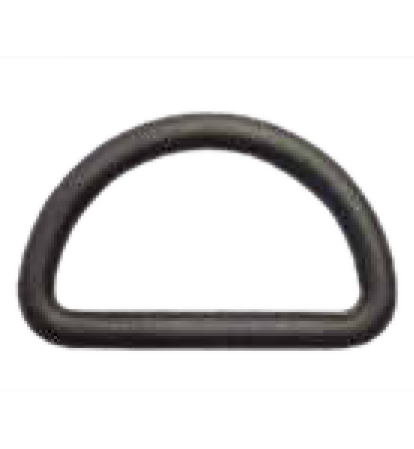

| D3011 | 2" | 3.15" | 8mm | NA | 5720lbs/2600kgs |

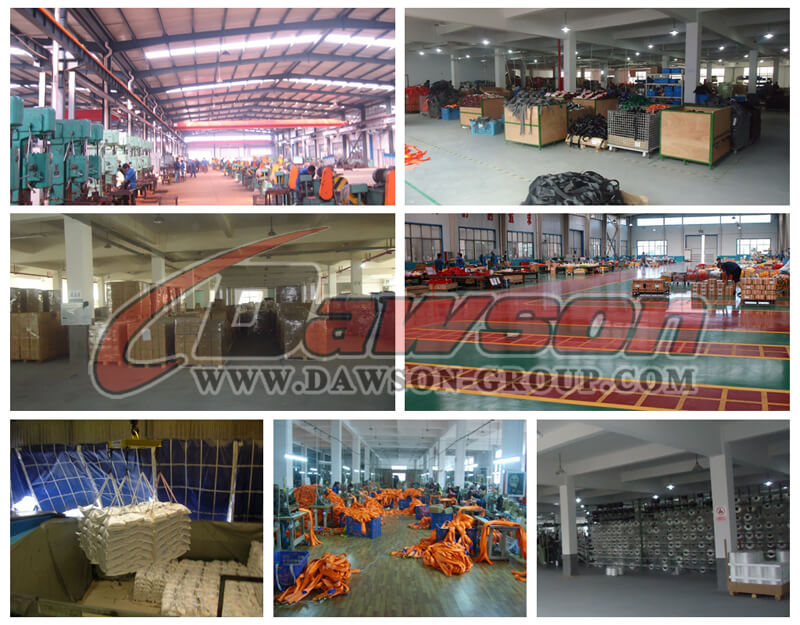

Factory & Package Show:
