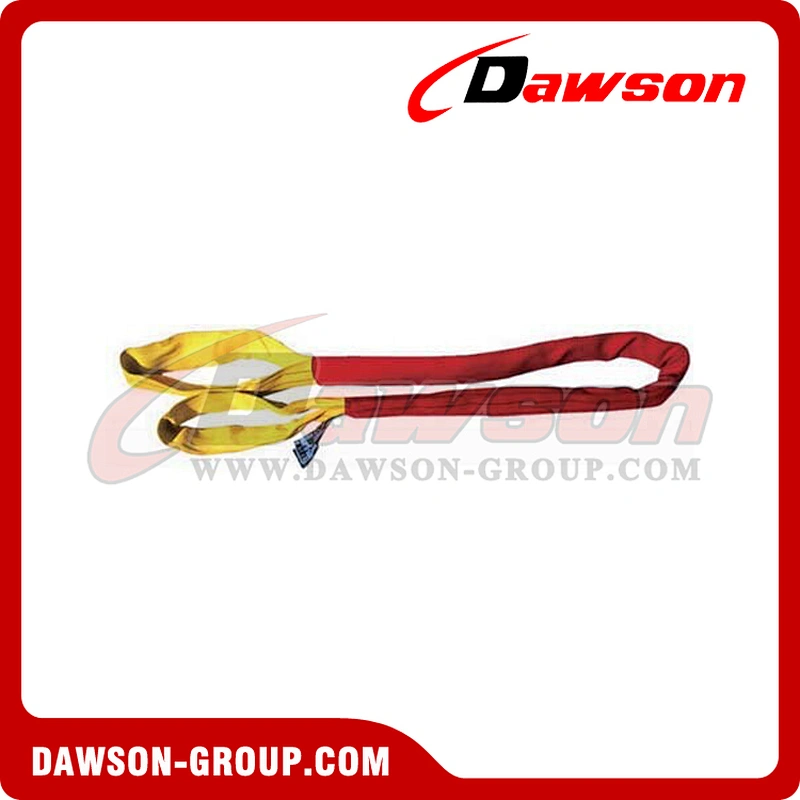

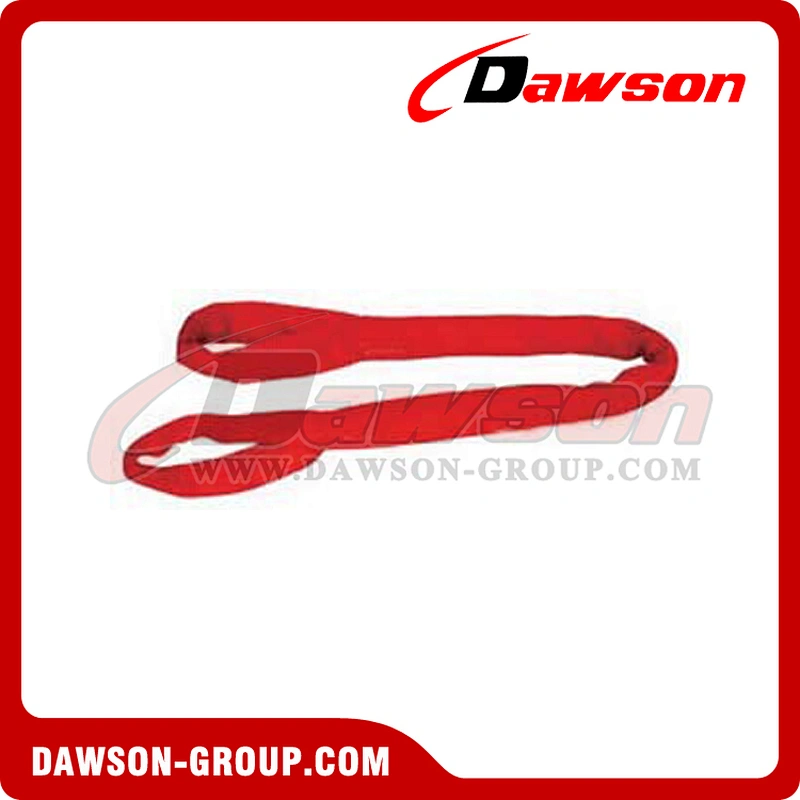

Eye & Eye Round Sling (to ASMEANSI B30.9)
Eye & Eye Round Sling (to ASMEANSI B30.9)
Eye & Eye Round Sling (to ASMEANSI B30.9)
Eye & Eye Round Sling (to ASMEANSI B30.9)
Eye & Eye Round Sling (to ASMEANSI B30.9)

Eye & Eye Round Sling (to ASMEANSI B30.9)

Model NO.
DSRES
Quantity:

Eye & Eye Round Lifting Sling
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

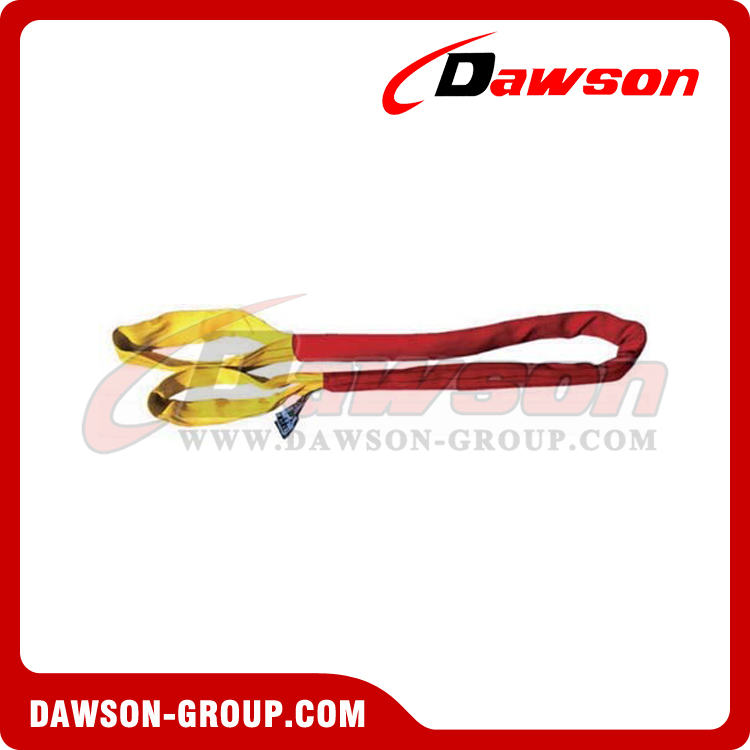

eye & eye round sling - Dawson Group Ltd. China Manufacturer Supplier      eye & eye round slings - Dawson Group Ltd. China Manufacturer Supplier

Material: polyester Nylon

Minimum Safety Factor:5:1

Length: The minimum length is 3ft

Color: Color code

Working temperature range:-40℃-100℃

Standard: ASME B30.9

Eye & Eye Round Lifting Sling is a more rugged and durable polyester round lifting sling with the advantage of an additional abrasion-resistant jacket covering the body of standard round lifting sling, forming two color-coded lifting eyes.



PROTECTIVE SLEEVE

Type A                                                                                                   Type A
Type Btype A                               Type BType B

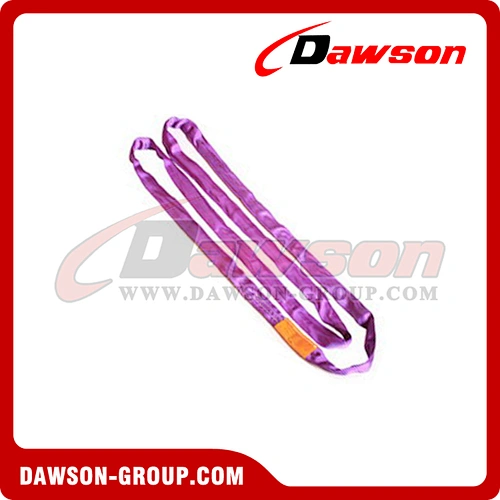

 Round sling

Round sling is an all-purpose lifting sling, which is both high strong and non-damaging to its load. Extremely light in weight and infinitely flexible in all directions, it is easy and quick to manipulate even when awkwardly shaped or fragile loads are being lifted.

Manufactured to EN 1492-2, conforming to the CE GS,ISO4878, ASME B30.9.

lifting slings round slings

Safety Factor 7:1

Black stripes stitched to indicate working load limit: 1 stripe per ton.

Multiple large imprints of Workin Load Limit on outer jacket.

Sealed in plastic bag with Test Certificate after production.

CE declaration of conformity available upon request.

eye and eye round slings lifting round slings

CodeW.L.L.ColorDiameterMin. lengthMax. length
Tonsmmmm
DSRES-1T1.01T301.080
DSRES-2T2.02T401.180
DSRES-3T3.03T451.280
DSRES-4T4.04T521.380
DSRES-5T5.05T581.580
DSRES-6T6.06T611.680
DSRES-8T8.08T691.780
DSRES-10T10.010T762.080
DSRES-12T12.010T852.080
DSRES-15T15.010T962.080
DSRES-20T20.010T1122.580
DSRES-30T30.010T1382.580
DSRES-50T50.010T1922.580
DSRES-100T100.010T2003.080
DSRES-300T300.010T4504.080
DSRES-500T500.010T5004.080




Dawson  Eye & Eye Round Lifting Sling(ASME/ANSI B30.9)Features:

1. Color, in according with international standard, to validate sling capacity.

2. Special thickness sleeves and special technical to add using life.

3. Each strips equal to 1ton capacity, it is easy to differentiate sling capacity.

4. Clearly print WLL and length on surface of sling.

5. Change-bearing point to add using life.

6. If the core material no break, no loss of strength from abrasion, there is a simple ness way, it is easy to differentiate

to decide if the sling is taken away from service or not.

7. 100% polyester has less than 3% extension at rated capacity, and will return originally length, and 9-12% extension at break.

8.Clearly tag with serial number and a copy of certificate together with one sling.

9. Working temperature range: -40 -100

Advice for use:


1.Failure to comply with this warning may result in serious load damage and death or injury.

2.Use only if trained.

3.Can fail if damaged, misused or overloaded.

4.Inspect sling for damage before each use.

5.Always protect sling webbing from sharp edges of load.

6.Do not attempt to use sling above rated lifting capacity.

7.Do not use sling if rated capacity tag is removed or unreadable.

8.Avoid acid, alkali and sunlight.

9.Do not tie knots in sling webbing as strength is greatly reduced.

10.Do not use sling if there are any signs of cut webbing, heat or chemical damage, excessive wear, or other defects.

11.Consult sling load chart for basket hitch capacity reduction due to sling angle.

12.Do not try to repair sling by yourself.



Other sizes can be produced upon request, more information, please contact us: info@dawson-group.com


1 TON ROUND SLINGS, 2 TON ROUND SLINGS, 3 TON ROUND SLINGS, 4 TON ROUND SLINGS, 5 TON ROUND SLINGS, 6 TON ROUND SLINGS, 8 TON ROUND SLINGS, 10 TON ROUND SLINGS, 12 TON ROUND SLINGS, 15 TON ROUND SLINGS, 20 TON ROUND SLINGS, 30 TON ROUND SLINGS, 40 TON ROUND SLINGS, 50 TON ROUND SLINGS, 80 TON ROUND SLINGS, 100 TON ROUND SLINGS, 120 TON ROUND SLINGS, 150 TON ROUND SLINGS, 200 TON ROUND SLINGS, 300 TON ROUND SLINGS, 500 TON ROUND SLINGS, 800 TON ROUND SLINGS, 1000 TON ROUND SLINGS

1T ROUND SLINGS, 2T ROUND SLINGS, 3T ROUND SLINGS, 4T ROUND SLINGS, 5T ROUND SLINGS, 6T ROUND SLINGS, 8T ROUND SLINGS, 10T ROUND SLINGS, 12T ROUND SLINGS, 15T ROUND SLINGS, 20T ROUND SLINGS, 30T ROUND SLINGS, 40T ROUND SLINGS, 50T ROUND SLINGS, 80T ROUND SLINGS, 100T ROUND SLINGS, 120T ROUND SLINGS, 150T ROUND SLINGS, 200T ROUND SLING, 300T ROUND SLINGS, 500T ROUND SLINGS, 800T ROUND SLINGS, 1000T ROUND SLINGS

1000KG ROUND SLINGS, 2000KG ROUND SLINGS, 3000KG ROUND SLINGS, 4000KG ROUND SLINGS, 5000KG ROUND SLINGS, 6000KG ROUND SLINGS, 8000KG ROUND SLINGS, 10000KG ROUND SLINGS, 12000KG ROUND SLINGS, 15000KG ROUND SLINGS, 20000KG ROUND SLINGS, 30000KG ROUND SLINGS, 40000KG ROUND SLINGS, 50000KG ROUND SLINGS, 80000KG ROUND SLINGS, 100000KG ROUND SLINGS, 120000KG ROUND SLINGS, 150000KG ROUND SLINGS, 200000KG ROUND SLING, 300000KG ROUND SLINGS, 500000KG ROUND SLINGS, 800000KG ROUND SLINGS, 1000000KG ROUND SLINGS

Other related products:

Eye Eye Round Sling (to ASME ANSI B30.9) - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

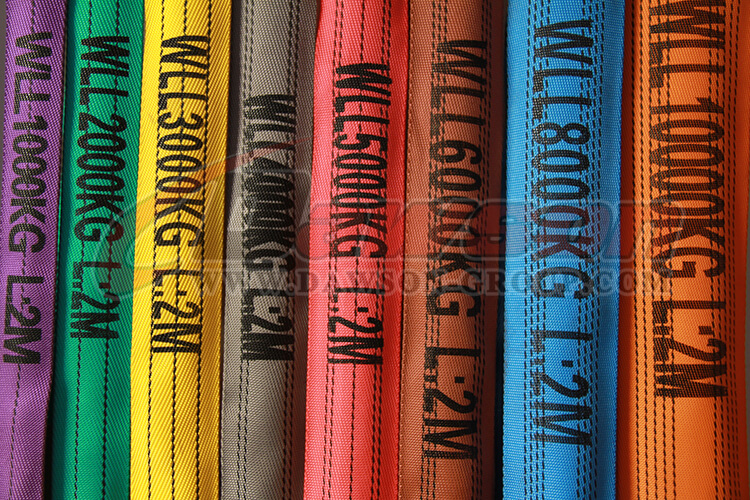

EN1492-2 Round Slings - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

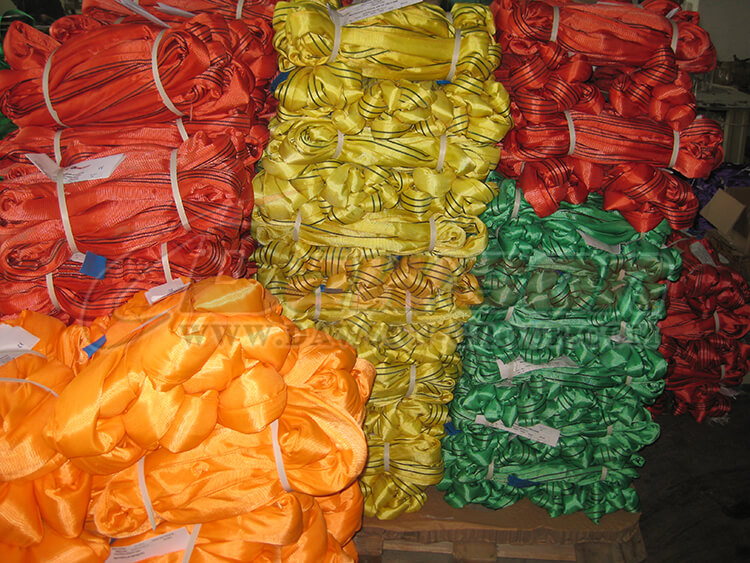

EN1492-2 Round Slings

Hot Tags: Heavy Duty Round Slings, Lifting Slings, Endless Round Sling China Supplier, Crane Lifting Sling Factory China, Textile Lifting Slings China Manufacturer, Low Price Polyester Lifting Slings, Round Sling for Lifting in Stock, Buy Discount Synthetic Lifting Slings, Dawson Brand Round Lifting Slings, Free Sample Polyester Lifting Slings, Wholesale Crane Lifting Slings, Heavy Lift RoundSlings, Flexible Lifting Slings, Soft Round Slings, Crane Slings, Rigging Slings, Eye and Eye Round Sling, Round Lifting Slings

Application of  eye & eye round slings:

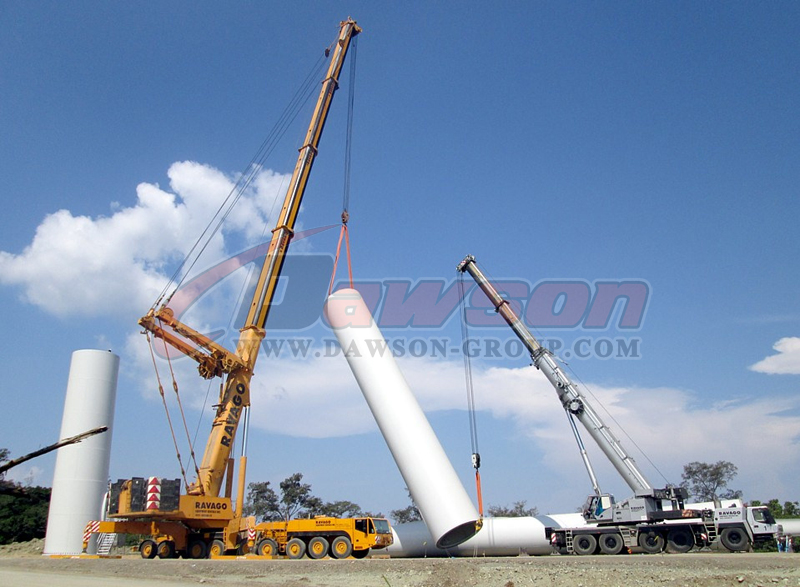

application of polyester round sling

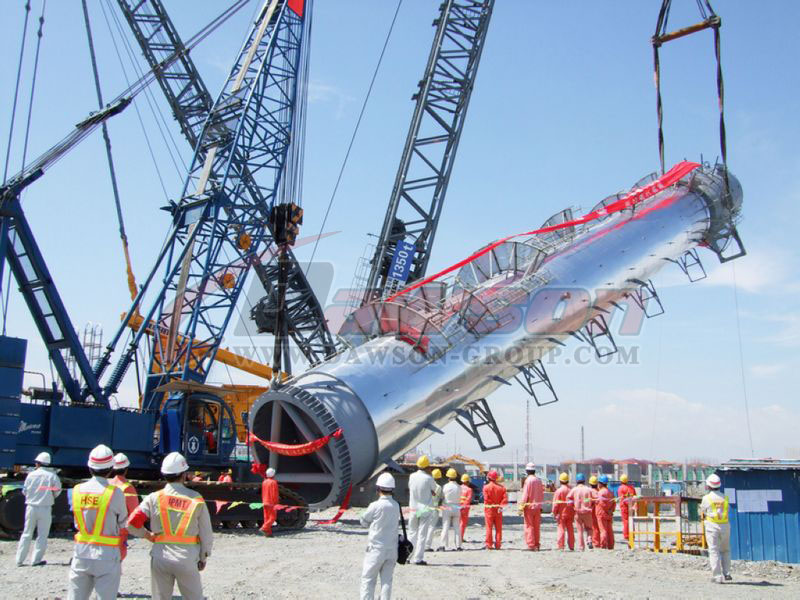

round-slings-china-polyester-round-slings-webbing-slings-dawson-group

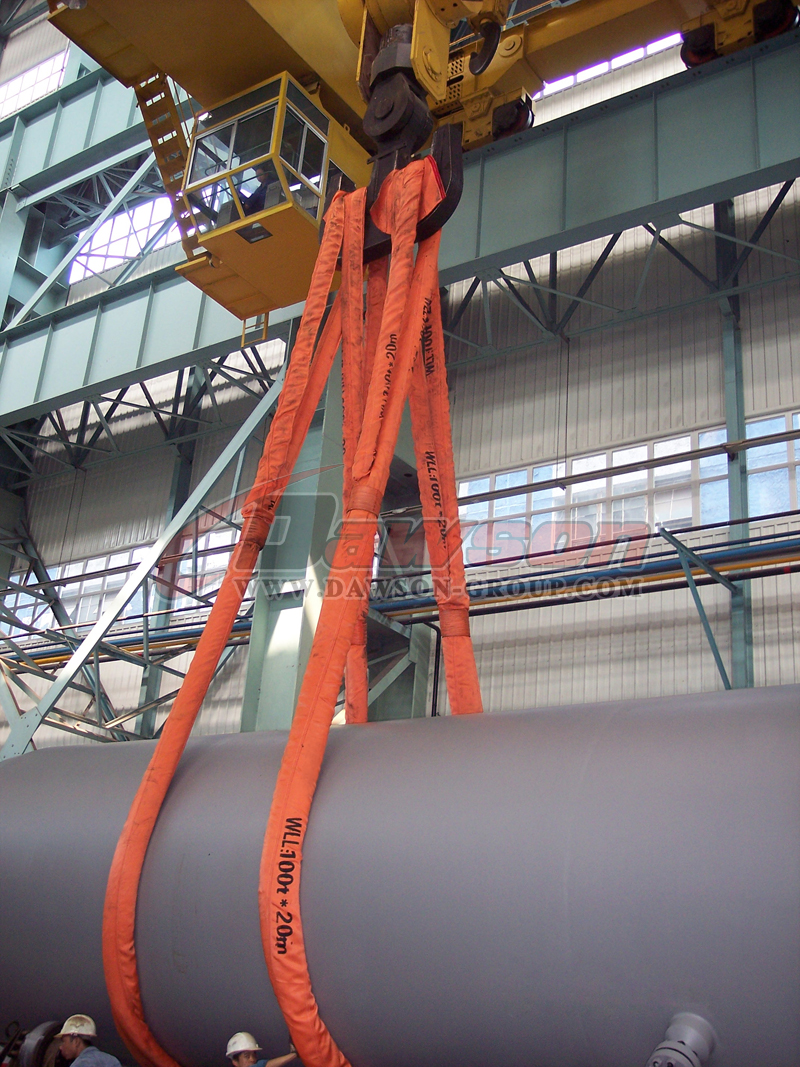

HEAVY DUTY ROUND SLINGS DAWSON GROUP

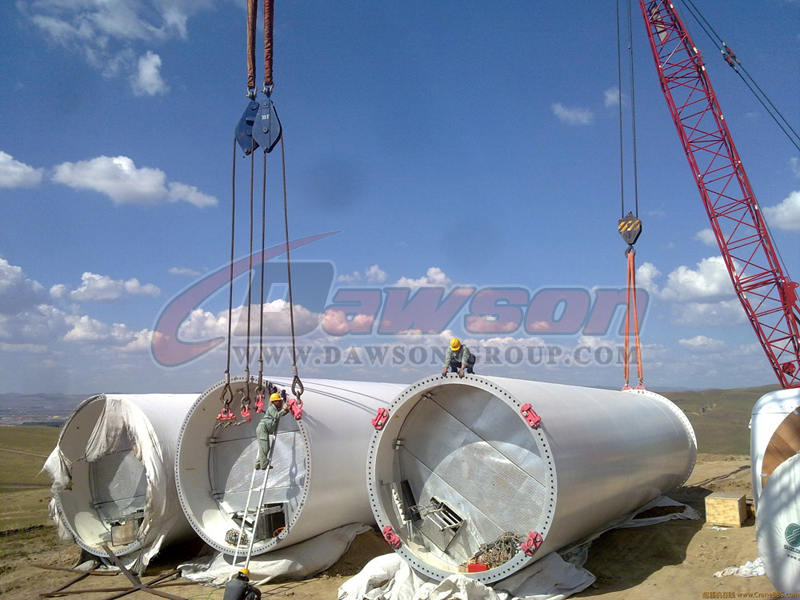

polyester round slings application

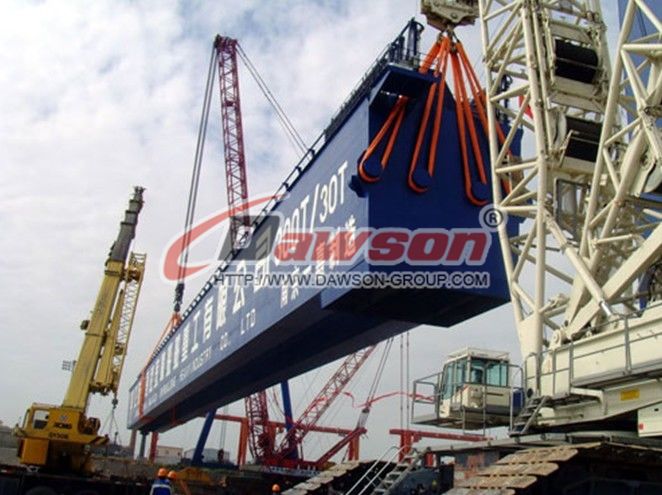

polyester-round-slings-lifting-slings-dawson-group-china

Factory & Package Show:

China Factory of Eye Eye Round Sling - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

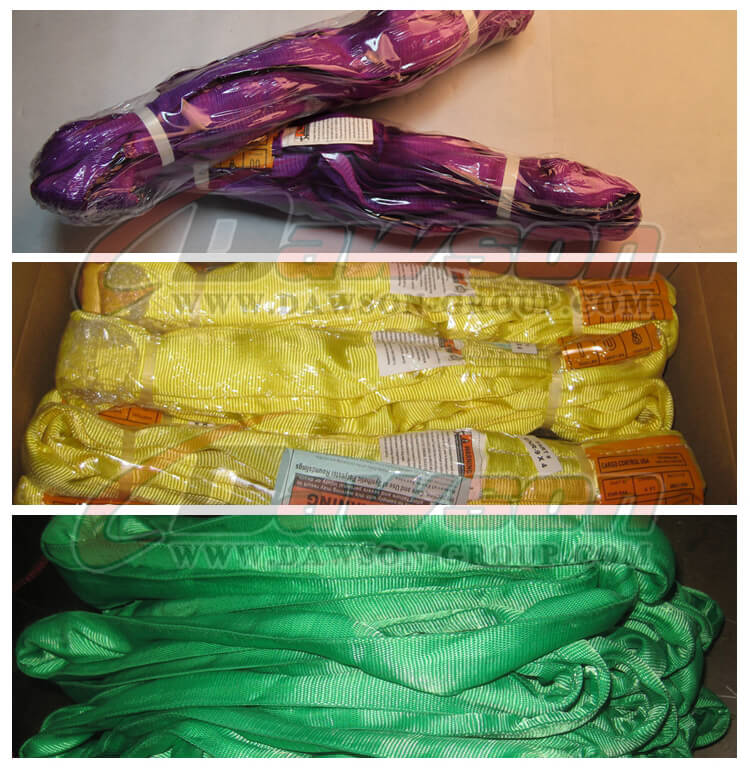

China Packing of Eye Eye Round Sling - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
