Endless Type Polyester Webbing Slings - EN 1492-1 - Lifting Slings
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
 | polyester-endless-webbing-slings Type - Endless polyester webbing slings. -Single or double ply. Technical specifications -Colour coded according to EN 1492-1. -Capacity stripes; each stripe is equal to 1 tonne capacity. Characteristics -Low elongation. -Extra strong webbing for a high abrasion resistance. Norms -According to Machine Directive 98/37/EC. |

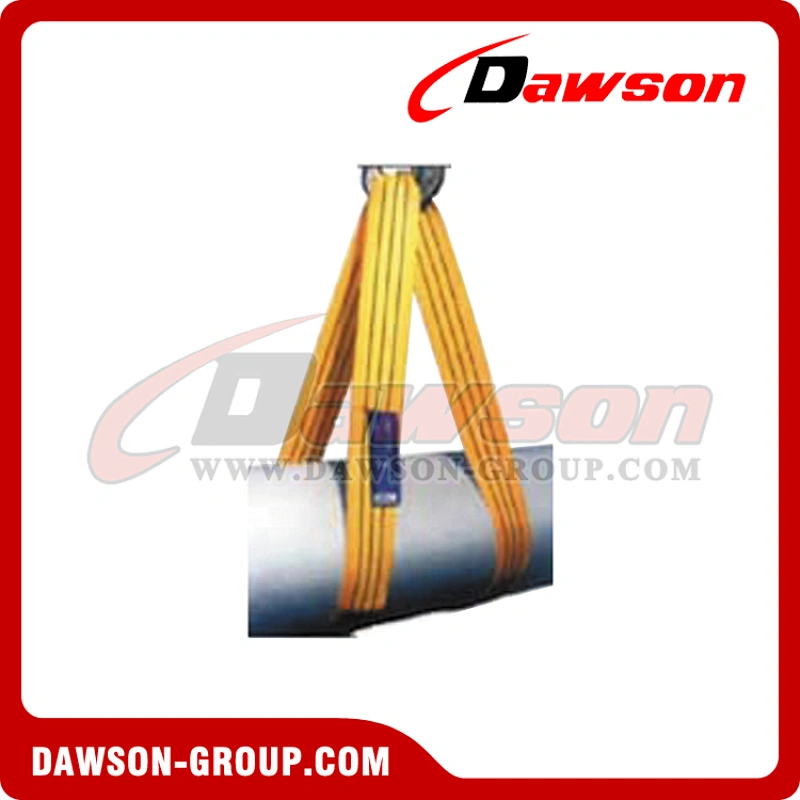

 | Lifting Sling - Endless is very economical and the most versatile Lifting Sling. It can be used in all three types of hitches and wear points can be moved to increase lifting sling life. The lifting sling legs can be spread for improved load balance. |
 | Item | Webbing Width (inch) | Vertical | Choker | Vertical Basket | 60 Basket | 45 Basket | 30 Basket | M.B.S. |
 |  |  |  |  |  | ||||
| lbs | lbs | lbs | lbs | lbs | lbs | lbs | |||
| DSWSEN-1-6010 | 1 | 2,200 | 1,760 | 2,200 | 3,811 | 4,400 | 3,111 | 11,000 | |
| DSWSEN-1-6015 | 1 - 1/2 | 3,200 | 2,560 | 6,400 | 5,543 | 4,525 | 3,200 | 16,000 | |
| DSWSEN-1-6017 | 1- 3/4 | 3,800 | 3,040 | 7,600 | 6,582 | 5,374 | 3,800 | 19,000 | |
| DSWSEN-1-6020 | 2 | 4,400 | 3,520 | 4,400 | 7.621 | 8,800 | 6,222 | 22,000 | |
| DSWSEN-1-6030 | 3 | 6,600 | 5,280 | 6,600 | 11,432 | 13,200 | 9,333 | 33,000 | |
| DSWSEN-1-6040 | 4 | 8,800 | 7,040 | 8,800 | 15,242 | 17,600 | 12,444 | 44,000 | |
| DSWSEN-1-6050 | 5 | 11,000 | 8,800 | 11,000 | 19,052 | 22,000 | 15,554 | 55,000 | |
| DSWSEN-1-6060 | 6 | 13,200 | 10,560 | 13,200 | 22,863 | 26,400 | 18,665 | 66,000 |
 | Item | Webbing Width (inch) | Vertical | Choker | Vertical Basket | 60 Basket | 45 Basket | 30 Basket | M.B.S. |
| | | | | | ||||
| lbs | lbs | lbs | lbs | lbs | lbs | lbs | |||
| DSWSEN-1-9010 | 1 | 3,200 | 2,560 | 6,400 | 5,543 | 4,525 | 3,200 | 16,000 | |
| DSWSEN-1-9015 | 1 - 1/2 | 4,600 | 3,680 | 9,200 | 7,768 | 6,505 | 4,600 | 23,000 | |
| DSWSEN-1-9017 | 1- 3/4 | 5,400 | 4,320 | 10,800 | 9,353 | 7,636 | 5,400 | 27,000 | |
| DSWSEN-1-9020 | 2 | 6,200 | 4,960 | 12,400 | 10,739 | 8,767 | 6,200 | 31,000 | |
| DSWSEN-1-9030 | 3 | 9,400 | 7,520 | 18,800 | 16,281 | 13,292 | 9,400 | 47,000 | |
| DSWSEN-1-9040 | 4 | 12,400 | 9,920 | 24,800 | 21,477 | 17,534 | 12,400 | 62,000 | |
| DSWSEN-1-9050 | 5 | 15,600 | 12,480 | 31,200 | 27,020 | 22,059 | 15,600 | 78,000 | |
| DSWSEN-1-9060 | 6 | 18,600 | 14,880 | 37,200 | 32,216 | 26,300 | 18,600 | 93,000 | |
| DSWSEN-1-9080 | 8 | 21,150 | 16,920 | 42,300 | 36,632 | 29,907 | 21,150 | 105,750 | |
| DSWSEN-1-9100 | 10 | 26,450 | 21,160 | 52,900 | 45,812 | 37,401 | 26,450 | 132,250 |
 |  |  |
 |  |  |
Other sizes can be produced upon request, more information, please contact us: info@dawson-group.com
Other sizes can be produced upon request, more information, please contact us: info@dawson-group.com
