DS6101 Energy Absorbers EN355
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

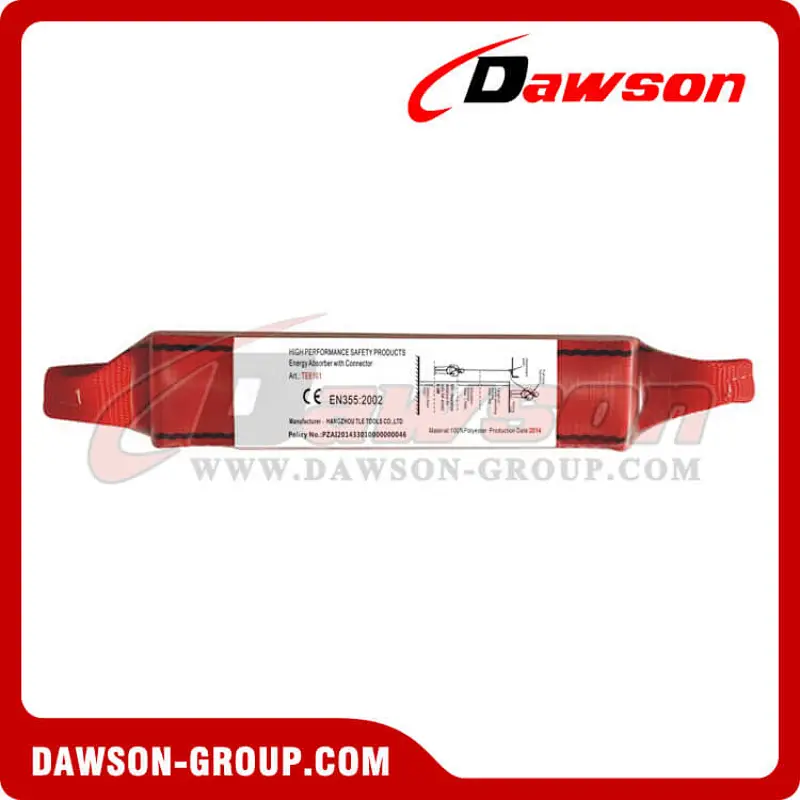

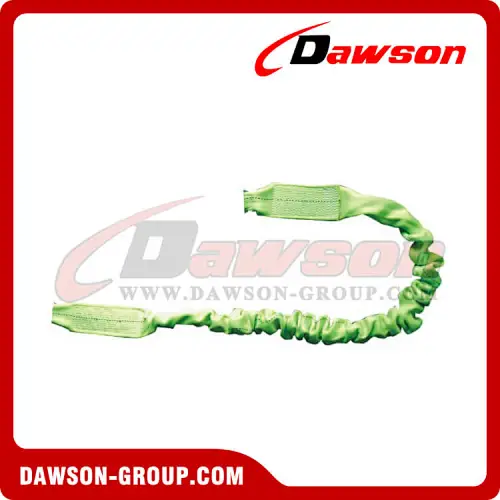

Standard shock absorber to be used with lanyards up to 2M long.
Max extension: Fully open length =160 CM
Dimensions: 260x45x30mm
Weight: 250g
Material: Polyester 100%

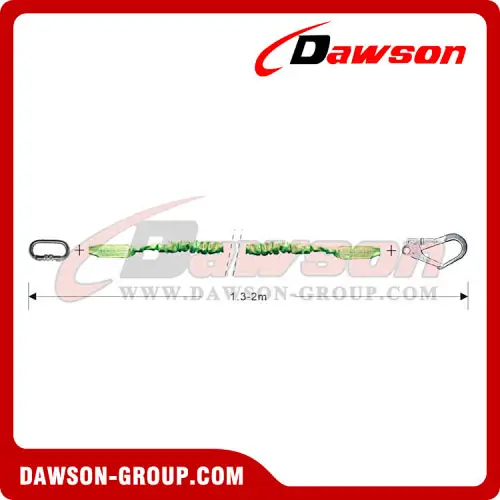

Energy Absorbers Lanyard
 |  |  |

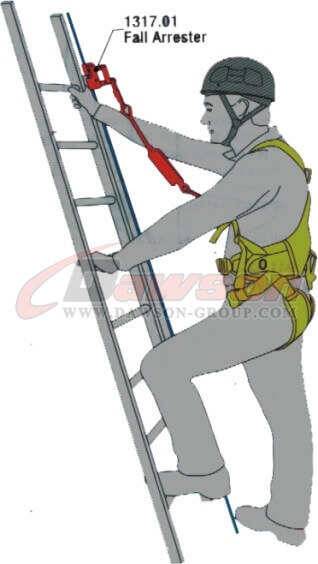

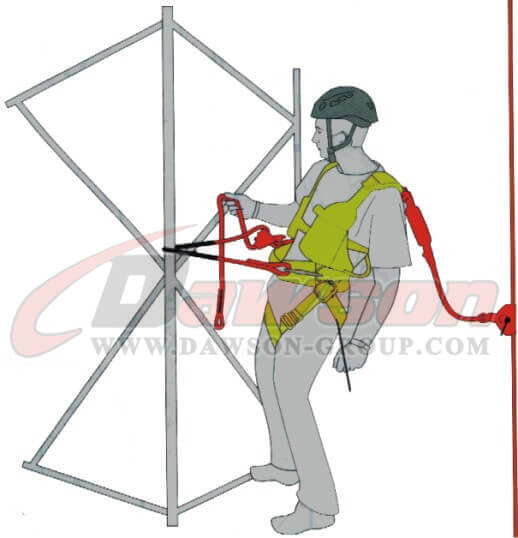

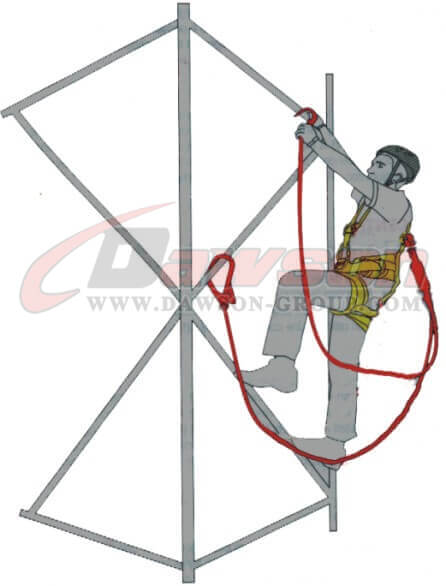

Fall Arrest: A fall arrest system must be used when working at heights of 2 meters or more if a fall hazard Exists. | Guided type fall arresters: Specification for guided type fall arresters on a flexible anchorage line | Positioning: A positioning system is used to hold a worker in place at elevated heights. |
FALL FACTOR
Fall factor is a rating used to evaluate the danger of specific scenarios when working at heights.Fall Factor is calculated using the following equation:
Fall Factor=Height of Fall/Length of Lanyard
In cases when the Fall Factor is 0 (e.g.the worker is positioned under the anchor point with a tensioned lanyard) or in cases when the Fall Factor is 1 or less and the freedom of movement is limited to 0.6m or less,positioning equipment is adequate.
Fall arrest equipment must be used for other situations where the Fall Factor is greater than 1 or more freedom of movement is required.
Systems involving Fall Factors include:
Restraint: technique used to prevent a worker from entering a fall risk area (e.g. positioning harness and lanyard EN358).
Positioning: technique used to position a worker securely in a fall risk area without creating a Fall Factor scenary(e.g.hanging beneath an anchor point in a positioning harness on a tensioned lanyard EN358).
Fall Arrest: technique used to catch and reduce the force of a fall from heights(e.g.use of a Fall Arrest Lanyard EN361 and Shock Absorbing Lanyard EN355).
| DS6101 Shock Absorber | Fall factor | |||
| 0 | 1 | 2 | ||
| Length of lanyard | 2m | 3.25m | 5.25m | 6.75m |
| 1.5m | 3.25m | 4.75m | 6.25m | |
| DS6101A Shock Absorber | Fall factor | |||
| 0 | 1 | 2 | ||
| Length of lanyard | 1.5m | 2.2m | 3.7m | 5.2m |
| 1.35m | 3.25m | 4.75m | - | |

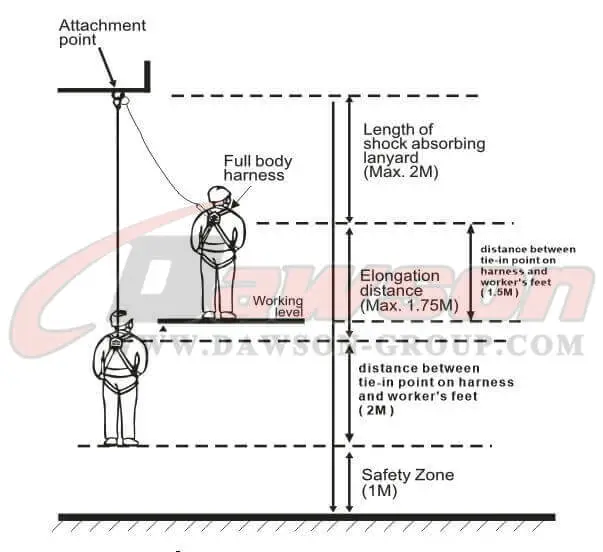

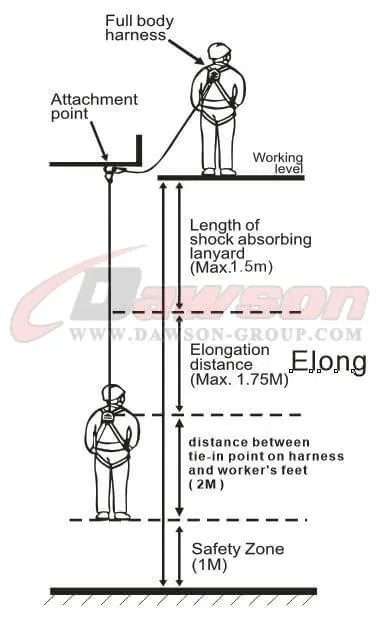

Proper Working Height
 |  |  |

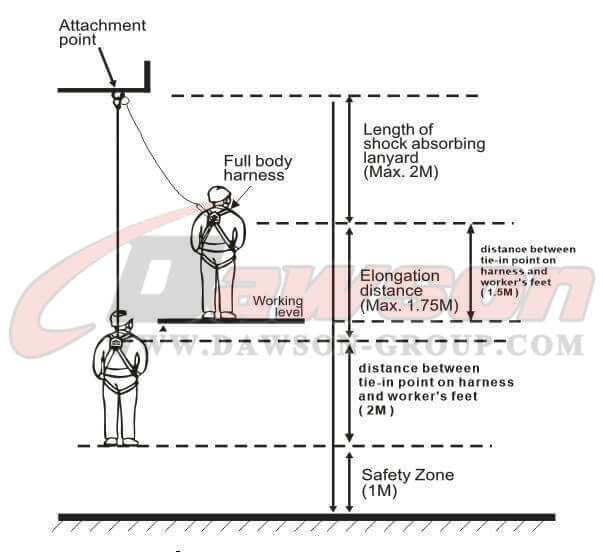

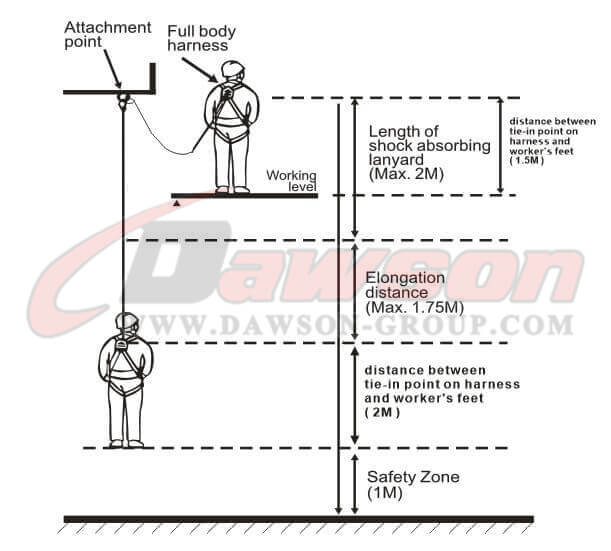

| 2.MIN,CLEARANCE DIS TANCE FOR SAFE FALL ARRET(6.75M) | 1.MIN,CLEARANCE DIS TANCE FOR SAFE FALL ARRET(5.25M) | 0.MIN,CLEARANCE DIS TANCE FOR SAFE FALL ARRET(3.25M) |
 | Positioning belt ,lateral D-rings |  | Pole climbing |  | Electrical power supply |
 | Full body harness |  | Rope access |  | Scaffold |
 | Full body harness,frontal anchorage |  | Confined space |  | Wind energy |
 | Ventral D-ring |  | Telecomunication |  | Lifting platforms |
 | Outdoor |  | Firefighters |  | Roofing |
 | Rescue |  | Industry ,general |  | Service |
 | Oil industry |  | Steel construction |  | Constructions |
Hot Tags: Energy Absorbers, Shock Energy Absorber, Energy Absorbers for Rescue Factory, Shock Energy Absorber for Outdoor Supplier, Shock Energy Absorber for Safety Belt, China Energy Absorbers Manufacturer, Competitive Price Safety Shock Absorber, Low Price Energy Absorbers, Cheap Price Shock Energy Absorber, Shock Absorber High Quality Energy Absorbers China Exporter, Energy Absorbers for Firefighters, Shock Energy Absorber for Constructions, Shock Energy Absorber for Constructions, Shock Energy Absorber for Industry, Shock Energy Absorber for Safety Belt In Stock, Hot Sale Energy Absorbers, Shock Energy Absorber Customized, Wholesale Energy Absorbers, Safety Shock Absorber In Bulk
Other related products and applications:

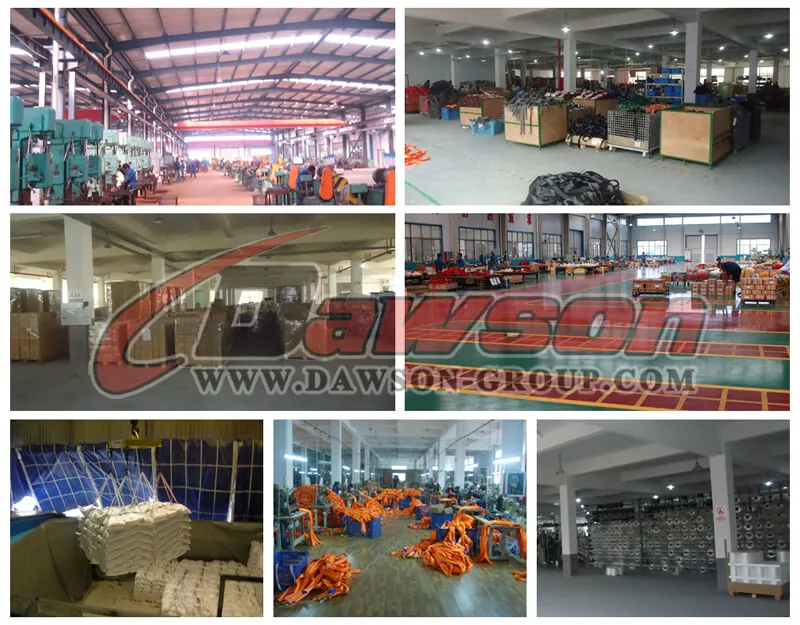

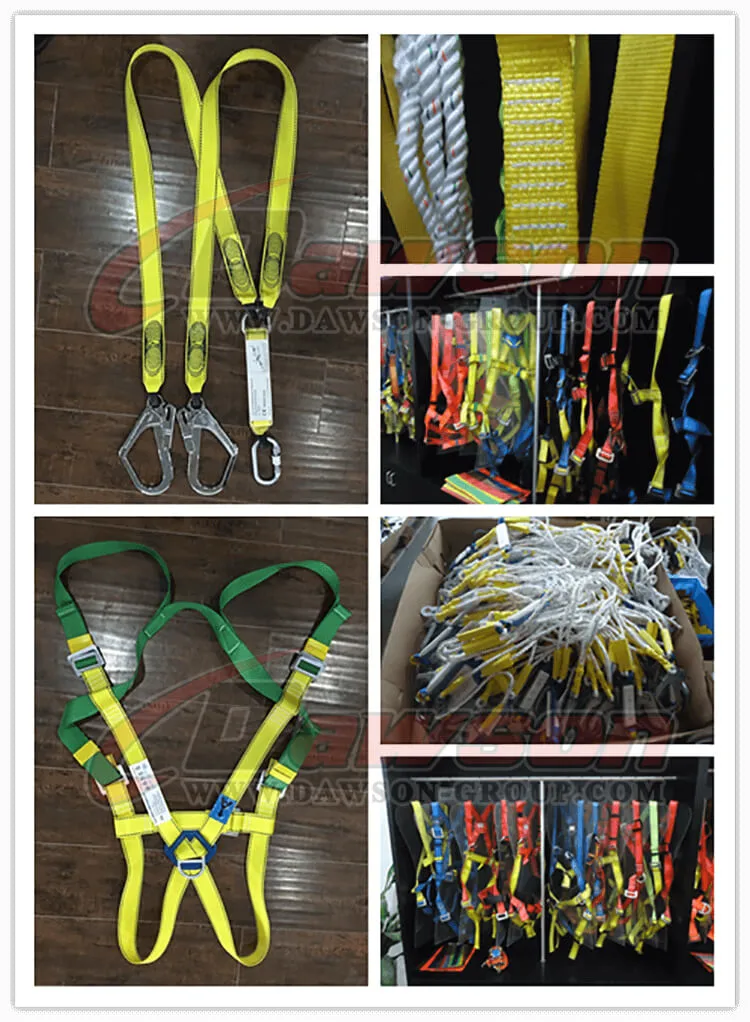

Factory & Package Show:
