DS-TCP Type Push Trolley Clamp
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

The easy installation to any beam makes the DS-TCP Trolley Clamp suitable for affixing and moving hoists, pulleys and loads. It can be adjusted quickly to the beam width by turning the main spindle. Safety is ensured by the special locking lever.


Part No.ModelCapacity
(t)
Proof Load
(kN)
Min. radius of curve
(m)

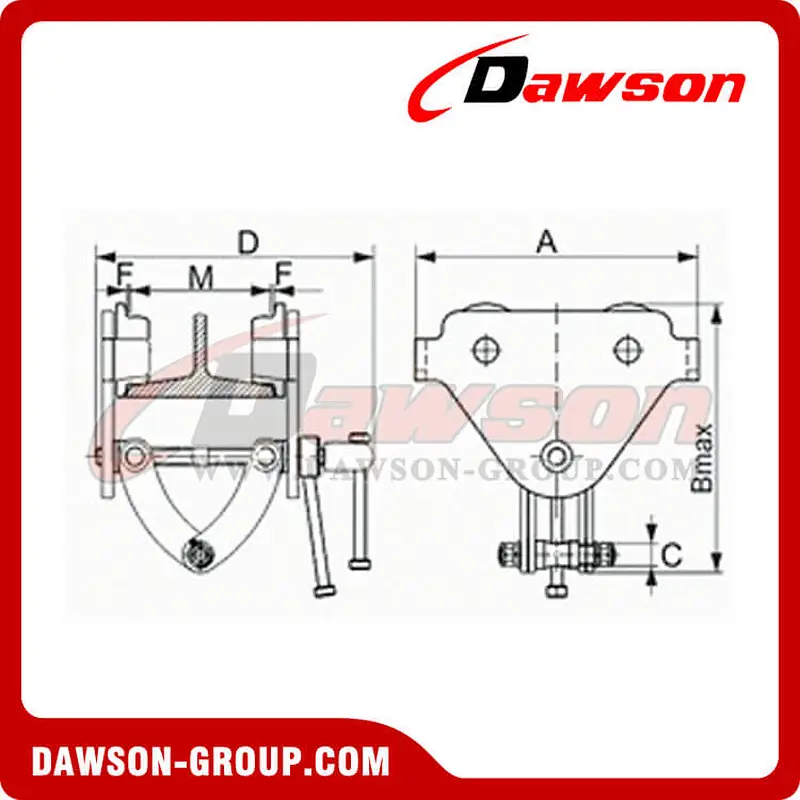

Dimensions(mm)Beam Width(mm)Net Weight
(Kg)
AB maxCDFM
DS-0243DS-TCP0.50.57.351.126025316325≈364-2039.1
DS-0244DS-TCP1114.71.12602562032564-20310
DS-0245DS-TCP2229.41.32603052034076-20318
DS-0246DS-TCP3344.11.43453112234576-20329
DS-0247DS-TCP5573.51.539539328365100-30549

Welcome to buy the newest and competitive price DAWSON DS-TCP Type Push Trolley Clamp from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.

For further information, please contact us. Email:info@dawson-group.com

Safety lifting

● The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37  HrC (345HB,1166 N/mm²).

● The lifting clamps are suitable for usage in normal atmospheric conditions, between -40℃ and +100℃

● Never overload a clamp and prevent the jerking of loads.

● When loading always use the whole jaw depth.

● Never lift more than one plate at the same time.

● Always keep your distance during lifting and descending of a load.

● Prevent situations that anybody is under the load.

● Any welding to the clamp is forbidden, this can influence the hardness and toughness of the clamp.



Other Related Products:





Application of Lifting Clamps:



Equipments for Push Trolley Clamp:

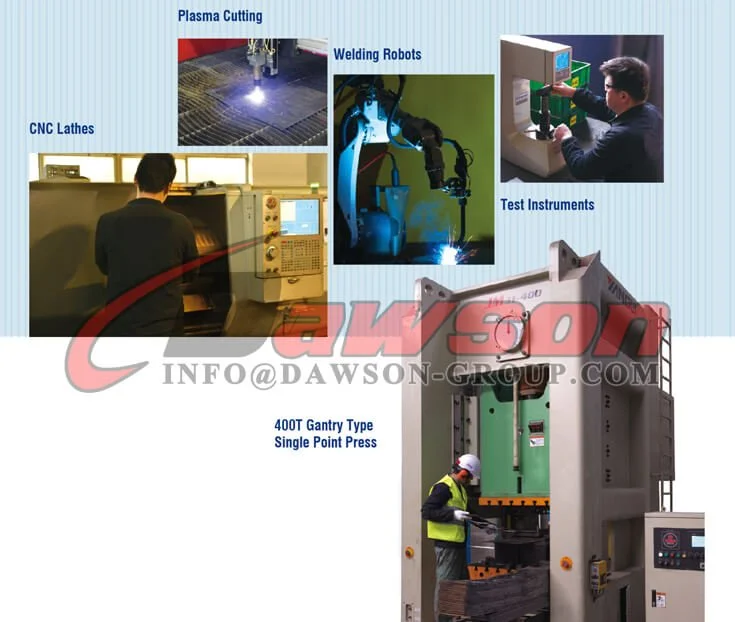

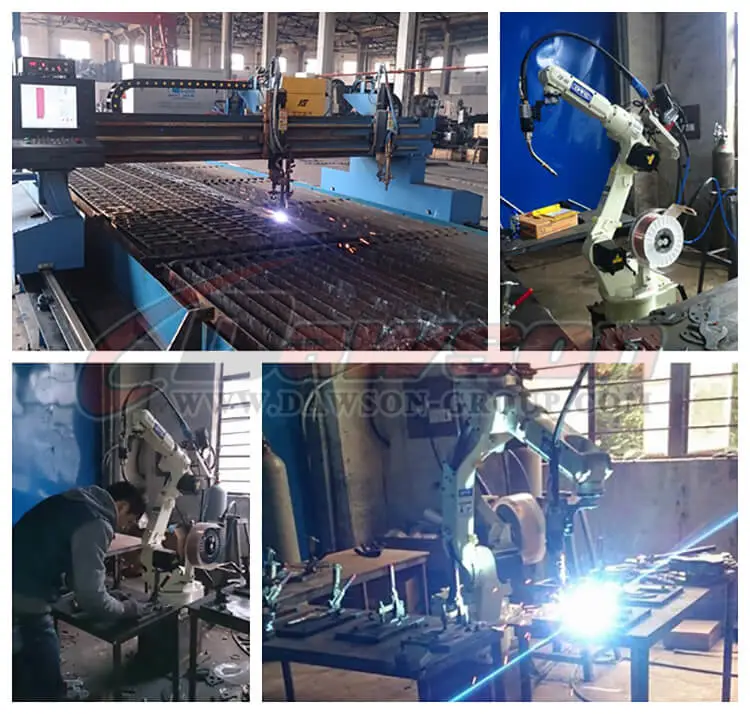

Factory & Package Show:
