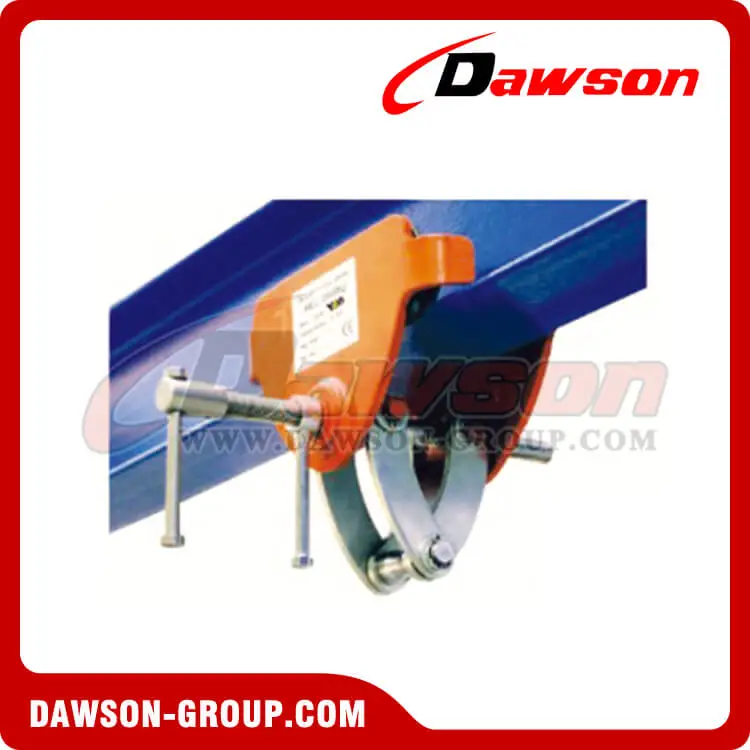

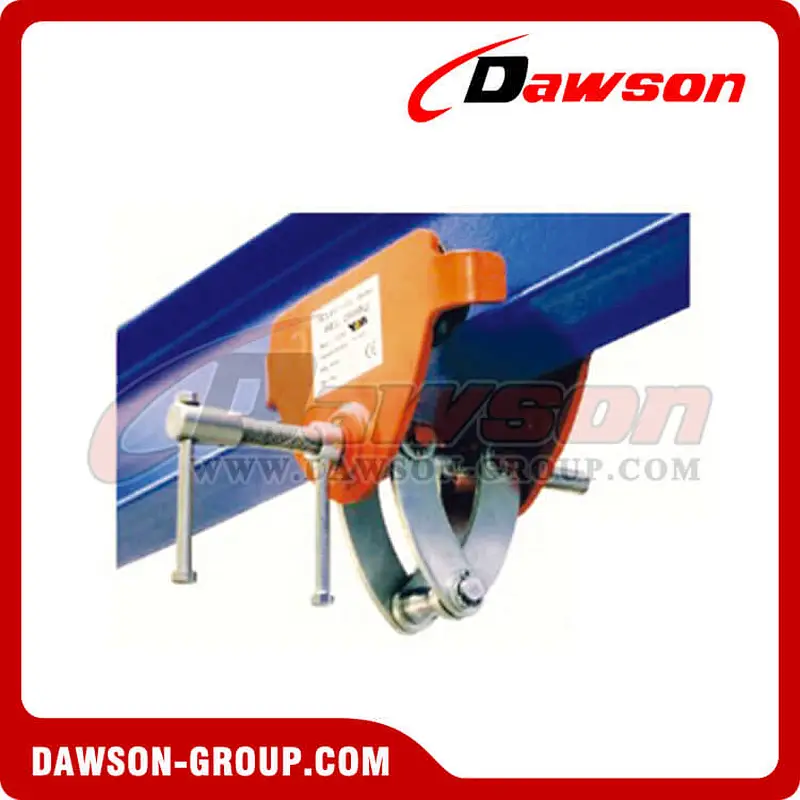

DS-TC Type Plain Trolley
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
The plain trolley loading 1000~3000kg is suitable for overhead beams to add devices and transport of loading heavy goods. The central threaded spindle can be quickly adjusted to fit the beam width. The spindle and horseshoe are zinced painted to prevent from corrosion

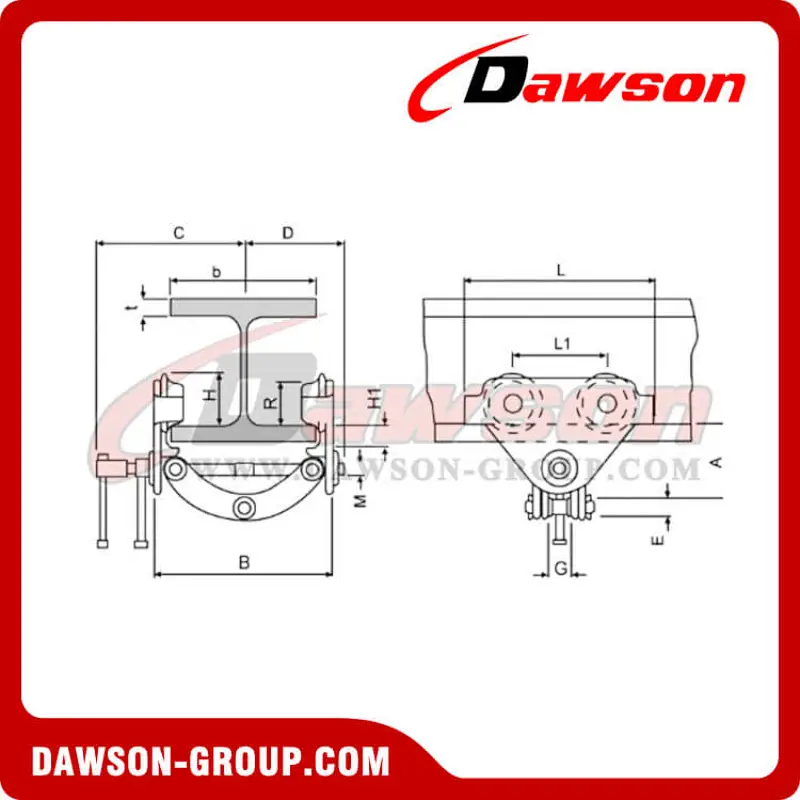

| Part No. | Model | Capacity (kg) | Width b(mm) | A (mm) | G (mm) | E (mm) | H1 (mm) | H (mm) | L (mm) | L1 (mm) | M (mm) | R (mm) | C (mm) | D (mm) | R (mm) | Weight(kg) |
| DS-0238 | DS-TC10A | 1000 | 61-151 | 81-108 | 26 | 22 | 20 | 53 | 160 | 75 | 12 | 46 | 153 | 105 | 15 | 5.9 |
| DS-0239 | DS-TC20A | 2000 | 74-200 | 89-154 | 42 | 20 | 30 | 71.5 | 260 | 130 | 18 | 60 | 205 | 139 | 25 | 9.9 |
| DS-0240 | DS-TC20B | 2000 | 199-300 | 135-190 | 42 | 20 | 30 | 71.5 | 260 | 130 | 18 | 60 | 255 | 189 | 25 | 10.2 |
| DS-0241 | DS-TC30A | 3000 | 75-200 | 128-171 | 50 | 22 | 30.5 | 95.5 | 310 | 150 | 24 | 80 | 220 | 155 | 25 | 17.5 |
| DS-0242 | DS-TC30B | 3000 | 200-320 | 150-212 | 50 | 22 | 30.5 | 95.5 | 310 | 150 | 24 | 80 | 280 | 215 | 25 | 19.5 |
Welcome to buy the newest and competitive price DAWSON DS-TC Type Plain Trolley from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
For further information, please contact us. Email:info@dawson-group.com
Safety lifting
● The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37 HrC (345HB,1166 N/mm²).
● The lifting clamps are suitable for usage in normal atmospheric conditions, between -40℃ and +100℃
● Never overload a clamp and prevent the jerking of loads.
● When loading always use the whole jaw depth.
● Never lift more than one plate at the same time.
● Always keep your distance during lifting and descending of a load.
● Prevent situations that anybody is under the load.
● Any welding to the clamp is forbidden, this can influence the hardness and toughness of the clamp.
Other Related Products:

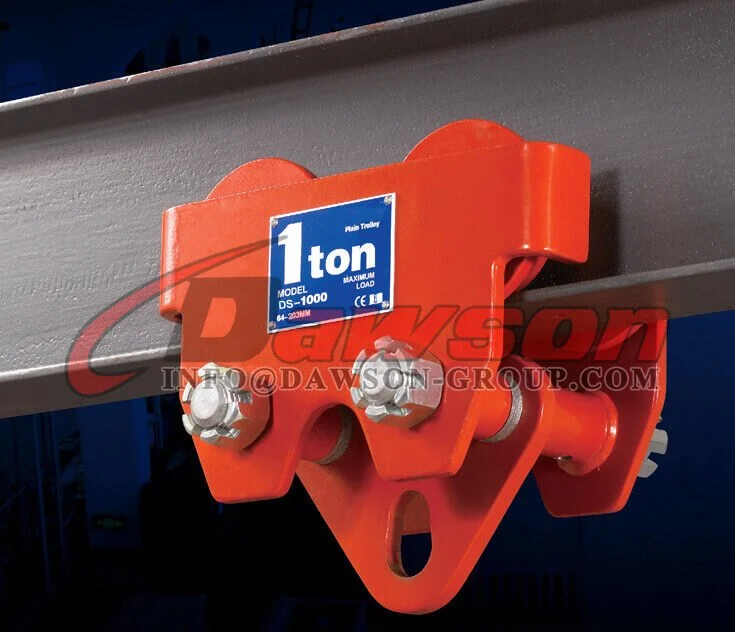

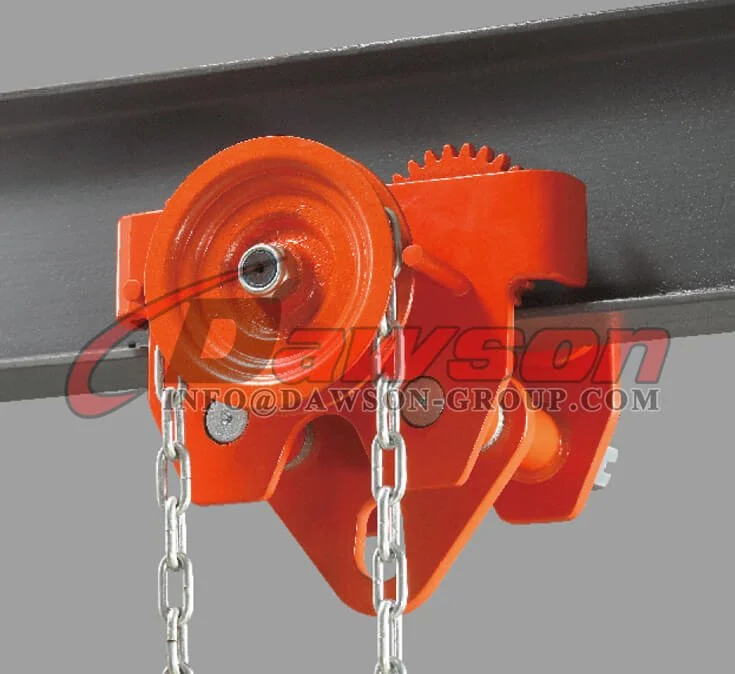

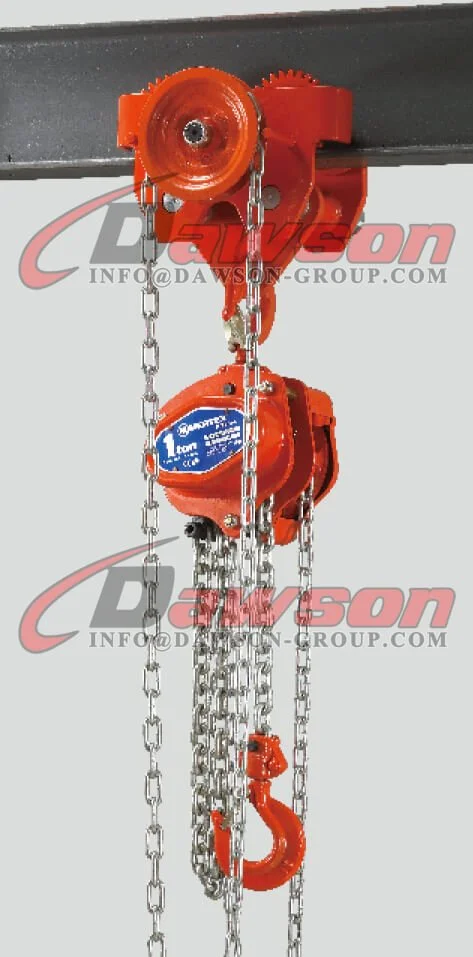

Application of Geared Trolley Clamps:
Equipments for Geared Trolley Clamp:

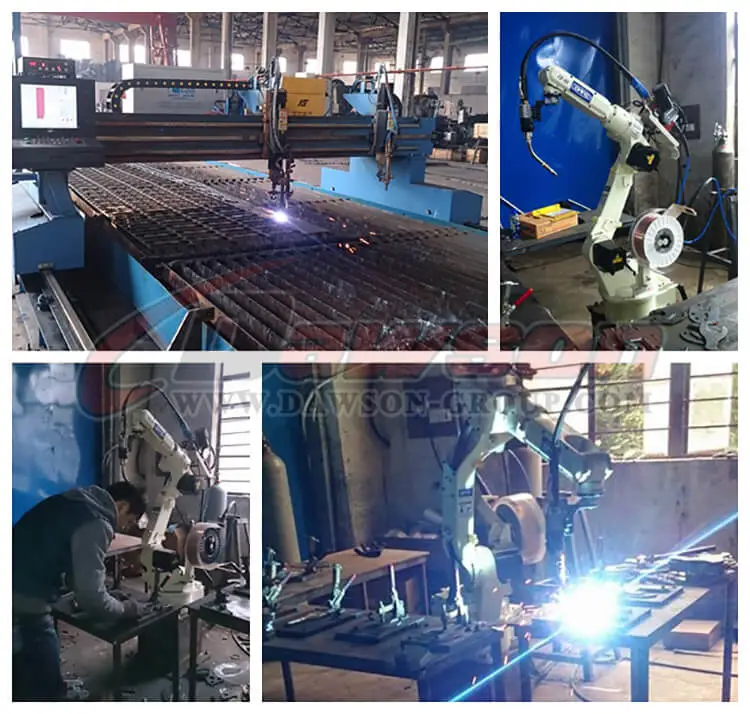

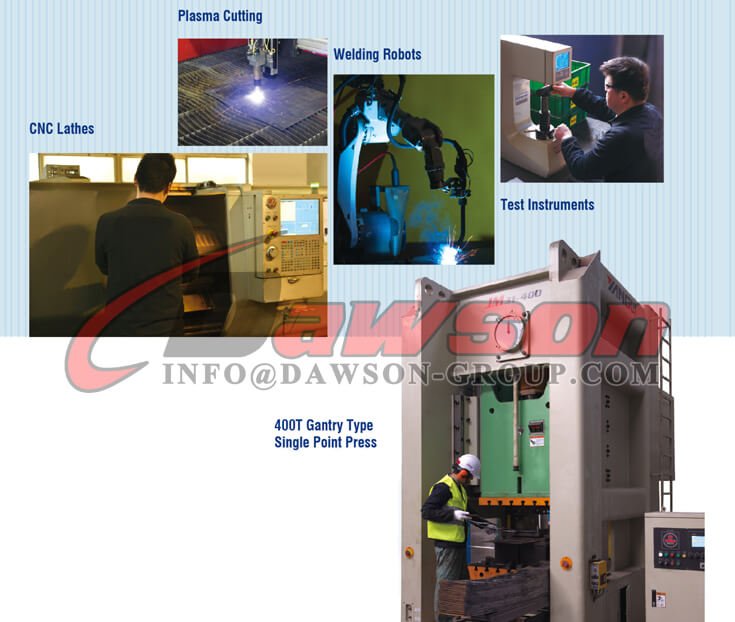

Factory & Package Show:
