DS-PTCA Type Push Travel Trolley
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

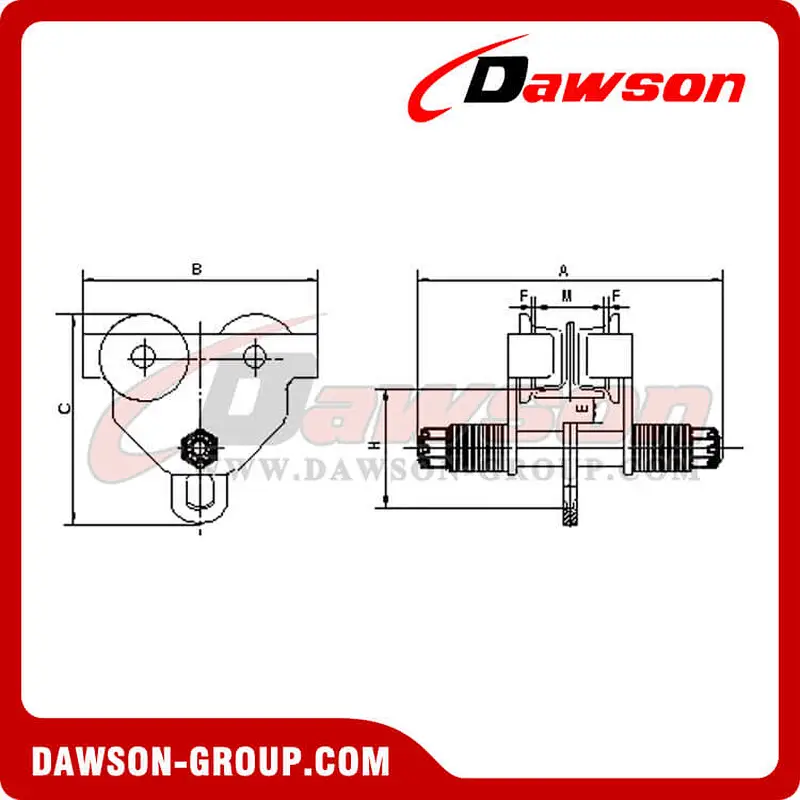

| art No. | Model | Rated Capacity (t) | Min. radius of curve (m) | Dimensions(mm) | I-beam recommended(mm) | Net Weight(kg) | ||||||||

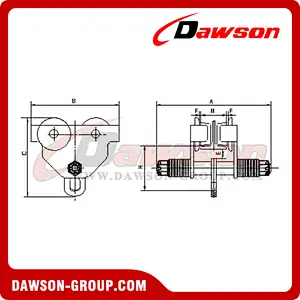

| A(standard beam) | A(extra long beam) | B | C | E | F | K | M(standard beam) | M(extra long beam) | Standard beam | Extra long beam | ||||
| DS-0280 | DS-PTCA0.5 | 0.5 | 0.9 | 264 | 315 | 216 | 195 | 31 | ≈3 | 110 | 64-152 | 82-203 | 8.6 | 9.2 |
| DS-0281 | DS-PTCA1 | 1 | 1 | 335 | 437 | 260 | 239 | 32.5 | 136 | 64-203 | 102-305 | 15.4 | 16.6 | |
| DS-0282 | DS-PTCA2 | 2 | 1.1 | 353 | 455 | 300 | 286 | 31 | 161 | 88-203 | 102-305 | 23 | 25.1 | |
| DS-0283 | DS-PTCA3 | 3 | 1.3 | 371 | 473 | 345 | 321 | 35 | 185 | 102-203 | 102-305 | 40 | 43.8 | |
| DS-0284 | DS-PTCA5 | 5 | 1.4 | 393 | 490 | 390 | 393 | 37 | 220 | 114-203 | 108-305 | 50 | 53.8 | |
| DS-0285 | DS-PTCA10 | 10 | 1.7 | 436 | 532 | 470 | 500 | 45 | 280 | 125-203 | 117-305 | 97 | 102.5 | |
Welcome to buy the newest and competitive price DAWSON DS-PTCA Type Push Travel Trolley from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
For further information, please contact us. Email:info@dawson-group.com

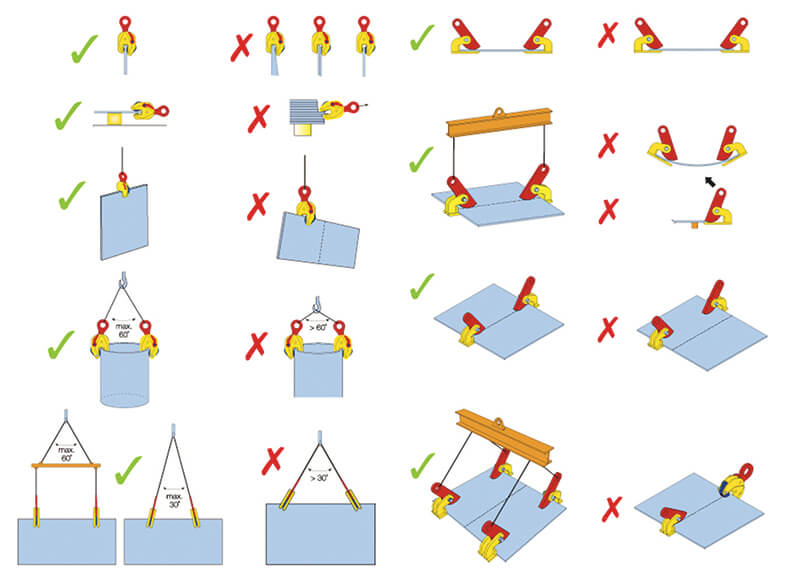

Safety lifting
● The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37 HrC (345HB,1166 N/mm²).
● The lifting clamps are suitable for usage in normal atmospheric conditions, between -40℃ and +100℃
● Never overload a clamp and prevent the jerking of loads.
● When loading always use the whole jaw depth.
● Never lift more than one plate at the same time.
● Always keep your distance during lifting and descending of a load.
● Prevent situations that anybody is under the load.
● Any welding to the clamp is forbidden, this can influence the hardness and toughness of the clamp.
Hot Tags: Push Trolley,Push Trolley Clamp,Push Travel Trolley,Push Travel Trolley Supplier China,Lifting Clamp In Stock,Push Trolley Clamp Factory China,Cheap Price Push Travel Trolley,Low Price Push Trolley Clamp,Hot Sale Push Trolley,Wholesale Push Trolley Clamp,Push Trolley China Manufacturer,Push Geared Trolley Clamp OEM,Push Trolley Free Sample,Push Trolley Clamp China Exporter,Push Trolley for Hoisting,Manual Trolley Clamp,Monorail Trolley,Monorail Plain Trolley,Buy Discount Push Trolley for Lifting

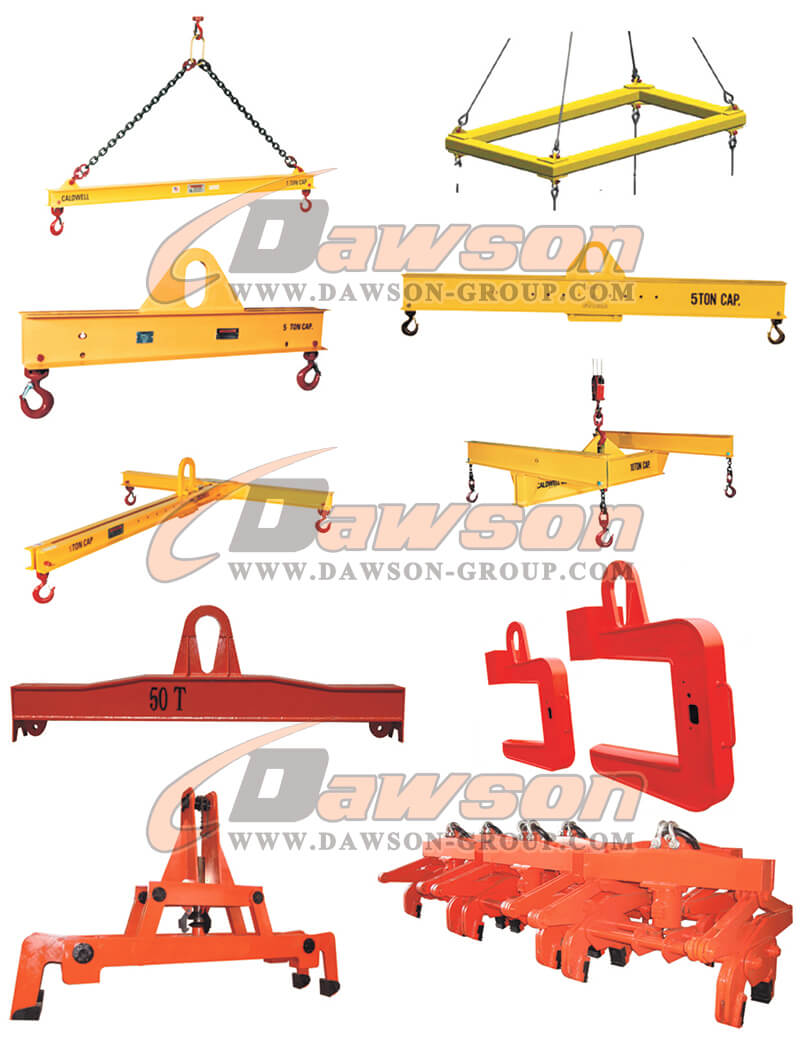

Other Related Products:

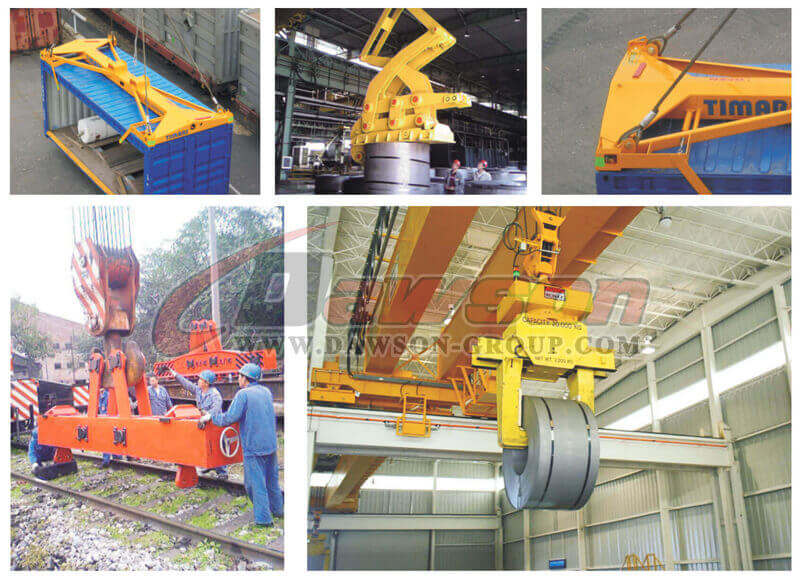

Application of Lifting Clamps:

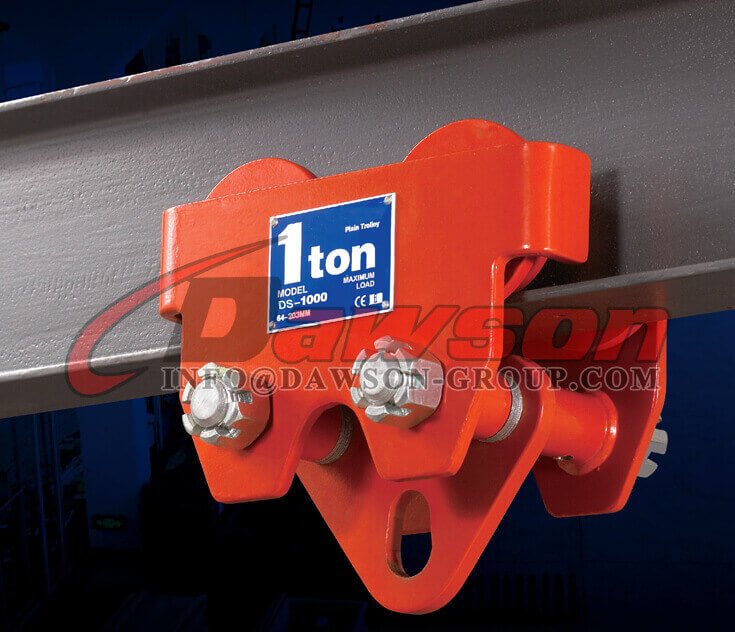

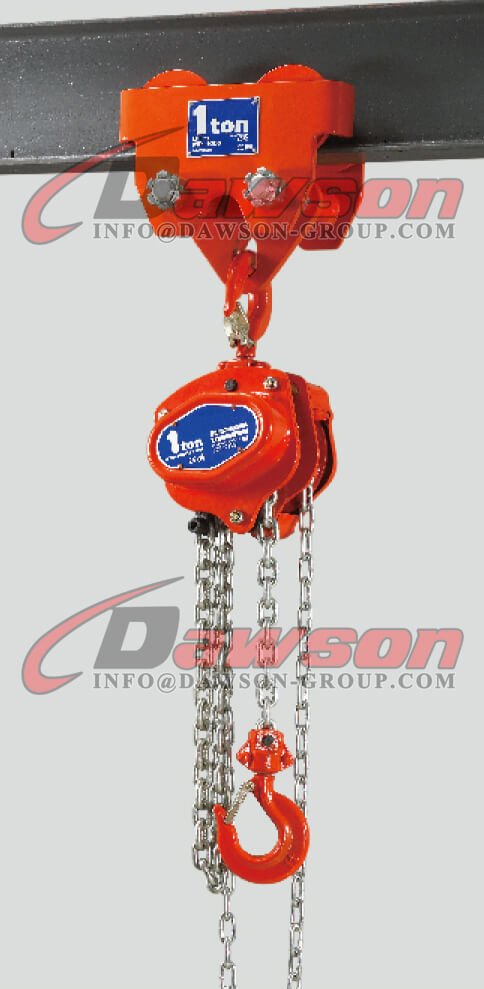

Equipments for Push Trolley:

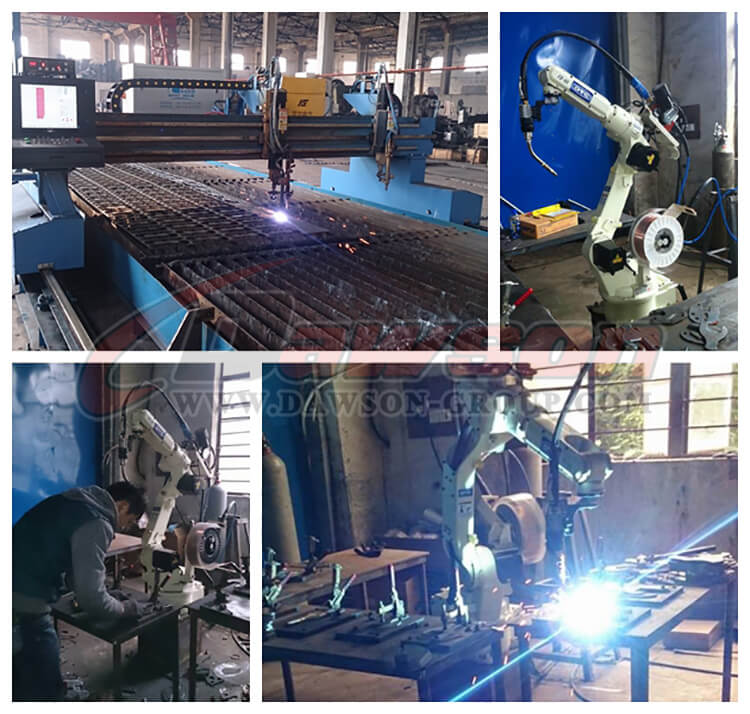

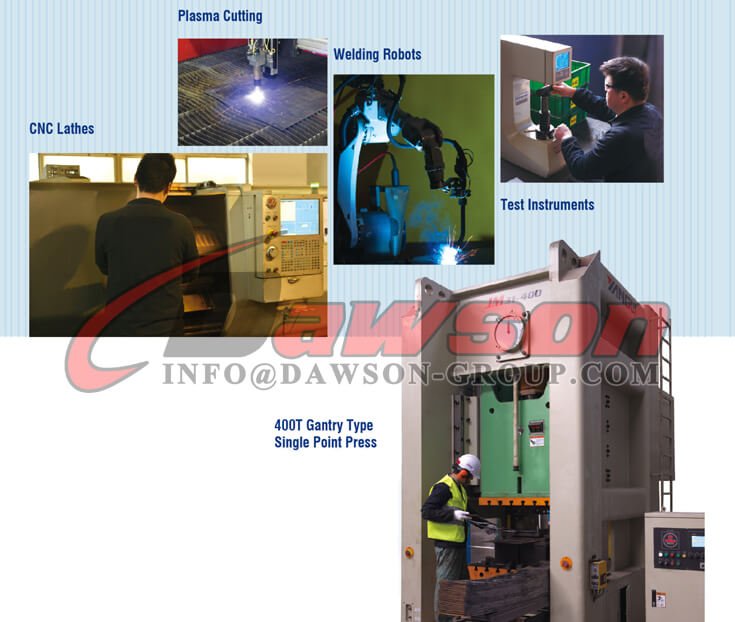

Factory & Package Show:
