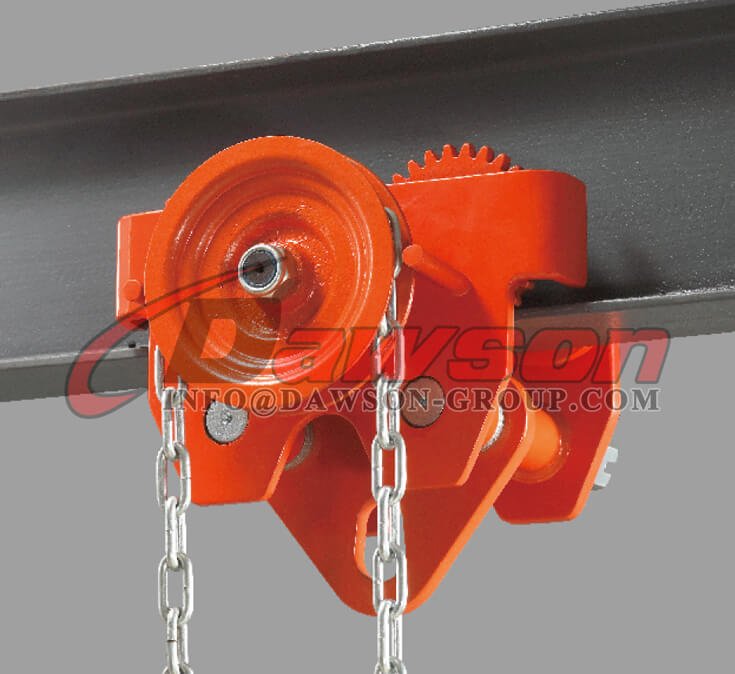

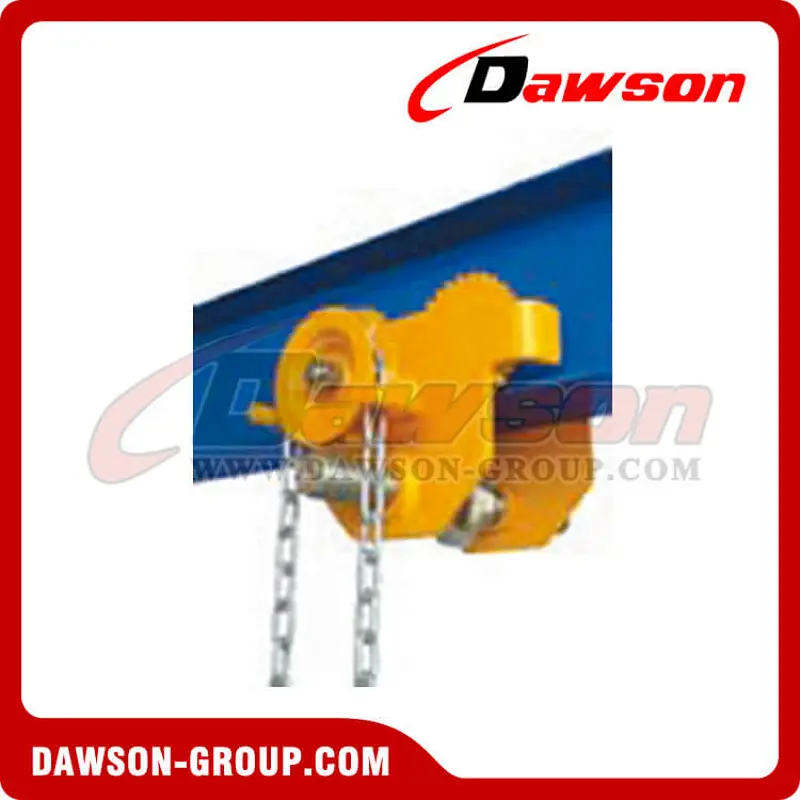

DS-GTF Type Geared Travel Trolley
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

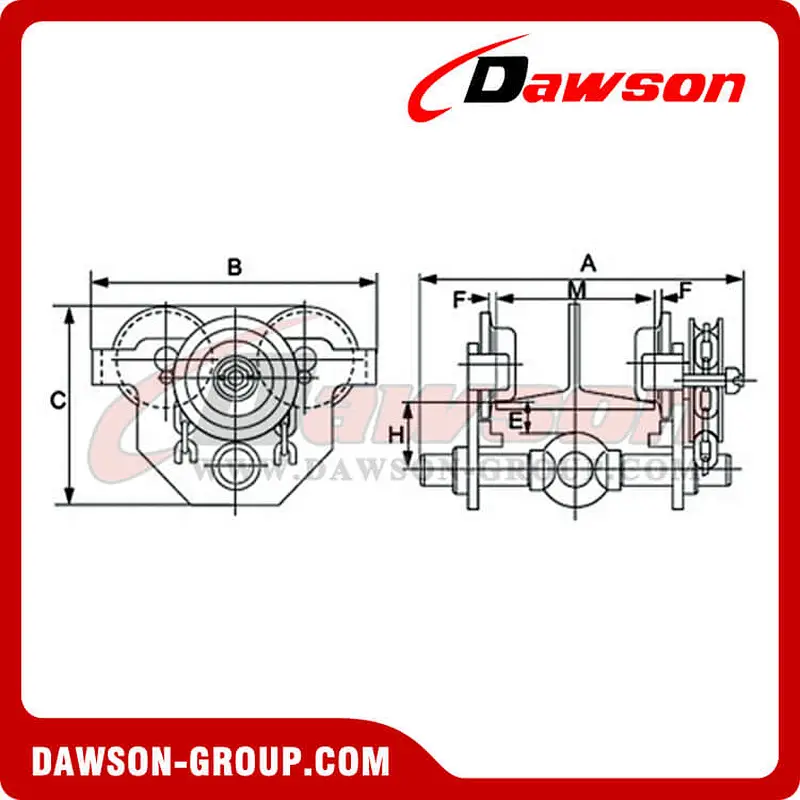

| Part No. | Model | Rated Capacity (t) | Running Height (m) | Dimensions(mm) | I-beam Width(mm) | Net Weight (kg) | Extra weight per meter of extra lift (kg) | |||||
| A | B | C | H | F | F’ | M | ||||||
| DS-0310 | DS-GTF0.5 | 0.5 | 3 | 352.5 | 198 | 158 | 64.5 | ≈3 | ≈3 | 50-220 | 9 | ≈1 |
| DS-0311 | DS-GTF1 | 1 | 353.5 | 238 | 183 | 66 | 58-220 | 12.6 | ||||
| DS-0312 | DS-GTF2 | 2 | 362 | 277 | 208 | 75 | 66-220 | 18.5 | ||||
| DS-0313 | DS-GTF3 | 3 | 406.5 | 324 | 249 | 85 | 74-220 | 28 | ||||
| DS-0314 | DS-GTF5 | 5 | 434.5 | 373 | 296.5 | 100 | 90-220 | 45 | ||||
Welcome to buy the newest and competitive price DAWSON DS-GTF Type Geared Travel Trolley from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
For further information, please contact us. Email:info@dawson-group.com
Safety lifting
● The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37 HrC (345HB,1166 N/mm²).
● The lifting clamps are suitable for usage in normal atmospheric conditions, between -40℃ and +100℃
● Never overload a clamp and prevent the jerking of loads.
● When loading always use the whole jaw depth.
● Never lift more than one plate at the same time.
● Always keep your distance during lifting and descending of a load.
● Prevent situations that anybody is under the load.
● Any welding to the clamp is forbidden, this can influence the hardness and toughness of the clamp.
Other Related Products:
Application of Lifting Clamps:

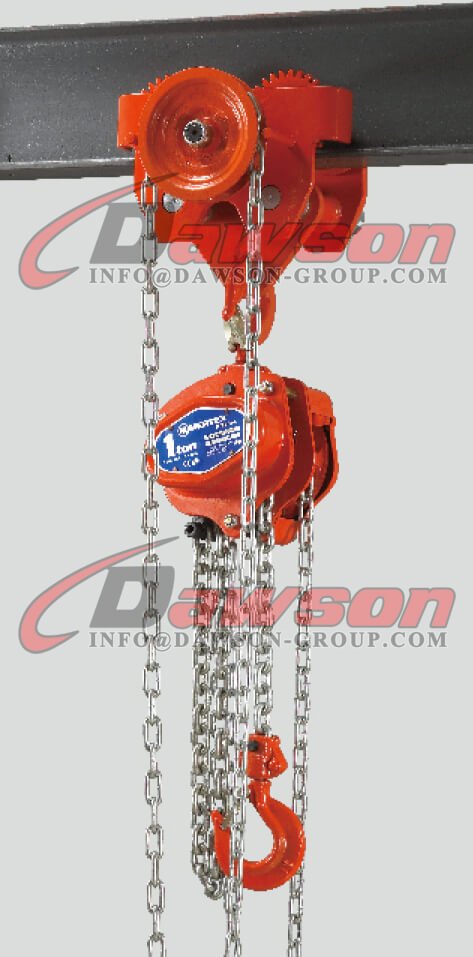

Equipments for Geared Travel Trolley:

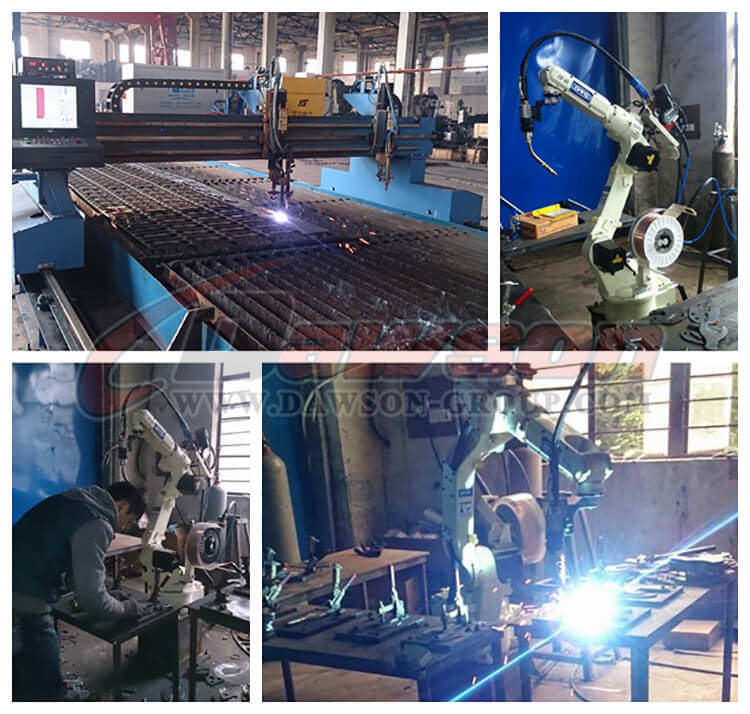

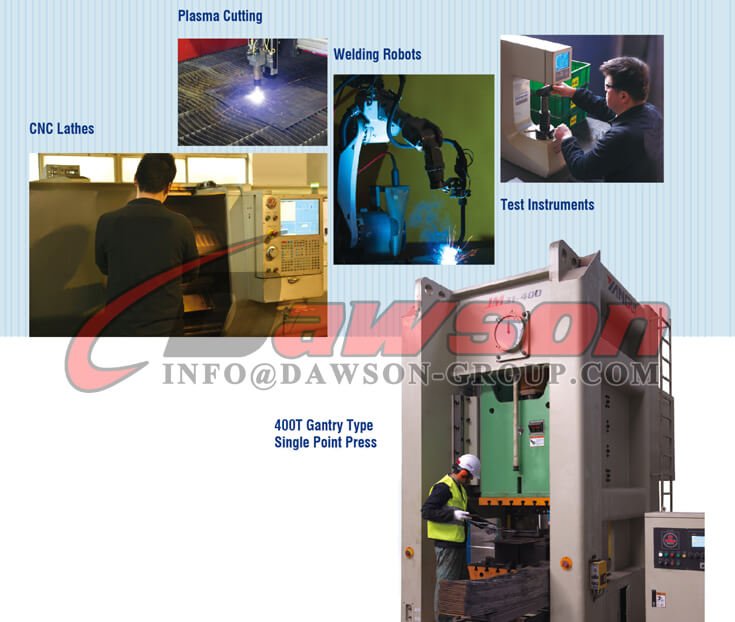

Factory & Package Show:
