D3001 MBS 12000lbs/5500kgs 1/2"Forged lashing D Ring with Bracket
- Dawson Group Ltd. - China Manufacturer Supplier, Factory
Assembly Break Strength: 5400kgs/12,000 lbs
Work Load Limit: 4,000 lbs
Material: Forged Carbon Steel Normalizing
Finish: Self-color or Galvanized
Related Products:

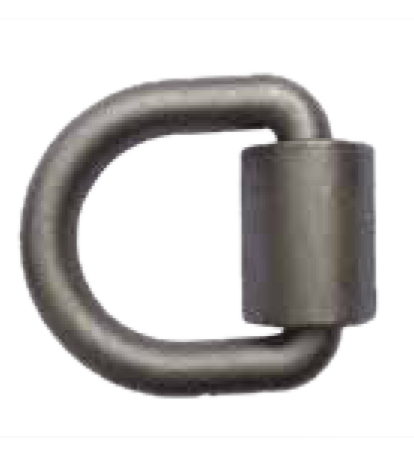

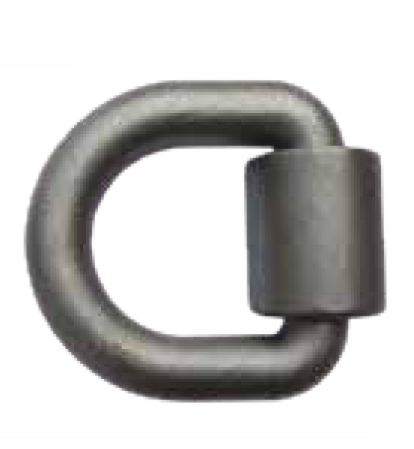

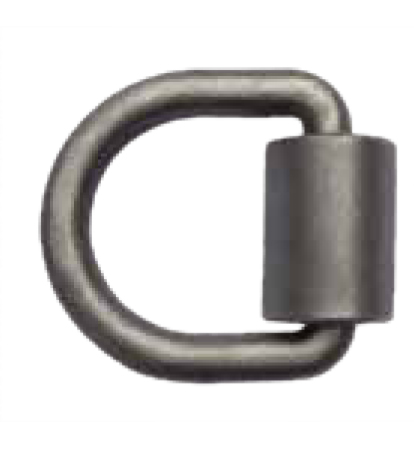

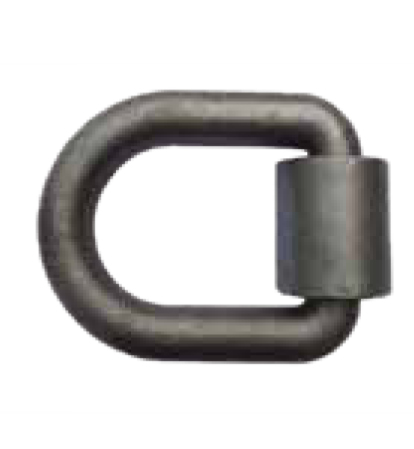

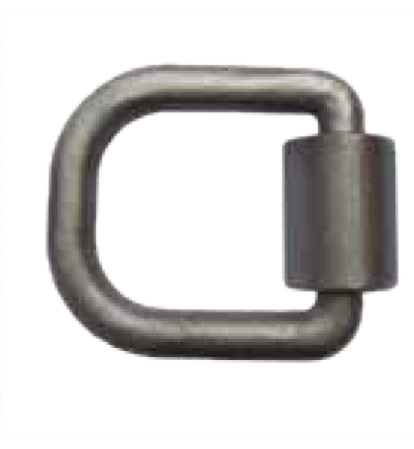

 D3001 |  D3001-R |  D3002 |  D3003 |
 D3004 |  D3005 |  D3006 |  D3007 |

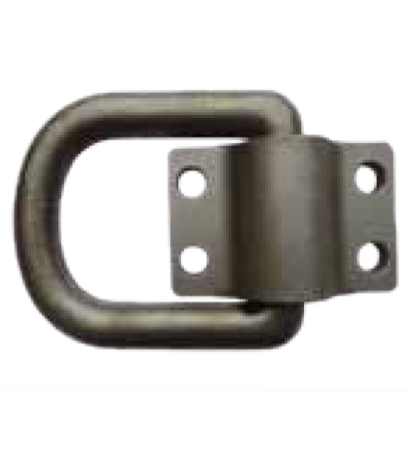

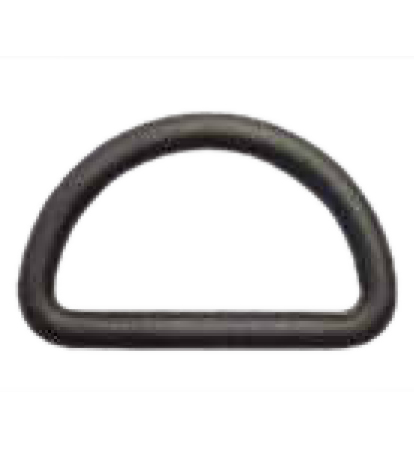

 D3009 |  D3010 |  D3010-B |  D3011 |

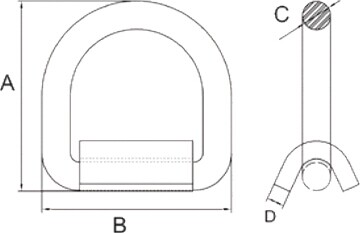

| Forged d ring | A | B | C | D | MBS |  |

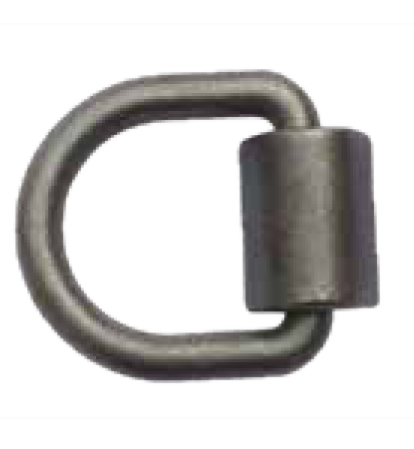

| D3001 | 3 1/2" | 3 1/2" | 1/2" | 7.5mm | 12000lbs/5500kgs | |
| D3002 | 4 1/4" | 4 1/4" | 5/8" | 10mm | 18000lbs/8000kgs | |
| D3003 | 4 1/2" | 4 1/2" | 3/4" | 10mm | 26500lbs/12000kgs | |
| D3004 | 5" | 5" | 1" | 11mm | 47000lbs/21000kgs | |
| D3005 | 6" | 5" | 1" | 11mm | 47000lbs/21000kgs | |

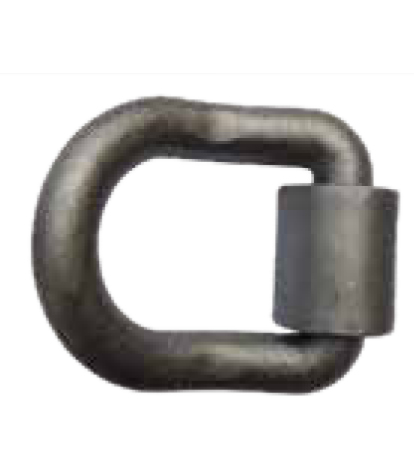

| D3006 | 6" | 5" | 1" | 11mm | 47000lbs/21000kgs | |
| D3007 | 5/16" | 5" | 20mm | 10mm | 11000lbs/5000kgs | |

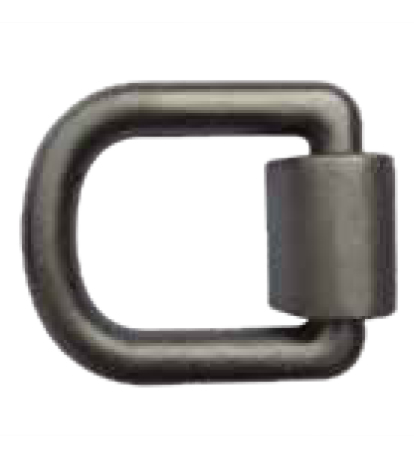

| D3009 | 6 1/2" | 5.7" | 1" | 15mm | 28600lbs/13000kgs | |

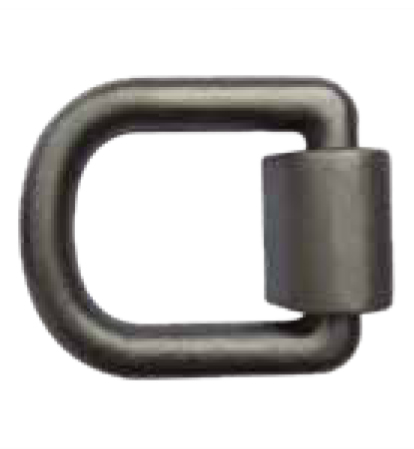

| D3010 | 6 1/2" | 5.7" | 1" | 15mm | 44000lbs/20000kgs | |
| D3011 | 2" | 3.15" | 8mm | NA | 5720lbs/2600kgs |
