Close Headroom Trolley Hoist
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

A trolley hoist is a hoist suspended from a trolley. A hoist can be connected to a trolley by hook or clevis, or a hoist can be integral with the trolley.

Trolley Hoists are available with varying spans and capacities. Trolley Hoists feature adjustable I-beams and heights for optimal use. Trolley Hoists are weather and moisture proof. Trolley Hoists need only one operator and are capable of heavy-duty lifting.

A trolley is a wheeled carriage, cage or basket that is suspended from and travels on an overhead track.

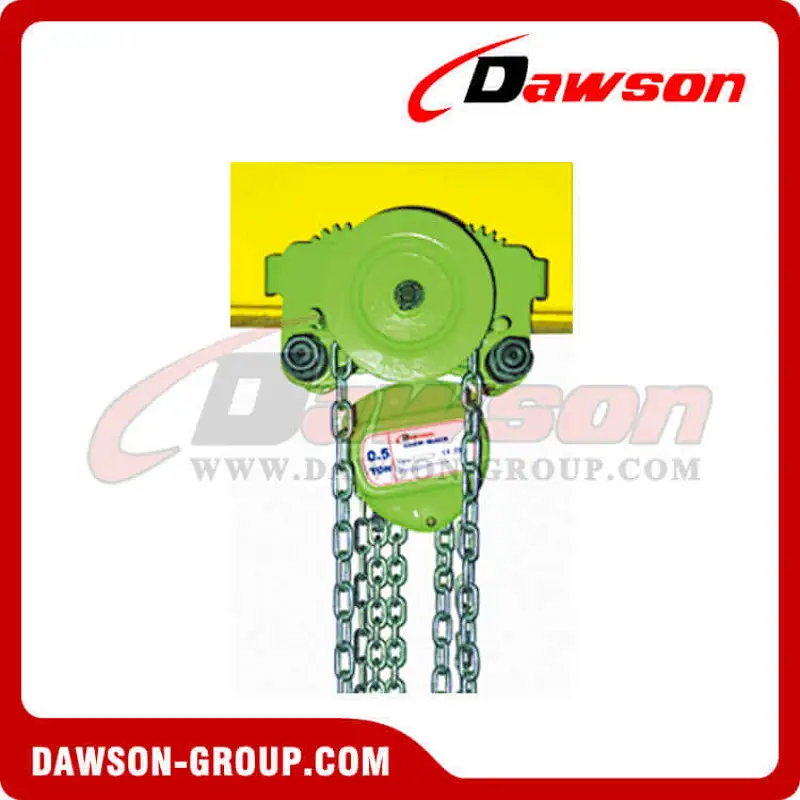

COMBINATION CHAIN BLOCK & GEARED TROLLEY


ModelDST005/GDST010/GDST020/GDST030/GDST050/G
Rated Capacity Ton0.51235
Test Load KN7.515304575
Min. Radius of Curve m0.911.21.41.6
Chain Pull to Lift Full Load N24407065100
Running height m33333

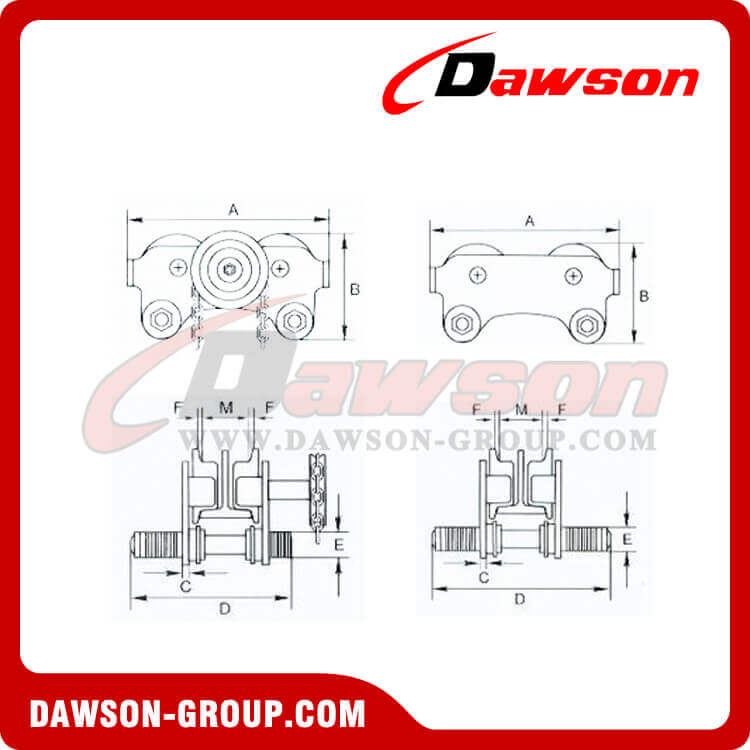

Dimensions mmA238277302363436
B137170194230260
C810121418
D278283295304330
EM18M22M27M30M42
F≈3
I-beam recommended mm50-18058-18058-18074-18098-180


COMBINATION CHAIN BLOCK & PUSH TROLLEY


ModelDST005DST010DST020DST030DST050
Rated Capacity Ton0.51235
Test Load KN7.515304575
Min. Radius of Curve m0.911.21.41.6
Running height m33333
Dimensions mmA238277302363436
B137170194230260
C810121418
D278283295304330
EM18M22M27M30M42
F≈3
I-beam recommended mm50-18058-18058-18074-18098-180

Welcome to buy the newest and competitive price DAWSON Close Headroom Trolley Hoist from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
