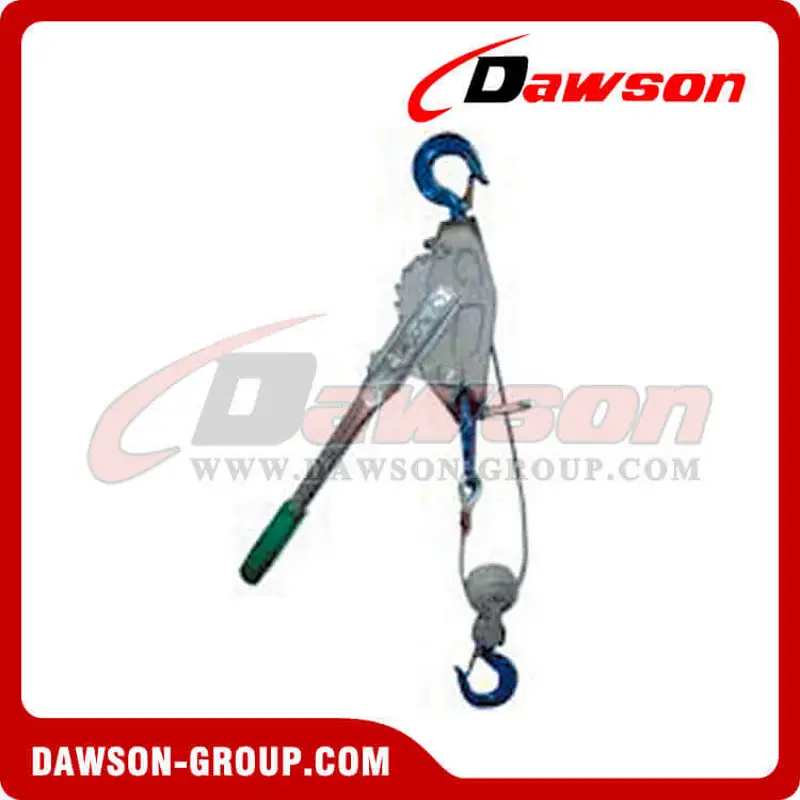

Cable Ratchet Lever Hoist
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Capacities- rated loads of 340 kg to 900 kg single line; 680 kg to 1800 kg double line.
Open Frame Design- allow for daily inspection and cleaning of your cable ratchet lever hoist.
360° Swivel Hooks- drop forged steel hooks with latches are standard on DAWSON cable ratchet hoists.
Double Locking Pawl System- allows for no load brakes to slip or fowl on the cable ratchet lever hoist. Positive load holding in all environments.
| Model | DSCRH-340-S | DSCRH-340-D | DSCRH-680-S | DSCRH-680-D | DSCRH-900-S | DSCRH-900-D |
| Wire Rope Line | Single Fall | Double Fall | Single Fall | Double Fall | Single Fall | Double Fall |
| Capacity(kg) | 340 KG | 680 KG | 680 KG | 1,360 KG | 900 KG | 1,800 KG |
| Standard Lift(m) | 6 | 3 | 9 | 4.5 | 6 | 3 |
| Proof Load (kN) | 4.16 | 8.33 | 8.33 | 16.66 | 11 | 22 |
| Wire Rope Size(mm) | 4.2 | 5.6 | 6.4 | |||
| Net Weight(kg) | 3.45 | 3.85 | 5.7 | 6.4 | 6.2 | 7.1 |
Welcome to buy the newest and competitive price DAWSON Cable Ratchet Lever Hoist from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
For further information, please contact us. Email:info@dawson-group.com

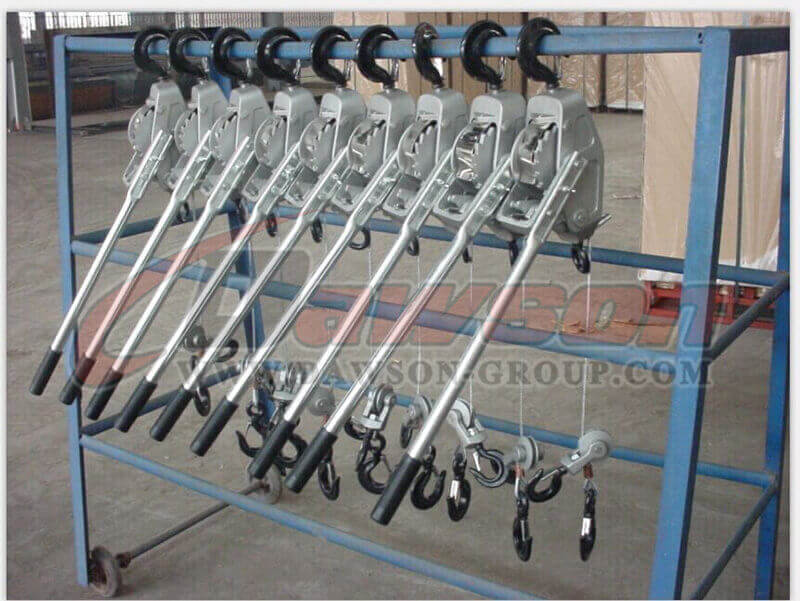

Factory & Package Show:
