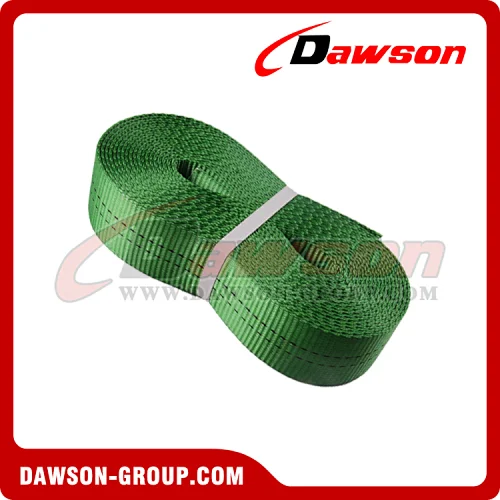

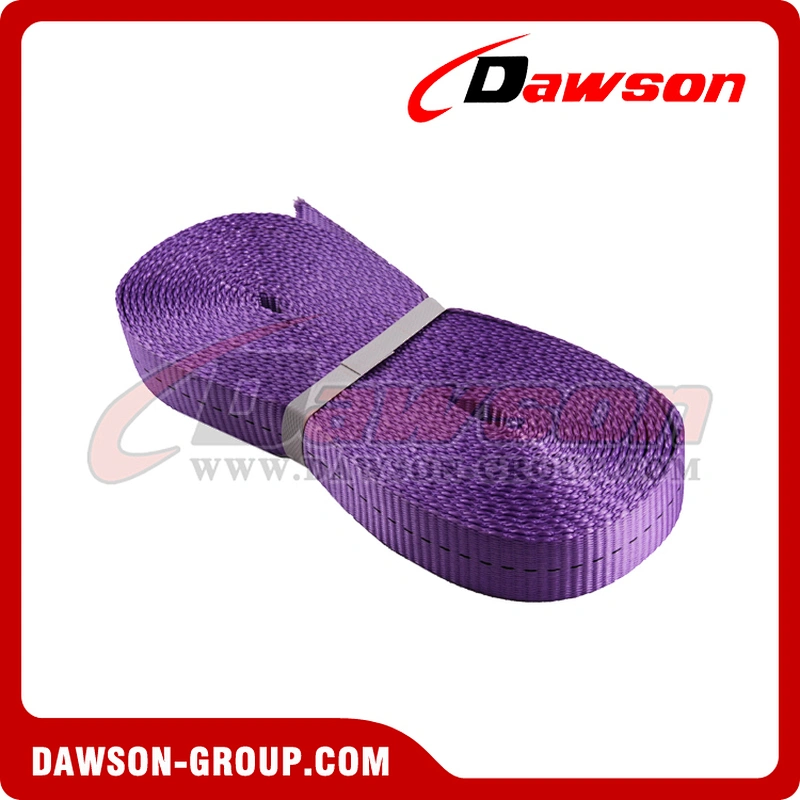

1 ton Webbing Sling Materials
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Dawson sling can offer 1’’-12’’(25-300mm) webbing material for sewing all kinds of webbing sling to you. Which are made of Polyester, Nylon. We have a prepare to adopt PE PA or PP to product according to customers require
Webbing material for difference safety factor duplex eye-eye and single endless webbing sling
According to EN1492-1,JB/T8521.1,AS1353.1
 | Stock No. | Safety Factor | Width(mm) | Color | M.B.S.(kg) |
| DSE5W010 | 5:1 | 25 | Violet | 3125 | |
| DSE6W010 | 6:1 | 25/38 | 3750 | ||
| DSE7W010 | 7:1 | 30/50/60 | 4500 | ||
| DSE8W010 | 8:1 | 50 | 5000 | ||
 | Stock No. | Safety Factor | Width(mm) | Color | M.B.S.(kg) |
| DSE5W020 | 5:1 | 50 | Green | 6250 | |
| DSE6W020 | 6:1 | 50 | 7500 | ||
| DSE7W020 | 7:1 | 60 | 9000 | ||
| DSE8W020 | 8:1 | 65 | 10000 | ||
 | Stock No. | Safety Factor | Width(mm) | Color | M.B.S.(kg) |
| DSE5W030 | 5:1 | 75 | Yellow | 9375 | |
| DSE6W030 | 6:1 | 75 | 11250 | ||
| DSE7W030 | 7:1 | 90 | 13500 | ||
| DSE8W030 | 8:1 | 95 | 15000 | ||
 | Stock No. | Safety Factor | Width(mm) | Color | M.B.S.(kg) |
| DSE5W040 | 5:1 | 100 | Grey | 13000 | |
| DSE6W040 | 6:1 | 100 | 15000 | ||
| DSE7W040 | 7:1 | 120 | 18000 | ||
| DSE8W040 | 8:1 | 120 | 20000 | ||
 | Stock No. | Safety Factor | Width(mm) | Color | M.B.S.(kg) |
| DSE5W050 | 5:1 | 125 | Red | 15625 | |
| DSE6W050 | 6:1 | 125 | 18750 | ||
| DSE7W050 | 7:1 | 150 | 22500 | ||
| DSE8W050 | 8:1 | 150 | 25000 | ||
 | Stock No. | Safety Factor | Width(mm) | Color | M.B.S.(kg) |
| DSE5W060 | 5:1 | 150 | Brown | 18750 | |
| DSE6W060 | 6:1 | 150 | 22500 | ||
| DSE7W060 | 7:1 | 180 | 27000 | ||
| DSE8W060 | 8:1 | 180 | 30000 | ||
 | Stock No. | Safety Factor | Width(mm) | Color | M.B.S.(kg) |
| DSE5W080 | 5:1 | 200 | Blue | 25000 | |
| DSE6W080 | 6:1 | 200 | 30000 | ||
| DSE7W080 | 7:1 | 240 | 36000 | ||
| DSE8W080 | 8:1 | 240 | 40000 | ||
 | Stock No. | Safety Factor | Width(mm) | Color | M.B.S.(kg) |
| DSE5W100 | 5:1 | 250 | Orange | 31250 | |
| DSE6W100 | 6:1 | 250 | 37500 | ||
| DSE7W100 | 7:1 | 300 | 45000 | ||
| DSE8W100 | 8:1 | 300 | 50000 | ||
 | Stock No. | Safety Factor | Width(mm) | Color | M.B.S.(kg) |
| DSE5W120 | 5:1 | 300 | Orange | 37500 | |
| DSE6W120 | 6:1 | 300 | 45000 | ||
| DSE7W120 | 7:1 | 300 | 54000 | ||
| Stock No. Color | WLL | SWL、WLL(t) 、M、CC | Double Multi-set SWL(t) | |||||||
| Vertical | Choker | Vertical | Choker | Vertical | Choker | Vertical | ||||
| 0-7° | 7-45° | 45-60° | ＜45° | ＜45° | 45-60° | 45-60° | ||||
 |  |  |  |  |  |  |  |  | ||
| 1 | 0.8 | 2 | 1.4 | 1 | 1.4 | 1.12 | 1 | 0.8 | ||
| DSD7EE010 | 1t | 1,000 | 800 | 2,000 | 1,400 | 1,000 | 2,800 | 1,120 | 1,000 | 800 |
| DSD7EE020 | 2t | 2,000 | 1,600 | 4,000 | 2,800 | 2,000 | 5,600 | 2,240 | 2,000 | 1,600 |
| DSD7EE030 | 3t | 3,000 | 2,400 | 6,000 | 4,200 | 3,000 | 8,400 | 3,360 | 3,000 | 2,400 |
| DSD7EE040 | 4t | 4,000 | 3,200 | 8,000 | 5,600 | 4,000 | 11,200 | 4,480 | 4,000 | 3,.200 |
| DSD7EE050 | 5t | 5,000 | 4,000 | 10,000 | 7,000 | 5,000 | 14,000 | 5,600 | 5,000 | 4,000 |
| DSD7EE060 | 6t | 6,000 | 4,800 | 12,000 | 8,400 | 6,000 | 16,800 | 6,720 | 6,000 | 4,800 |
| DSD7EE080 | 8t | 8,000 | 6,400 | 16,000 | 11,200 | 8,000 | 22,400 | 8,960 | 8,000 | 6,400 |
| DSD7EE100 | 10t | 10,000 | 8,000 | 20,000 | 14,000 | 10,000 | 28,000 | 11,200 | 10,000 | 8,000 |
| DSD7EE120 | 12t | 12,000 | 9,600 | 24,000 | 16,800 | 12,000 | 33,600 | 13,440 | 12,000 | 9,600 |
| DSD7EE150 | 15t | 15,000 | 12,000 | 30,000 | 21,000 | 15,000 | 21,000 | 16,800 | 15,000 | 12,000 |
| DSD7EE200 | 20t | 20,000 | 16,000 | 40,000 | 28,000 | 20,000 | 28,000 | 22,400 | 20,000 | 16,000 |
| DSD7EE300 | 30t | 30,000 | 24,000 | 60,000 | 42,000 | 30,000 | 42,000 | 33,600 | 30,000 | 24,000 |
1. Product Summary
Flat Webbing Sling is woven with machine for one time, and processed in the different sewing methods, it can be used the strengthened eye on its ends to improve its strength. Its standard tonnage can be distinguished through the color, and the wide and smooth loading surface especially applies to the articles with the soft surface and if necessary, the protective sleeve which is wider than sling can be used. Because of no contacting metal, it causes hardly damage to the loaded article surface processed with lacquer. Flat woven webbing sling made from polyester can not cause sparkle if it is used under the hazardous and explosive environment. In addition, its low extending property can decrease the bound of load in the courses of lifting, and avoid damage from the shocking strength. At the same time, make codes for the dyeing colors of sling and suggest the simple and correct methods for loading, which is well convenient for our lifting user.
2. Technical Data
Material: polyester polypropylene
Safe Factor: 5:1 6:1 7:1 8:1
Standard : DIN 60005, ISO4878 EN1492-1:2000 JB/T8521-2000
Length: as required
Color: color code
Ply: single. Double. three and four-ply
3. Type
A. Eye and Eye Flat Webbing Sling
a, Single-ply Eye and Eye Flat Webbing Sling
b, Double-ply Eye and Eye Flat Webbing Sling
c, Three-ply Eye and Eye Flat Webbing Sling
d, Four-ply Eye and Eye Flat Webbing Sling
Remark: Sling eye is divided into flat eye, reverse eye, eye folded 1/2 from one side, eye folded 1/2 from two sides and eye folded 1/3.
B, Endless Flat Webbing Sling
a, Single-ply Endless Flat Webbing Sling
b, Double-ply Endless Flat Webbing Sling
c, Three-ply Endless Flat Webbing Sling
d, Four-ply Endless Flat Webbing Sling

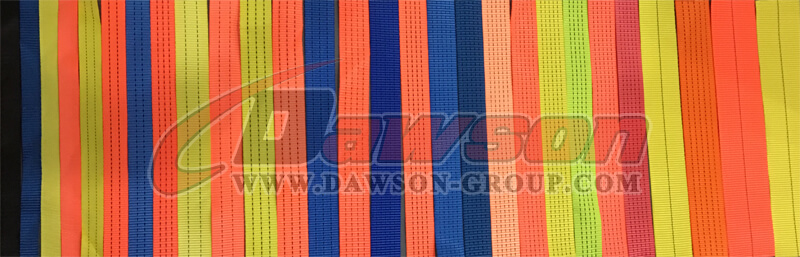

We have other webbing sling material:
1 Ton Webbing Sling Materials, 2 Ton Webbing Sling Materials, 3 Ton Webbing Sling Materials, 4 Ton Webbing Sling Materials, 5 Ton Webbing Sling Materials, 6 Ton Webbing Sling Materials, 8 Ton Webbing Sling Materials, 10 Ton Webbing Sling Materials, 12 Ton Webbing Sling Materials, 15 Ton Webbing Sling Materials, 20 Ton Webbing Sling Materials, 30 Ton Webbing Sling Materials
1000KG Webbing Sling Materials, 2000KG Webbing Sling Materials, 3000 KG Webbing Sling Materials, 4000KG Webbing Sling Materials, 5000KG Webbing Sling Materials, 6000KG Webbing Sling Materials, 8000KG Webbing Sling Materials, 10000KG Webbing Sling Materials, 12000KG Webbing Sling Materials, 15000KG Webbing Sling Materials, 20000KG Webbing Sling Materials, 30000KG Webbing Sling Materials
1T Webbing Sling Materials, 2T Webbing Sling Materials, 3T Webbing Sling Materials, 4T Webbing Sling Materials, 5T Webbing Sling Materials, 6T Webbing Sling Materials, 8T Webbing Sling Materials, 10T Webbing Sling Materials, 12T Webbing Sling Materials, 15T Webbing Sling Materials, 20T Webbing Sling Materials, 30T Webbing Sling Materials

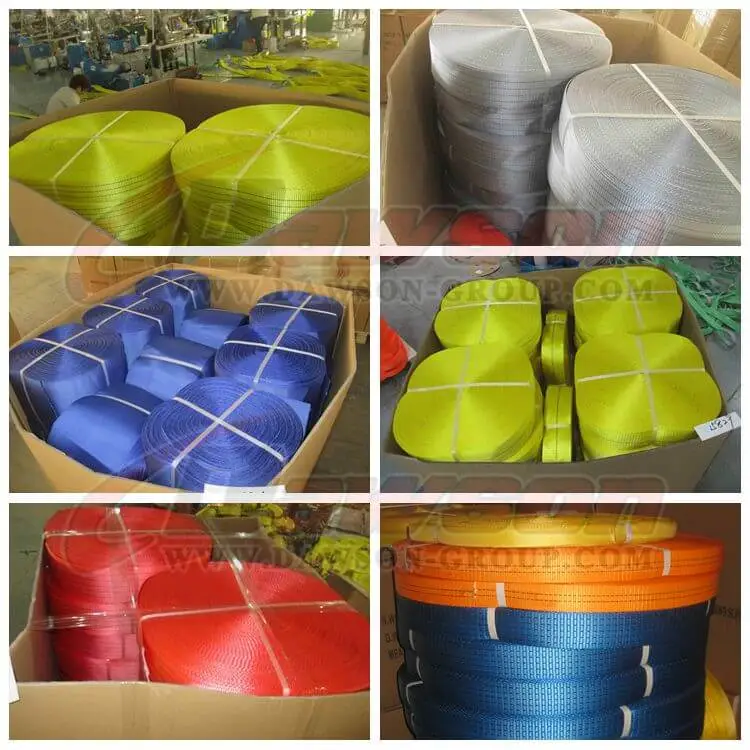

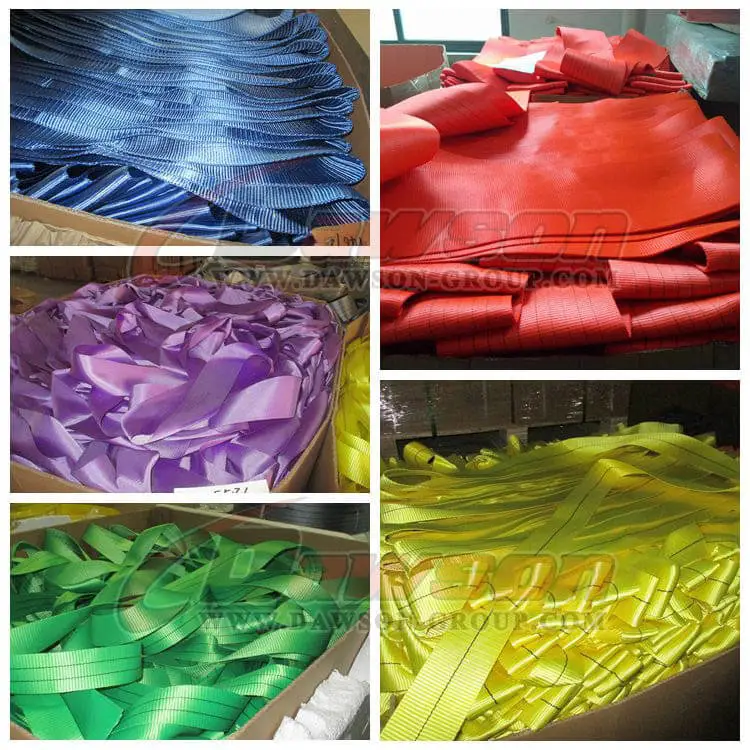

Products Show:
Hot Tags: Webbing Sling Material, 1 ton Webbing Sling Material Supplier China, 1t Webbing Sling Material Factory China, Webbing Sling Materials Manufacturer China, 1ton Webbing Material for Sling, Soft Webbing Sling Materials, 1000kg Webbing Slings, 1000kg Web Sling Materials, 1 ton Polyester Sling Materials, Competitive Price 25mm Webbing Sling Material, Hot Sale 38mm Webbing Sling Material, 30mm Webbing Sling Material, Buy Discount 50mm Webbing Sling Material, 60mm Webbing Sling Material in Stock, Webbing Material for Slings Dawson Brand
Other related products:

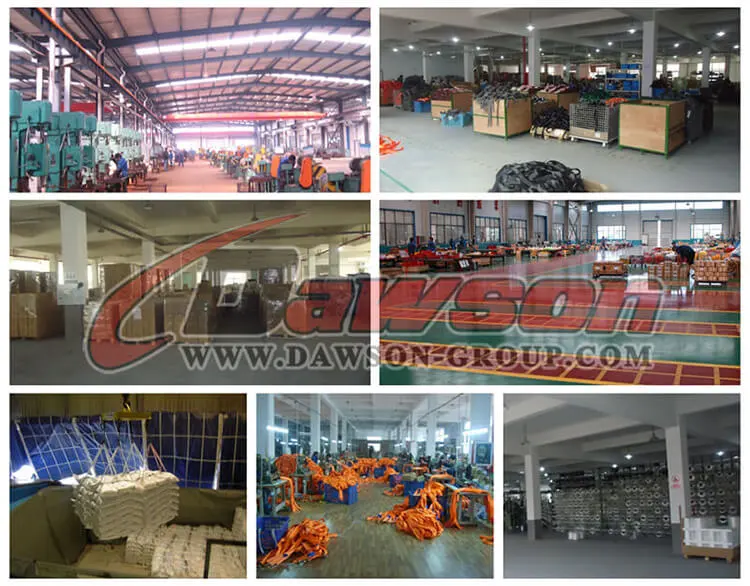

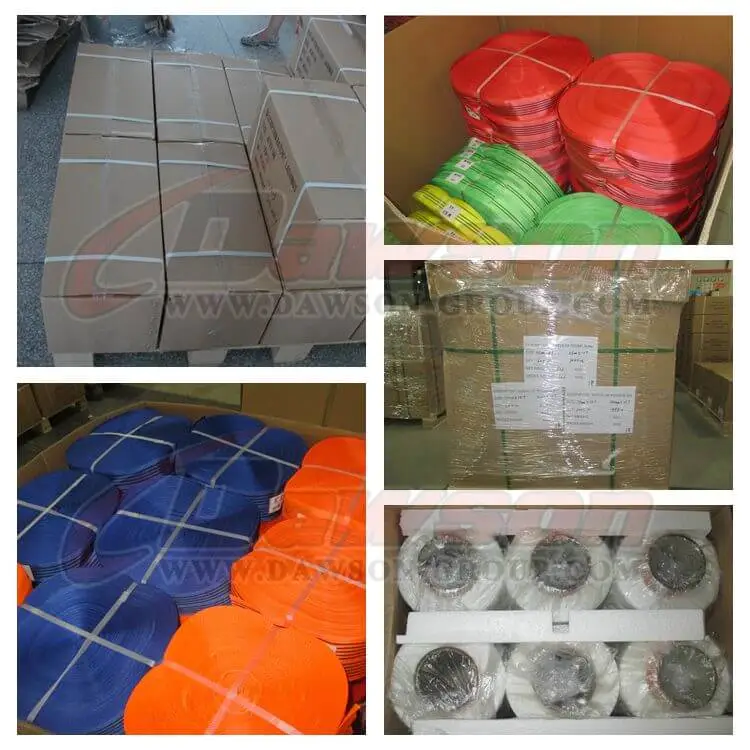

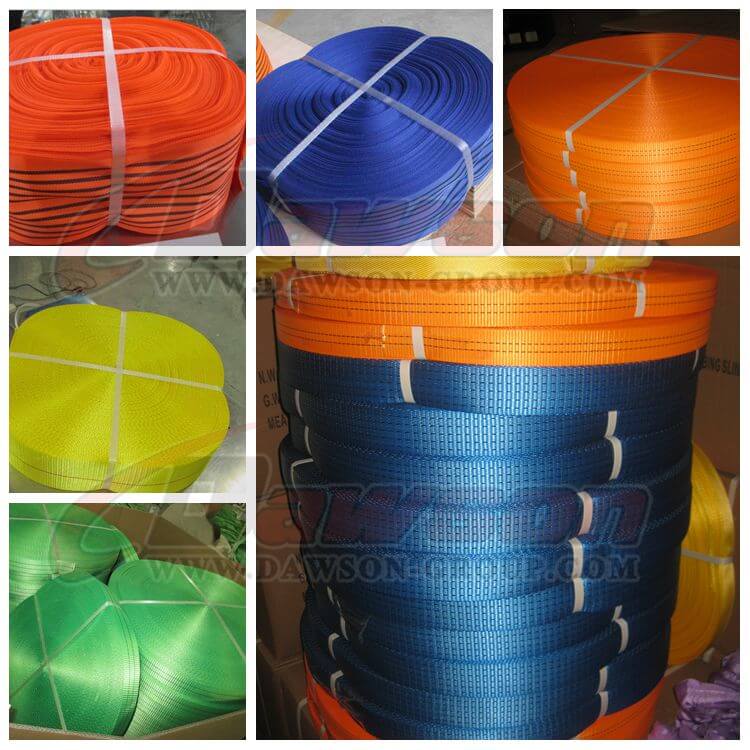

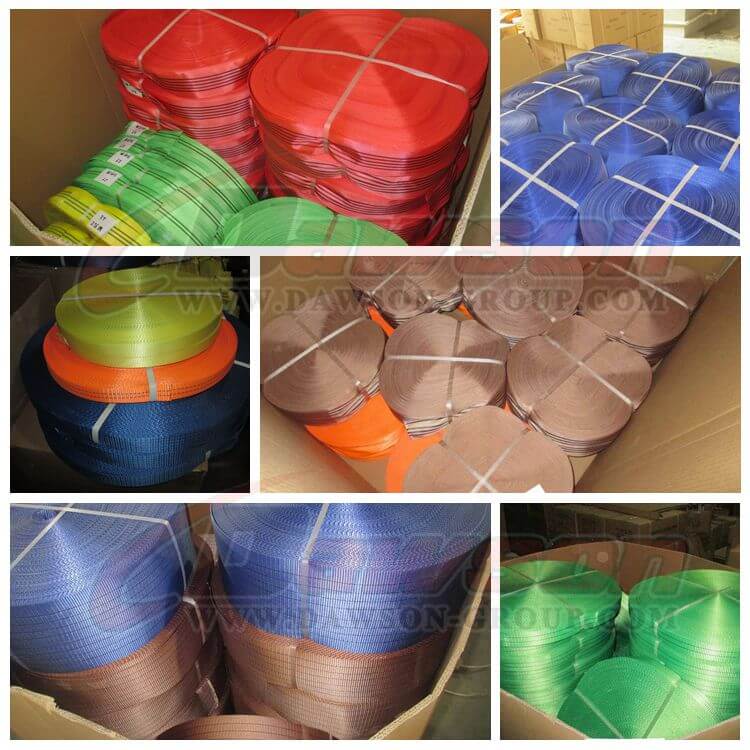

Factory & Package Show:
